INSTALLATION INSTRUCTIONS
WARNING: DO NOT EXCEED PRODUCT RATING OR TOW VEHICLE LAMP LOAD RATING, WHICHEVER IS LOWER
APPLICATIONS
Make
Model
Toyota
Avalon
Toyota
RAV4

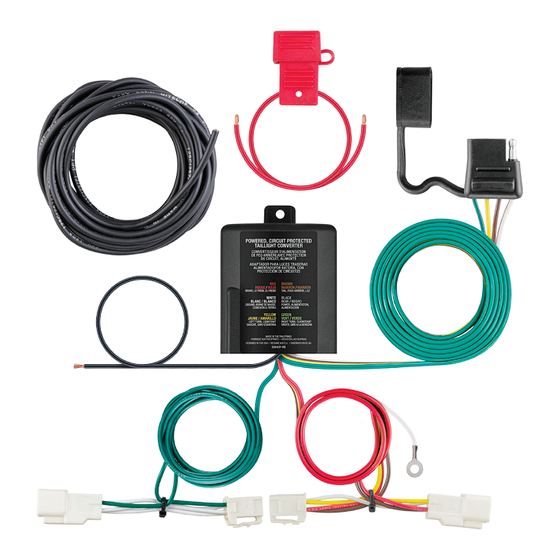

CUSTOM WIRING HARNESS
WARNING
The battery connection must be fuse-protected, 10-amp max.
Exceeding the product rating can cause loss of warranty,
overheating and potential fire. Do not exceed product rating
or tow vehicle lamp load rating, whichever is lower.
Signal Circuits - 3.0 amps per side
Tail / Running Circuits - 6.0 amps total
Check vehicle owner's manual or contact
the vehicle manufacturer for more information.

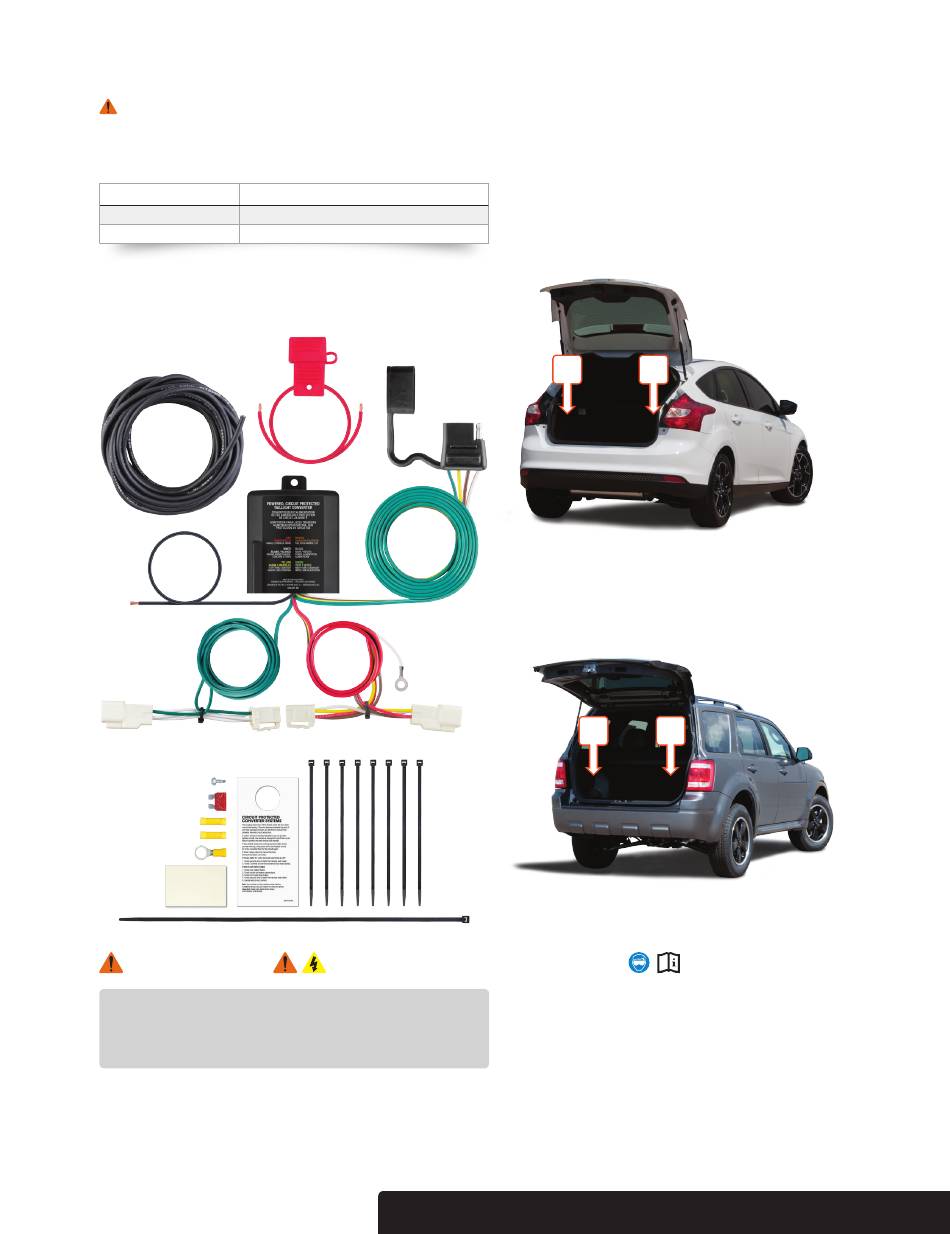

WIRING LOCATION GUIDE
PASSENGER CARS ( P )
Representative vehicle shown below
P3 - Behind driver side taillight housing, inside of trunk
P4 - Behind passenger side taillight housing, inside of trunk
P3
P4
SUVS, MINI & FULL-SIZED VANS ( S )
Representative vehicle shown below
S3 - Behind driver side rear access panel
S4 - Behind passenger side rear access panel
S3
S4
NOTICE
All steps must be followed to ensure the wiring harness
will function properly. Once installed, test for proper function
by using a test light or connecting a properly wired trailer.
TOOLS NEEDED
10mm socket
Ratchet
Panel trim removal tool
Phillips screwdriver
PAGE 1 • 56350-INS-RB
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for curt 56350
Summary of Contents for curt 56350
- Page 1 Signal Circuits - 3.0 amps per side Tail / Running Circuits - 6.0 amps total 10mm socket Panel trim removal tool Ratchet Phillips screwdriver Check vehicle owner's manual or contact the vehicle manufacturer for more information. PAGE 1 • 56350-INS-RB...
- Page 2 (H). prevent corrosion. Insert the custom wiring harness end with yellow wire between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place. 56350-INS-RB • PAGE 2...
