INSTALLATION INSTRUCTIONS
WARNING: DO NOT EXCEED PRODUCT RATING OR TOW VEHICLE LAMP LOAD RATING, WHICHEVER IS LOWER
APPLICATIONS
Make
Model
Chevrolet
Traverse

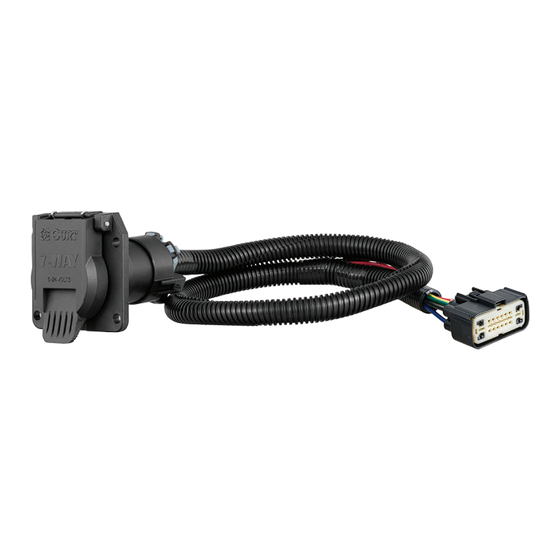

CUSTOM WIRING
CONNECTOR

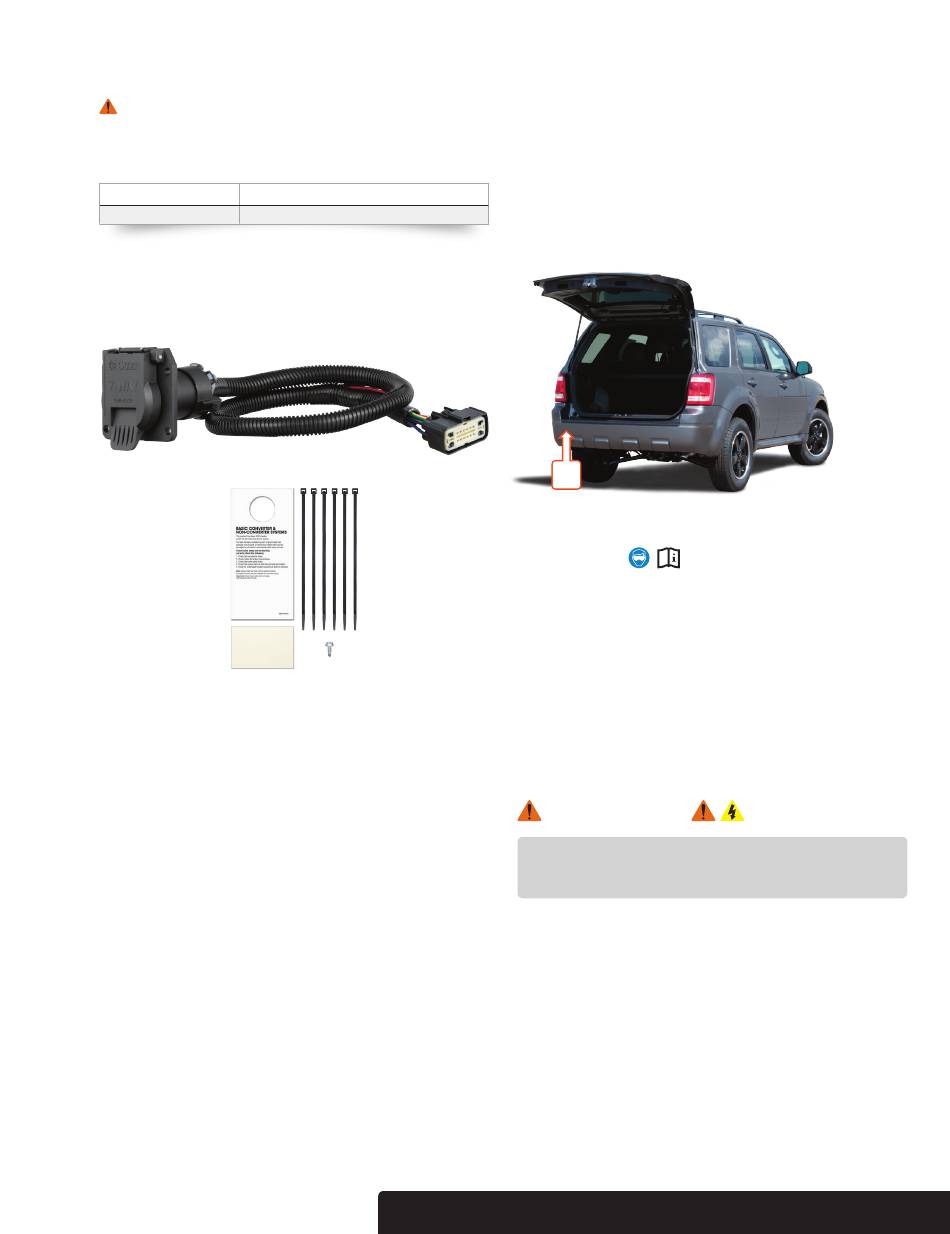

WIRING LOCATION GUIDE
SUVS, MINI & FULL-SIZED VANS ( S )
Representative vehicle shown below
S5 - Behind driver side rear bumper
S5
NOTICE
All steps must be followed to ensure the wiring connector will
function properly. Once installed, test for proper function by
using a test light or connecting a properly wired trailer.
TOOLS NEEDED
Ratchet
15mm socket
Socket extension
WARNING
Exceeding the product rating can cause loss of warranty,
overheating and potential fire. Do not exceed product rating
or tow vehicle lamp load rating, whichever is lower.
Max. Stop / Turn Light - 10.0 amps total
Max. Taillights - 10.0 amps total
Max. Backup - 10.0 amps total
Max. Power Circuit - 30.0 amps total
Max. Trailer Brakes (3 axles / 6 brakes) - 20.0 amps total
Check vehicle owner's manual or contact
the vehicle manufacturer for more information.
Flat blade screwdriver
Panel trim removal tool
Cutting tool
PAGE 1 • 56393-INS-RA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for curt 56393
Summary of Contents for curt 56393
- Page 1 Max. Backup - 10.0 amps total Max. Power Circuit - 30.0 amps total Max. Trailer Brakes (3 axles / 6 brakes) - 20.0 amps total Check vehicle owner's manual or contact the vehicle manufacturer for more information. PAGE 1 • 56393-INS-RA...
- Page 2 Determine the 7-way mounting location. Route the other end of the custom wiring connector along the inside of the bumper, toward the center of the vehicle and to the 7-way mounting location. Secure any loose wires with the provided cable ties 56393-INS-RA • PAGE 2...
