Kogan KADA312WRSA User Manual

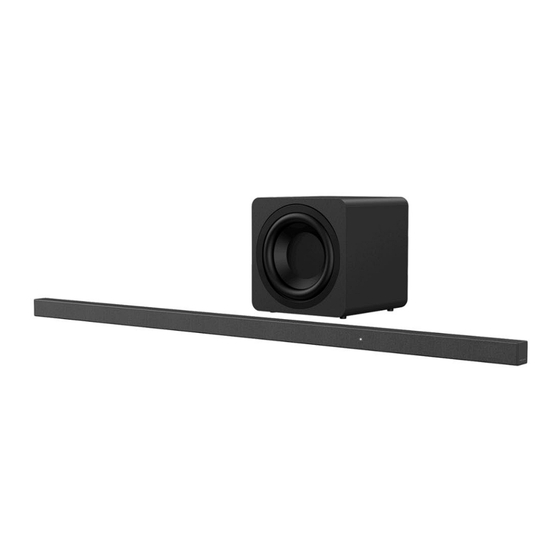

Ultra slim dolby atmos soundbar with wireless subwoofer
Hide thumbs

Advertisement

Table of Contents

ULTRA SLIM DOLBY
ATMOS SOUNDBAR
WITH WIRELESS SUBWOOFER
KADA312WRSA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KADA312WRSA and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan KADA312WRSA

Summary of Contents for Kogan KADA312WRSA

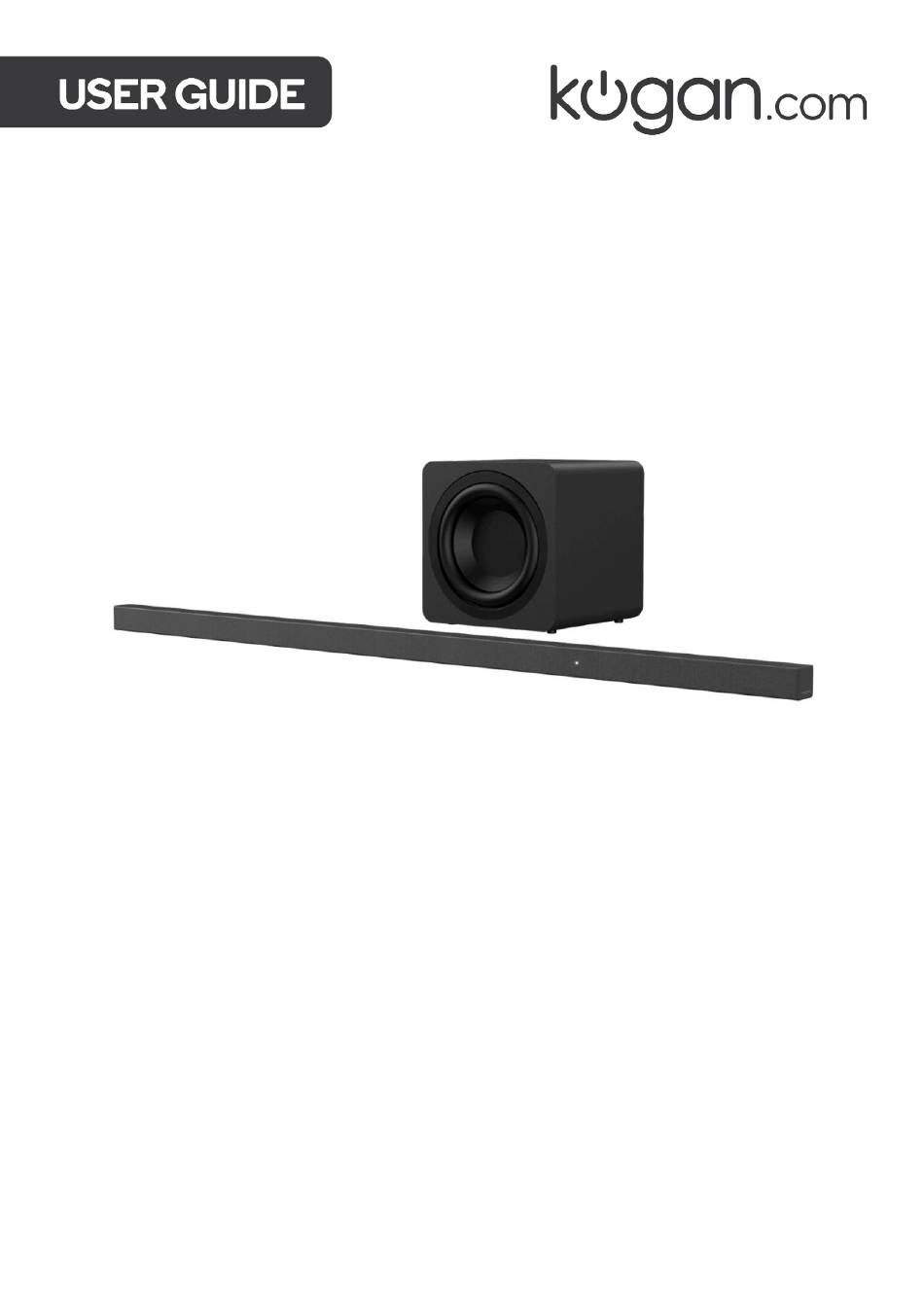

  • Page 1 ULTRA SLIM DOLBY ATMOS SOUNDBAR WITH WIRELESS SUBWOOFER KADA312WRSA...

  • Page 3: Safety And Warnings

    • Do not bypass the safety features of polarized or grounding-type plugs. • Protect the power cord from being walked on or pinched. • Only use attachments and accessories specified by Kogan.com. • Unplug the product during lightning storms or when unused for long periods.
  • Page 4 • Before operating, check the voltage to ensure it matches your local power supply. • Do not place the unit close to strong magnetic fields or on an amplifier or receiver. • If any object or liquid falls into the system, unplug and contact help.Kogan.com for support.
  • Page 5 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kogan.com is under license. Other trademarks and trade names are those of their respective owners. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
  • Page 6 COMPONENTS Soundbar Wireless Subwoofer AC Adapter Wall mounting kit HDMI cable (for Soundbar) AC Power Cord AAA Batteries (x2) Remote Control (for Subwoofer) Note: Images, illustrations and drawings shown on this User Guide are for reference only, actual product may vary in appearance.
  • Page 7 OVERVIEW Soundbar Indicator / Remote Control Sensor • LED: Mode • Red: Standby • White: HDMI eARC/ARC • Blue: BT (Bluetooth) Wall bracket screws HDMI eARC/ARC Socket Power input port...
  • Page 8 Wireless Subwoofer Power input port Pair button Pair Indicator Remote Control Switch the soundbar between ON and Standby mode. • Enables Bluetooth mode. • Activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device. Increase/decrease the volume. Adjust bass level.

  • Page 9: Installation

    INSTALLATION Option A: Tabletop placement • If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centered with the TV screen. • If your TV is attached to a wall, you can mount the soundbar on the wall directly below the TV screen.
  • Page 10 Drill 2 parallel holes (Ø4mm/0.16” each, according to your wall type) in the wall. The distance between the holes should be 1053 mm. Insert wall anchors into each hole in the wall if necessary. Tighten the wall mount brackets on the wall with screws and a screwdriver (not included). Ensure they are securely installed.

  • Page 11: Operation

    OPERATION Remote Control The provided remote control allows the soundbar to be operated from a distance. • Even if the remote control is operated within the effective range of 6m, remote control operation may be impossible if there are any obstacles between the soundbar and the remote control.
  • Page 12 Pairing the Subwoofer The subwoofer and soundbar will automatically pair when both units are plugged into an electrical outlet and turned on. No cable is required for connecting the two units together. Soundbar: Insert the AC Adapter into the power input port (DC IN) and switch on the soundbar.
  • Page 13 Dolby Atmos • Dolby Atmos gives you immersive listening experience by delivering sound in three- dimensional space and all the richness, clarity and power of Dolby sound. • For more information, please visit dolby.com/technologies/Dolby Atmos Using Dolby Atmos Dolby Atmos is available only in HDMI mode. For the details of the connection, please refer to “HDMI Connection”.
  • Page 14 Press the button on the remote control to select Bluetooth® mode. The Blue indicator will flash slowly. On the Bluetooth device, switch on Bluetooth, search for and select ‘Kogan KADA312WRSA’ to start pairing. Wait until you hear the voice prompt from the soundbar.

  • Page 15: Cleaning And Care

    CLEANING & CARE Do not subject the unit to excessive force, shock, dust or extreme temperature. Do not tamper with the internal components of the unit. Clean the unit with a damp (never wet) cloth except metal contact or speaker grille. Solvent or detergent should never be used.

  • Page 16: Specifications

    SPECIFICATIONS Soundbar Adapter Mode KA4801A-2402000EU Input 100-240V~ 50/60Hz, 1.2A (Max) 24V=2.0A 48 W Output (Use only the power supplies supplied) Power Consumption < 0.5W (Stand By) Dimensions 1100×40×34.5mm Net weight 1.2kg Frequency Response 120Hz - 20KHz Bluetooth version / profiles V 5.3 (A2DP, AVRCP) Bluetooth frequency range 2400 MHz ~ 2483.5 MHz...

  • Page 17: Troubleshooting

    TROUBLESHOOTING If you encounter problems when using this soundbar, check the following points before requesting service. For further support, contact help.Kogan.com. Avoid attempting to repair the system yourself to prevent any potential issues. Problem Solution • Ensure that the power cords of the both products are properly connected.
  • Page 18 • Before you press any playback control button, first select the correct source. • Reduce the distance between the remote control and the sound bar. Remote control does not • Insert the battery with its polarities (+/-) aligned as work indicated.
  • Page 19 NOTES...
  • Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
