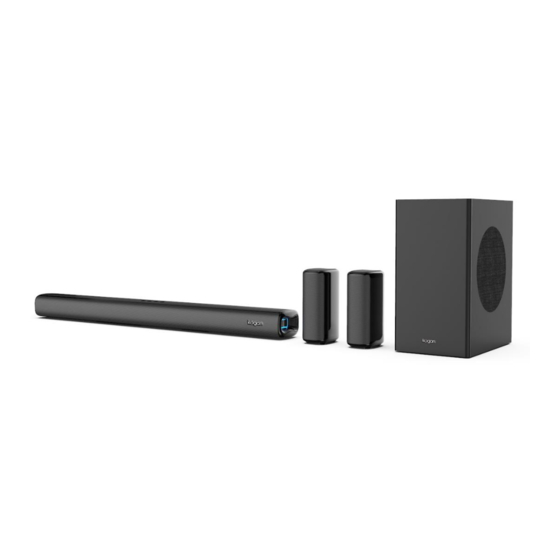

- Page 1 7.1.2CH 525W DOLBY ATMOS SOUNDBAR WITH SUBWOOFER & REAR SPEAKERS KASBD712AJA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Operation Connectivity Specifications Troubleshooting Notes... -
Page 3: Safety & Warnings
• To reduce the risk of electric shock, do not dismantle the product and do not expose it to rain or moisture. • Servicing or repair should only be conducted by a qualified professional. If this product is damaged, contact help.Kogan.com for support. • Always ensure the power plug is easily accessible. Notice •... - Page 4 • Do not use this product outdoors. • Unplug this product during lightning storms or when unused for long periods of time. • If this product or its power cord is damaged, cease use immediately and contact help.Kogan.com for support.
-
Page 5: Overview
OVERVIEW Soundbar Display Digital display screen. Power Power on/off. - Volume Decrease the volume. + Volume Increase the volume. Input Select an input source for the soundbar. AC IN Connect to power. Connect to an optical audio output port on a TV or digital Optical device. - Page 6 Subwoofer Indicator Indicates pairing between the soundbar and the subwoofer. Pair Pair the soundbar to the subwoofer. For software upgrade only (can't play MP3 music). AC IN Connect to power.
- Page 7 Rear Speakers L/R Switch. Switch the speakers between Pair Pair the soundbar to the rear speakers. For software upgrade only (can't play MP3 music). Indicator Indicates the pairing between the soundbar and rear speakers. DC IN Connect to power.
- Page 8 Remote Control Power Power on/off. + Volume Increase master volume. Previous Previous track (in USB & BT modes only). • Press to play/pause (in USB & BT modes only). • Press to mute (in Aux, Optical & HDMI eARC modes Play/Pause/Mute only).
- Page 9 Microphone level, Echo level, toggle Karaoke Decrease Vocal Cancel off, toggle LED lighting mode, decrease Bass level, Treble level, Centre level and Surround level. Note: A microphone is not provided with this soundbar. To use the karaoke functions, separately purchase the microphone recommended by Kogan.com.
-
Page 10: Operation
OPERATION Range of the Remote Control • When the soundbar is mounted on a wall, point the remote control at the remote- control sensor on the bellowed panel. The provided remote control allows the soundbar to be operated from a distance. •... - Page 11 Breathing Led Light Colour Selection Connect the soundbar to an electrical outlet. The soundbar will be in standby mode and --' will be appear on the display. Press the Power button on the soundbar or the remote control to power on the soundbar.
- Page 12 Karaoke Vocal Cancel Setting Connect the soundbar to an electrical outlet. The soundbar will be in standby mode and --' will be appear on the display. Press the Power button on the soundbar or the remote control to power on the soundbar.
- Page 13 Positioning the Soundbar Place on a flat surface: Place the soundbar horizontally on a flat surface such as a shelf and align it centrally with soundbar inside a cabinet or a walled shelf. Follow this guidance for best sound output and good airflow around the soundbar.
- Page 14 Drill 2 holes in the wall the same distance apart as the wall bracket on the soundbar. Place the wall anchors into the holes and secure with the screws. Do not tighten the screws all the way; ensure some space is remaining. Once the screws are securely fastened, hang the soundbar by inserting the screws into the wall bracket.
- Page 15 Mount the Speakers Drill 2 holes on the wall the same distance apart as the two rear speakers. Place the wall anchors into the holes and secure with the screws. Do not tighten the screws all the way; ensure some space is remaining. Once the screws are securely fastened, hang the rear speakers by inserting the screw into the wall bracket on each rear speaker.
- Page 16 Using the Soundbar • Before connecting the power cord, ensure you have completed all other connections. • Ensure the electrical outlet voltage corresponds to the voltage printed on the back or underside of the soundbar to prevent damage. • Connect the power cord to the AC IN port and then into an electrical outlet. Basic Operation Press the Power button on either the remote control or the soundbar to turn on the soundbar.
- Page 17 Power On/Off Plug one end of the power cord into the AC IN port on the soundbar and the other end into an electrical outlet (see the following diagram). The soundbar will be in standby mode, Turn the soundbar on by pressing the Power button on soundbar or the remote control.
- Page 18 Select Modes • Press the button on the soundbar repeatedly or press the Input button on the remote control to select the Bluetooth, AUX, OPTICAL, HDMI eARC or USB mode. The selected mode will show on the display. • Below are the Input mode names that appear on the display: - Bluetooth Pairing mode, - AUX mode,...
- Page 19 Input button on the remote control to switch to Bluetooth mode. will flash on the display and the soundbar will be in pairing mode. On the Bluetooth device, enable Bluetooth and select KASBD712AJA from the list of devices to start connection (see the Bluetooth device on how to enable Bluetooth).
- Page 20 Notes: • Having connection problems? Remove KASBD712AJA from your device's Bluetooth , try pairing again. To get the best sound quality, ensure there is a clear line of sight between the connected device and your soundbar. • If your paired or connected device is switched off or manually disconnects, the soundbar will automatically enter pairing mode.
-
Page 21: Connectivity
CONNECTIVITY Cable. Satellite or network set- top box or BD/DVD player Remove the Check the direction Mobile cap. of the plug. Device Optical PC/MAC Wireless signal Wireless signal... - Page 22 Playing Audio via Audio Input (Aux) Connection • Use a 3.5mm to 3.5mm audio cable to connect a PC, tablet, smartphone, or TV headphone port to the AUX port on the soundbar. • Use an RCA to 3.5mm audio cable to connect a BlueRay DVD Player or TV audio output port to the AUX port on the soundbar.
- Page 23 Notes: • Some 4K HDR TVs require the HDMI input or picture settings to be set for HDR content reception. For further setup details on HDR display, please refer to the user guide of your TV. • Your TV must support the HDMI-CEC and e-ARC function. HDMI-CEC and e-ARC must be set to be on.
-
Page 24: Specifications
SPECIFICATIONS Output power (55W x 3) + (45W x 2) + (45W x 4) + (90W) = 525W Bluetooth version Dimensions • Soundbar: 74 x 105 x 960L mm (H x D x L) • Subwoofer: 190 x 306 x 367 mm (W x D x H) •... -
Page 25: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Another input source is Select an appropriate Input selected. source. The mute function is Cancel the mute function. activated. The volume of the Increase the volume level on the soundbar or connected soundbar or by remote control or device is too low. - Page 26 The automatic volume adjustment function is activated. To prevent The volume excessive loudness, the decreases when the Turn up the volume as required. soundbar automatically soundbar is turned on. controls its volume within a certain level when the soundbar is turned on. The soundbar is too close Move those devices away from Noise is heard.
- Page 27 The soundbar is too far Move the Bluetooth device away from the Bluetooth closer to the soundbar. device. A device emitting electromagnetic waves Do not use this product near (such as a microwave oven, devices that emit a wireless device, etc.) may electromagnetic waves.
- Page 28 A device emitting Do not use this soundbar near electromagnetic waves (such as a microwave oven, device that emit a wireless device, etc.) may electromagnetic waves. be placed nearby. • Connect the TV and soundbar using a 19-core HDMI cable. •...
- Page 29 • Turn off the soundbar and rear speakers by removing the power plug from the electrical outlet. The soundbar is Connection between the • Ensure the soundbar and disconnected from rear speakers and the rear speakers are connected the rear speakers. soundbar is not correct.
- Page 30 Dolby Atmos Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Dolby Vision, Dolby Atmos and the double-D symbol are trademarks of Dolby Laboratories. What is DOLBY ATMOS®? Dolby Atmos® transports you from the ordinary into the extraordinary with breathtaking, moving audio that fills your room and flows above and around you.
-
Page 31: Notes
