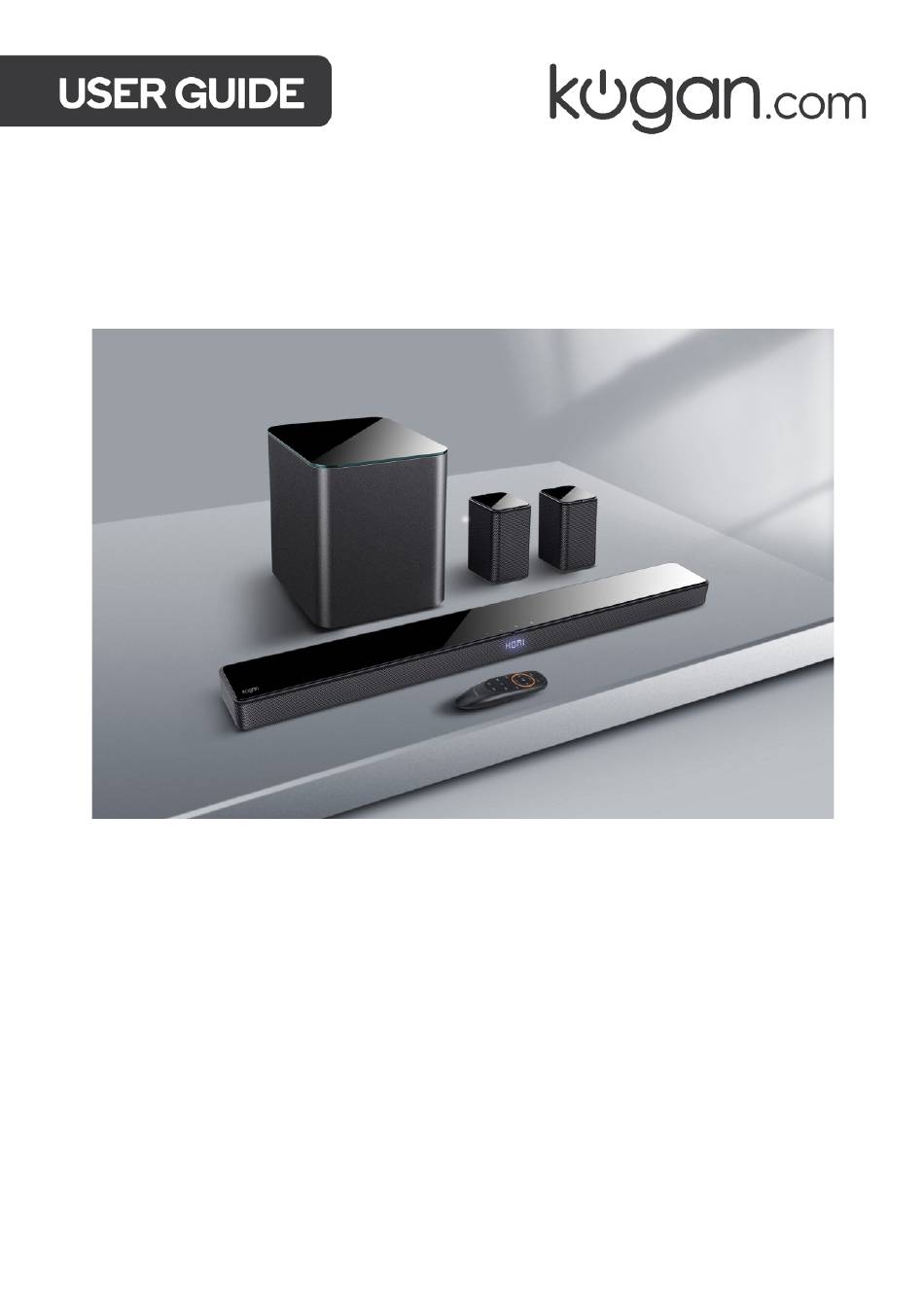

- Page 1 5.1CH 200W DOLBY SOUNDBAR WITH WIRELESS SUBWOOFER & REAR SPEAKERS KASBD513MA...
-
Page 3: Safety And Warnings
Never spill liquid of any kind on the product. • Do not use attachments not recommended by Kogan.com, as they may cause hazards. • Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult and serious damage to the product. - Page 4 • When replacement parts are required, ensure that the service technician has used replacement parts specified by Kogan.com. Unauthorised substitutions may result in fire, electric shock, or other hazards. • Do not turn up the volume while listening to a section with low-level inputs or no audio signals.
- Page 5 OVERVIEW Soundbar Standby Press this button to select different operating modes SOURCE Button (BT, AUX, USB, OPTICAL, COAXIAL, HDMI). - Volume Button + Volume Button LED Display Remote Control Sensor DC Power Input USB Port 3.5mm Aux-in Jack Optical Input Socket Coaxial Input Socket HDMI 1 Input HDMI 2 Input...
- Page 6 Subwoofer Bottom Front Back Pair Button Pairing Indicator AC Socket Power On/Off Switch Subwoofer Speaker Surround Speaker (Main Speaker "R") Mounting hole DC Jack Pair Button Audio Out Jack (to the Surround speaker "L") Pairing Indicator...
- Page 7 Remote Control SURR - SURR + MOVIE MUSIC TREB BASS MUTE 5.1/2.1 Press to switch the soundbar between on and standby mode. SURR– Press to decrease the surround speaker volume level. SURR+ Press to increase the surround speaker volume level. +VOL Press to increase the main volume level.
-
Page 8: Installation
INSTALLATION Placing the Soundbar on a Table <5m If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centred with the TV screen. If the surface of the table is flat, the soundbar will rest on its metal feet. - Page 9 CONNECTION Prepare the Remote Control Insert/replace the battery in the Remote Control. Open the battery compartment of the remote control. Insert 2pcs AAA type batteries. Pay attention to the correct polarity (+/-). Close the battery compartment. If the remote is not in use for a long period, remove the battery to prevent the battery acid from leaking.
- Page 10 Connecting an External Device using an HDMI Cable HDMI is an interface that enables the digital transmission of video and audio data with just a single connector. HDMI prevents any signal degradation due to conversion to analogue and maintains the video and audio quality of the original digital source.
- Page 11 Connecting an External Device Using 3.5mm Audio (Analogue) Cable or Coaxial/Optical (Digital) Cable DIGITAL DIGITAL 3.5MM OPTICAL COAXIAL AUDIO CABLE CABLE CABLE Not all TVs have the audio outputs as shown in the above image. To connect the soundbar directly to your other devices (Blu-ray player, game system, etc) see your device’s user guide. When using either of the digital inputs if the status indicator light is flashing quickly: •...
-
Page 12: Operation
OPERATION Pairing the Subwoofer to the Soundbar Note: Before connecting the AC power, ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the product. Insert the DC plug of the AC-DC power adaptor into the DC Power Input on the bottom of the soundbar and then connect the AC-DC adapter to a convenient power outlet. - Page 13 Activate Bluetooth on the compatible device and set it in the search mode. In your device, select the speaker name "KASBD513MA" from the list of found devices. Note: Only one device can be connected to the speaker. If the speaker is already connected to another device, it will not appear in your device’s...
- Page 14 If pairing has been carried out successfully, a prompt sound is heard. The “BT” symbol stops flashing. After the connection is complete, you can listen to music wirelessly through Bluetooth and select music in Bluetooth device. Press “+”/ “–” button to raise/lower the volume level. To disconnect, switch to another function or disable the function from your Bluetooth device.
-
Page 15: Cleaning And Care
USB Playback Press the button to switch on the soundbar. While in this mode, press the SOURCE button on the soundbar or remote control to select the USB mode. Connect a USB storage device directly into the port, after a few seconds, it will start playing music automatically. -
Page 16: Troubleshooting
TROUBLESHOOTING Problem Possible cause Solution No power supply • • Disconnected from the AC Reconnect to the AC outlet. outlet. • • AC outlet is not Change to another outlet. functioning. Remote control does • • Remote control’s battery Replace battery. not work is empty •... -
Page 17: Specifications
SPECIFICATIONS Power Supply Soundbar and rear speakers DC IN 20V/1.8A Subwoofer AC 100-240V 50/60Hz Speakers Transmission frequency 5.8 GHz 58db 3.5% (soundbar), 10% (subwoofer) Sensitivity 95db Frequency Response 30Hz～18KHz 36W (soundbar) Power Consumption 36W (rear speaker) 60W (subwoofer) <0.5W (soundbar) Standby Power <2W (rear speaker) Consumption... - Page 18 NOTES...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
