Kogan KADA512WRSA User Manual

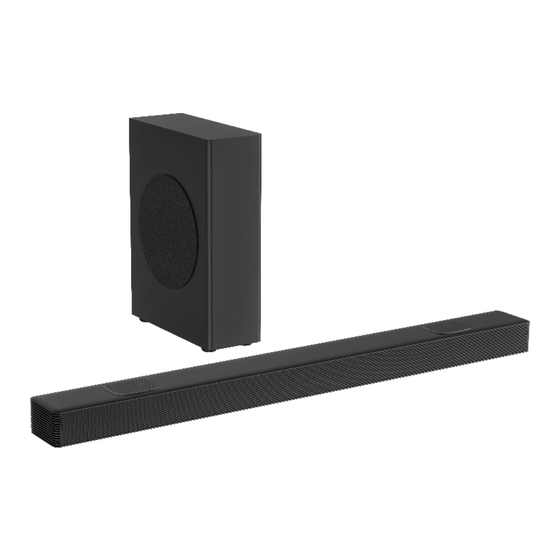

Dolby atmos soundbar with wireless subwoofer 5.1.2 channel, 200w
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DOLBY ATMOS SOUNDBAR
WITH WIRELESS SUBWOOFER
(5.1.2 CHANNEL, 200W)
KADA512WRSA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KADA512WRSA and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan KADA512WRSA

Summary of Contents for Kogan KADA512WRSA

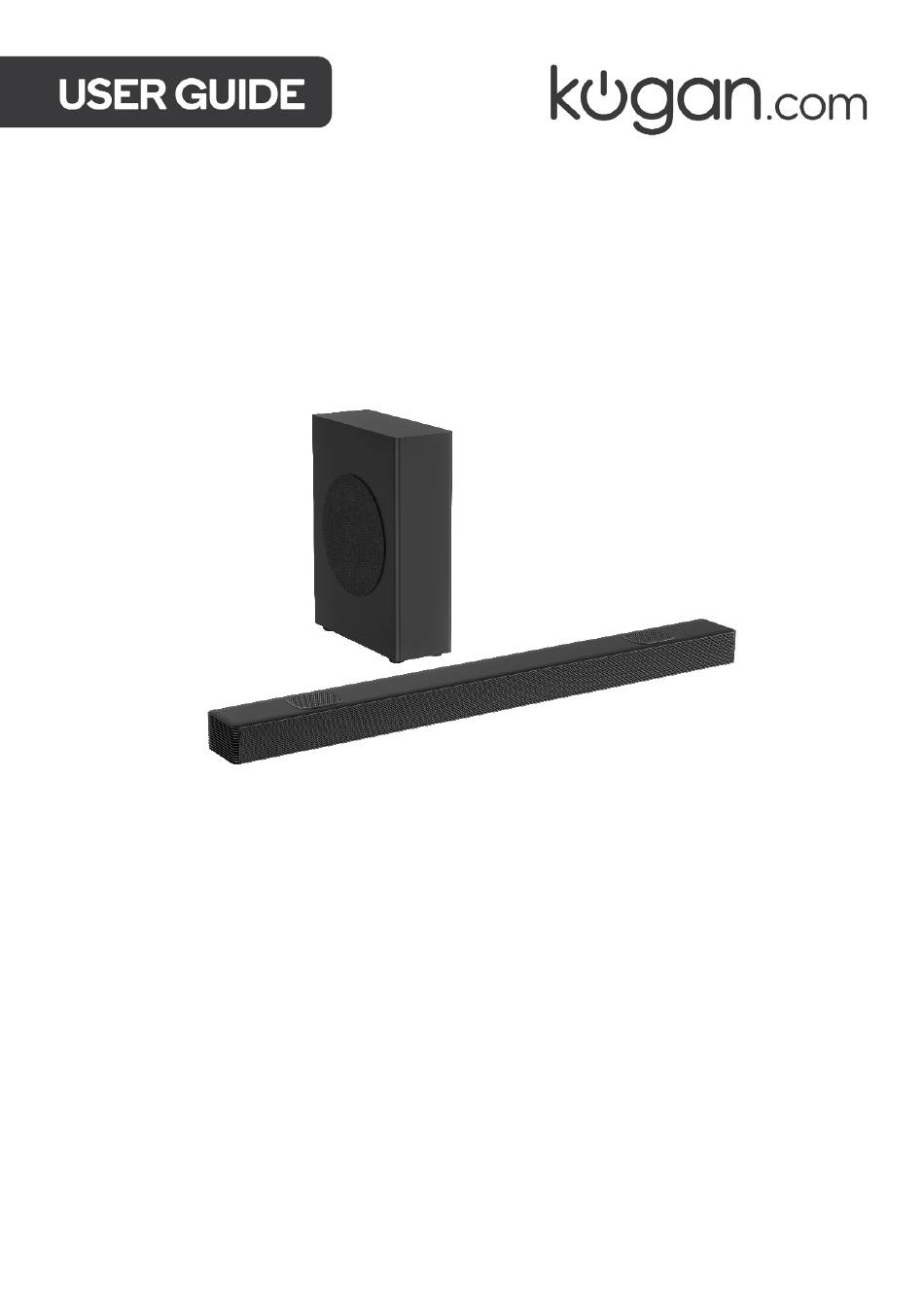

  • Page 1 DOLBY ATMOS SOUNDBAR WITH WIRELESS SUBWOOFER (5.1.2 CHANNEL, 200W) KADA512WRSA...

  • Page 2: Table Of Contents

    Safety & Warnings Components Overview Installation Operation Connectivity Specifications Troubleshooting Notes...

  • Page 3: Safety & Warnings

    • Do not bypass the safety features of polarized or grounding-type plugs. • Protect the power cord from being walked on or pinched. • Only use attachments and accessories specified by Kogan.com. • Unplug the product during lightning storms or when unused for long periods.
  • Page 4 • Before operating, check the voltage to ensure it matches your local power supply. • Do not place the unit close to strong magnetic fields or on an amplifier or receiver. • If any object or liquid falls into the system, unplug and contact help.Kogan.com for support.
  • Page 5 Bluetooth The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks are under license. Other trademarks and trade names are those of their respective owners. HDMI High-Definition Multimedia Interface The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

  • Page 6: Components

    COMPONENTS Soundbar Wireless Subwoofer Remote Control Power Cord (x2) HDMI Cable 3.5mm Audio Cable Wall Bracket Kit AAA Batteries (x2) User Guide Note: Images, illustrations and drawings shown on this User Guide are for reference only, actual product may vary in appearance.

  • Page 7: Overview

    OVERVIEW Sound bar Back 10 11 Remote Control Sensor Display: Shows the status. Power button: Switch the sound bar between ON and Standby mode Source button +/- (VOL) buttons: Increase/decrease the volume level. Wall bracket screws Power input port AUX port: Connect to an external audio device. USB port: Insert the USB device to play music.
  • Page 8 Subwoofer Power input port Pairing Indicator: Light stops blinking once the subwoofer is paired with the sound bar. Pair Button: Press activates the pairing function between the sound bar and subwoofer.
  • Page 9 Remote Control Power button: Switch the sound bar between ON and Standby mode Source button +/- (VOL) buttons: Increase/decrease the volume level. Adjust bass level. Selects a preset sound effect. Select the Bluetooth mode. Play/pause/resume playback in Bluetooth/USB mode. Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device.

  • Page 10: Installation

    INSTALLATION Option A: Tabletop placement • If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centered with the TV screen. • If your TV is attached to a wall, you can mount the soundbar on the wall directly below the TV screen.
  • Page 11 Drill 2 parallel holes (Ø5.5-6 mm each, according to your wall type) in the wall. The distance between the holes should be 965 mm. Insert wall anchors into each hole in the wall if necessary. Tighten the wall mount brackets on the wall with screws and a screwdriver (not included). Ensure they are securely installed.

  • Page 12: Operation

    OPERATION Remote Control The provided remote control allows the soundbar to be operated from a distance. • Even if the remote control is operated within the effective range of 6m, remote control operation may be impossible if there are any obstacles between the soundbar and the remote control.
  • Page 13 Automatic Power off Function • The soundbar automatically turns to standby mode after about 15 minutes if the TV or the external soundbar is disconnected, switched off, or the volume is too close to mute. • To switch the soundbar off completely, remove the mains plug from the electrical outlet.
  • Page 14 AUX / OPTICAL/HDMI Operation Ensure that the soundbar is connected to the TV or audio device. Press the source button repeatedly on the soundbar or on the remote control to select the AUX, OPTICAL, or HDMI OUT (TV eARC/ARC) mode. The selected mode will show on the display.
  • Page 15 Activate your Bluetooth device and select the search mode. “Kogan 512” will appear on your Bluetooth device list. Select “Kogan 512” and enter “0000” for the password if necessary. The soundbar will voice “Paired” and the display will show "BT".
  • Page 16 Listening to Music from a Bluetooth Device If your Bluetooth device supports A2DP, play music via your device. If your Bluetooth device supports AVRCP, use the supplied remote control to control playback. • To increase/decrease the volume, press the +/- (VOL) buttons. •...

  • Page 17: Connectivity

    CONNECTIVITY Dolby Atmos • Dolby Atmos gives you Immersive listening experience by delivering sound in three- dimensional space and all the richness, clarity and power of Dolby sound. • For more information, please visit dolby.com/technologies/Dolby Atmos Using Dolby Atmos Dolby Atmos is available only in HDMI mode. For the details of the connection, please refer to “HDMI Connection”.
  • Page 18 Tips: • Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On. • The setting method of HDMI-CEC and ARC may differ depending on the TV. For details about the ARC function, refer to the owner’s manual. •...
  • Page 19 AUX Input • Use a 3.5mm to 3.5mm audio cable (not included) to connect the TV’s or external audio device headphone socket to the AUX socket on the soundbar. • Use an RCA to 3.5mm audio cable (not included) to connect the TV’s audio output sockets to the AUX socket on the soundbar.
  • Page 20 Connecting Power WARNING: Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the soundbar. Before connecting the AC power cord, ensure you have completed all other connections. •...
  • Page 21 Pairing the Subwoofer Automatic pairing: The subwoofer and soundbar will automatically pair when both units are plugged into an electrical outlet and turned on. No cable is required for connecting the two units together. The pairing status can be determined by the indicator on the subwoofer. Indicator Status Flashing rapidly...

  • Page 22: Specifications

    SPECIFICATIONS Sound bar Power supply AC 100-240V~ 50/60Hz Power consumption 45W < 0.5 W (Standby) 5V=500mA Dimensions (W x H x D) 1000 x 65 x 95mm Net weight 3.31kg Audio input sensitivity 500mV Frequency Response 40Hz - 20KHz Subwoofer Power supply AC 100-240V~ 50/60Hz Power consumption...

  • Page 23: Troubleshooting

    TROUBLESHOOTING If you encounter problems when using this soundbar, check the following points before requesting service. For further support, contact help.Kogan.com. Avoid attempting to repair the system yourself to prevent any potential issues. Problem Solution • Ensure that the power cords of the both products are properly connected.
  • Page 24 • Make sure that the sound bar is not muted. Press MUTE or +/- (VOL) button to resume normal listening. • Press the power button on the sound bar or on the remote control to switch the sound bar to standby mode.

  • Page 25: Notes

    NOTES...
  • Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
