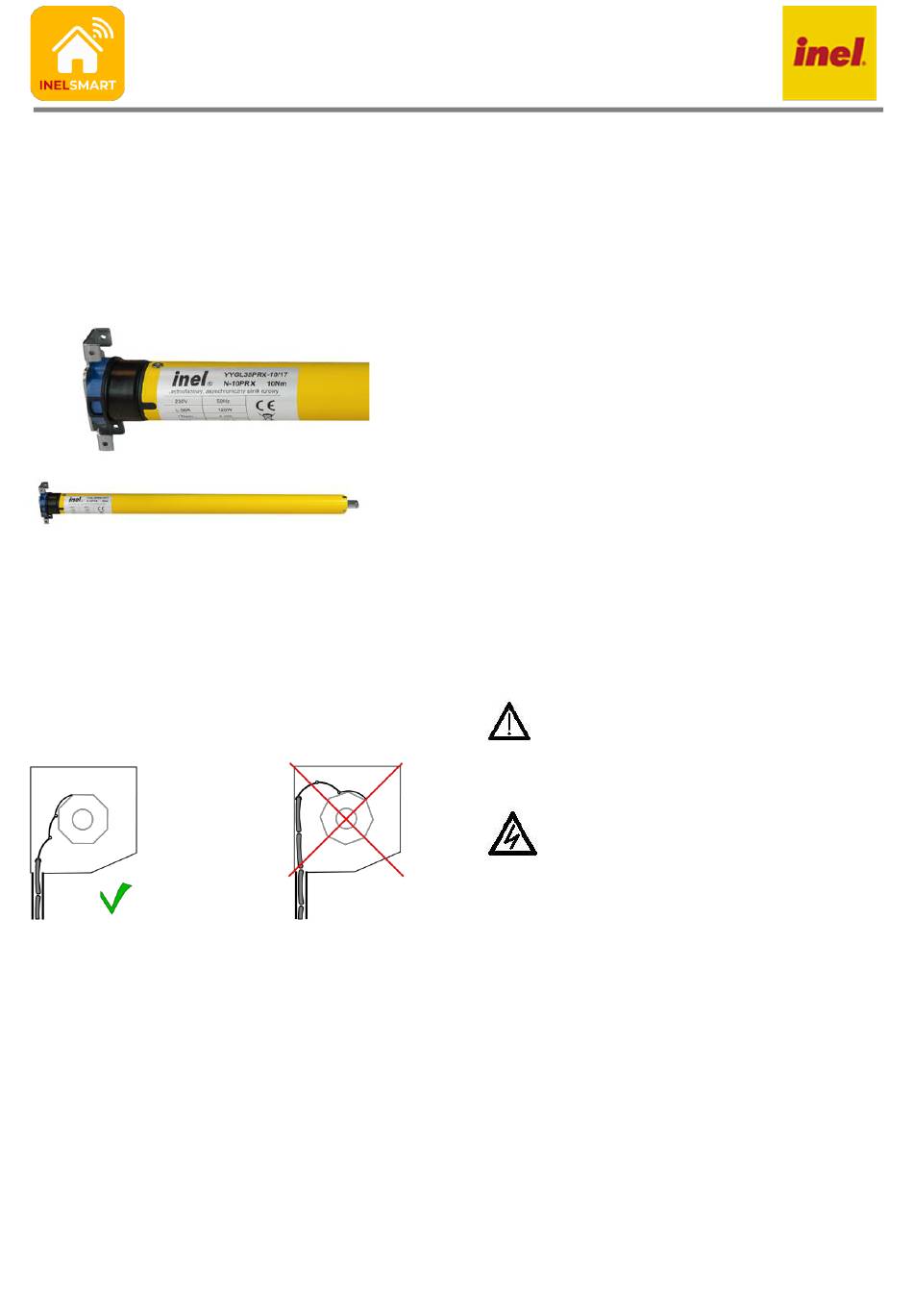

Inel INELSMART YYGL35PRX-10/17 Instructions

Instructions for the assembly and operation of drive types: YYGL
Models:
The drive with overload detection function and automatic limit
position setting is an InelSmart system device. The device is
equipped with a radio receiver with return channel. The information
transmitted via the return channel permit full control of the device.
The radio link operates at a frequency of 868.30 MHz.

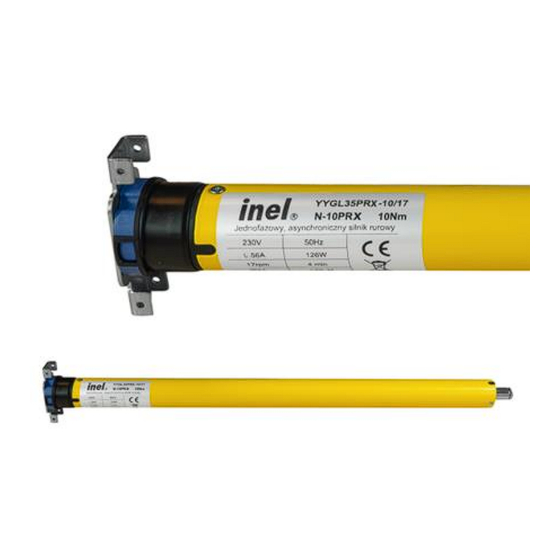

The drive is made in three versions:
•
YYGL35PRX-10/17 (N-10PRX)
•
YYGL35PRX-13/14 (N-13PRX)
•
YYGL45PRX-20/15 (N-20PRX)
To ensure correct operation of the drive, use lock hangers and
stoppers in the bottom slat. In order to improve the comfort of
use, stoppers should be located as close to the guides as possible.
There must be a sill in the window and the length of the
armouring should be adapted to the length of the guides.
Lock hanger assembly instructions
The length of the hanger and the roller blind must be selected so that
the hanger presses the first lamella of the armour down the guide.
Select the length of the hanger according to the recommendations of
the hanger manufacturer.
Instructions translated EN
YYGL35PRX-10/17, YYGL35PRX-13/14, YYGL45PRX-20/15
1. Safety instructions
1.1. Basic instructions
The drive with the overload detection function is put into operation
in a condition enabling its safe assembly and operation, provided
that all instructions contained in the operation manual and relevant
applicable safety and accident prevention regulations are observed.
Assembly and repairs of electrical equipment should be carried out
only by qualified persons with appropriate permits.
No conversions or modifications of the drive are permitted.
Guarantee repairs may be carried out only by the producer. Only
original spare parts and accessories should be used for post-
guarantee repairs. The operational safety of the delivered drive is
guaranteed only when used according to the producer's guidelines.
The threshold values given in our technical overview must in no case
be exceeded.
1.2. Supplementary safety provisions
Applicable safety and accident prevention regulations must be
observed with regard to the assembly, start-up or maintenance of the
drive. Special attention should be paid to:
•
fire safety regulations,
•
accident prevention regulations.
1.3. General notes on hazards and safety measures
The notes in bold are general instructions applicable to the use of
INEL devices in combination with other devices. These indications
must be strictly observed when assembling and operating these
devices.
NOTE – warning against possible damage to the drive,
roller shutter, roller shutter box, façade, etc. if
appropriate precautions are not taken.
Before assembling the drive and setting limit positions, check the
fixing of all screw connections.
Danger – it means that there is a risk to the user's life
and health if appropriate precautions are not taken.
• Before starting the device, compatibility between its permitted
voltage and the local supply voltage must be checked.
• Applicable safety and accident prevention regulations must be
observed.
• A switch enabling safe disconnection of the power supply (e.g.
fuse isolator) must be used. It must be assembled in such a way
that all connections can be easily disconnected.
• Conductors and cables should be regularly controlled in terms of
damaged insulation and wire continuity.
• If conductor damage is found, power supply must be immediately
disconnected and damaged conductors replaced.
1.4. Warning
•
Don't let children play with the control devices.
•
Keep remote control devices out of the reach of children.
•
Observe the moving roller shutter and keep people away from it
until it fully opens or closes.
•
Users of the roller shutter should be trained in and instructed on
how to operate it and informed about hazards connected with its
use. Users can be considered trained if the employer,
administrator or owner permitted them to start the roller shutter
and instructed them on how to use it.
