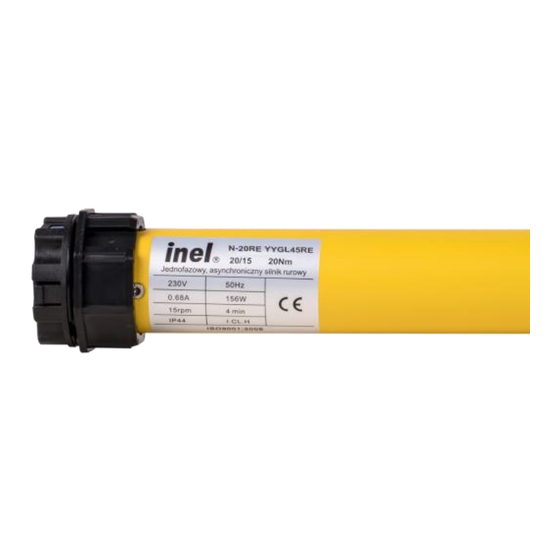

The drive with integrated radio receiver and obstacle detection for Zip
Screen roller shutters is manufactured in five versions:
YYGL45RES-6/15 (N-6RES)
YYGL45RES-10/15 (N-10RES)
YYGL45RES-15/15 (N-15RES)
YYGL45RES-20/15 (N-20RES)
YYGL45RES-40/15 (N-40RES)
During the upward movement of the roller shutter, the drive detects an
overload of the motor, i.e. a drop in its speed. During the downward
movement of the roller shutter, the drive detects obstacles that disable its
bottom bar. There are the following possibilities for setting the end
positions:
Upper end position:
- on the bottom slat - stopping as a result of detecting a drop in motor
speed
- at the desired point
Lower end position:
- at the desired point
- on sill - stop as a result of detection of an obstacle
1. Safety guidelines
1.1 Basic guidelines
The obstacle detection motor is delivered in a condition allowing for
safe installation and operation, provided that all guidelines herein as
well as relevant safety and accident prevention regulations are
observed.
Only qualified and licenced personnel is allowed to install and repair
electrical devices. It is prohibited to make any changes or
modifications to the drive. Warranty repairs may be conducted only by
the manufacturer. Use only original spare parts and accessories during
post-warranty repairs. Operational safety of the drive can only be
ensured if it is used for its intended purpose. Do not exceed limit values
given in technical information.
1.2 Additional safety regulations
Observe relevant safety and accident prevention regulations when
installing, commissioning and maintaining the drive. The following must
be given special consideration:
1. Fire safety regulations.
2. Accident prevention regulations.
1.3 General notes on risks and safety measures
These notes are general guidelines for the use of INEL devices in
combination with other devices. These guidelines must be strictly
observed when installing and operating the devices.
Instructions translated EN
Installation and use instructions for drive types: YYGL
Models:
YGL35RES
Warning - against possible damage to the drive, roller
blind, roller blind cassette, elevation etc. if no relevant
safety measures are taken:
• Check if all screw connections are secure before installing the
drive and setting limit switches
Danger - means that there is a threat to life and limb of the
user if no relevant safety measures are taken:
• Check the compatibility of the permissible voltage of the device
with the local power supply before connecting.
• Observe applicable safety and accident prevention regulations.
• Use an isolation switch allowing for safe power supply
disconnection (e.g. fuse cut-off switch) installed in such a way that
all connections can easily be cut out.
• Inspect wires and cables regularly for damaged insulation and
conductor continuity.
• If any damage is identified, cut off power immediately and replace
the damaged wiring.
1.4 Warning
• Do not allow children to play with control devices.
• Keep the remote control out of reach of children.
• Observe the moving roller blind and keep people away until it fully
opens or closes.
• The users of the roller blind must be instructed in its operation and
existing risks related to its usage. Persons are deemed to have been
trained if the employer, administrator or owner allowed them to use
the roller blind and instructed them in its operation.
2. Installation instructions
2.1
Safety regulations
• Only persons with appropriate authorisation may install the drive.
• The weight of the roller blind may not exceed the maximum load of
the drive specified in the selection table (see the end of the
instructions)
• Routing the cable properly (loop aimed downwards) will protect the
drive against any water damage.
• Do not drill holes in motor housing.
• Protect the motor against contact with any liquids.
• Avoid crushing and impacting the motor, protect the motor against
shock.

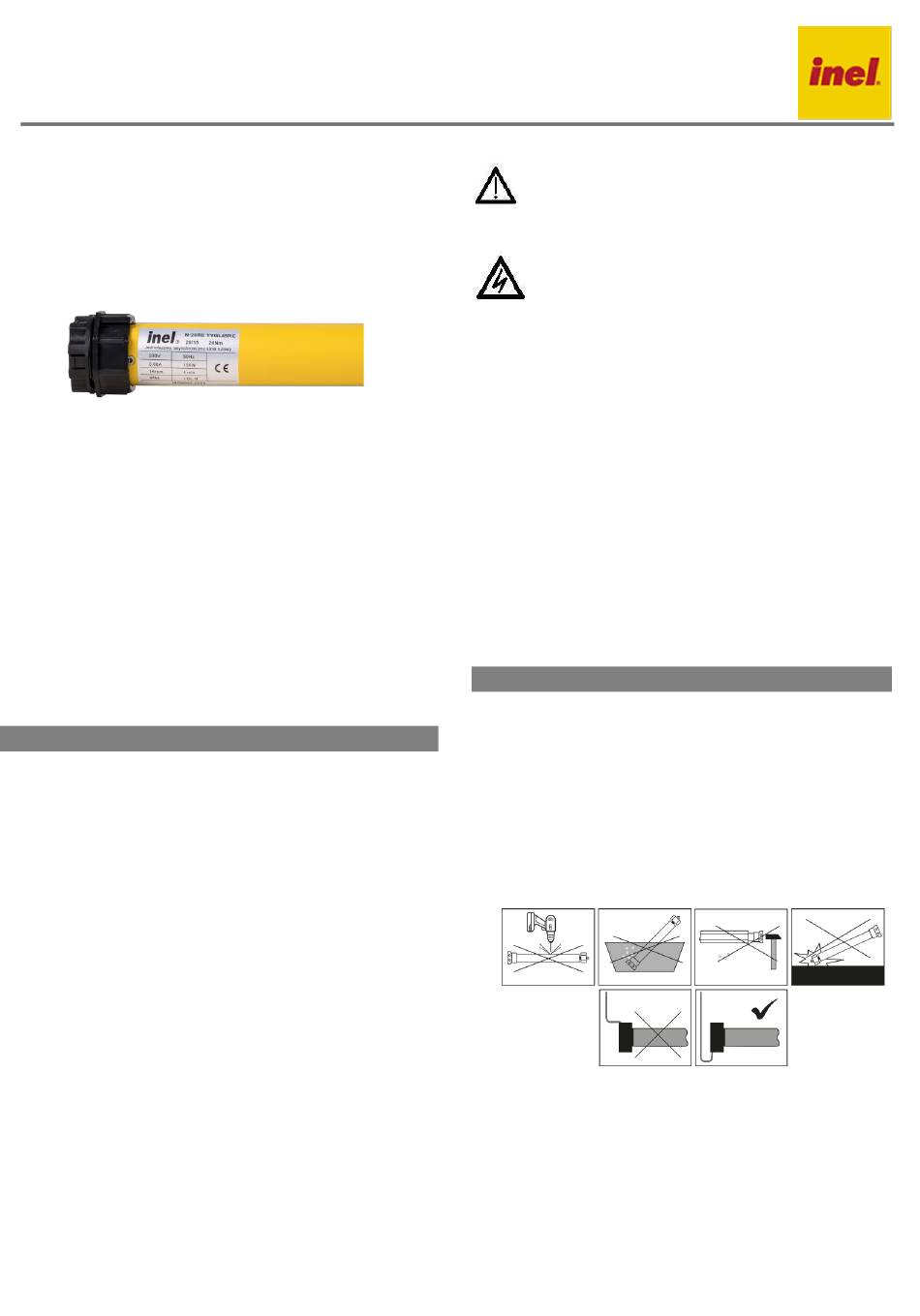

Figure 1
