Installation and use instructions for drive types: YYGL and GM
Models:
GM45R, YYGL45R, GM45R, YYGL45MR, GM45MR, YYGL59MR, GM59MR
The drive with integrated radio receiver with mechanical end stops is
manufactured in six versions:
YYGL35R-6/28,GM35R-6/28 (N-6R)
YGL35R-10/17, GM35R-10/17 (N-10R)
YYGL35R-13/14, GM35R-13/14 (N-13R)
YYGL45R-20/15, GM45R-20/15 (N-20R)
YYGL45R-40/15, GM45R-40/15 (N-40R)
YYGL45MR-50/12, GM45MR-50/11(N-50R NHK)
YYGL59MR-100/12, GM159MR-100/11(N-100R NHK)
1. Safety instructions
1.1 Basic guidelines
The drive is handed over in a condition for safe installation and
operation, provided that all instructions in the operating manual and
the valid valid safety and accident prevention regulations are observed.
Only qualified and authorised persons should work on the installation
and repair of electrical equipment. Alterations or modifications to the
drive are not permitted. Warranty repairs may only be carried out by
the manufacturer. Only original spare parts and accessories must be
used for post-warranty repairs. The operational safety of the delivered
drive is only guaranteed when used in accordance with the
manufacturer's specifications. The limit values specified in the
technical data may not be exceeded under any circumstances.
1.2 Supplementary safety provisions
Important safety and accident prevention regulations must be observed
when installing, commissioning, maintaining the drive. The following
regulations require special attention:
1. fire regulations.
2 Accident prevention provisions.
1.3 General comments on hazards and safety measures
The specified notes are general guidelines when using INEL
devices in combination with other devices. These indications must be
strictly adhered to when installing and operating the devices.
CAUTION - Warning of possible damage to the drive,
roller shutter, roller shutter box, façade, etc., if
appropriate
precautions
Before installing the actuator and setting the limit switches,
check the fixing of all screw connections.
Danger - means that there is a risk to the life and health
of the user if appropriate precautions are not taken:
Before switching on, it is necessary to check that the permissible
device voltage is compatible with the local supply voltage.
Observe
and
accident
.
Instructions translated EN
YYGL35R, GM35R, YGL35R, GM35R, YYGL35R, GM35R, YYGL45R,
are
not
applicable
prevention
regulations
A circuit breaker that allows safe disconnection of the power
supply (e.g. a fuse disconnector) should be used, installed so that
all connections can be easily disconnected.
Wires and cables should be checked regularly for insulation
damage and conductor continuity.
If the cables are found to be damaged, the damaged cables must
be replaced immediately after switching off the power supply.
1.4 Warning
Don't let children play with the controls.
Keep remote control devices out of the reach of children.
Watch the blind moving and keep people away until it is fully
open or closed.
Users of the roller shutter must be trained and instructed in how
to operate the roller shutter and in the dangers associated with its
use. People can be considered trained if the employer,
administrator or owner has allowed them to operate the roller
shutter and has instructed them on how to use it.
2. Assembly instructions
2.1 Safety rules
Installation of the drive must only be carried out by suitably
qualified persons.
The weight of the roller shutter must not exceed the load
capacity of the drive specified in the selection table.
The correct way to lay the cable (loop directed
downwards) further protects the drive from possible water
damage.
Do not drill holes in the motor housing.
Protect the engine from contact with any fluid.
Avoid crushing, hitting the motor and protect the motor from
falling.
taken:
safety

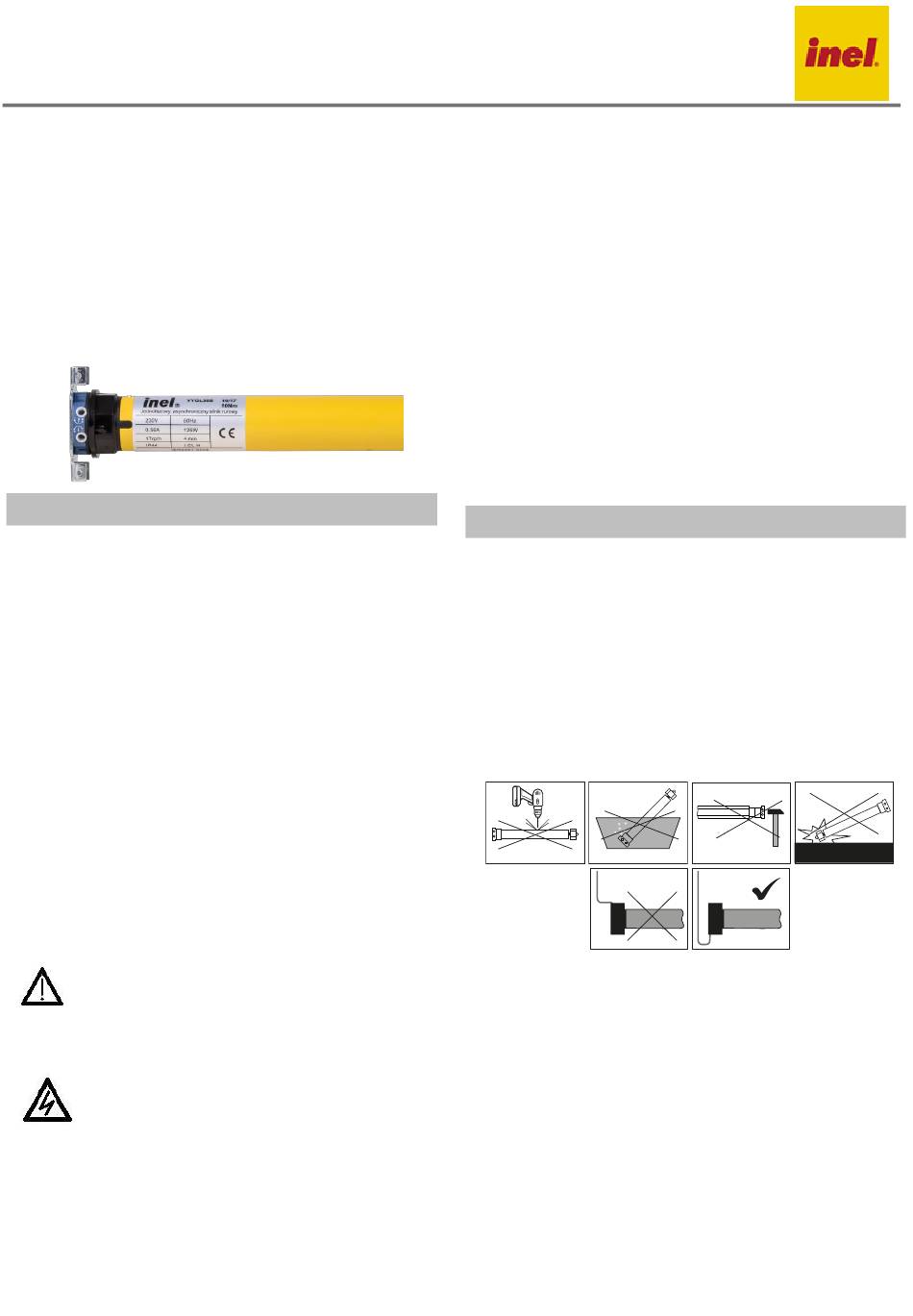

Figure 1
