Inel YYGL45ES Installation And Operating Instructions

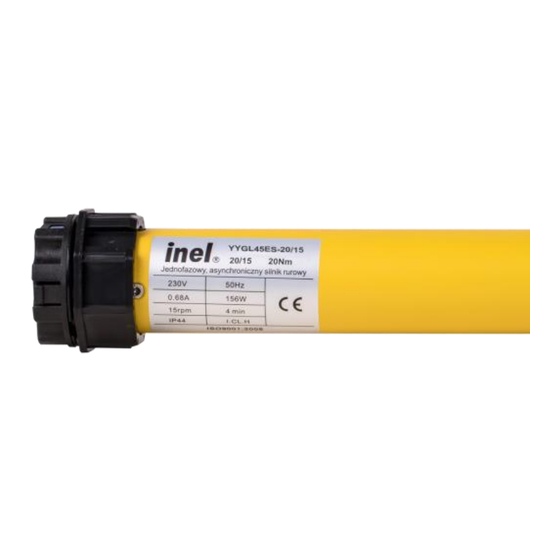

Installation and operating instructions for drives type: YYGL
The obstacle detection drive for Zip Screen roller shutters is
manufactured in five versions:
•
YYGL45ES-6/15 (N-6ES)
•
YYGL45ES-10/15 (N-10ES)
•
YYGL45ES-15/15 (N-15ES)
•
YYGL45ES-20/15 (N-20ES)
•
YYGL45ES-40/15 (N-40ES)
AFETY CONSIDERATIONS
Basic guidelines
1.
The drive with obstacle detection function is handed over in a
condition for safe installation and operation, provided that all
instructions in the operating manual and the valid important safety
and accident prevention regulations are observed. Only qualified and
authorised persons should work on the installation and repair of
electrical equipment. Alterations or modifications to the drive are not
permitted. Warranty repairs may only be carried out by the
manufacturer. Only original spare parts and accessories must be used
for post-warranty repairs. The operational safety of the delivered
drive is only guaranteed when used in accordance with the
manufacturer's specifications. The limit values specified in the
technical data may not be exceeded under any circumstances.
1.2 Supplementary safety provisions
Important safety and accident prevention regulations must be
observed when installing, commissioning, maintaining the drive. The
following regulations require special attention:
1. fire regulations.
2 Accident prevention provisions.
1.3 General comments on hazards and safety measures
The specified notes are general guidelines when using INEL devices
in combination with other devices. These indications must be strictly
adhered to when installing and operating the devices.
Caution - Warning of possible damage to the drive,
roller shutter, roller shutter box, façade, etc., if
appropriate precautions are not taken:
Danger - means that there is a risk to the life and health
of the user if appropriate precautions are not taken:
• Before installing the drive and setting the limit switches, check the
fixing of all screw connections.
• Before switching on, it is necessary to check that the permissible
device voltage is compatible with the local supply voltage.
• Observe applicable safety and accident prevention regulations.
• A circuit breaker that allows safe disconnection of the power
supply (e.g. a fuse disconnector) should be used, installed so that
all connections can be easily disconnected.
• Wires and cables should be checked regularly for insulation
damage and conductor continuity.
• If the cables are found to be damaged, the damaged cables must be
replaced immediately after switching off the power supply.
1.4 Warning
•
Don't let children play with the controls.
•
Keep remote control devices out of the reach of children.
•
Watch the blind moving and keep people away until it is fully
open or closed.
Instructions translated EN
Models:
YYGL45ES
•
Users of the roller shutter must be trained and instructed
in how to operate the roller shutter and in the dangers associated
with its use. People can be considered trained if the employer,
administrator or owner has allowed them to operate the roller
shutter and has instructed them on how to use it.
Assembly instructions
2.
2.1 Safety rules
• Installation of the drive must only be carried out by qualified
persons.
• The weight of the roller shutter must not exceed the load capacity
of the drive as indicated in the selection table (at the end of these
instructions).
• The proper way of laying the cable (loop pointing downwards)
further protects the drive from possible water damage.
• Do not drill holes in the motor housing.
• Protect the engine from contact with any fluid.
• Avoid crushing, hitting the motor and protect the motor from
falling.
• Do not connect more than one switch to one motor.
• Do not connect more than one motor to one switch.

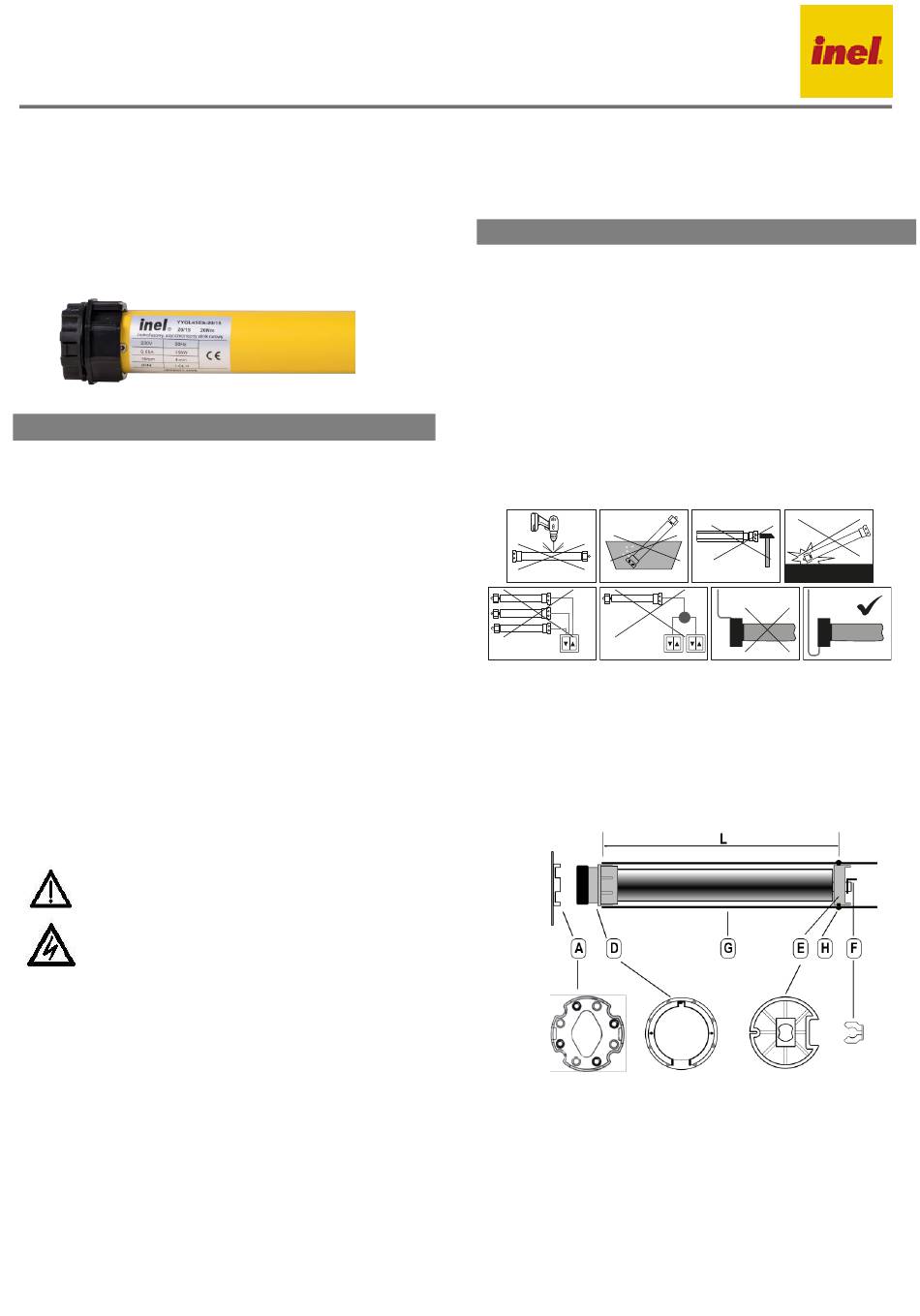

2.2 Mounting the motor
• Attach the mounting bracket (A) to the side of the roller shutter
box, connect the adapter (D) to the motor drive ring.
• Insert the special driver (E) (supplied with the motor) on the motor
shaft and secure it with the pin (F).
• Then slide the entire motor into the winding tube (G).
• Fasten the winding tube to the driver with screws or rivets (H).
NOTE
The motor is equipped with an internal thermal switch that allows the
roller shutter to run continuously for approximately 4 minutes. After
this time, the temperature inside the motor exceeds the permissible
value, which causes the power supply to be cut off. Movement of the
roller shutter is possible again once the motor has cooled down (this
takes a few to several minutes).
Figure 1
Figure 2
