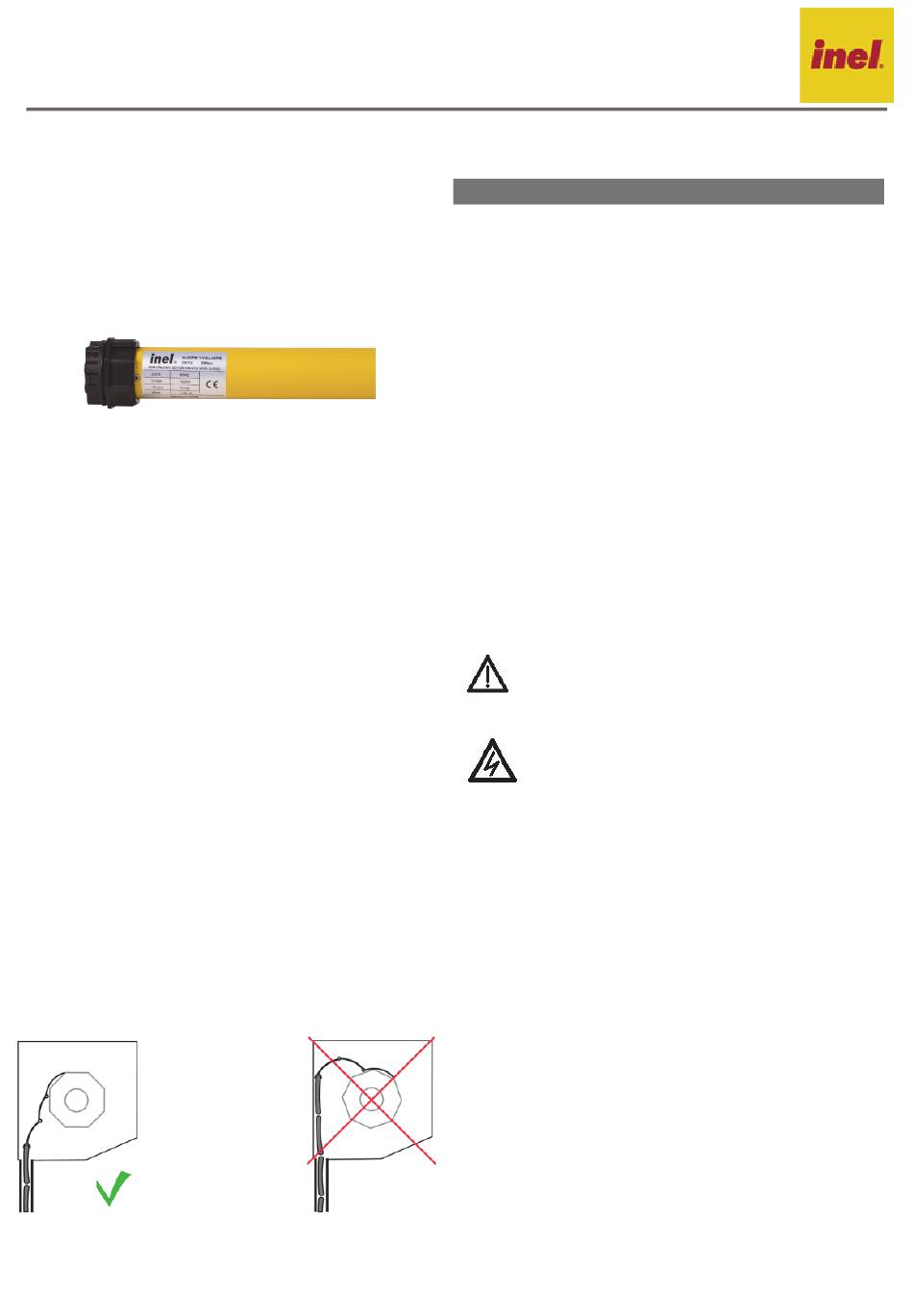

Inel YYGL35P-10/17 Instructions For Installation And Use

Instructions for installation and use of type YYGL and GM drives
Drive with overload detection function
is available in four versions:
YYGL35P-10/17, GM35P-10/17 (N-10P)
•
YYGL45P-10/17, GM45P-10/17 (N-10PSH)
•
• YYGL35P-13/14 (N-13P)
• YYGL45P-20/15, GM45P-20/15 (N-20P)
During both upward and downward movement of the roller shutter, this
drive tests the degree of motor overload (drop in RPM). If the speed
drops by a predetermined value (determined depending on whether the
motor is in or out of the end position zone), the motor is stopped and
further movement in that direction is blocked.
When stopping three times at the same point, the motor sets a limit
position at this point. In the zone defined by a quarter turn of the winding
tube upwards and a quarter turn of the winding tube downwards from
this point, the motor shows greater sensitivity to overload. In this way,
the motor will stop gently at the blocking hangers at the bottom and the
stopper at the top of the window.
The P type drive is in constant readiness to change the end position zone.
Zone change can occur in the following cases:
- when there is an obstacle between the end positions
- when the motor does not encounter an obstacle in the end position zone,
it passes the zone and continues to move until an overload occurs.
The P type drive automatically adapts to changes in the roller shutter
dimensions.
In order to ensure the correct operation of the motor, use blocking
hangers and stoppers in the lower slat. The stoppers should be placed as
close to the guides as possible to improve comfort. The window must be
fitted with a sill. The length of the curtain must be adjusted to the length
of the guides.
Guidelines for mounting the roller shutter blocking hangers
The length of the hanger and the roller blind must be selected so that the
hanger presses the first lamella of the armour down the guide. Select the
length of the hanger according to the recommendations of the hanger
manufacturer.
1.
Models:
YYGL35P-10/17, GM35P-10/17, YYGL45P-10/17, GM45P-10/17,
YYGL35P-13/14, YYGL45P-20/15, GM45P-20/15
Instructions translated EN
1. Safety guidelines
1.1 Basic guidelines
The overload detection motor is delivered in a condition allowing for
safe installation and operation, provided that all guidelines herein as well
as relevant safety and accident prevention regulations are observed. Only
qualified and licenced personnel is allowed to install and repair electrical
devices. It is prohibited to make any changes or modifications to the
drive. Warranty repairs may be conducted only by the manufacturer. Use
only original spare parts and accessories during post-warranty repairs.
Operational safety of the drive can only be ensured if it is used for its
intended purpose. Do not exceed limit values given in technical
information.
1.2 Additional safety regulations
Observe relevant safety and accident prevention regulations when
installing, commissioning and maintaining the drive. The following must
be given special consideration:
Fire safety regulations.
•
Accident prevention regulations.
•
1.3 General notes on risks and safety measures
These notes are general guidelines for the use of INEL devices in
combination with other devices. These guidelines must be strictly
observed when installing and operating the devices.
Warning - against possible damage to the drive, roller blind,
roller blind cassette, elevation etc. if no relevant safety
measures are taken:
• Check if all screw connections are secure before installing
the drive and setting limit switches
Danger - means that there is a threat to life and limb of the
user if no relevant safety measures are taken:
Check the compatibility of the permissible voltage of the device
•
with the local power supply before connecting.
• Observe applicable safety and accident prevention regulations.
• Use an isolation switch allowing for safe power supply
disconnection (e.g. fuse cut-off switch) installed in such a way that
all connections can easily be cut out.
• Inspect wires and cables regularly for damaged insulation and
conductor continuity.
If any damage is identified, cut off power immediately and replace
•
the damaged wiring.
1.4 Warning
• Do not allow children to play with control devices.
Keep the remote control out of reach of children.
•
• Observe the moving roller blind and keep people away until it fully
opens or closes.
The users of the roller blind must be instructed in its operation and
•
existing risks related to its usage. Persons are deemed to have been
trained if the employer, administrator or owner allowed them to
use the roller blind and instructed them in its operation.
.
