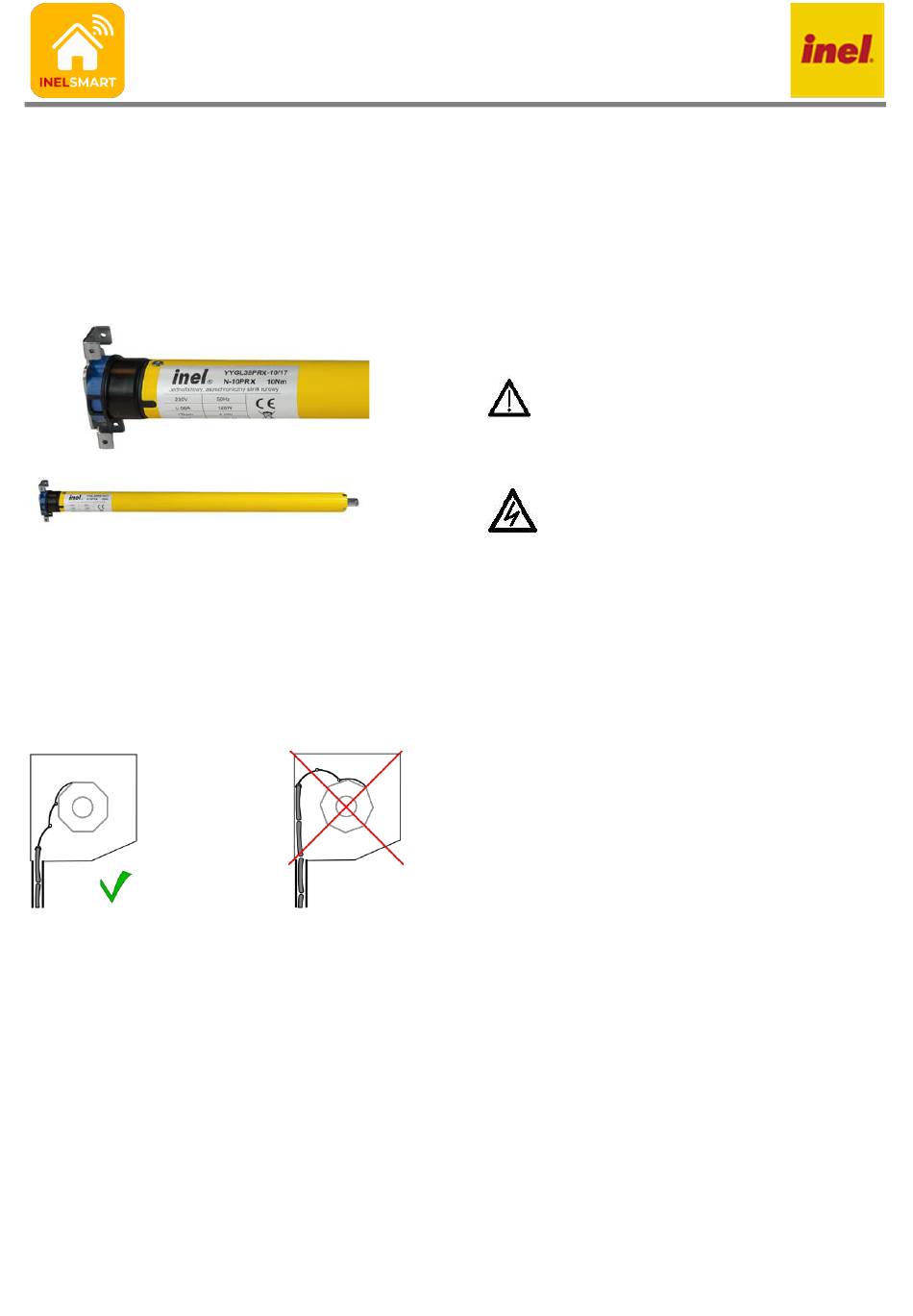

Inel YYGL Series Installation And Operating Instructions

Installation and operating instructions for actuators type: YYGL
Models:
The drive with overload detection and automatic end position
setting is an InelSmart system device. The device is equipped with
a radio receiver with return channel. The information transmitted
via the return channel allows full control of the device. The radio
link operates at 868.30 MHz.
The drive is manufactured in three versions:
•
YYGL35PRX-10/17 (N-10PRX)
•
YYGL35PRX-13/14 (N-13PRX)
•
YYGL45PRX-20/15 (N-20PRX)
To ensure the correct operation of the drive, hangers and
stoppers should be used in the bottom rail. The stoppers should
be placed as close as possible to the guides to improve the
comfort of use. A sill must be fitted in the window and the length
of the armouring should be matched to the length of the guides.
Hanger-block installation instructions
The length of the hanger and the roller blind must be selected so that
the hanger presses the first lamella of the armour down the guide.
Select the length of the hanger according to the recommendations of
the hanger manufacturer.
1. Safety instructions
1.1 Basic guidelines
The drive with overload function is handed over in a condition for
safe installation and operation, provided that all instructions in the
operating manual and the valid valid safety and accident prevention
regulations are observed.
Only qualified and authorised persons should work on the
installation and repair of electrical equipment.
Alterations or modifications to the drive are not permitted. Warranty
repairs may only be carried out by the manufacturer. Only original
spare parts and accessories are to be used for post-warranty repairs.
The operational safety of the delivered drive is only guaranteed
when used in accordance with the manufacturer's specifications. The
limit values specified in the technical data may not be exceeded
under any circumstances.
Instructions translated EN
YYGL35PRX-10/17, YYGL35PRX-13/14, YYGL45PRX-20/15
1.2 Supplementary safety provisions
Important safety and accident prevention regulations must be
observed when installing, commissioning, maintaining the drive.
The following regulations require special attention:
•
Fire regulations.
•
Accident prevention regulations.
1.3 General comments on hazards and safety measures
The specified notes are general guidelines when using INEL devices
in combination with other devices. These indications must be strictly
adhered to when installing and operating the equipment.
CAUTION Warning of possible damage to the drive,
roller shutter, roller shutter box, façade, etc. if the
appropriate precautions are not taken:
Before installing the drive and setting the end positions, check the
fixing of all screw connections.
Danger - means that there is a risk to the life and
health of the user if appropriate precautions are not
taken:
• Before switching on, it is necessary to check that the permissible
device voltage is compatible with the local supply voltage.
• The applicable safety and accident prevention regulations must be
observed.
• A circuit breaker that allows safe disconnection of the power
supply (e.g. a fuse disconnector) should be used, installed so that
all connections can be easily disconnected.
• Wires and cables should be checked regularly for insulation
damage and conductor continuity.
• If the cables are found to be damaged, the damaged cables must
be replaced after the power supply has been switched off
immediately.
1.4 Warning
•
Don't let children play with the controls.
•
Keep remote control devices out of the reach of children.
•
Watch the blind moving and keep people away until it is fully
open or closed.
•
Roller shutter users should be trained and instructed
how to operate the roller shutter and the dangers associated with
its use. People can be considered trained if the employer,
administrator or owner has allowed them to operate the roller
shutter and has instructed them on how to use it.
