TRENDnet TEW-MP1U User Manual

Wireless print server
Hide thumbs Also See for TEW-MP1U:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEW-MP1U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TEW-MP1U

Summary of Contents for TRENDnet TEW-MP1U

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Introduction Features ......................... 1 Safety Instructions ......................1 Package Contents ......................2 Physical Details ......................3 Chapter 2 Setup Overview ........................5 Using the Windows Wizard ..................5 Chapter 3 Web-Based Management Overview ........................12 Preparation ........................

  • Page 3: Chapter 1 Introduction

    Introduction Chapter 1 This chapter provides an overview of your Wireless Print Server's features. Features Congratulations on the purchase of your new Wireless Print Server. Your Wireless Print Server was designed to provide a simple and efficient network printing solution. It is packed with features, including: Wireless LAN Support.

  • Page 4: Package Contents

    Package Contents You should find the following items packaged with your Wireless Print Server. If any items are missing, contact your dealer immediately. • The Wireless Print Server unit • Power Adapter • One CD-ROM containing all support programs and this manual •...

  • Page 5: Physical Details

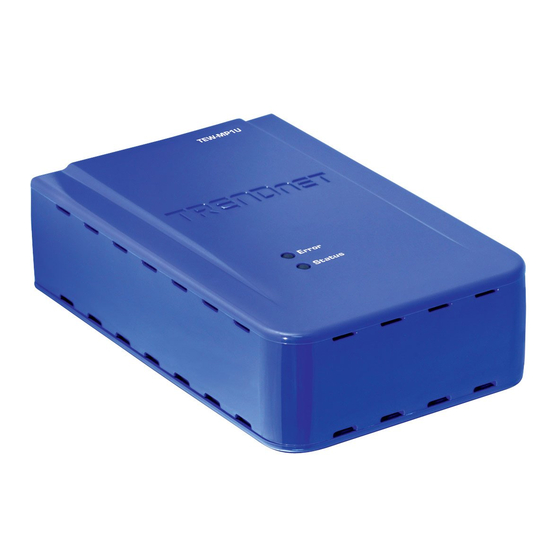

    Details of the LEDs and connections are in this Chapter. Further details are contained in Appendix A - Specifications. TEW-MP1U • 1 USB Printer Port • IEEE 802.11g/802.11b Wireless Station Status (Green) • 10BaseT/100BaseTx LAN connection Error (Red) Power 10/100 LAN USB Port Reset Figure 1: TEW-MP1U Page 3...

  • Page 6: Led Indicators

    LED Indicators The Wireless Print Server has LED indicators on the top. The Error LED is red. The Status indicator LED is green. The LED indicator modes are described in the following table. Status LED Error LED Status Description (Green) (Red) No power.

  • Page 7: Chapter 2 Setup

    Setup Chapter 2 This chapter provides an overview of the configuration process. Overview The Wireless Print Server is designed to support many different platforms, and the configuration required would depend upon the environment in which it is installed. • The Wireless Print Server usually requires configuration, but if there's a DHCP server on your network, then the device is just plug-and-play.
  • Page 8 Figure 2: Main Screen 3. Click OK to follow the setup procedures: (1) Connect MFP/All-in-one machine to Wireless Print Server. (2) Connect both PC and Wireless Print Server to Router or Hub. (3) Power ON MFP/All-in-one. (4) Power ON Wireless Print Server. (5) Check the LED on the Wireless Print Server.
  • Page 9 Figure 4: Wireless Network Screen 6. If you select the Manually Setting, click Next to move to the Security Setting screen. Figure 5: Security Setting Screen 7. For the Security Setting screen: • Network Type - Select the correct value for your Wireless LAN. •...
  • Page 10 Figure 6: Status Screen 10. Click Next and you will see the following prompt. 11. Click Yes to install the utility and bus driver. Follow the prompts to complete the installation. 12. Click Finish. If the desired Wireless Print Server is not listed: •...
  • Page 11 Figure 7: Main Screen 3. Follow the prompts to complete the installation. 4. The Wireless Print Server Utility will then run. Page 9...
  • Page 12 Wireless Print Server Utility Setup 1. The program will search for the Wireless Printer Servers on the network, and the Wireless Print Server Utility screen will be displayed. • The names of the attached printer servers will be displayed if possible. •...
  • Page 13 Figure 9: Utility Screen 3. Configuration is now complete. Note: If Wireless Print Server has been idled for 5 minutes after connected, you will see the following message. Figure 10: Idle Message The Wireless Print Server will be disconnected automatically if you don't respond to the message within 1minute. Page 11...

  • Page 14: Chapter 3 Web-Based Management

    Chapter 3 Web-Based Management This chapter explains how to use your Web Browser to configure the Wireless Print Server. Overview The Wireless Print Server incorporates the HTTP server. This allows you to connect to the Wireless Print Server and configure it using your Web Browser.

  • Page 15: Configuration Screens

    Configuration Screens The following configuration screens are available. TCP/IP Figure 11: TCP/IP Screen IP Address DHCP Client Select this if your LAN has a DHCP Server. The Wireless Print Server will then automatically obtain an IP address from the DHCP Server. Fixed IP Select this to assign a fixed IP address to the Wireless Print Address...

  • Page 16: Wireless Configuration

    Wireless Configuration There are 2 options on the menu for Wireless configuration - Basic and Security. Wireless - Basic The settings on this screen must match the other Wireless stations in order for communication to occur. Figure 12: Wireless Screen Configuration Region or Select your region from the drop-down list.
  • Page 17 • Disabled - no data encryption is used. • WEP - data is encrypted using the WEP standard. • WPA-PSK - data is encrypted using the WPA-PSK standard. This is a later standard than WEP, and provides much better security than WEP. Use this if possible. •...
  • Page 18 Figure 14: WPA-PSK Screen Security WPA-PSK System Like WEP, data is encrypted before transmission. WPA is more secure than WEP, and should be used if possible. WPA-PSK is the version of WPA, which does NOT require a Radius Server on your LAN. Enter the Keyword key value.
  • Page 19 Wireless Security - WPA2-PSK If "WPA2-PSK" is selected, the screen will look like the following example. Figure 15: WPA2-PSK Screen Security WPA2-PSK System This is a further development of WPA-PSK, and offers even greater security. Passphrase Enter the Keyword key value. Data is encrypted using a key derived from the PSK.
  • Page 20 Other Screens Server Status This screen shows server system data and the current settings for all of the other screens. It is read-only; no data can be input on this screen. Printer Status This screen displays the current status of each port. For each port, the following data is listed: •...

  • Page 21: Appendix A Specifications

    Specifications Appendix A General Specifications TEW-MP1U Power Consumption 5.5w max. External Power Adapter 5V DC LEDs USB 2.0 Port Ethernet Connecter 10BaseT/100BaseTx FCC / CE FCC, CE. Class B Environmental Specifications Operating Temperature 0 ~ 40°C Storage Temperature -10 ~ 70°C Shipping Temperature -40 ~ 70°C...
  • Page 22 Page 20...
