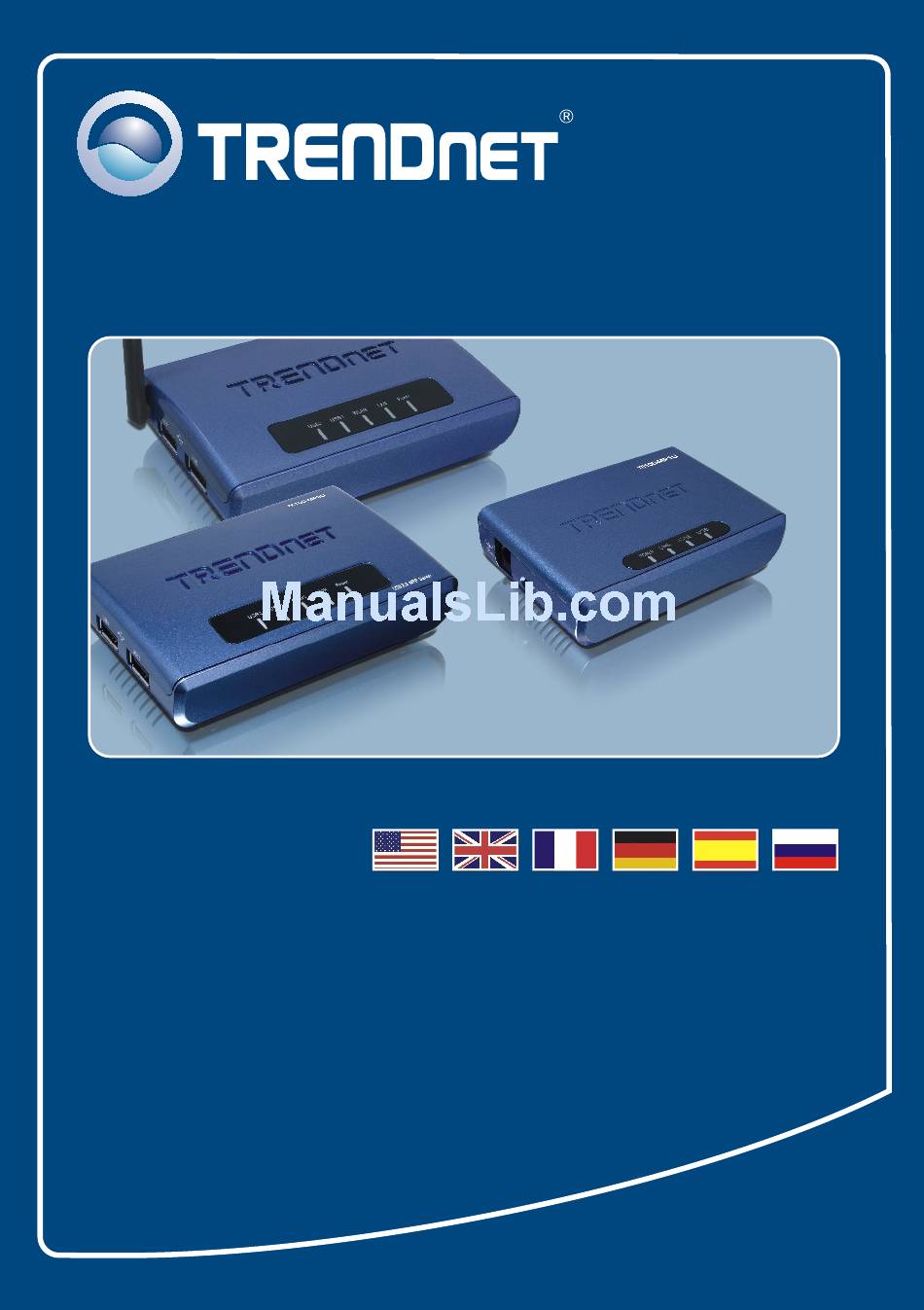

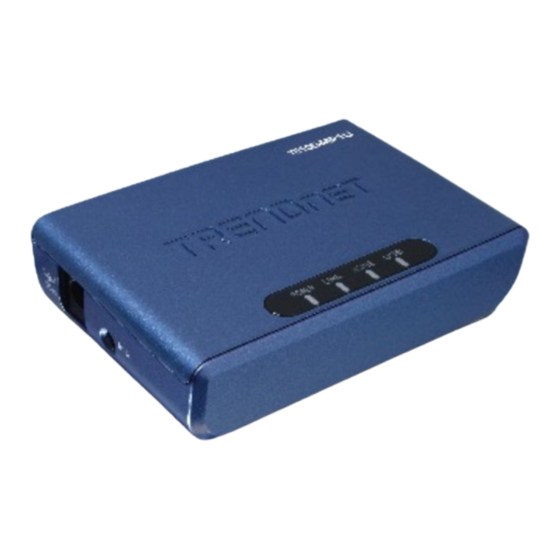

- Page 1 Quick Installation Guide TE100-MP1U TE100-MP2U TEW-MP2U...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start 2. How to Connect ... 3. Configure the Print Server ... 4. Configure Wireless Settings (TEW-MP2U only) ... 5. Printing ... 6. Faxing ... 7. Scanning ... 8. Storage ... Troubleshooting ... -
Page 3: Before You Start
1. Before You Start System Requirements Note: 1. Do not install MFP Server Control Center, connect printer to print server and connect the computer to the print server until instructed to do so. 2. The MFP Server Control Center must be installed on each computer in order to use your multi-function printer. - Page 4 54Mbps 802.11g Cable/DSL Modem Wireless PC Card Wireless Firewall Router (TEW-421PC) (TEW-432BRP) 1 or 2 Port 10/100Mbps Multi-Function USB 2.0 Print Server (TE100-MP1U/TE100-MP2U) Internet Cable/DSL Modem Cable/DSL 4-Port Broadband Router (TW100-S4W1CA) Multi-Functional External USB 2.0 Workstations with Fast Ethernet Adapter USB 2.0 Printer...
-
Page 5: How To Connect
2. How to Connect 1. Install the printer drivers to your computer. Then shutdown the printer and disconnect the printer from your computer. Note: Please refer to your printer's manual for printer installation instructions. 2. Connect the Power Adapter to the Print Server and then to a power outlet. -
Page 6: Configure The Print Server
3. Configure the Print Server 1. Insert the Utility CD-ROM into your computer's CD-ROM Drive and then click Install Utility. 2. Follow the InstallShield Wizard instructions. Then click Finish. 3. Click the Print Server and click Configure Server. 4. Enter the User name and Password, and then click Login. - Page 7 7. Cllick Close. Note: For the TEW-MP2U, proceed to section 5. Print Server configuration is now complete. For detailed information regarding the TE100-MP1U/TE100-MP2U configuration and advanced settings, please refer to the User's Guide on the Utility CD-ROM or TRENDnet's website at www.trendnet.com...
-
Page 8: Configure Wireless Settings (Tew-Mp2U Only)
4. Configure Wireless Settings (TEW-MP2U only) 1. Click the Print Server and click Configure Server. 2. Enter the User name and Password, and then click Login. User Name: admin Password: admin 3. Click Wireless. Select your Region or Domain to meet your country's regulations. - Page 9 User's Guide on the Utility CD-ROM or TRENDnet's website at www.trendnet.com To ensure the highest level of customer service and support, please take a moment to register your product Online at: Register Your Product www.TRENDnet.com/register Thank you for choosing TRENDnet English...
-
Page 10: Printing
5. Printing Note: 1. For LPR, IPP and Manual connect printing instructions, please refer to the User Guide. The User Guide is included on the Utility CD-ROM. 2. A computer using LPR or IPP printing and a computer using NetUSB printing can not print documents to the same printer simultaneously. - Page 11 4. User can now start printing. 5. Select the printer. Then click Disconnect. (optional) Note: For Auto Connect Printing, a user does not have to wait for the current owner to click disconnect. Follow step 1 to grab ownership of the Print Server. English...
-
Page 12: Faxing
6. Faxing 1. Select the printer. Then click Connect. 2. Open the document that you wish to fax and click Print. 3. Select your fax as the printer. 4. Your Multi-Function Printer's fax software will appear. Follow the fax software instructions for sending a fax. -
Page 13: Scanning
7. Scanning 1. Select the printer. Click Network Scanner. 2. Select TWAIN or WIA format and click OK. 3. Place the document on the Multi- Function Printer's Scanner bed. 4. Type in a name, select image type and choose the desired path. Then click Scan. -
Page 14: Storage
8. Storage Selecting Mode 1. Select the Print Server and click Configure Server. 2. Click Supported Protocols, select Server Mode or NetUSB Mode and then click apply. 3. Click Yes to restart the Print Server. Server Mode 1. Click Network Storage. 2. - Page 15 3. Select the desired drive letter and then click Finish. NetUSB Mode Note: Only one user can connect to the storage device at a time in NetUSB mode. 1. Click Connect. 2. Select Open folder to view files using Windows Explorer and then click OK.
-
Page 16: Troubleshooting
First, make sure the printer is powered on and properly connected to the Print Server. Second, connect the printer/storage device with another USB cable. Third, plug the printer/storage device into the other USB port (TE100-MP2U and TEW-MP2U only). I can not set my printer or scanner as an auto-connect printer or network scanner. - Page 17 Print Server back in. Third, verify that the WLAN LED on the Print Server is lit. If you still encounter problems or have any questions regarding the TE100-MP1U/ TE100-MP2U/TEW-MP2U, please refer to the User's Guide included on the Utility CD- ROM or contact TRENDnet's Technical Support Department.
- Page 18 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
-
Page 19: Product Warranty Registration
English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
