Installation instructions AZ361
The following instructions include all information necessary for the installation and operation of the
concrete parasol base. To avoid any misunderstanding, we advise you to read these instructions
carefully and then keep them for later reference.
Non-observation of mounting instructions can result in personal injuries
or damage to property.
Please note that if these instructions are not observed, the manufacturer cannot
Caution
assume any liability or guarantee.
Always follow the safety regulations.
Should you not understand any part of these installation instructions, please
contact your MAY dealer.

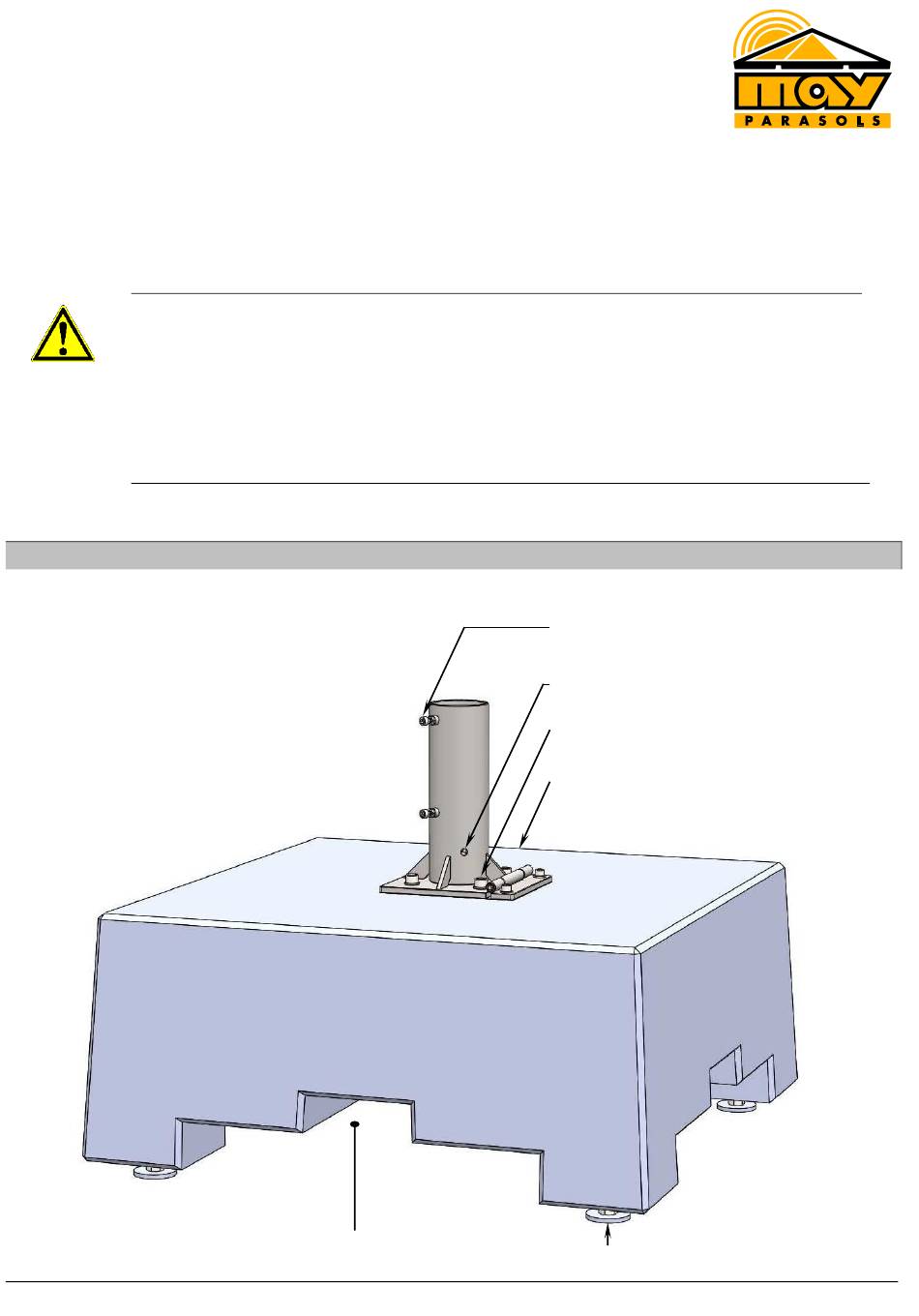

Diagram showing mounting procedure
Stand 38-1016
opening for cable
channel
English
hexagon socket screw M10x25mm
+ hexagon nut
bore hole for theft and anti-twisting lock
4x hexagon socket screw, M16x45mm + washers
concrete parasol base
4 adjustable feet
page 1 of 8
Advertisement
Related Manuals for MAY AZ361
Summary of Contents for MAY AZ361
- Page 1 Installation instructions AZ361 The following instructions include all information necessary for the installation and operation of the concrete parasol base. To avoid any misunderstanding, we advise you to read these instructions carefully and then keep them for later reference. Non-observation of mounting instructions can result in personal injuries or damage to property.
- Page 2 AZ361. 1. The weight required of the concrete freestanding base depends on the size of the parasol. If the minimum-ballast indicated by MAY is bigger than the weight of the concrete base, the wind-resistance is reduced.
- Page 3 2. Determine the correct position of AZ361 after careful calculation of the main axis of the parasol. Allow enough clearance between parasols or from walls.
- Page 4 The correct torque for a torque wrench is 210 Nm. Transport and load securing with a forklift truck (industrial truck) The transport of a concrete base with a forklift truck (industrial truck) may become hazardous (risk area). The transport may cause material damage or personal injury.
- Page 5 In case the forks of the forklift are too short to fully support the concrete base, it Danger may fall off the forklift. This may damage the concrete base itself or also surrounding objects or the floor covering. Spread the forks of the forklift widely to enable the largest possible support for the concrete base.
- Page 6 In case the forks of the forklift are too short to fully support the concrete base, it Danger may fall off the forklift. This may damage the concrete base itself or also surrounding objects or the floor covering. The forks must support the full length of the concrete base. Use forks with a minimum length of 1.2 m.
- Page 7 Use a proper lashing strap that meets the current safety standards. We recommend a lashing strap with ratchet and a minimum of 500 daN. Explanation: With an Earth’s acceleration of 9.81 m/s², 500 kg correspond to 4905 N and/or 490 daN. Therefore, the value of the lashing strap should not be below 500 daN.
- Page 8 Use the following check list to guarantee a smooth and professional assembly. Depending on individual circumstances it may be helpful to have regular tools and aids available as well. Tools and aids for the electrical equipment are not defined and must be clarified with the electrician in charge.
