Assa Abloy SARGENT 607 Locking Slide Installation Instructions

Installation Instructions
607 Locking Slide
Replacement Kit
607-1 Locking Slide Replacement Kit
(For all 713 ET Trims)
Slide
Support
Return
Spring
VIEW "X"
When reassembling the slide support, ensure
the slide support is beside the return spring,
not on it.
On Lockable ET Controls:

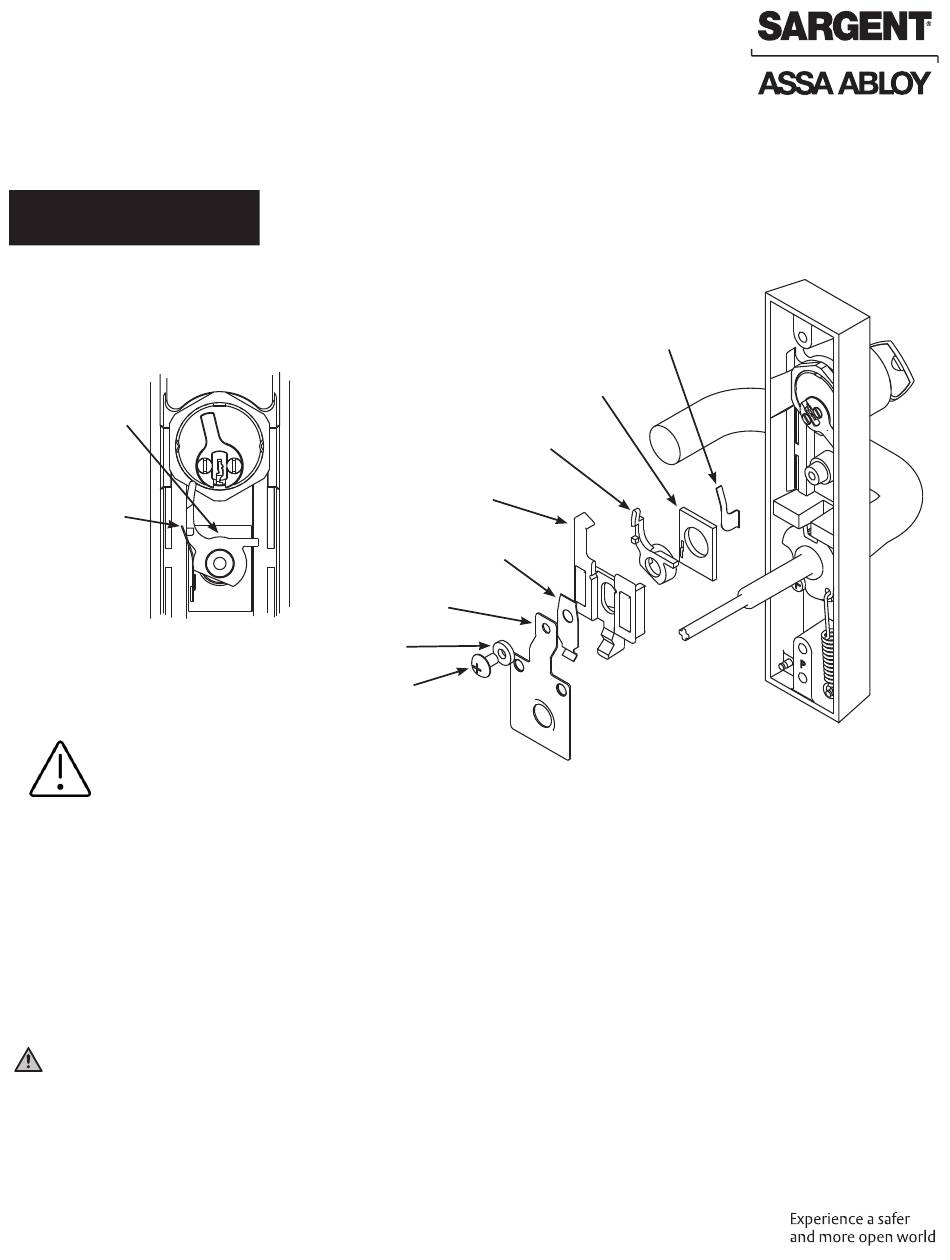

1. Remove the truss head screw, fusible link, locking slide spring, retaining plate and locking slide.
2. Place the new locking slide over the slide support and return spring making sure that the slide
support is beside the return spring.
Note: See View "X" for proper installation of slide support, spring support, and return spring.
3. Align the locking slide spring, retaining plate, fusible link, and truss head screw.
4. Tighten securely.
