Summary of Contents for TRENDnet TEW-656BRG

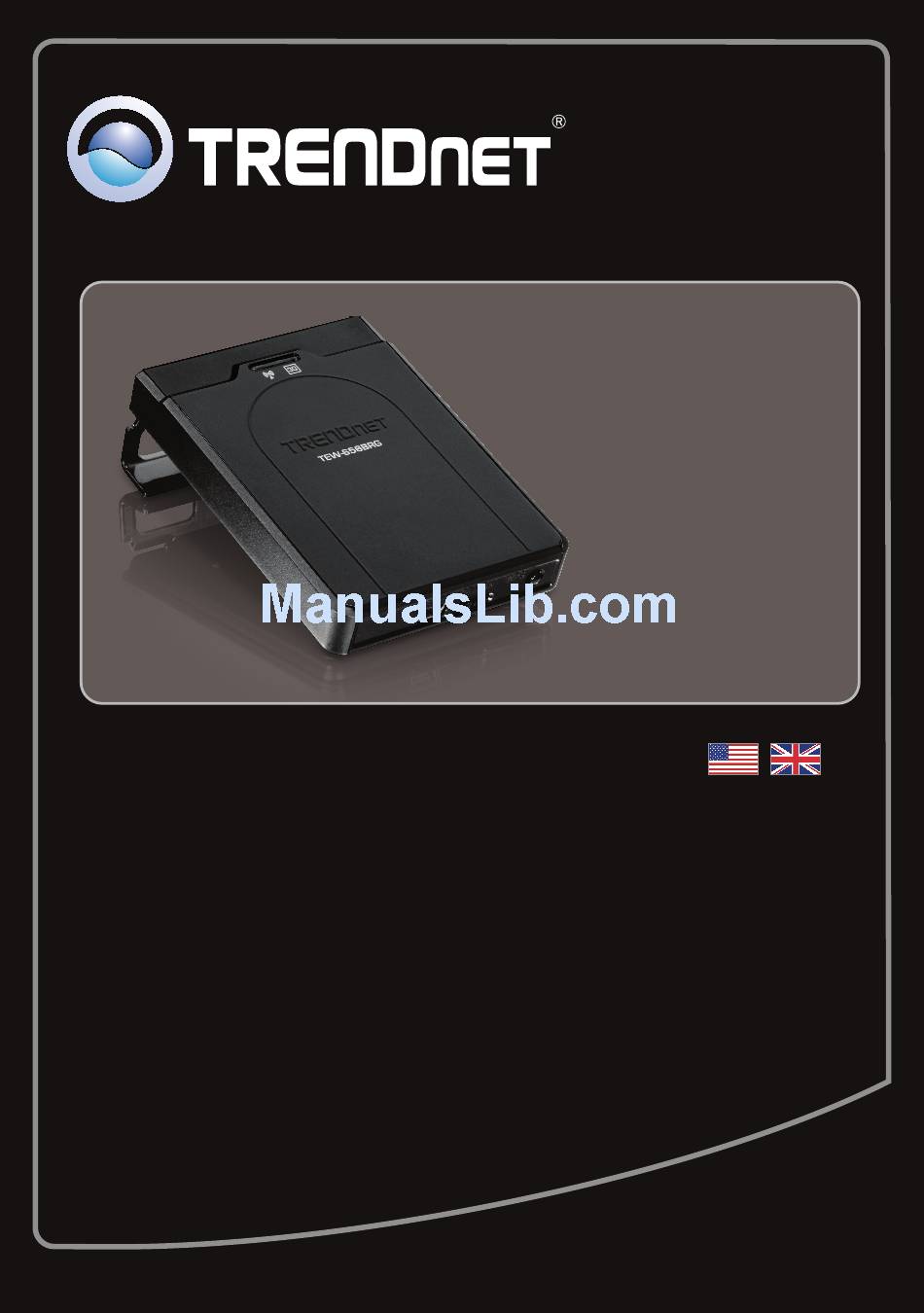

- Page 1 Quick Installation Guide TEW-656BRG 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation 3. Configure the TEW-656BRG 4. LEDs Troubleshooting Wireless Tips Version 04.05.2010... -
Page 3: English
A computer with a wireless network adapter properly installed Ÿ Web Browser: Internet Explorer (6.0 or above) Ÿ Valid and activated 3G Internet Service Ÿ 3G USB Adapter* Ÿ * For a list of compatible 3G USB Adapters, please go to http://www.trendnet.com/products/TEW-656BRG. - Page 4 Collect Internet Service Provider (ISP) Information During the installation of the TEW-656BRG, the Setup Wizard will automatically detect your ISP connection type. If the router cannot detect your ISP connection type, you can manually specify the connection type. Please contact your ISP and ensure you have all the information for one of the following connection types: 1.
-
Page 5: Hardware Installation
1. Verify that you have an Internet connection when connecting the 3G USB adapter to your computer. Open your browser (e.g. Internet Explorer) and type in a URL (e.g. http://www.trendnet.com) in the address bar. Internet 3G USB Adapter Note: You may need to activate your Internet connection. -
Page 6: Configure The Tew-656Brg
3. Configure the TEW-656BRG Note: Gather all information related to your Internet Connection before you start. If necessary, contact your Internet Service Provider (ISP). 1. Open your web browser, type http://192.168.10.1 in the Address bar, and then press Enter. 2. Enter the System Password, and then click Login. - Page 7 6. Select your Time Zone and then click Next. 7. Select 3G or iBurst (the example shown is for 3G). Then click Next. Configure the settings based on information provided by your ISP. Follow the wizard instructions to complete the configuration.
- Page 8 Note: 1. To protect your network from any unauthorized access it is recommended to enable wireless encryption. 2. The example below is for WPA2-PSK (AES) security. If you select WPA-PSK or WPA2-PSK, make sure your wireless adapters support WPA or WPA2. If your wireless adapters do not support WPA or WPA2, then select WEP.
- Page 9 Internet connection. Your Configuration is now complete For detailed information regarding the TEW-656BRG’s configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...
-
Page 10: Leds
4. LEDs Wireless Blue (Solid): Wireless is enabled. Blue (Blinking): Activity is occurring from this link. Not Illuminated: Wireless is not enabled or no power is being supplied to the TEW-656BRG. 3G(USB) Blue (Solid): 3G connection is established Blue (Blinking): Activity is occurring from this link Not Illuminated: 3G connection is not established. -
Page 11: Troubleshooting
Troubleshooting 1. I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TEW-656BRG's web configuration page? 1. Check your hardware settings again by following the instructions in Section 2. 2. - Page 12 SSID. The default SSID is TRENDnet656. 4. Please refer to the Wireless tips section if you continue to have wireless connectivity problems. If you still encounter problems or have any questions regarding the TEW-656BRG, please contact TRENDnet's Technical Support Department.
-
Page 13: Wireless Tips
Wireless Tips The following are some general wireless tips to help minimize the impact of interference within an environment. Assign your network a unique SSID Do not use anything that would be identifying like “Smith Family Network”. Choose something that you would easily identify when searching for available wireless networks. Do not turn off the SSID broadcast The SSID broadcast is intended to be on and turning it off can cause connectivity issues. - Page 14 2. Keep the number of obstructions to a minimum. Each obstruction can reduce the range of a wireless device. Position the wireless devices in a manner that will minimize the amount of obstructions between them. 3. Building materials can have a large impact on your wireless signal. In an indoor environment, try to position the wireless devices so that the signal passes through less dense material such as dry wall.
- Page 15 0984...
- Page 19 Copyright © 2011. All Rights Reserved. TRENDnet.
