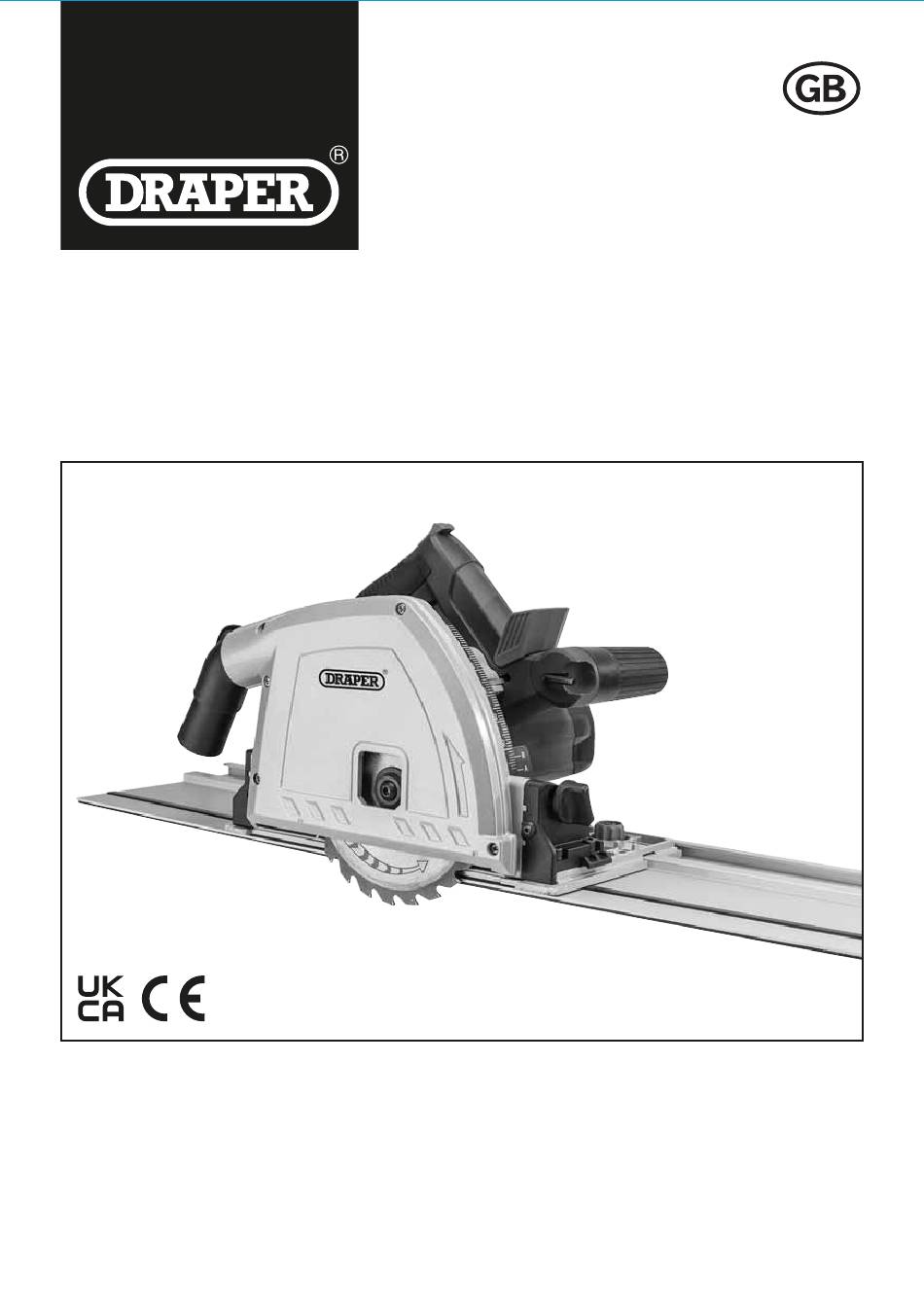

230V 165mm
PLUNGE SAW
57341
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 57341 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper 57341

Summary of Contents for Draper 57341

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page 1.1 Introduction

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS TITLE PAGE 1.1 INTRODUCTION......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE ....................2 CONTENTS 2.1 CONTENTS........................3 WARRANTY 3.1 WARRANTY......................... 4 INTRODUCTION 4.1 SCOPE......................... 5 4.2 SPECIFICATION ......................5 4.3 HANDLING AND STORAGE ..................6 HEALTH AND SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE .......

  • Page 4: Warranty

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    As part of our core range, this product is suitable for enthusiasts and tradespeople alike. Any application other than that it was intended for, is considered misuse. 4.2 SPECIFICATION Stock No............................57341 Part No..........................PS1200D Rated voltage ........................230V~50Hz Rated input ..........................

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.

  • Page 7: Additional Safety Instructions For All Saws

    HEALTH AND SAFETY INFORMATION Remove and check setting tools. Some machinery requires the use of additional tools or keys to set, load or adjust the power tool. Before starting the power tool always check to make certain they have been removed and are safely away from the machine. Prevent unintentional starting.

  • Page 8: General Safety Instructions For Plunge Saws

    HEALTH AND SAFETY INFORMATION ● Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.

  • Page 9: Connection To The Power Supply

    HEALTH AND SAFETY INFORMATION 5.5 CONNECTION TO THE POWER SUPPLY Caution: Risk of electric shock. Do not open. This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute is of the correct rating, approved to BS1362 and ASTA or BSI Kite marked.

  • Page 10: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Main handle. Blade change locking lever. Front handle. Motor. Safety button. Shaft locking button. On/off switch. Cut indicator. Base plate. Adjusting knob for rail. Adjusting knob for cutting depth. Hex. key (5mm). Scale for cutting depth. Cutting depth indicators.

  • Page 11: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 12: Preparing The Plunge Saw

    PREPARING THE PLUNGE SAW Warning! Before changing the saw blade, switch off the machine and unplug the power cord. 8.1 BLADE REPLACEMENT AND INSTALLATION – FIGS.1 – 3 – Push the safety switch and press the handle down. – Push the locking lever forward.

  • Page 13: Basic Plunge Saw Operations

    BASIC PLUNGE SAW OPERATIONS 9.1 ON/OFF TRIGGER SWITCH – FIG.5 The on/off switch is operated in conjunction with a safety release button so that it is not possible to start the saw by accident. – To start the saw, press the safety button first and then press the on/off switch –...

  • Page 14: Guide Rail Adjustment

    BASIC PLUNGE SAW OPERATIONS 9.6 GUIDE RAIL ADJUSTMENT – FIG.9 – Tighten the adjusting knob to minimize the clearance between the saw and the rail. 9.7 SAW OPERATION – Secure the work piece so that it cannot get displaced or moved while sawing. –...

  • Page 15: Maintenance And Troubleshooting

    10. MAINTENANCE AND TROUBLESHOOTING 10.1 CLEANING Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure. We recommend that you clean the device immediately each time you have finished using it.

  • Page 16: Optional Accessories

    11. OPTIONAL ACCESSORIES 11.1 OPTIONAL ACCESSORIES A full range of accessories are available from Draper Tools. Please visit our website for details: www.drapertools.com - 16 -...

  • Page 17: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: ●...

  • Page 18: Explanation Of Symbols

    13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Class II construction Read the instruction manual. (Double insulated). WEEE – Waste Electrical & Wear face mask and safety Electronic Equipment. glasses. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish.
