JRC JHS-800S Manual

Menu tree
Menu Submenu 1
DSC CALL
RELAY
DISTRESS EDIT
DSC LOGS RX DISTRESS
RX OTHERS
TX CALLS
AIS INFO SHIPS LIST
PROX CHECK
VOICE FUNC PLAY-BACK
PUBLIC ADDR
INTCOM
CH OPRN SCAN ALL CH
MEMORY CH
SELECT CH
DUAL WATCH
TRIPLE WATCH
MEMORY CH CH LIST
CH EDIT
PRIV CH
WX CH
REGION ITU
USA
CAN
IWW
CH SQL SET
BCF START
MAINT ALERT LIST ALERT HIST
SYSTEM INFO
S/W VER
DSC AF CHECK
CERT MARK
SELF DIAG TXRX
OWN CTRL
DSC LOOP
TXRX LOG
CTRL LOG
TEST CALL
SETUP DATE&TIME
POSN SET POSN/TIME
POSN SOURCE
DISP SET LCD ADJ
SOUND
KEY ASSIGN
UNIT NAME
MENU SHTDN
HANDSET
CH AREA
S METER
CTLR START
BT SET BT FUNC
BT PAIR
ADDR LIST COAST
SHIP
GROUP
PSTN
DSC OPRN AUTO ACK
RX SOUND
MDCL USE
NEUT USE
EXP MMSI
GROUP ID
INACTV T/O
AUTO CH CHG
AIS FUNC
PRN PROP
BLOCK CH
CODE INPUT
- 4 -
Submenu 2 Print func Description
DSC non-distress call
DSC drobose call
Editing distress message
✓ Received distress call log
Received non-distress call log
✓
✓ Transmitted call log
✓ Other ships list
Registered ships notice
Playback received voice msg
PA using external loudspeaker
Starting intercom
All channel scan
Memory channel scan
Selected channel scan
Watching CH16 & 1 channel
Watching CH16 & 2 channels
✓ Setting CH from memory CH list
Editing memory CH list
Private channel
✓
✓ Weather channel
ITU channel mode
USA channel mode
Canada channel mode
Inland waterway mode
Preset squelch setting
Block channel function for river
✓ Alert information
✓ System information
✓ Software version
DSC signal inspection
Displaying certification mark
✓ RF CKT self diagnosis
✓ Control CKT self diagnosis
DSC loop self diagnosis
✓
✓ RF CKT self diagnosis log
✓ Control CKT self diagnosis log
DSC safety test call
Setting date and time
Setting position, time and indicator
Setting priority for position source
LCD adjustment
Setting related to sound
Programmable key assignment
Unit name registration
Setting menu shutdown timer
Setting hook and sidetone
10-key assignment on CH area
Setting RF strength meter use
✓ PWR ON mode (controller only)
Setting Bluetooth use
✓ Pairing Bluetooth SPMIC
Coast station list registration
✓
✓ Ship station list registration
✓ Calling group list registration
PSTN number list registration
✓
✓ Automatic acknowledgement
✓ Safety/Routine alert sound
✓ Medical use for urgency call
Neutral use for urgency call
✓
✓ Expanded MMSI
✓ Own ship's registration
✓ Inactivity timer set
Automatic channel change
Setting AIS use
✓ Printer property set
Waypoints registration
✓
(for maintenance)

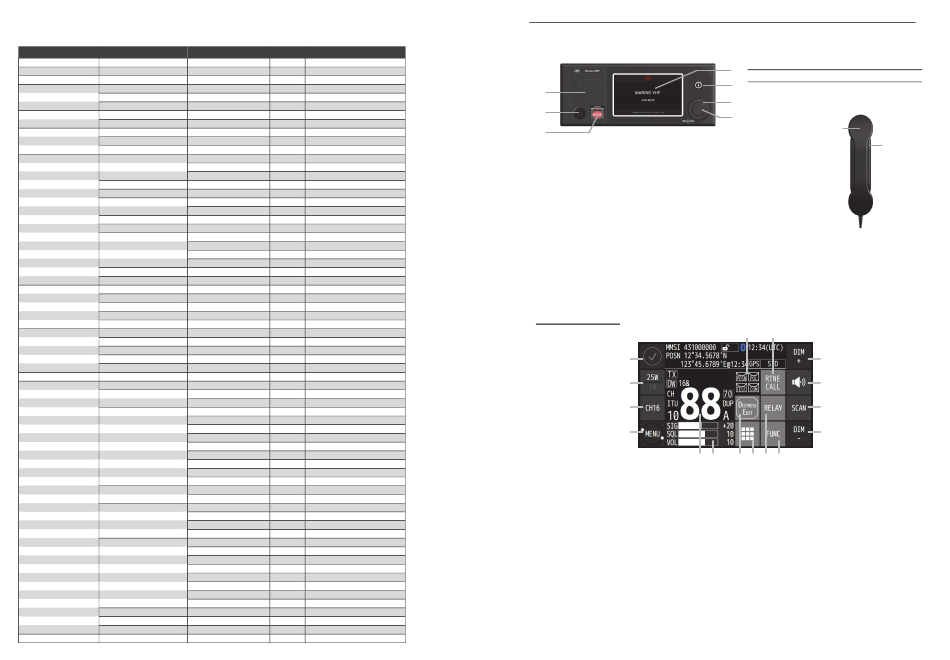

Bridge card
JHS-800S
MARINE VHF RADIOTELEPHONE
1
2
3
1. Internal loudspeaker
2. Handset connector
3. DISTRESS button
When in distress, sends a DSC distress alert by pressing for 3 seconds.
4. Color LCD/ touch panel
Use buttons on the touch panel for operation.
5. PWR button
To turn on the power, press for one second. And to turn off the power,
after pressing this button, follow the dialogue on the popup screen.
6. Squelch control
Adjusts squelch level.
7. Volume control
Adjusts internal loudspeaker volume.
8. Handset
When using in radiotelephone mode, press and hold the PTT key to talk.
9. Cradle
Displays and buttons
1
2
3
4
5
1. Displays the alert information screen.
2. Switches transmitting power between 25 W and 1 W.
3. Sets the radiotelephone to the priority channel.
4. Displays the hierarchal menus screens.
5. Displays TXRX information such as channels.
6. Indicates squelch and volume control position.
And also, additional RF strength meter (S meter) is
appeared by touching here.
7. Indicates the DSC automatic ACK setting.
Additionally, CALL LIST button is appeared if some
calls are ongoing, and restarting the call is available
after touching the button and selecting that call from
the ongoing call list.
CODE No.：7ZPJD0741B
Ship's name :
4
ID number (MMSI) :
5
6
7
8
9
7 10
13
14
15
16
6 8 9 11 12
8. Displays a menu to edit the distress alert messages.
9. Displays the numeric keypad (10-key) to set channels.
10. Displays the DSC individual routine call menu.
11. Displays the DSC distress relay call menu.
12. Displays the various function keys.
13. Increases the dimming level in 15 steps.
14. Turns on or off the internal loudspeaker.
15. Programmable key. Register a frequently using
assignable menu or a special function.
16. Decreases the dimming level in 15 steps.
- 1 -
