Assa Abloy NORTON RIXSON 5800 Series Replacement Instructions Manual

5800 Series Low Energy Operator
Controls and Setup Board
Replacement Instructions
1
Remove Old Control board and Setup Board
Copyright © 2017, 2024, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
ADA700102 Rev B 05/24
Approved 2024-05-16
5800 Series Low Energy Operator
Controls and Setup Board
Replacement Instructions

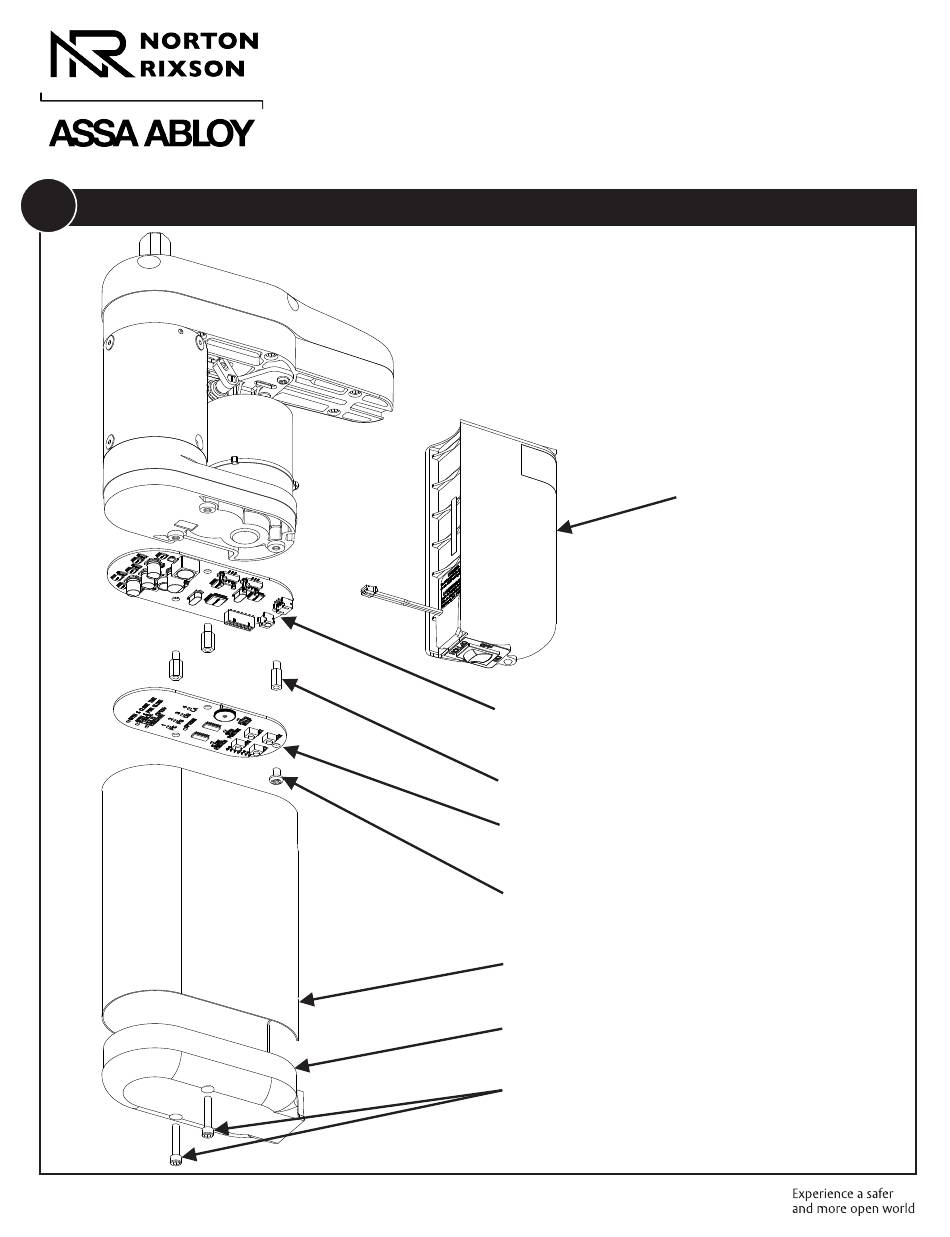

8. Unplug Motor and Position Connectors
Remove and discard Control Board
7. Remove 3 Hex Standoffs
6. Remove Setup Board and Discard
5. Remove Phillips Screw
4. Remove Operator Cover
2. Remove Bottom Cover
1. Remove Cap Head Screws
1 of 6
3. Remove Battery
