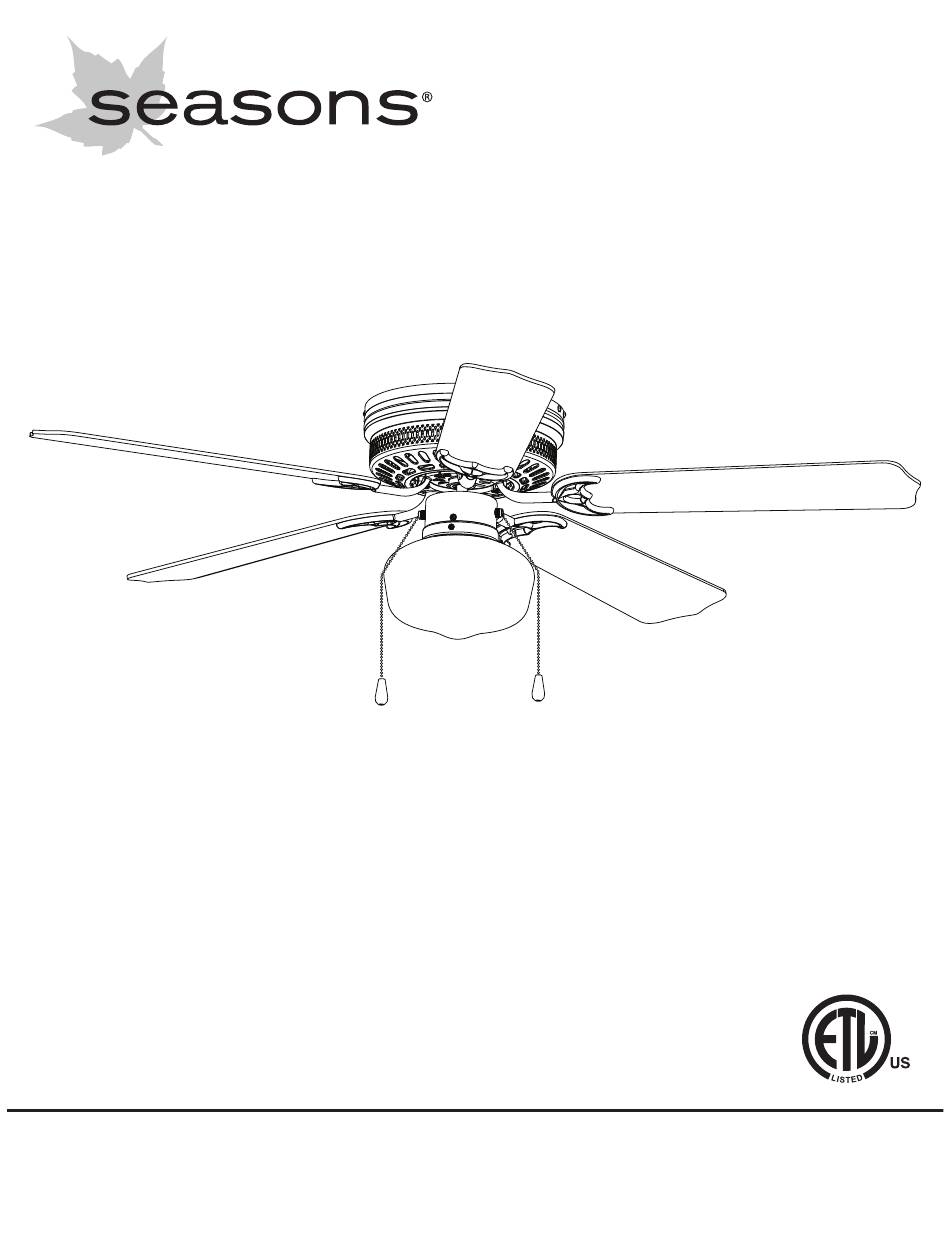

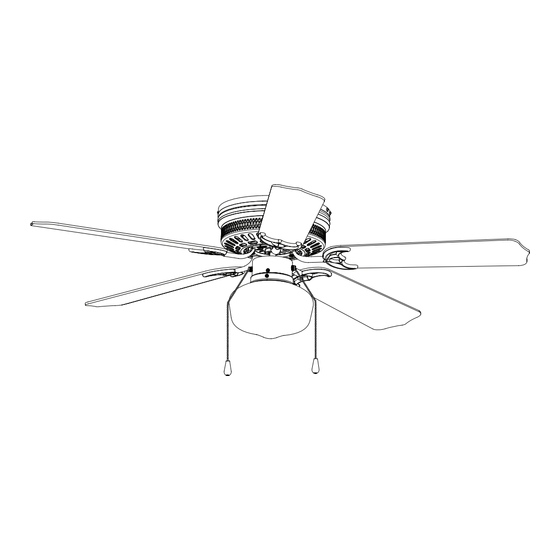

- Page 1 Part #: 269712 Solcata™ 52” LED Ceiling Fan Owner’s Manual Exclusively Distributed By: To Reorder: HD Supply Facilities Maintenance, Ltd. 1-800-431-3000 Atlanta, GA 30339 hdsupplysolutions.com © 2019 Made in China...
- Page 2 PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Motor Housing 10. Blade (x5) 2. Mounting Bracket 11. Blade Arm (x5) 3. Lower Bracket 12. Hardware Kit 4. Motor 13. Owner’s Manual 5.
- Page 3 EXPLODED VIEW DETAIL Motor Housing Mounting Bracket Mounting Screw Lower Bracket Bracket Screw Blade Motor Switch Housing Light Kit Blade Arm Bulb Glass Globe Switch Housing Cap DIMENSION REFERENCE A. 5.54 in. B. 7.83 in. C. 13.15 in. D. 11.13 in.
- Page 4 SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan.
- Page 5 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. 2. Secure the upper mounting bracket to the outlet box (not included) using screws and washers provided with the outlet box. Warning: To reduce the risk of fire, electrical shock, or personal injury, mount the fan to the outlet box marked “acceptable for fan support”.
- Page 6 ASSEMBLY INSTRUCTIONS 5. Secure the lower bracket to the mounting bracket using the four previously removed bracket screws. Bracket Scew 6. Use wire connectors to connect the fan wires to the power supply wires according to the wiring diagram and the following instructions: •...
- Page 7 ASSEMBLY INSTRUCTIONS 9. Secure the blade arm to the underneath side of the motor using motor screws removed in Step 3. Completely secure each blade arm to motor before moving to the next. Blade Arm Motor Screw To install the fan without the light kit, skip to step 12. 10.
- Page 8 ASSEMBLY INSTRUCTIONS 13. Attach pull chain extension(s) to the pull chains. Pull Chain Extension 14. Restore the power at the main fuse or circuit breaker. OPERATING INSTRUCTIONS 1. Use the fan reverse switch, located on the switch housing to optimize your fan for seasonal performance. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort.
-
Page 9: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact Customer Service: 1-800-431-3000. -
Page 10: Manufacturer Warranty
MANUFACTURER WARRANTY To contact Customer Service: 1-800-431-3000. Model Name: Seasons® Solcata™ 52” LED Ceiling Fan HDS Part #: 269712, Mfg #: 32163 (White) Subject to the limitations set forth below, Hong Kong China Electric appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for fifteen years. Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts”...
