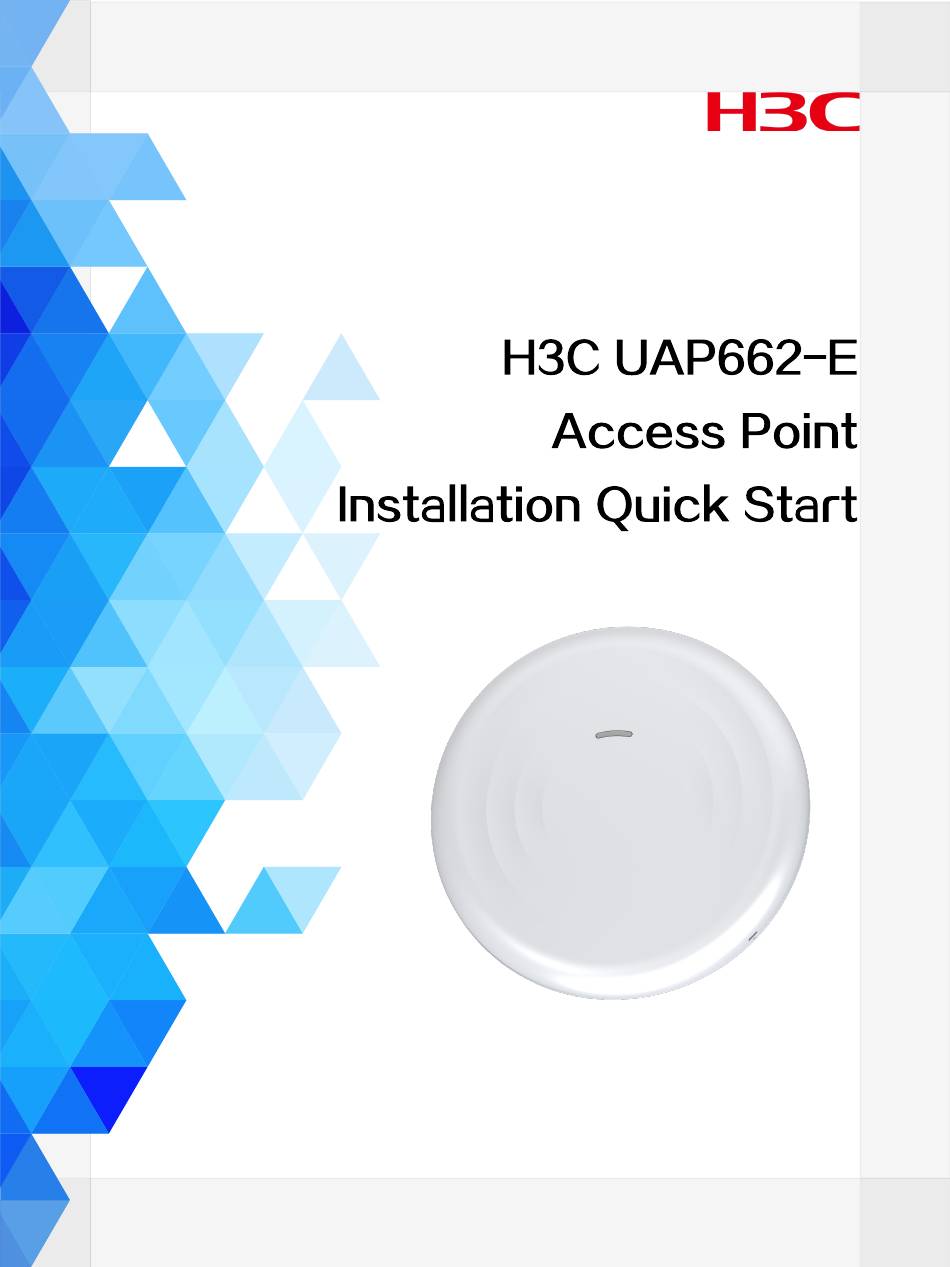

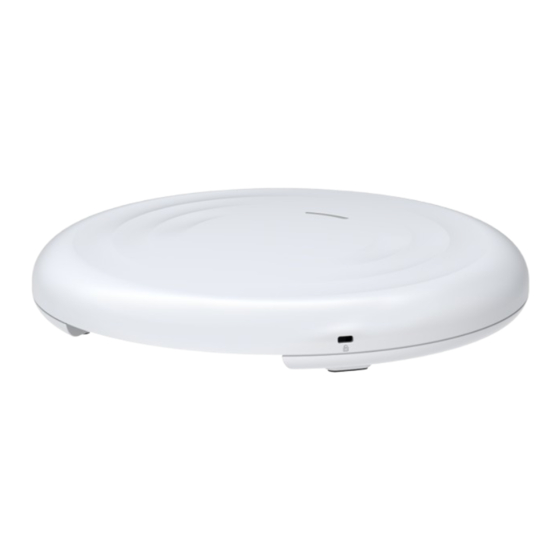

- Page 1 H3C UAP662-E Access Point Installation Quick Start...
-
Page 2: Packing List
Packing list Installation M3×23.5 Screw anchor M4 × 30 mm security screw accessories and screw pan-head screw Installation tools No installation tools are provided with the AP. Prepare the installation tools yourself as required. PH(2#) Torque screwdriver Needle-nose pliers Wire stripper Diagonal pliers Hammer drill Drill... -
Page 3: Mounting The Device
Introduction to Installation Accessories A:Installation holes used to attach the mounting bracket to a wall or a ceiling tile. B:T-rail clip installation holes for T-rail mounting. C:cable tie installation hole for securing device cables. D: 86 panel installation holes used to attach the mounting bracket to an 86 panel. - Page 4 1.6N m Install the M3 x 23.5mm security screw Use screw to attach to the mounting bracket. Make sure the the mounting bracket screw does not block the keyhole slot. to the wall. Align the pages at the device rear with the keyhole slots on the mounting bracket, and rest the device on the bracket.
- Page 5 Remove the ceiling tile and mark installation holes. Drill two holes in the ceiling tile. Thread the M4 × 30 mm pan-head screws through the installation holes in the mounting bracket and into the holes in the ceiling tile. Fasten washers and nuts at the other side of the ceiling to secure the 1.6N m mounting bracket to the ceiling.
-
Page 6: Power Adapter Specifications
Connecting a local power source No power adapter is provided with the AP. Order as required. Power adapter specifications: Item Specification Input 100-240V AC Output 12V/1.5A Output power ≥18W... - Page 7 Connecting a PoE power source To power the AP through PoE, use an Ethernet cable to connect an Ethernet port on a PoE switch to the GE/PoE+ port on the AP. Attach the cable cover to the AP securely after connecting all cables.
- Page 8 Copyright © 2023, New H3C Technologies Co., Ltd. The information in this document is subject to change without notice.
