Summary of Contents for H3C UAP380

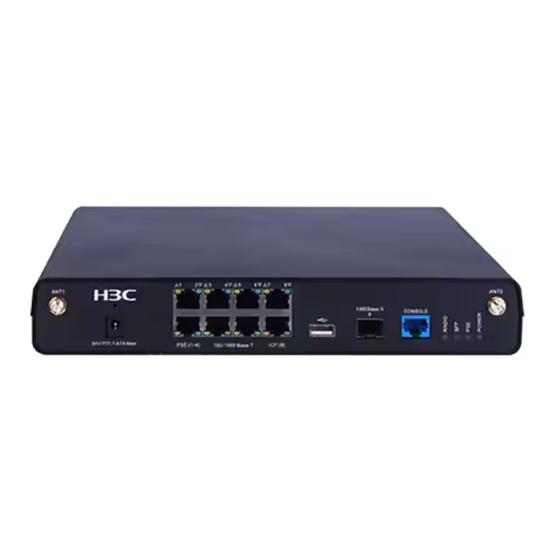

- Page 1 H3C UAP380 Access Point Installation Guide New H3C Technologies Co., Ltd. http://www.h3c.com.hk Document version: 5W100-20180126...
- Page 2 , H3CS, H3CIE, H3CNE, Aolynk, Care, , IRF, NetPilot, Netflow, SecEngine, SecPath, SecCenter, SecBlade, Comware, ITCMM and HUASAN are trademarks of New H3C Technologies Co., Ltd. All other trademarks that may be mentioned in this manual are the property of their respective owners Notice The information in this document is subject to change without notice.
- Page 3 Preface The H3C UAP380 Access Point Installation Guide guides you through the installation of your AP. It covers product overview, preparing for installation, installing the AP, and LEDs and ports. This preface includes the following topics about the documentation: •...
- Page 4 Convention Description Multi-level menus are separated by angle brackets. For example, File > Create > > Folder. Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software.
- Page 5 Obtaining documentation To access the most up-to-date H3C product documentation, go to the H3C website at http://www.h3c.com.hk To obtain information about installation, configuration, and maintenance, click http://www.h3c.com.hk/Technical_Documents...
-
Page 6: Table Of Contents
Contents Preparing for installation ···································································· 1 Safety recommendations ············································································································· 1 Temperature and humidity requirements ························································································· 1 Accessories provided with the AP ·································································································· 1 Installation tools ························································································································· 2 Installing the AP ··············································································· 3 Installation flowchart ··················································································································· 3 ... -
Page 7: Preparing For Installation
Preparing for installation Safety recommendations WARNING! Only qualified personnel can install and remove the AP and its accessories. You must read all safety instructions before installation and operation. To avoid possible bodily injury and equipment damage, read the following safety recommendations before installing the AP. -
Page 8: Installation Tools
Installation tools When installing the AP, you might need the following tools. Prepare the installation tools as required. Figure 2 Installation tools... -
Page 9: Installing The Ap
Installing the AP Installation flowchart Figure 3 Installation flowchart Pre-installation tasks Before installing an AP, perform the following tasks: • Connect the AP to a power source and the network. Examine the LEDs to verify that the AP is operating correctly. For information about AP LEDs, see "Appendix B Ports and LEDs."... -
Page 10: Installing The Ap
• The AP does not hinder people’s daily work and life. • The place is not water seeping, water soaking, and condensing. • The AP is more than 5 m (16.40 ft) away from 3G and 4G stations and antennas. Installing the AP The AP can be installed only indoors. - Page 11 Drill four holes with a diameter of 6 mm (0.24 in) and a depth of 30 mm (1.18 in) at the marked locations. Figure 6 Drilling holes in the wall 30 mm (1.18 in) Insert a screw anchor into each hole and tap it with a rubber hammer until it is flush with the wall surface.
- Page 12 Align the installation holes at the AP rear with the screws on the wall and rest the AP on the screws. Slide down the AP to secure it in place. Figure 9 Mounting the AP on the wall Use two screw anchor and screw sets to mount the power adapter bracket on the wall, and then slide the power adapter down into the bracket.
-
Page 13: Connecting The Ap To The Power Source
Attach the power cord to the power cord retainer as shown by callouts 1, 2, and 3, and then attach the power cord retainer to the AP. Figure 11 Attaching the power cord Figure 12 Installation completed Connecting the AP to the power source The AP supports only a local power source. -
Page 14: Check After Power-On
Table 2 AC/DC adapter specifications Item Specification Input 100 VAC to 240 VAC Output +54V @ 1.67 A Figure 13 Connecting a local power source Check after power-on After the AP is powered on, examine the LEDs to verify that the AP is operating correctly. For information about AP LEDs, see "Appendix B Ports and LEDs."... -
Page 15: Installing An Antenna
Figure 14 Connecting the AP to an IoT module Installing an antenna Before installing an antenna, change the antenna type to external at the CLI. Attach an antenna to the AP, fasten the connector on the antenna, and change the antenna orientation to vertical. -
Page 16: Verifying Network Connection For The Ap
AP information State : I = Idle, J = Join, JA = JoinAck, IL = ImageLoad C = Config, DC = DataCheck, R = Run M = Master, B = Backup AP name APID State Model Serial ID UAP380 219801A1DV8176E00001... -
Page 17: Appendix A Technical Specifications
Appendix A Technical specifications Table 3 Technical specifications Item Specification Protocol IEEE802.11a/b/g/n/ac wave2 Radios • 2.4 G antenna: gain 3 dBi Built-in antenna • 5 G antenna: gain 5 Bi ≤ 20 W when no power is being supplied Power consumption ≤... -
Page 18: Appendix B Ports And Leds
Appendix B Ports and LEDs Ports The AP provides the following ports: • One console port • One power port • Four 100/1000 Mbps Ethernet copper ports/PSE ports • Three 100/1000 Mbps Ethernet copper ports • One 100/1000 Mbps Ethernet copper port/IoT port •... -
Page 19: Leds
Table 4 Port description Port Standards and protocols Description For AP configuration and Console port (CON) RS/EIA-232 management. Act as downlink interfaces to provide power to PDs. They are • IEEE802.3 interfaces GE1/0/1 through • IEEE802.3u 100/1000 Mbps Ethernet copper GE1/0/4 at the CLI. - Page 20 Table 5 LED description Status Description The AP is initializing, or an initialization Steady on exception has occurred. Yellow Flashing at 1 Hz No radios have been detected. The Ethernet ports are down or no mesh Flashing at 2 Hz links are established.
-
Page 21: Index
Index A C D I L P S T V Accessories provided with the AP,1 LEDs,13 Ports,12 Connecting the AP to an IoT module,8 Connecting the AP to the power source,7 Pre-installation tasks,3 Determining the installation position,3 Safety recommendations,1 Installation flowchart,3 Temperature and humidity requirements,1...
