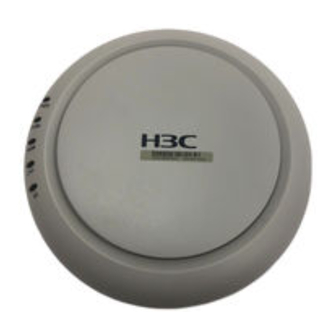

Indoor wlan access points
Hide thumbs Also See for WA2600:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual
H3C WA2600 Series
Indoor WLAN Access Points
Installation Manual
Hangzhou H3C Technologies Co., Ltd.
Manual Version: 5PW102-20091228

Advertisement

Table of Contents
loading

Related Manuals for H3C WA2600

Summary of Contents for H3C WA2600

  • Page 1 H3C WA2600 Series Indoor WLAN Access Points Installation Manual Hangzhou H3C Technologies Co., Ltd. Manual Version: 5PW102-20091228...
  • Page 2 H3C Technologies Co., Ltd., a subsidiary of 3Com Corporation. All Rights Reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Hangzhou H3C Technologies Co., Ltd. Trademarks...

  • Page 3: About This Manual

    About This Manual Organization H3C WA2600 Series Indoor WLAN Access Points Installation Manual is organized as follows: Chapter Contents Introduces the hardware configurations, appearance, physical dimensions, LEDs, 1 Product Overview and interfaces of the H3C WA2600 Series Indoor WLAN Access Points.

  • Page 4: Related Documentation

    Related Documentation In addition to this manual, each H3C WA Series WLAN Access Points(Fat) set includes the following: Manual Description Provides a guide to the upgrade and operation of H3C WA series WLAN H3C WA Series WLAN access points. It covers configurations...
  • Page 5 Obtaining Documentation and Technical Support To obtain up-to-date documentation and technical support, go to http://www.h3c.com and select your country or region. Depending on your selection, you will be redirected to either of the following websites: At http://www.h3c.com Documentation Go to the following columns for different categories of product documentation: [Products &...
  • Page 6 Troubleshoot Online You will find support tools posted on the web site at http://www.h3cnetworks.com/ under Support, Knowledgebase. The Knowledgebase helps you troubleshoot H3C products. This query-based interactive tool contains thousands of technical solutions. Access Software Downloads Software Updates are the bug fix / maintenance releases for the version of software initially purchased with the product.

  • Page 7: Documentation Feedback

    URL or e-mail address. Find a current directory of contact information posted on the web site at http://www.h3cnetworks.com under Support, Technical Support Contact. Documentation Feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.
  • Page 8 Environmental Protection This product has been designed to comply with the requirements on environmental protection. For the proper storage, use and disposal of this product, national laws and regulations must be observed.

  • Page 9: Table Of Contents

    Table of Contents 1 Product Overview .................1-1 Introduction..................1-1 Hardware Configuration ..............1-2 LEDs ...................1-3 Interfaces ..................1-7 2 Preparing for Installation ..............2-1 Safety Precautions ................2-1 Unpacking and Inspection..............2-2 Preparing Installation Tools..............2-3 Examining the Installation Site ............2-3 Installation Site Selection ............2-3 Temperature and Humidity Requirements .........2-4 Power Supply................2-4 3 Installing the AP..................3-1 Installation Flowchart .................3-1...

  • Page 10: Product Overview

    Introduction The H3C WA2600 Series Indoor WLAN Access Points (hereinafter referred to as the WA2600 indoor series) are one of the 802.11n access point (AP) product series developed by Hangzhou H3C Technologies Co., Ltd. (hereinafter referred to as H3C). The WA2600...

  • Page 11: Hardware Configuration

    (1.65 × 7.13 × 5.00 in.) (H × W × D) WA2612-AGN Φ190 × 60 mm (Φ7.48 × 0.5 kg (1.10 (diameter × thickness) 2.36 in.) lb.) Hardware Configuration The WA2600 indoor series provide two models. Table 1-2 lists the basic configurations.

  • Page 12: Leds

    GHz, 5.9 W to 6.5 W single-RF, gain: 6 dBi plastic mold GHz, design gain: 7 dBi The following describes the hardware configurations and functions of the WA2600 indoor series in detail. LEDs WA2610-AGN Figure 1-3 LEDs on the WA2610-AGN...
  • Page 13 Table 1-3 Description of the LEDs on the WA2610-AGN Color Meaning Displays the power supply status: Steady on: The power supply is normal. POWER Green Off/blinking: The power supply is not well connected or the device works abnormally. Displays the 2.4 GHz wireless link status: Off: The wireless link is not 2.4G...
  • Page 14 Color Meaning Displays the status of the Ethernet interface: Steady on (green): The 1000 M Ethernet interface is in the link-up state. Blinking (green): Data is being ETHERNET transmitted or received at 1000 Yellow/ Mbps. (Ethernet green interface Steady (yellow): LED) 10/100 Mbps...
  • Page 15 Table 1-4 Description of the LEDs on the WA2612-AGN Color Meaning Displays the power supply status: Steady on: The power supply is normal. POWER Green Off/blinking: The power supply is not well connected or works abnormally. Displays the status of the Ethernet interface: Steady Ethernet...

  • Page 16: Interfaces

    Color Meaning Displays the 5 GHz wireless link status: Off: The wireless link is not initialized or the link is faulty. Green (Wireless Blinking slowly: The wireless link LED) link works normally. Blinking rapidly: Data is being transmitted or received. Interfaces Interfaces provided by the WA2610-AGN The WA2610-AGN provides the following interfaces:...
  • Page 17 Figure 1-5 Interfaces on the WA2610-AGN Interfaces provided by the WA2612-AGN The WA2612-AGN provides the following interfaces: A console interface An Ethernet interface In addition, the WA2612-AGN provides a reset button and a security slot.
  • Page 18 Figure 1-6 Interfaces on the WA2612-AGN Table 1-5 describes the interfaces provided by each model. Table 1-5 Descriptions of interfaces on the WA2610-AGN/WA2612-AGN Interface Standards and Description silkscreen protocols The console interface is used for CONSOLE RS/EIA-232 device configuration and management.

  • Page 19: Preparing For Installation

    Preparing for Installation Safety Precautions Installation and removal of the unit and its accessories must be carried out by qualified personnel. You must read all of the Safety Instructions supplied with your device before installation and operation. Installation und Ausbau der Anlage und ihrer Zubehörteile müssen von qualifiziertem Personal realisiert werden.

  • Page 20: Unpacking And Inspection

    This chapter describes the preparations for WA2600 indoor series installation, including preparation installation tools, environment examination, unpacking and inspection. Unpacking and Inspection Before unpacking the package, make sure that the package is intact, without any serious damage or signs of water soaking. When unpacking the package, avoid excessive force or collision.

  • Page 21: Preparing Installation Tools

    Preparing Installation Tools When installing the AP, you may need the tools listed in Table 2-1. Choose the appropriate tools according to the installation environment. Table 2-1 List of installation tools Type of tool Indoor installation 1-meter-long rulers, marking pens, knives, and General tools a percussion drill with appropriate bits Cable strippers, crimping pliers, and RJ-45...

  • Page 22: Temperature And Humidity Requirements

    should be dry, without any leakage, dripping or dew. The AP should be at least 500 m (0.31 miles) away from the seaside and should not face the direction of sea wind. In engineering design, the site should be selected according to the network planning and technical requirements of the communications equipment, and the considerations such as climate, hydrology, geology, earthquake, electric power, and transportation.
  • Page 23 Table 2-3 Supported power supply modes Power supply WA2610-AGN WA2612-AGN Rated voltage range: 100 VAC to 240 VAC; 50 Hz or 60 Hz Local power Not supported supply Max voltage range: 90 VAC to 264 VAC; 47 Hz to 63 Hz PoE power supply Supported Supported...

  • Page 24: Installing The Ap

    Installing the AP Installation Flowchart Figure 3-1 shows the installation flowchart of the WA2600 indoor series. Figure 3-1 Installation flowchart...

  • Page 25: Determining The Installation Position

    Before installing the WA2612-AGN to the wall-mounting bracket, you need to connect the network cable. Only the common network cable, rather than the shielded cable and cable with molded ends, is applicable. Before connecting the console cable to the WA2612-AGN for debugging or pressing the reset button, you need to remove the device from the wall-mounting bracket.

  • Page 26: Installing The Ap

    Mounting the AP to a T-rail Not supported Supported Mounting the AP on a Wall The following describes how to mount a WA2600 indoor series AP on a wall: Installing the wall-mounting bracket on the wall Installing the AP on the wall-mounting bracket...
  • Page 27 Locking the AP onto the wall-mounting bracket (optional) Installing the wall-mounting bracket on the wall Step1 Place the wall-mounting bracket tightly against the wall where the AP is to be mounted and mark the locations to drill holes for installing the screws.
  • Page 28 The bit is difficult to position on hard, smooth surfaces. In this case, punch a small hole on every mounting-hole mark before drilling. Figure 3-2 Screw hole locations and screw hole size of the WA2610-AGN wall-mounting bracket (in mm)
  • Page 29 Figure 3-3 Screw hole locations and screw hole size of the WA2612-AGN wall-mounting bracket (in mm) Step2 Insert the pointed end of wall anchors into the drilled holes and tap the flat end of wall anchors with a rubber hammer until they are all flush with the wall surface.
  • Page 30 Figure 3-4 Install the wall-mounting bracket of the WA2610-AGN Figure 3-5 Install the wall-mounting bracket of the WA2612-AGN...
  • Page 31 Install the wall-mounting bracket with the arrow on the bracket pointing upwards. Installing the AP on the wall-mounting bracket Step1 Align the AP with the key-hole clips on the wall-mounting bracket and hang the AP on the bracket. See callout 1 in Figure 3-6 and Figure 3-7.
  • Page 32 Figure 3-6 Fix the WA2610-AGN onto the wall-mounting bracket...
  • Page 33 Figure 3-7 Fix the WA2612-AGN onto the wall-mounting bracket When installing the WA2610-AGN, you are recommended to arrange the three antennae in a rectangular order, as shown in Figure 3-6. Rotating the WA2612-AGN clockwise installs the device, while rotating it counterclockwise uninstalls it. Locking the AP onto the wall-mounting bracket (optional) 1) The WA2610-AGN has a security slot on the top, which can be used to lock the AP onto the wall-mounting bracket to prevent theft.
  • Page 34 Step2 Turn the locking plate counterclockwise until the hole on the locking plate is aligned with the hole in the wall-mounting bracket. See callout 2 in Figure 3-8. Step3 Put the latch through the two holes that are aligned in step 2. See callout 3 in Figure 3-8.
  • Page 35 2) The WA2612-AGN has a security slot on the upper left side, which can be used to lock the AP to a fixed object to prevent theft. Follow these steps to lock the AP to a fixed object: Step1 Fix the security cable to a nearby fixed object. Step2 Insert the locking plate in the security slot to lock the AP.

  • Page 36: Mounting The Ap Through The Wall

    Mounting the AP Through the Wall This installation method requires that the thickness of the wall or the ceiling be less than 18 mm (0.71 in), and the wall or the ceiling bear a weight of at least 5 kg (11.02 lb.). You are not recommended to use this method to mount the AP to a location made of low-intensity materials such as a plaster ceiling.
  • Page 37 Figure 3-10 Installation holes on the wall-mounting bracket (in mm) Step2 Insert the bolts through the installation holes of the wall-mounting bracket and the drilled holes on the wall (or ceiling), and then tighten the nuts of the bolts on the other side of the wall (or ceiling) to secure the wall-mounting bracket, as shown in Figure 3-11.

  • Page 38: Mounting The Ap To A T-Rail

    Figure 3-11 Mount the wall-mounting bracket through the wall Key-hole clip Bolt inside the wall Bolt cap Washer Wall-mounting bracket Step3 Mount the WA2612-AGN to the wall-mounting bracket. For details, refer to Installing the AP on the wall-mounting bracket. Mounting the AP to a T-Rail It is required that the width of the T-rail be in the range of 14 mm (0.55 in) to 24 mm (0.94).
  • Page 39 Follow these steps to mount the AP to a T-rail: Step1 Loosen the two M3 × 6 screws on each clip holder until the screw heads are lower than the upper edge of the nuts (do not remove the screws or they may get lost). Step2 Adjust the T-rail clips to make the T-rail holder wider than the T-rail, and then lock the T-rail with the T-rail holder according to the arrow indicated in Figure 3-12.
  • Page 40 Step6 Insert the two M4 × 8 screws through the two holes (with a diameter of 5 mm, or 0.20 in) on the wall-mounting bracket according to the dashed line shown in Figure 3-13 and fix the screws to the T-rail holder.

  • Page 41: Connecting The Power Cords

    Supported Not supported Power over Ethernet If the uplink device of the WA2600 indoor series is a PoE-capable switch or the like, use an Ethernet cable to connect the Ethernet interface of the AP to the PoE-capable device. Figure 3-14 PoE connection...

  • Page 42: Local Power Supply

    WA2610-AGN to implement local power supply. Connecting the AP to the Network The Ethernet interface of the WA2600 indoor series can be connected to the Ethernet interface of an Ethernet switch to access the Internet, as shown in Figure 3-15.
