- Page 1 RA7608AW Gen5 NVMe AIC SSD User Guide RocketAIC 7608AW (RA7608AW) Gen5 NVMe AIC SSD User Guide V1.00 - July 1, 2024 Copyright 2024 HighPoint Technologies, Inc. All rights reserved HighPoint Technologies, Inc...
-
Page 2: Table Of Contents
2.1. RA7608AW Layout ..................5 2.2. PCIe Host Interface ..................9 2.3. Storage Interface ................... 9 2.4. Basic Specifications ..................9 3. RA7608AW Installation Instructions ..........10 4. Revision History .................. 11 Version 1.00, July 1, 2024 ................... 11 HighPoint Technologies, Inc... -
Page 3: Overview

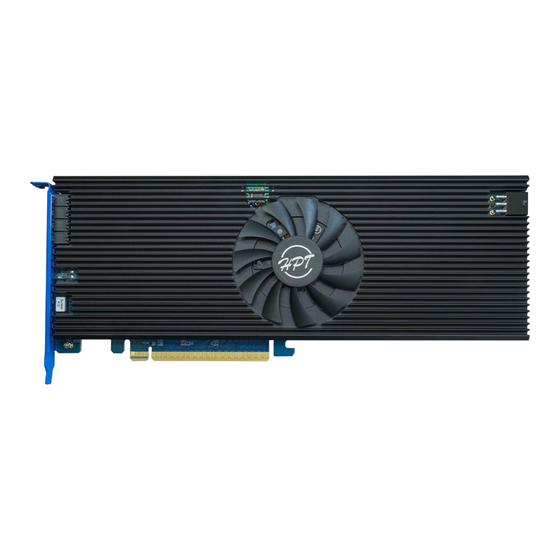

HighPoint’s revolutionary RocketAIC 7608AW NVMe AIC SSD is designed for professionals who demand the highest levels of storage performance and reliability. Armed with 32TB of Pro Class NVMe storage, and capable of delivering 64GB/s of sustained transfer speed, the RocketAIC 7608AW represents a new standard for high-density, high-speed data storage solutions. -
Page 4: Fru
The secure boot feature permits only authenticated firmware to execute. The switch boots the root of the trusted firmware from the internal boot ROM(IBR)and uses that firmware to authenticate the external firmware stored in the SPI flash and prevent the execution of unauthenticated code. HighPoint Technologies, Inc... -
Page 5: Ra7608Aw Hardware Description
2.1. RA7608AW Layout The layout of the RA7608AW is presented in two parts. Front View The following figure shows the key components of the RA7608AW. ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ HighPoint Technologies, Inc... - Page 6 Situation 1: The SSD temperature is between 30°C and 60°C. Situation 2: The Broadcom chipset temperature is between 40°C and 70°C. Full Speed: Situation 1: The SSD temperature is ≥60°C. Situation 2: The Broadcom chipset temperature is ≥70°C. HighPoint Technologies, Inc...
- Page 7 The SSD has failed. Fast Flash Red The LED blinks red at 4 Hz to indicate that the reinserted disk is in the rebuild state. Interval Flash Red The LED blinks red twice in the first second, then goes HighPoint Technologies, Inc...
- Page 8 Slow Flash Red The LED blinks red at 1 Hz to indicate the disk’s location, which can be accessed through the HighPoint RAID Management Software--Identify LED function. Identify ON means the LED blinks, and Identify OFF means the LED light is restored to its original state.
-
Page 9: Pcie Host Interface
Form Factor Full-Height, Single-Width Card Weight 1.59 lbs Length 11.18" Dimension Height 4.33" PCIe: 12V(±8%), 3.3V (±8%) Power supply Work temperature +5°C ~ + 55°C Storage temperature -20°C ~ +80°C MTBF (Mean Time Before Failure) 920,585 Hours HighPoint Technologies, Inc... -
Page 10: Ra7608Aw Installation Instructions
Use a wired ESD wrist strap that is properly grounded. Unpack and remove the RA7608AW and check it for damage. If it appears damaged, please get in touch with HighPoint Technical Support. Shut down the system and disconnect the AC power cord. -
Page 11: Revision History
RA7608AW Gen5 NVMe AIC SSD User Guide 4. Revision History Version 1.00, July 1, 2024 Initial version. HighPoint Technologies, Inc...
