- Page 1 RocketU 1144F PCIe 3.0 to Quad Port USB 3.2 5Gb/s HBA Quick Installation Guide V1.00...
-
Page 2: Table Of Contents
Introducing the HighPoint RocketU 1144F ..........2 Kit Contents ..................... 2 System Requirement ................2 Board Layout .................... 3 Installing the RocketU 1144F Host Adapter ..........4 Driver Installation ..................6 Verifying Installation (Windows) .............. 7 Verifying Installation (macOS) ..............8 Verifying Installation (Linux) .............. -
Page 3: Introducing The Highpoint Rocketu 1144F
Introducing the HighPoint RocketU 1144F The RocketU 1144F is a 4-lane USB 3.2 5Gb/s PCIe 3.0 x4 host adapter. It can be easily installed into any PCIe x4、x8 or x16 slot, and is natively supported by the latest versions of Windows, MacOS, and Linux distributions. -
Page 4: Board Layout

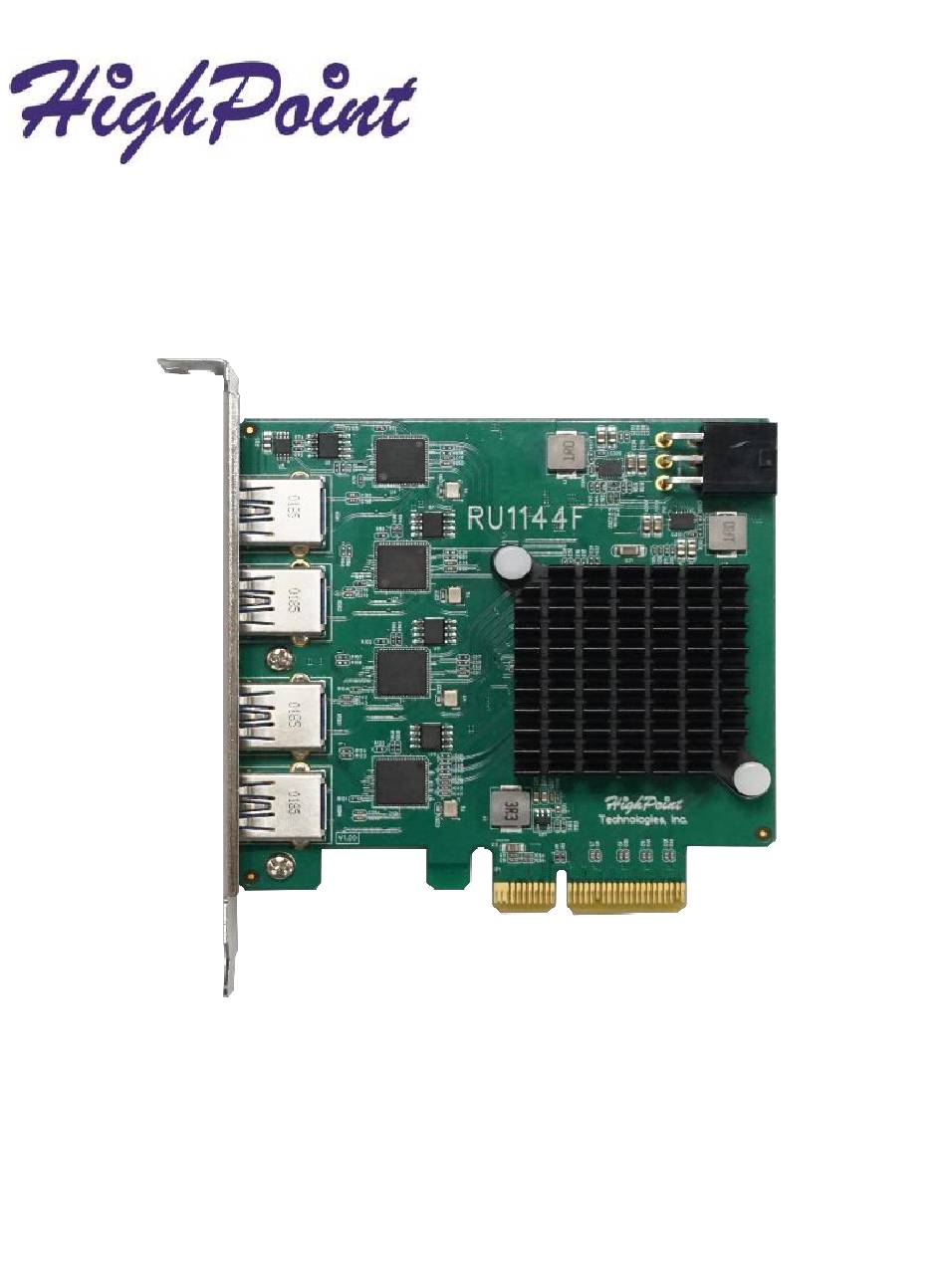

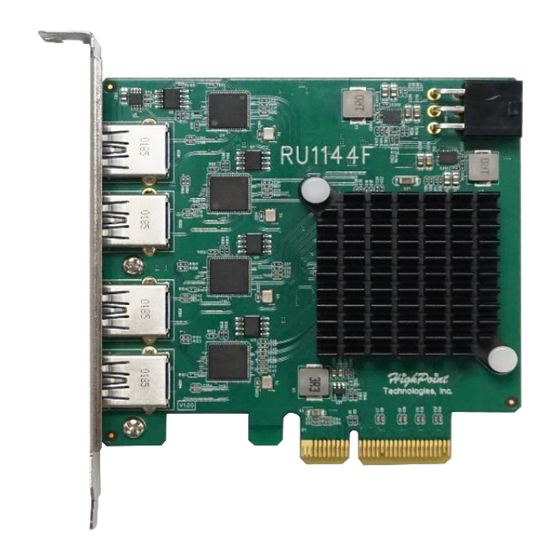

Board Layout 4x USB 3.2 Ports... -
Page 5: Installing The Rocketu 1144F Host Adapter
Figure 1 - PCIe x16 slot diagram 2. Gently insert the RocketU 1144F into the PCI-Express slot, and secure the bracket to the system chassis. 3. After installing the adapter, attach the USB device with USB cables. - Page 6 Connect 6 pin PCIe power cable RU1144F relies on two power sources to support four USB Devices, power supplied through the PCIe bus, and power from the system’s PSU via an external power cable. If the external cable is not connected, there will be insufficient power to support all 4 USB Devices, this may cause the USB Device to drop offline.
-
Page 7: Driver Installation
Driver Installation Windows Platforms: The RocketU 1144F is natively supported by Windows 8 and later (no driver installation is required). Mac OS: The RocketU 1144F is natively supported by macOS 10.13 and later (no driver installation is required). Linux The RocketU 1144F is natively supported by Linux 3.10.0 and later... -
Page 8: Verifying Installation (Windows)
Verifying Installation (Windows) 1. Open Device Manager. 2. Expand the 'Universal Serial Bus Controllers' entry. 3. If the driver is installed properly, four “ASMedia USB 3.1 eXtensible Host Controller” and four “USB Root Hub” entry should be displayed. -
Page 9: Verifying Installation (Macos)
Verifying Installation (macOS) 1. Access the System Information app, and click on PCI under Hardware. 2. Verify if the driver is installed properly for the “pci1b21,3042” USB eXtensible Host Controller. -
Page 10: Verifying Installation (Linux)
Connecting USB Storage Devices 1. Power on the system. 2. Connect the USB device to the HighPoint RocketU HBA with a USB cable. 3. For hard drives or enclosures, allow the device to spin up for a few moments. -
Page 11: Fcc Part 15 Class B Radio Frequency Interference Statement
FCC Part 15 Class B Radio Frequency Interference statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 12: Customer Support
Customer Support If you encounter any problems while utilizing this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://highpoint-tech.com/websupport/ HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com © Copyright 2021 HighPoint Technologies, Inc. All right reserved.
