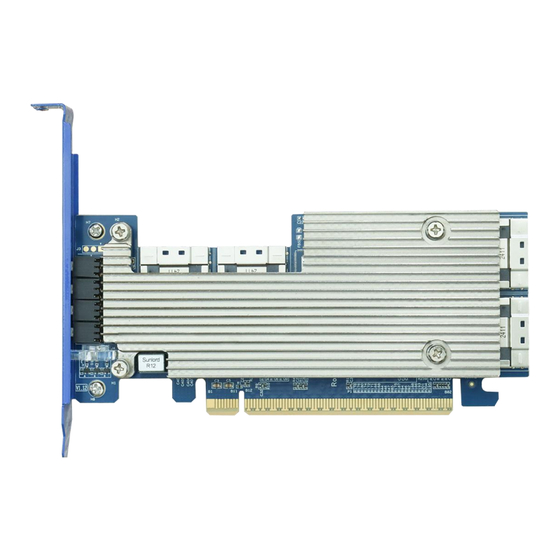

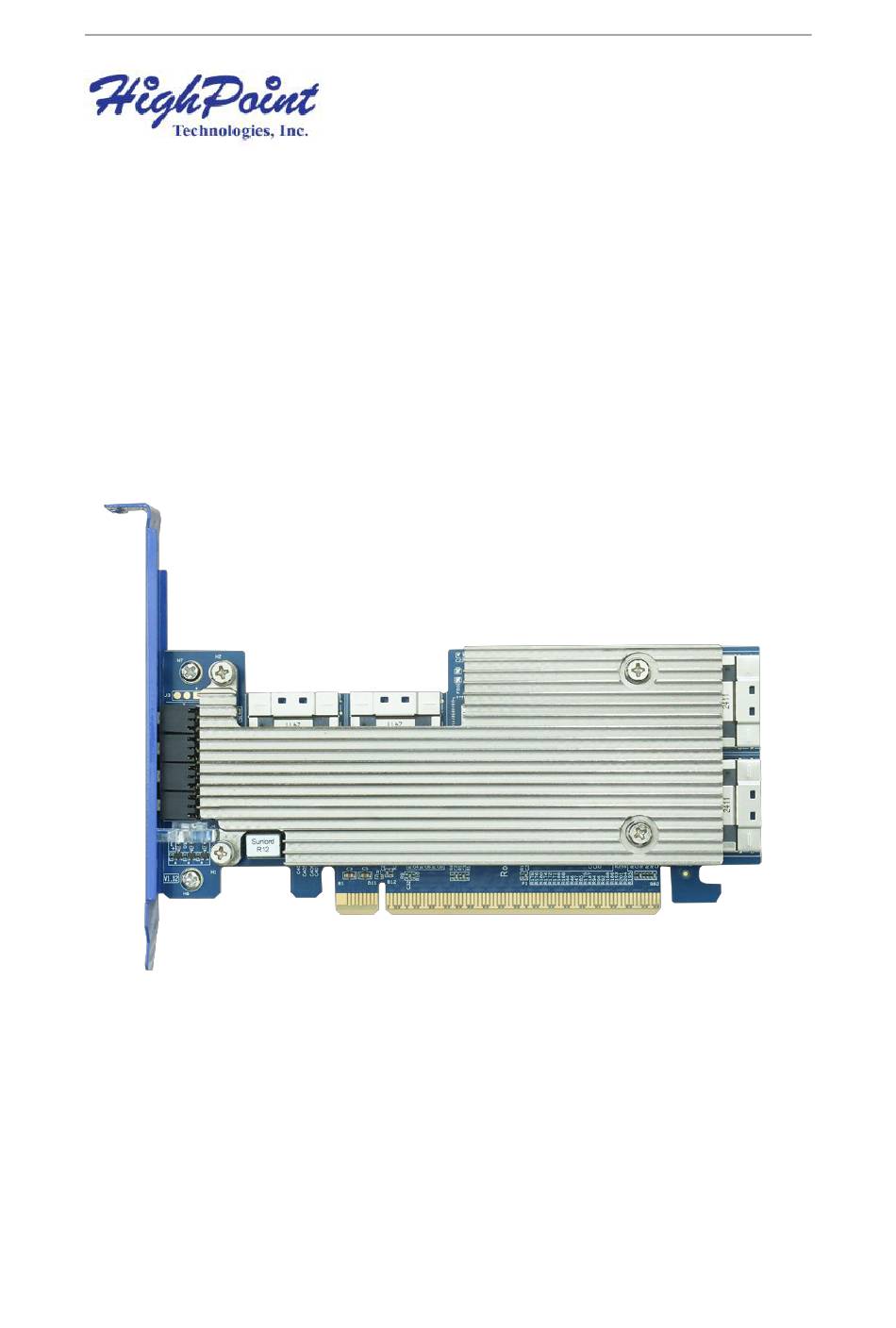

- Page 1 R7528D NVMe RAID Adapter User Guide Rocket 7528D (R7528D) NVMe RAID Adapter User Guide V1.00 - June 18, 2024 Copyright 2024 HighPoint Technologies, Inc. All rights reserved HighPoint Technologies, Inc...
-
Page 2: Table Of Contents
4.5. 8654-8611-205 ....................20 4.5.1. Cable Diagram ..................... 20 4.5.2. Cable Drawings and Pinouts ................20 4.5.3. Cable Connection ....................21 5. R7528D Installation Instructions ............22 6. Revision History .................. 23 Version 1.00, June 18, 2024 ................23 HighPoint Technologies, Inc... -
Page 3: Overview
The R7528D is the latest member of our PCIe Gen4 NVMe RAID Adapter product family. HighPoint Rocket Series NVMe connectivity adapters address the needs of solution providers and system integrators that cater to vertical marketplaces for high-speed industrial, corporate, and media applications. -
Page 4: Fru
(x) can be 0 through 9 or A through Z. V0 indicates the Vendor Name V1 indicates the Main Chip 1.1.2. Synthetic Hierarchy A synthetic hierarchy can be created to isolate the host from these physical PCIe topology changes and errors. HighPoint Technologies, Inc... -
Page 5: R7528D Hardware Description
2. R7528D Hardware Description 2.1. R7528D Layout The layout of the R7528D is presented in two parts. Front View The following figure shows the key components of the R7528D. ○ ○ ○ ○ ○ ○ ○ ○ HighPoint Technologies, Inc... - Page 6 Note: 1 means alarming, and 0 means not alarming. LED View The following figure shows the LED Indicators of the R7528D. LED View SSD0 LED SSD1 LED SSD3 LED SSD2 LED SSD5 LED SSD4 LED SSD6 LED SSD7 LED Status LED Fault LED HighPoint Technologies, Inc...
- Page 7 Slow Flash Red The LED blinks red at 1 Hz to indicate the disk’s location, which can be accessed through the HighPoint RAID Management Software--Identify LED function. Identify ON means the LED blinks, and Identify OFF means the LED light is restored to its original state.
-
Page 8: Pcie Host Interface
LP-MD2, Single Width Weight 340g Dimension Length 6.10" Height 2.71" Power consumption 29.58W Power supply PCIe: 12V, 3.3V Work temperature +5°C ~ + 55°C Storage temperature -20°C ~ +80°C MTBF (Mean Time Before Failure) > 5,000,000 hours at 40°C HighPoint Technologies, Inc... -
Page 9: R7528D Sff-8654 Connector
The following figure shows the SFF-8654 connector pin designation. 3.2. SFF-8654 Connetor Pinout The following table defines the R7528D’s SFF-8654 connector pinouts. Table 5: SFF-8654 Connetor Pinouts Name Name PERp0 PETp0 PERn0 PETn0 PERp1 PETp1 PERn1 PETn1 U0_SCL U0_SDA SFF8654_LCK1_P PE_RESET# SFF8654_LCK1_N U0_CWAKE# HighPoint Technologies, Inc... - Page 10 R7528D NVMe RAID Adapter User Guide PERp2 PETp2 PERn2 PETn2 PERp3 PETp3 PERn3 PETn3 PERp4 PETp4 PERn4 PETn4 PERp5 PETp5 PERn5 PETn5 U1_SCL U1_SDA SFF8654_LCK2_P PE_RESET# SFF8654_LCK2_N U1_CWAKE# PERp6 PETp6 PERn6 PETn6 PERp7 PETp7 PERn7 PETn7 HighPoint Technologies, Inc...
-
Page 11: Backplane Connector Support
The R7528D supports the legacy implementation of Virtual Pin Port (VPP) backplane management. The cables must be connected according to the desired slot enumeration to identify the slots correctly. Connect the SFF-8654 connector of the R7528D to the backplane via the cable. HighPoint Technologies, Inc... -
Page 12: Cable Accessories
SFF-8654 Host to U.2 SFF-8639 Device cable with a 15-pin SATA power connector. Each cable supports two U.2 NVMe SSDs. Length 0.6M. 4.1.1. Cable Diagram SFF-8654 SFF-8639 4.1.2. Cable Drawings and Pinouts The following figure shows the pinout for the HighPoint TS8i-8639-060 cable, one x8 SFF-8654 to two x4 SFF-8639 connection. HighPoint Technologies, Inc... -
Page 13: Cable Connection
Connect the SFF-8639 connector of the TS8i-8639-060 cable to the NVMe SSD, and connect the 15-pin SATA power connector of the TS8i-8639-060 cable to the system power supply. Connect the SFF-8654 connector of the TS8i-8639-060 cable to the R7528D. HighPoint Technologies, Inc... -
Page 14: Cable Diagram
SFF-8654 Host to SFF-8654 Device cable. Each cable can host up to two NVMe SSDs. Length 1M. 4.2.1. Cable Diagram SFF-8654 SFF-8654 4.2.2. Cable Drawings and Pinouts The following figure shows the pinout for the HighPoint 8654-8654-110 cable, one x8 SFF-8654 to one x8 SFF-8654 connection. HighPoint Technologies, Inc... -
Page 15: Cable Connection
The following steps show the connection of the backplane to the R7528D using the 8654-8654-110 cable. Connect the SFF-8654 connector of the 8654-8654-110 cable to the backplane. Connect the other SFF-8654 connector of the 8654-8654-110 cable to the R7528D. HighPoint Technologies, Inc... -
Page 16: 8654-Cio8-110
SFF-8654 Host to MCIO Device cable. Each cable can host up to two NVMe SSDs. Length 1M. 4.3.1. Cable Diagram SFF-8654 MCIO 4.3.2. Cable Drawings and Pinouts The following figure shows the pinout for the HighPoint 8654-CIO8-110 cable, one x8 SFF-8654 to one x8 MCIO connection. HighPoint Technologies, Inc... -
Page 17: Cable Connection
The following steps show the connection of an NVMe SSD to the R7528D using the 8654-CIO8-110 cable. Connect the MCIO connector of the 8654-CIO8-110 cable to the backplane. Connect the SFF-8654 connector of the 8654-CIO8-110 cable to the R7528D. HighPoint Technologies, Inc... -
Page 18: Cable Diagram
SFF-8654 Host to SFF-8643 Device cable. Each cable can host up to two NVMe SSDs. Length: 1M. 4.4.1. Cable Diagram SFF-8643 SFF-8654 4.4.2. Cable Drawings and Pinouts The following figure shows the HighPoint 8654-8643-210 cable pinout, one x8 SFF-8654 to two x4 SFF-8643 connection. HighPoint Technologies, Inc... -
Page 19: Cable Connection
The following steps show the connection of the SSD enclosure to the R7528D using the 8654-8643- 210 cable. Connect the SFF-8643 connector of the 8654-8643-210 cable to the SSD enclosure. Connect the SFF-8654 connector of the 8654-8643-210 cable to the R7528D. HighPoint Technologies, Inc... -
Page 20: Cable Diagram
SFF-8654 Host to SFF-8611 Device cable. Each cable can host up to two NVMe SSDs. Length: 0.5M. 4.5.1. Cable Diagram SFF-8611 SFF-8654 4.5.2. Cable Drawings and Pinouts The following figure shows the HighPoint 8654-8611-205 cable pinout, one x8 SFF-8654 to two x4 SFF-8611 connection. HighPoint Technologies, Inc... -
Page 21: Cable Connection
The following steps show the connection of the SSD enclosure to the R7528D using the 8654-8611- 205 cable. Connect the SFF-8611 connector of the 8654-8611-205 cable to the SSD enclosure. Connect the SFF-8654 connector of the 8654-8611-205 cable to the R7528D. HighPoint Technologies, Inc... -
Page 22: R7528D Installation Instructions
R7528D NVMe RAID Adapter User Guide 5. R7528D Installation Instructions The R7528D provides four SFF-8654 connectors. These connectors accept a variety of HighPoint Certified Cable Accessories (see the Accessories section towards the end of this guide for more information). The following steps explain how to connect U.2 NVMe SSDs directly to the R7528D using the HighPoint TS8i-8639-060 cable. -
Page 23: Revision History
R7528D NVMe RAID Adapter User Guide 6. Revision History Version 1.00, June 18, 2024 Initial version. HighPoint Technologies, Inc...
