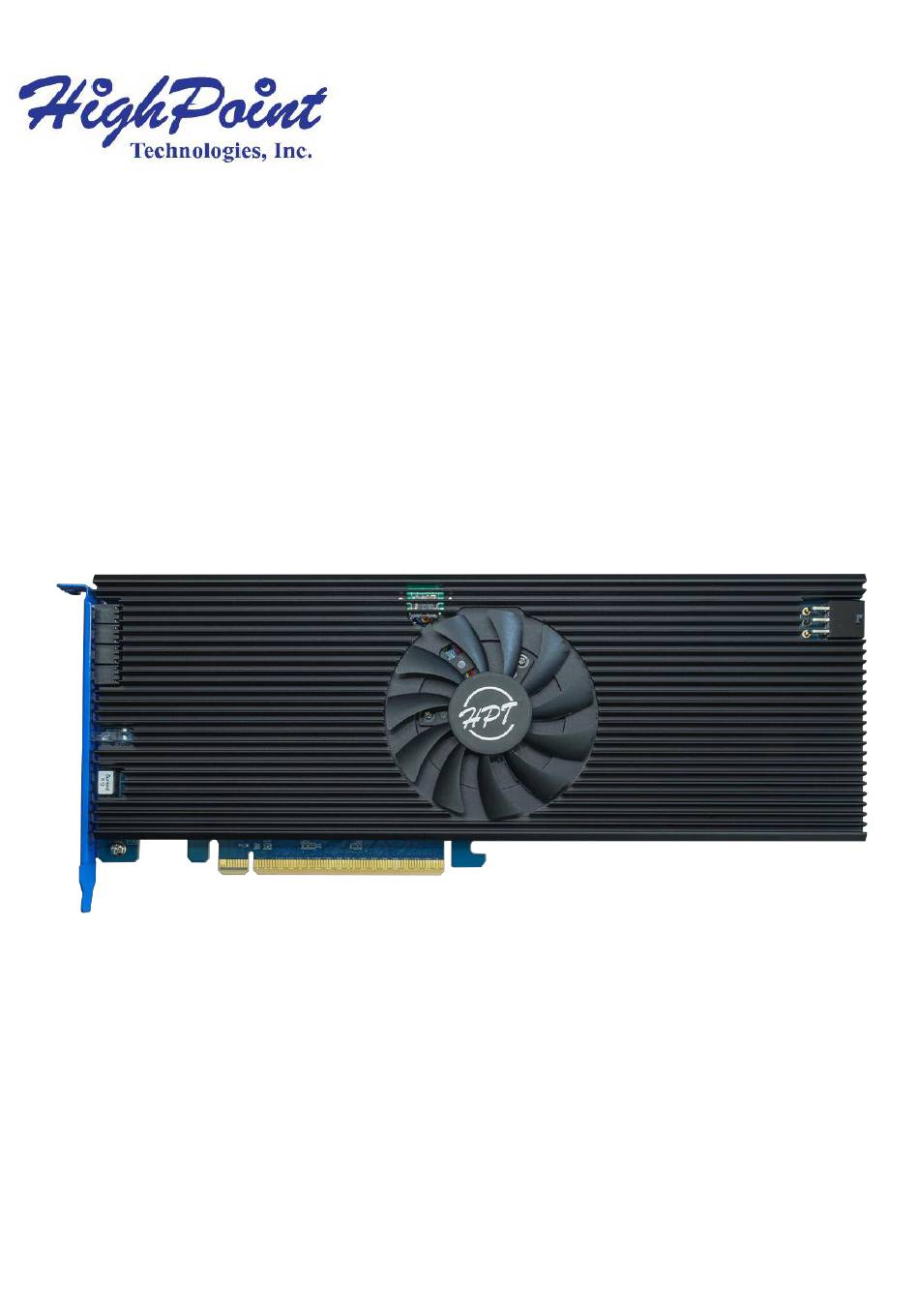

- Page 1 RocketAIC 7608AW (RA7608AW) 8x NVMe Port to PCIe 5.0 x16 NVMe AIC SSD Quick Installation Guide V1.00...
- Page 2 System Requirements PC Requirements System platform with a free physical PCIe 5.0 (3.0 or 4.0) x16 slot Form factor: Full-Height, Full-Length Operating System Windows 11,10/Server 2022,2019,2016/ Microsoft Hyper-V RHEL/Debian/Ubuntu/Fedora/Proxmox/Rocky Linux (Linux kernel 3.10 and later) RA7608AW-A32T0-0F Kit Content 1x RA7608AW-A32T0-0F ...
- Page 3 RA7608AW-C32T0-10 Kit Content 1x RA7608AW-C32T0-10 1x Quick Installation Guide 8x Additional M.2 Rubbers 1x K=8 84mm*90mm*0.75mm Thermal PAD 1x K=8 70mm*90mm*0.75mm Thermal PAD 1x K=8 84mm*90mm*1mm Thermal PAD 1x K=8 70mm*90mm*1mm Thermal PAD RA7608AW Hardware Front View Low-Noise Cooling Fan...
- Page 4 LED View SSD0 LED SSD1 LED SSD3 LED SSD2 LED SSD5 LED SSD4 LED SSD6 LED SSD7 LED Status LED Fault LED Note: Please refer to the detailed description of LED colors and their status in the RA7608AW NVMe AIC SSD User Guide on the official website.
-
Page 5: Hardware Installation
1. Use a wired ESD wrist strap that is properly grounded. 2. Unpack and remove the RA7608AW and check it for damage. If it appears damaged, please get in touch with HighPoint Technical Support. 3. Shut down the system and disconnect the AC power cord. - Page 6 RA7608AW before turning on the power to the system. Resources Various guides and FAQs are available for the RA7608AW. For Documentation and more information about this product, please visit the following website: https://www.highpoint-tech.com/rocketaic/ra7608aw FAQ & Troubleshooting: FAQ - HighPoint Technologies, Inc. (helpjuice.com)
-
Page 7: Customer Support
If you encounter any problems while utilizing the RA7608AW or have questions about this or any other HighPoint Technologies, Inc. product, please contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com © Copyright 2024 HighPoint Technologies, Inc. All rights reserved.
