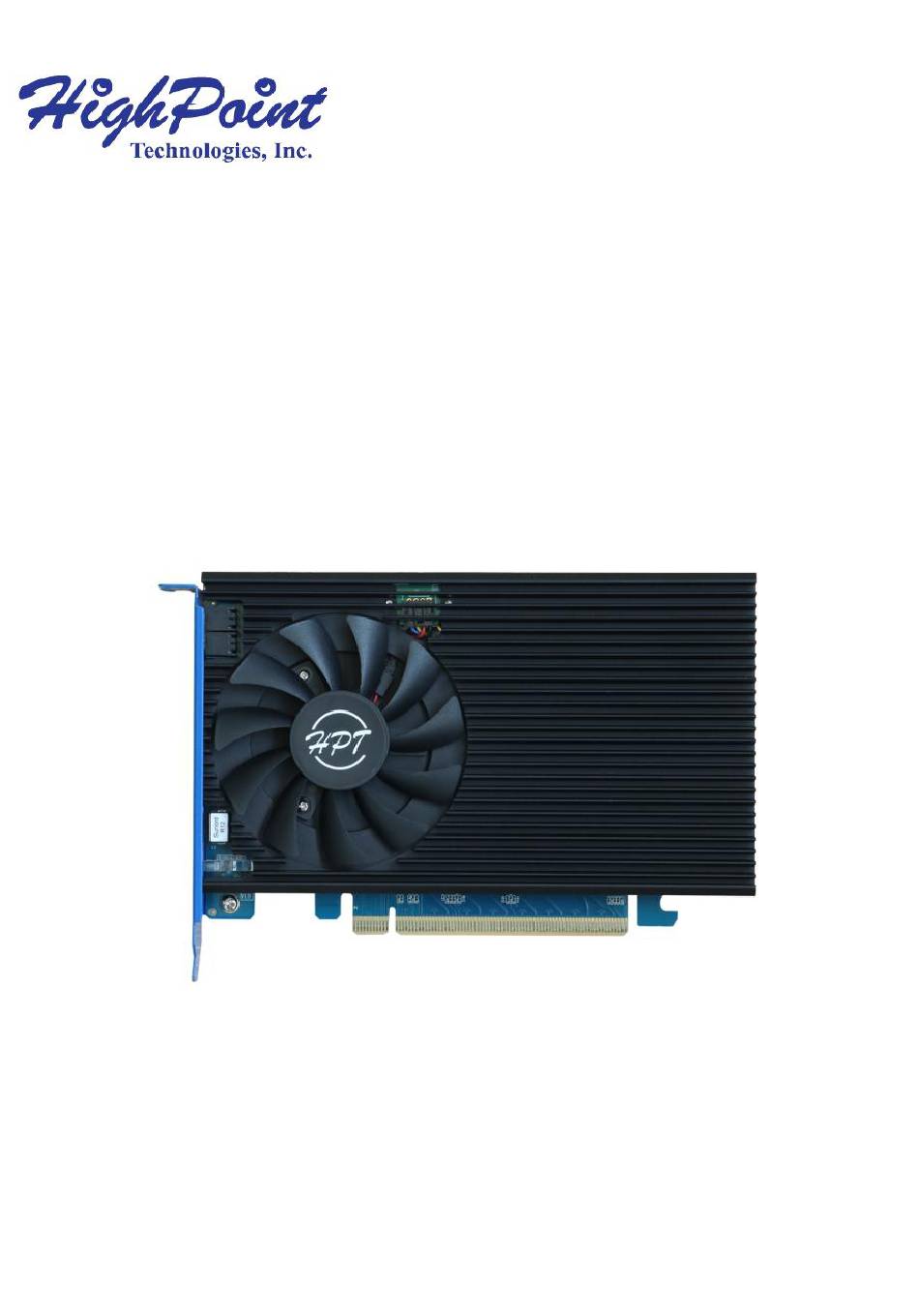

- Page 1 Rocket 7604A (R7604A) 4x NVMe Port to PCIe 5.0 x16 NVMe RAID AIC Quick Installation Guide V1.00...
- Page 2 System Requirements PC Requirements System with a free PCIe5.0 (or 3.0 or 4.0) x16 slot Operating System Windows 10 and later Windows Server 2016 and later Windows Hyper-V Server 2019 RHEL/Debian/Ubuntu/Fedora/Proxmox/Rocky Linux R7604A Kit Content 1x R7604A NVMe RAID AIC ...
- Page 3 R7604A Hardware Front View Low-Noise Cooling Fan PCIe 5.0 x16 Host Interface Full-height Bracket...
- Page 4 LED View SSD0 LED SSD1 LED SSD3 LED SSD2 LED Status LED Fault LED Note: Please refer to the detailed description of LED colors and their status in the R7604A NVMe RAID AIC User Guide on the official website.
- Page 5 2. Unpack and remove the R7604A and check it for damage. If it appears damaged, please get in touch with HighPoint Technical Support. 3. Remove the five screws on the back of the R7604A that secure the heat sink to the PCB and lift the heat sink up from the right side to remove it.
- Page 6 1) Remove the blue film from one side of the thermal pads. 2) Align the thermal pad with the M.2 port and press gently to ensure a tight fit. 3) Remove the blue film from the other side of the thermal pads.
- Page 7 5. Install the NVMe SSDs to the R7604A. 1) Confirm the direction of the rubber (pointing in the opposite direction of the M.2 port). 2) Gently insert the NVMe SSD into the M.2 connector. 3) Press the side of the rubber to align it and insert it into the retention hole on the end of the NVMe SSD.
- Page 8 5) Repeat the above steps to install the remaining NVMe SSDs. 6. Install the heat sink to the R7604A PCB. 1) Remove the blue film from the thermal pad on the heat sink. 2) Align the left side of the heat sink with the PCB and carefully lower the right side.
- Page 9 3) Carefully and properly align the heat sink with the PCB and retighten the five screws that were removed in step 3. Note: If the screws are not tightened, there will be fan stalling, poor heat dissipation, and other situations. 7.
- Page 10 2) Align the R7604A to one of the motherboard’s available slots. Press down gently but firmly to seat the R7604A correctly in the slot. 8. Turn on the power to the system.
- Page 11 FAQ & Troubleshooting: FAQ - HighPoint Technologies, Inc. (helpjuice.com) Customer Support If you encounter any problems while utilizing the R7604A or have questions about this or any other HighPoint Technologies, Inc. product, please contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services...
