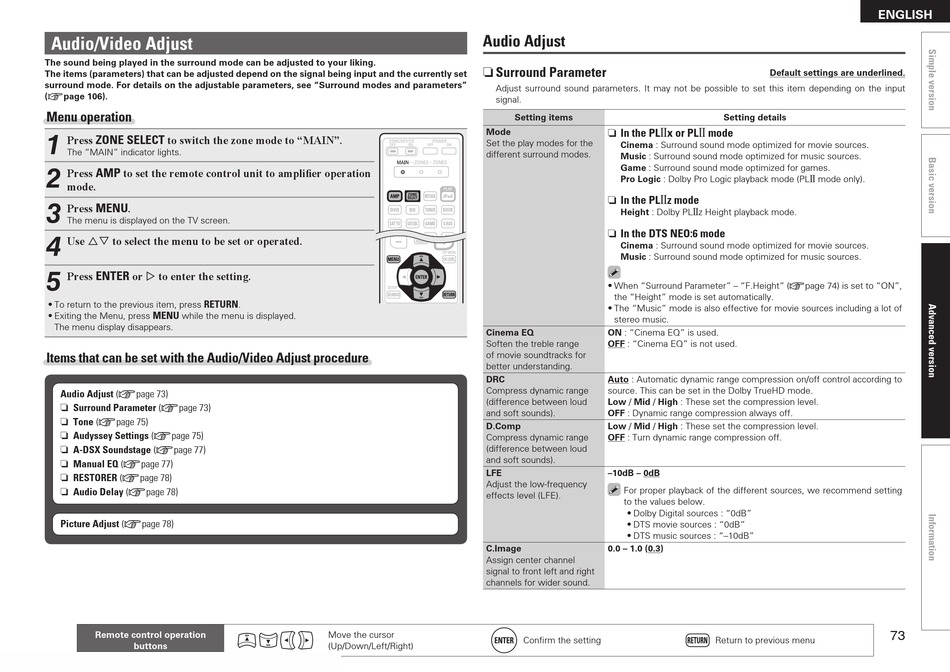

Audio/Video Adjust

The sound being played in the surround mode can be adjusted to your liking.
The items (parameters) that can be adjusted depend on the signal being input and the currently set
surround mode. For details on the adjustable parameters, see "Surround modes and parameters"
(vpage 106).
Menu operation
1
Press ZONE SELECT to switch the zone mode to "MAIN".
The "MAIN" indicator lights.
2
Press AMP to set the remote control unit to amplifier operation
mode.
3
Press MENU .
The menu is displayed on the TV screen.
4
Use ui to select the menu to be set or operated.
5
Press ENTER or p to enter the setting.
RETURN
• To return to the previous item, press
MENU
• Exiting the Menu, press while the menu is displayed.
The menu display disappears.
Items that can be set with the Audio/Video Adjust procedure
Audio Adjust (vpage 73)
n Surround Parameter (vpage 73)
n Tone (vpage 75)
n Audyssey Settings (vpage 75)
n A-DSX Soundstage (vpage 77)
n Manual EQ (vpage 77)
n RESTORER (vpage 78)
n Audio Delay (vpage 78)
Picture Adjust (vpage 78)
Remote control operation
buttons
.
Move the cursor
(Up/Down/Left/Right)
Audio Adjust
n Surround Parameter
Adjust surround sound parameters. It may not be possible to set this item depending on the input
signal.
Setting items
Mode n In the PLgx or PLg mode
Set the play modes for the
Cinema : Surround sound mode optimized for movie sources.
different surround modes.
Music : Surround sound mode optimized for music sources.
Game : Surround sound mode optimized for games.
Pro Logic : Dolby Pro Logic playback mode (PLg mode only).
n In the PLgz mode
Height : Dolby PLgz Height playback mode.
n In the DTS NEO:6 mode
Cinema : Surround sound mode optimized for movie sources.
Music : Surround sound mode optimized for music sources.
• When "Surround Parameter" – "F.Height" (vpage 74) is set to "ON",
the "Height" mode is set automatically.
• The "Music" mode is also effective for movie sources including a lot of
stereo music.
ON : "Cinema EQ" is used.
Cinema EQ
Soften the treble range OFF : "Cinema EQ" is not used.
of movie soundtracks for
better understanding.
DRC Auto : Automatic dynamic range compression on/off control according to
Compress dynamic range source. This can be set in the Dolby TrueHD mode.
(difference between loud Low / Mid / High : These set the compression level.
and soft sounds). OFF : Dynamic range compression always off.
D.Comp Low / Mid / High : These set the compression level.
Compress dynamic range OFF : Turn dynamic range compression off.
(difference between loud
and soft sounds).
LFE –10dB – 0dB
Adjust the low-frequency
For proper playback of the different sources, we recommend setting
effects level (LFE).
to the values below.
• Dolby Digital sources : "0dB"
• DTS movie sources : "0dB"
• DTS music sources : "–10dB"
C.Image 0.0 – 1.0 (0.3)
Assign center channel
signal to front left and right
channels for wider sound.
Confirm the setting
ENGLISH
Default settings are underlined.
Setting details
73
Return to previous menu
