OPERATION AND INSTALLATION

Air source heat pump

» HPA-O 4 CS Plus int

» HPA-O 8 CS Plus int

Table of Contents

Troubleshooting

Need help?

Do you have a question about the HPA-O 4 CS Plus int and is the answer not in the manual?

Questions and answers

Summary of Contents for STIEBEL ELTRON HPA-O 4 CS Plus int

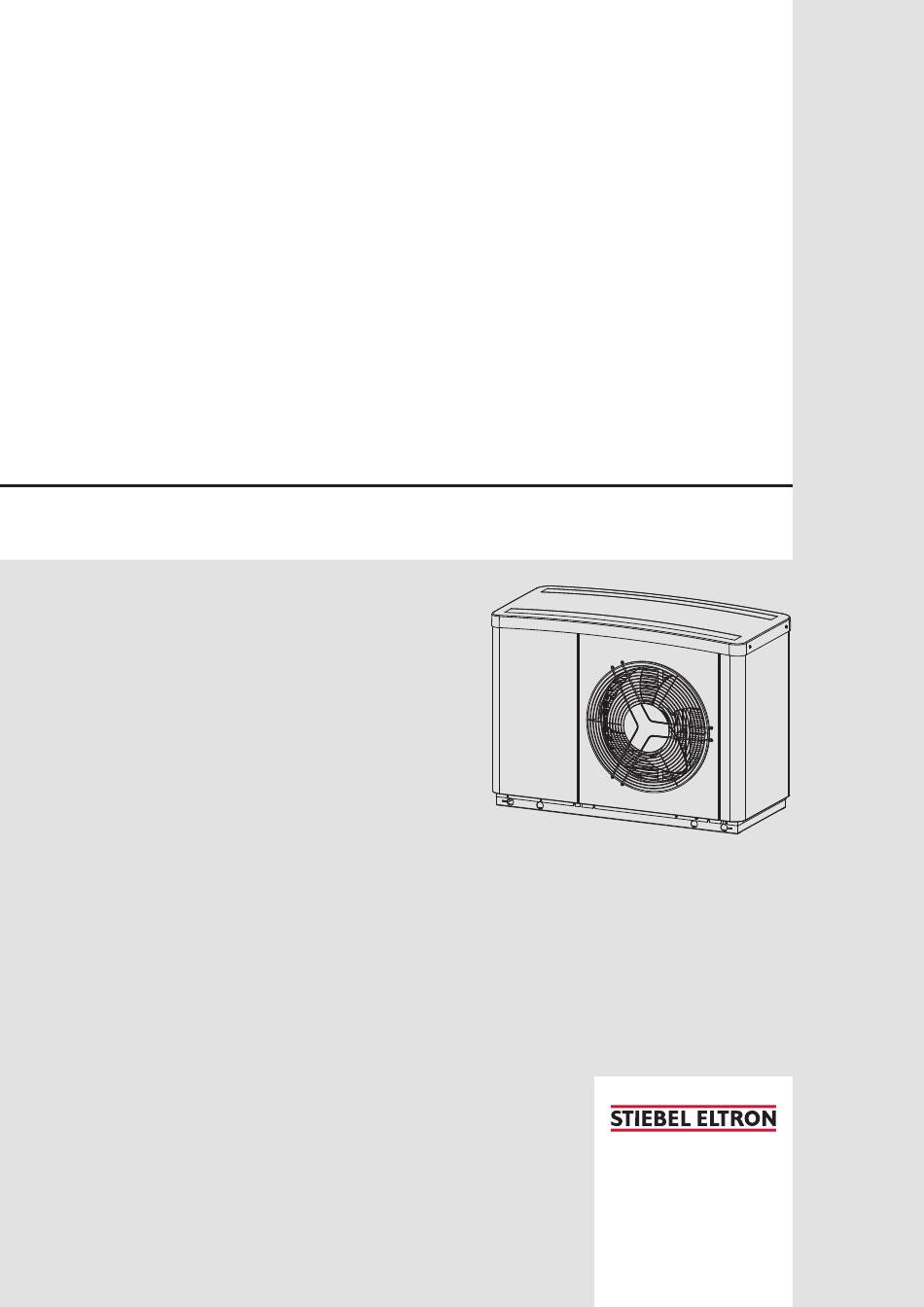

Page 1 OPERATION AND INSTALLATION Air source heat pump » HPA-O 4 CS Plus int » HPA-O 8 CS Plus int...
Page 2: Table Of Contents
TABLE OF CONTENTS SPECIAL INFORMATION Appliance handover �� 19 Shutting down the system �� 20 OPERATION 15.1 Standby mode �� 20 General information ��3 15.2 Power interruption �� 20 Other applicable documents �� 3 Maintenance �� 20 Safety instructions �� 3 Other symbols in this documentation �� 4 Troubleshooting ��...
Page 3: Safety Instructions �� 3 Maintenance
SPECIAL INFORMATION | OPERATION General information SPECIAL INFORMATION OPERATION - The appliance may be used by children aged 8 General information and older and persons with reduced physical, sensory or mental capabilities or a lack of ex- The chapters "Special information" and "Operation" are intended for appliance users and qualified contractors.
Page 4: Units Of Measurement �� 4 17.1 Checking The Iws Dip Switch Settings
OPERATION Safety Other symbols in this documentation Safety Notice Intended use General information is identified by the adjacent symbol. The appliance is designed for room heating and cooling within f Read these texts carefully. the application limits given in the specification. The appliance is intended for domestic use.
Page 5: Appliance Description
OPERATION Appliance description Appliance description The heat pump automatically reverts to heating mode at the end of the defrost cycle. Minimum software versions Property damage The following minimum software versions are necessary for op- In dual mode operation, return water from the second eration of the heat pump: heat generator may flow through the heat pump.
Page 6: Maintenance And Care
OPERATION Maintenance and care Maintenance and care If you cannot remedy the fault, contact your qualified contractor. To facilitate and speed up your request, provide the number from the type plate. The type plate is located at the front top, on the Property damage right or left-hand side of the casing.
Page 7: Installation
INSTALLATION Safety INSTALLATION Preparation Safety Only a qualified contractor should carry out installation, commis- sioning, maintenance and repair of the appliance. General safety instructions The appliance is designed for installation on a T-support or wall mounting bracket. Observe the minimum clearances. If the appli- We guarantee trouble-free function and operational reliability only ance is installed in an open space, protect the air intake side.
Page 8: Minimum Clearances
INSTALLATION Preparation Minimum clearances 9.2.1 Installation in coastal areas >500 m 1 Main wind direction 2 Building, wall or wind protection 3 appliance 4 Air discharge f Ensure that the air intake direction is the same as the main wind direction. If the main wind direction is from the sea ≥500 ≥500 (> 2 % salinity), ensure that the installation is at least 500 m...
Page 9 INSTALLATION Preparation Example: Gravel bed under T-support SK 2 Example: Gravel bed under wall mounting bracket WK 1 1 Drainage pipe Heat pump 1 Drainage pipe HPA-O 4 CS Plus int HPA-O 8 CS Plus int Heat pump HPA-O 4 CS Plus int f Lay a drainage pipe under the appliance to drain moisture HPA-O 8 CS Plus int 1000 away from the building.
Page 10 INSTALLATION Preparation 9.3.2 Siting Example: T-support SK 2 Example: Wall mounting support WK 1 Notice To prevent disturbance due to structure-borne noise transmission, never install the wall mounting bracket on the external walls of living areas or bedrooms. f Install the wall mounting bracket on a garage wall, for example.
Page 11: Installing The Supply Lines
INSTALLATION Preparation Installing the supply lines Preparing the electrical installation WARNING Electrocution Notice Carry out all electrical connection and installation work f Do not route the heating flow and return pipes in accordance with national and regional regulations. through the gravel bed below the appliance. WARNING Electrocution The supply lines are all electric cables plus the heating flow and The connection to the power supply must be in the form...
Page 12: Installation
INSTALLATION Installation 10.3 Flow and return connection f If you have selected a lower fuse protection for the compres- sor, you will need to limit the maximum power consumption. In the COMMISSIONING / COMPRESSOR menu, adjust the Property damage MAXIMUM CURRENT parameter. Observe the information in In cooling mode, condensate can form when the dew the commissioning instructions for the heat pump manager.
Page 13: Heating Water Connection
INSTALLATION Installation How the push-fit connectors work Undoing the push-fit connection The push-fit connectors are equipped with a retainer with stain- If the push-fit connectors later need to be undone, proceed as less steel serrations and an O-ring for sealing. The push-fit con- follows: nectors also have a "twist and secure"...
Page 14: Oxygen Diffusion
INSTALLATION Installation 10.6 Oxygen diffusion If it is not possible to detect power failures (for example if the system is in a holiday home left vacant for extended periods of time), the following protective measure can be taken. Property damage f Add a suitable concentration of ethylene glycol to the fill Do not use open vented heating systems.
Page 15: Electrical Connection
INSTALLATION Electrical connection 11. Electrical connection WARNING Electrocution Before working on the appliance, isolate it from the power supply at the terminal area. Notice Please observe the instructions for the heat pump man- ager. Connection work must only be carried out by a qualified contractor and in accordance with these instructions.
Page 16: Commissioning
INSTALLATION Commissioning 12. Commissioning Property damage Strain relief fittings that are too tight may lead to a short A WPM heat pump manager is required to operate the appliance. circuit. All necessary adjustments prior to and during operation are made f Never tighten them completely.
Page 17 INSTALLATION Commissioning 12.2.1 Sizing the heating circuits 12.2.2 Systems without a buffer cylinder For systems with a buffer cylinder, we recommend checking the Notice sizing of the heating circuits in order to ensure that the system If the appliance is operated solely through the WPM heat operates efficiently.
Page 18: Operation With An External Second Heat Source
INSTALLATION Settings 12.3 Operation with an external second heat source f Check the current flow rate. Parameter The appliance is factory set for compressor operation with an WP WATER FLOW RATE (INFO / HEAT PUMP / PROCESS DATA) electric emergency/auxiliary heater. If the appliance is operated in dual mode with an external second heat source, set the DIP f Compare the value with the minimum flow rate (see chapter switch to "Compressor mode with external second heat source"...
Page 19: Reduced Night Mode (Silent Mode)
INSTALLATION Appliance handover Once everything has been implemented correctly, the system can f Adjust the fan control and compressor output in the heat be heated to its maximum operating temperature and vented once pump manager. again. Parameter OUTPUT (COMMISSIONING / SILENT MODE / OUTPUT REDUCTION) Property damage FAN (COMMISSIONING / SILENT MODE / OUTPUT REDUCTION) For underfloor heating systems, observe the maximum...
Page 20: Shutting Down The System
INSTALLATION Shutting down the system 15. Shutting down the system 17. Troubleshooting WARNING Electrocution Property damage f Before working on the appliance, isolate it from the Never interrupt the heat pump power supply, even out- power supply at the control panel. side of the heating season. Otherwise, system frost pro- Following disconnection from the power supply, parts of tection is not guaranteed.
Page 21 INSTALLATION Troubleshooting 17.1.1 DIP switch (WP-Typ) The DIP switch (WP-Typ) on the IWS serves to set the relevant heat pump type. Factory setting Compressor mode with electric emergency/auxiliary heater Notice The electric emergency/auxiliary heater is installed in many of our additionally available indoor units. WP - Typ 1 Screws to be unscrewed 2 Screws to be removed...
Page 22: Reset Button
INSTALLATION Troubleshooting 17.2 LEDs (IWS) 17.4 Fan noise The heat pump draws heat from the outdoor air. This causes the outdoor air to cool down. At outside temperatures of 0 °C to 8 °C, the air may be cooled to below freezing point. If, under these conditions, precipitation occurs in the form of rain or fog, ice may form on the air grille, the fan blades or the air routing pipes.
Page 23: Specification
INSTALLATION Specification 18. Specification 18.1 Dimensions and connections HPA-O 4 CS Plus int HPA-O 8 CS Plus int appliance Height appliance Width 1022 1152 Entry electrical cables Condensate drain Heating flow Diameter Heating return Diameter Air intake Air discharge www.stiebel-eltron.com HPA-O CS Plus int |...
Page 24: Wiring Diagram
INSTALLATION Specification 18.2 Wiring diagram L1 N 5 turns 5 turns X11.1 PE Versorgung N Versorgung L Versorgung X11.2 Verdichter Schütz N Verdichter Schütz L X11.3 Abtauventil N Abtauventil L X11.4 Ölsumpfheizung N Ölsumpfheizung L X11.5 1 turn 5 turns N PE Düsenheizung X11.6...
Page 25 INSTALLATION Specification 5 turns X12.1 X12.2 Heißgastemperatur Heißgastemperatur GND Heizungsrücklauftemperatur Heizungsrücklauftemperatur GND Außenlufttemperatur Außenlufttemperatur GND Verdichtereintrittstemperatur Verdichtereintrittstemperatur GND Verdampferausgangstemperatur Verdampferausgangstemperatur GND Ölsumpf Ölsumpf GND X12.3 CAN GND CAN L CAN H (IWS IV) X12.4 +12..+18V ND 4..20mA +12...+18V HD 4...20mA X12.5 +12V Phase 4...
Page 26: Application Limit
INSTALLATION Specification 18.3 Application limit Integral heat pump control unit (IWS) Inverter compressor/fan Heating flow temperature sensor – Pt1000 18.3.1 Heating Heating return temperature sensor – Pt1000 Hot gas temperature sensor - Pt1000 Outdoor air temperature sensor – Pt1000 Compressor intake temperature sensor – Pt1000 Evaporator discharge temperature sensor –...
Page 27: Output Diagrams Hpa-O 4 Cs Plus Int
INSTALLATION Specification 18.4 Output diagrams HPA-O 4 CS Plus int Heating output X Outside temperature [°C] 1 max. W55 3 max. W35 5 min. W45 Y Heating output [kW] 2 max. W45 4 min. W55 6 min. W35 Cooling capacity X Flow temperature [°C] 1 Max.
Page 28: Output Diagrams Hpa-O 8 Cs Plus Int
INSTALLATION Specification 18.5 Output diagrams HPA-O 8 CS Plus int Heating output X Outside temperature [°C] 1 max. W55 3 max. W35 5 min. W45 Y Heating output [kW] 2 max. W45 4 min. W55 6 min. W35 Cooling capacity X Flow temperature [°C] 1 Max.
Page 29: Data Table
INSTALLATION Specification 18.6 Data table Output details apply to new appliances with clean heat exchangers. The power consumption figures for the integral auxiliary drives are maximum values and may vary subject to operating point. The power consumption of the integral auxiliary drives is included in the output details of the heat pump (to EN 14511). HPA-O 4 CS Plus int HPA-O 8 CS Plus int 239170...
Page 30 INSTALLATION Specification HPA-O 4 CS Plus int HPA-O 8 CS Plus int Application limits Min. application limit on heating side °C Max. application limit on the heating side °C Min. application limit, heat source °C Max. application limit, heat source °C Energy data Energy efficiency class, moderate climate, W55/W35 A+/A++ A++/A+++ Electrical data...
Page 31: Guarantee
GUARANTEE | ENVIRONMENT AND RECYCLING Guarantee The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only grant- ed if the subsidiary has issued its own terms of guarantee.
Page 32 Co m f o r t t h r o u gh Te c h n o l o g y STIEBEL ELTRON GmbH & Co. KG Dr.-Stiebel-Straße 33 | 37603 Holzminden | Germany info@stiebel-eltron.com | www.stiebel-eltron.com 4 < A M H C M O = f i j d a d >...
