OPERATION AND INSTALLATION

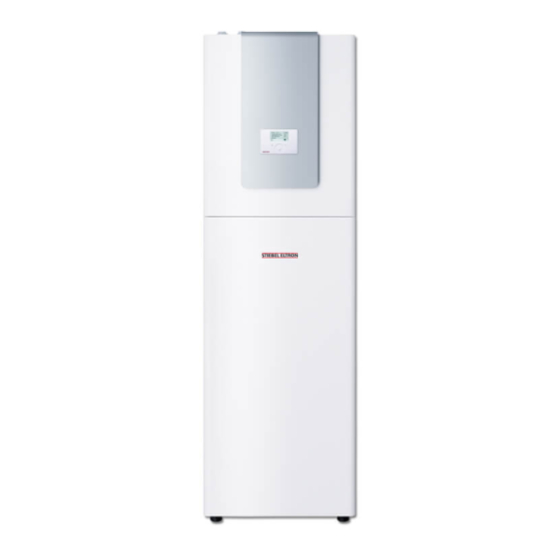

Ground source heat pump
» WPE-I 04 HW 230 Premium
» WPE-I 06 HW 230 Premium
» WPE-I 08 HW 230 Premium
» WPE-I 12 HW 230 Premium
» WPE-I 15 HW 230 Premium
» WPE-I 04 HKW 230 Premium
» WPE-I 06 HKW 230 Premium
» WPE-I 08 HKW 230 Premium
» WPE-I 12 HKW 230 Premium
» WPE-I 15 HKW 230 Premium
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for STIEBEL ELTRON WPE-I 04 HW 230 Premium
Summary of Contents for STIEBEL ELTRON WPE-I 04 HW 230 Premium
- Page 1 OPERATION AND INSTALLATION Ground source heat pump » WPE-I 04 HW 230 Premium » WPE-I 06 HW 230 Premium » WPE-I 08 HW 230 Premium » WPE-I 12 HW 230 Premium » WPE-I 15 HW 230 Premium » WPE-I 04 HKW 230 Premium »...
-
Page 2: Table Of Contents
CONTENTS SPECIAL INFORMATION Appliance handover ���������������������������������������� 21 Appliance shutdown ��������������������������������������� 21 OPERATION 13.1 Standby mode 21 General information �����������������������������������������4 13.2 Power interruption 21 Relevant documents 4 Troubleshooting �������������������������������������������� 21 Safety instructions 4 14.1 Resetting the high limit safety cut-out 22 Other symbols in this documentation 4 14.2 Resetting the compressor tempering device 22... -
Page 3: Special Information
SpECial iNfOrmaTiON SpECial iNfOrmaTiON - There is no need to shut the system down in summer. The heat pump manager has an au- tomatic summer/winter changeover. - The appliance may be used by children over - Drain the DHW cylinder as described in chap- 8 years of age and persons with reduced ter "Installation / Maintenance / DHW cylin- physical, sensory or mental capabilities or a... -
Page 4: General Information
OpEraTiON General information OpEraTiON Other symbols in this documentation Note General information is identified by the adjacent symbol. f Read these texts carefully. General information The chapters "Special information" and "Operation" are intended Symbol Meaning for both users and qualified contractors. Material losses The chapter "Installation"... -
Page 5: Safety
OpEraTiON Safety Test symbols Generally, the test conditions stated above will not fully match the conditions found at the installation site of the system user. See type plate on the appliance. Depending on the chosen test method and the extent to which this method differs from the test conditions defined in the first Appliance description paragraph of this section, any deviations can be considerable. -
Page 6: Maintenance And Care
iNSTallaTiON Maintenance and care iNSTallaTiON Material losses Condensation caused by the temperature falling below the dew point can lead to material losses. The appliance is approved solely for area cooling. Once the FET remote control is connected, the WPM heat pump manager takes Safety control of dew point monitoring. -
Page 7: Accessories
iNSTallaTiON Preparation Accessories Minimum installation area [m²] - Brine filling unit WPSF WPE-I 04 H(K)W Premium WPE-I 12 H(K)W Premium - Water softening fitting HZEA WPE-I 06 H(K)W Premium WPE-I 15 H(K)W Premium WPE-I 08 H(K)W Premium - Filter assembly 22 mm (FS-WP 22) - Filter assembly 28 mm (FS-WP 28) - FET remote control Increasing the minimum installation area - DHW circulation pump UPZ If the minimum installation area requirement cannot be met in - TAF PT immersion/contact sensor... -
Page 8: Installation Site
iNSTallaTiON Preparation Installation site Minimum clearances Material losses f Install the appliance only in rooms without a con- stant ignition source (e.g. open flames, a live gas appliance or an electric heater) or without open flue boilers. Note The appliance is designed for indoor installation, except in damp areas. -
Page 9: Installation
iNSTallaTiON Installation Installation Note The appliance includes an inverter for the variable speed Transport compressor. In the event of an error, inverters can cause DC residual currents. If RCDs are provided, they must be f Transport the appliance in its packaging to protect it against type B AC/DC-sensitive. - Page 10 iNSTallaTiON Installation Removing the upper side panels f Remove the screws. f Remove the side panels. 1 Hinge closer Removing the lower front panel 2 Articulated joint f Unscrew the hinge closer. f Unscrew both articulated joints. f Undo the cable ties and pull the BUS cable connector from the programming unit.
-
Page 11: Siting
iNSTallaTiON Installation Removing the refrigeration unit 1 Fixing screw 2 Handle f Remove the four fixing screws. f Lift the refrigeration unit off the DHW cylinder. f Remove the DHW temperature sensor from the immersion f Position the DHW cylinder on the prepared base (see chapter pipe of the DHW cylinder. -
Page 12: Opening The Appliance
iNSTallaTiON Installation Opening the appliance f Connect one flexible pressure hose each to act as an anti-vi- bration mount to the "heat source flow" and "heat source return" connections. The pressure hoses are part of the Note standard delivery. When you open the appliance, check the sealing tape. The sealing tape is required for generating the necessary The brine volume of the heat pump under operating conditions can negative pressure. -
Page 13: Heating Water Connection
iNSTallaTiON Installation f Insulate the brine pipes with diffusion-proof thermal insula- tion. Heating water connection Note The use of non-return valves in the charging circuits be- tween the heat generator and the buffer or DHW cylin- der can impair the function of the integral multifunction assembly (MFG) and lead to faults in the heating system. -
Page 14: Oxygen Diffusion
iNSTallaTiON Installation f Ensure that the safety valve drain is open to the outside. Filling the heating system f Install the safety valve drain with a constant fall to the dis- Material losses charge outlet. When installing the drain, never kink the drain f Never switch on the power before filling the system. -
Page 15: Dhw Connection
iNSTallaTiON Installation DHW connection f Remove the lower front panel (see chapter "Installation / Transport / Separating the appliance / Removing the lower front panel"). Material losses f Carry out all water connection and installation work in accordance with regulations. Material losses The DHW outlet connection is prefitted with a plastic union nut and a soft rubber gasket. -
Page 16: Operation With Buffer Cylinder
iNSTallaTiON Installation 9.11 Operation with buffer cylinder Material losses f Install the supplied TAF PT immersion/contact sensor. To ensure the push-fit connector is held securely, pipes f Connect the sensor to the heat pump manager. with a surface hardness > 225 HV (e.g. stainless steel) must have a groove. - Page 17 iNSTallaTiON Installation Undoing the push-fit connection If the push-fit connectors later need to be undone, proceed as follows: f Turn the screw cap anti-clockwise until there is a narrow gap of approx. 2 mm. Press the retainer back with your fingers and hold on to it.
-
Page 18: Electrical Connection
iNSTallaTiON Electrical connection 10. Electrical connection You can choose between two connection options. The compressor connection remains single-phase. Connection option Connection type 10.1 General separate connections for compressor and emergency/booster heater WARNING Electrocution connection for compressor and emergency/ f Before working on the appliance, isolate it from the booster heater using a 5-core cable power supply at the control panel. - Page 19 iNSTallaTiON Electrical connection If no voltage is applied to the power supply utility enable signal, Mains voltage the heat pump will not start. X2.1 Power supply f If no ripple control receiver is fitted, install a jumper be- tween EVU1 and EVU2. X2.2 L' (power supply L' (power supply utility input)
-
Page 20: High Limit Safety Cut-Out For Area Heating System
iNSTallaTiON Commissioning 10.3 High limit safety cut-out for area heating 11.1.3 Temperature sensors system - Have you correctly positioned and connected the outside sen- sor and the immersion/contact sensor (in conjunction with a buffer cylinder)? Material losses In order to prevent excessively high flow temperatures 11.1.4 High limit safety cut-out in the area heating system causing damage in the event of a fault, install a high limit safety cut-out to limit the... -
Page 21: Operation Appliance Shutdown
iNSTallaTiON Appliance handover 12. Appliance handover f Fully open thermostatic or zone valves in a lead room (e.g. living room or bathroom). Explain the appliance function to users and familiarise them with We do not recommend installing thermostatic or zone valves how it works. -
Page 22: Resetting The High Limit Safety Cut-Out
iNSTallaTiON Troubleshooting Note Note f Do not reset the high limit safety cut-out at tempera- When you open the appliance, check the sealing tape. The sealing tape is required for generating the necessary tures above 65 °C. negative pressure. f Replace the sealing tape if required. f Reset the high limit safety cut-out by pressing the reset but- ton. -
Page 23: Leds (Iws)
iNSTallaTiON Maintenance Compressor mode with an external second heat generator The following table shows the meaning of the LEDs on the IWS. LED indicator Meaning Material losses Red LED flashes Single fault. The appliance shuts down. The appli- In this case, do not connect the electric emergency/boost- ance restarts after 10 minutes. -
Page 24: Specification
iNSTallaTiON Specification Draining the DHW cylinder We recommend checking the protective anodes at the latest two years after commissioning. WARNING Burns Hot water may escape when draining the DHW cylinder. Material losses Replace the protective anodes when the colour of the f Close the shut-off valve in the cold water inlet line. - Page 25 iNSTallaTiON Specification WPE-I 04 HKW WPE-I 06 HKW WPE-I 08 HKW WpE-i 12 HKW WpE-i 15 HKW 230 Premium 230 Premium 230 Premium 230 Premium 230 Premium Entry electrical cables Cold water inlet Diameter DHW outlet Diameter DHW circulation Safety valve drain Diameter Heating flow Diameter Heating return Diameter Heat source flow Diameter Heat source return Diameter...
-
Page 26: Wiring Diagram
iNSTallaTiON Specification 16.2 Wiring diagram XD3 Netz Steuerung EVU1 EVU2 MA10 Yonos Para 7,5 AA07 MFG ws (PWM) br (GND) KF20 KF21 KF22 RF01 4 3 2 1 3 2 1 3 2 1 6 5 4 3 2 1 4 3 2 1 4 3 2 1 5 4 3 2 1... - Page 27 iNSTallaTiON Specification BT02 BT07 AA01 (WPM4) X1.19 X2.15 CAN (Anschluss für FET und ISG) X1.18 X2.14 Mischer Heizkreis 2 PWM Ausgang 1 X1.17 PWM Ausgang 1 X1.16 X2.13 Kühlen Analogeingang 0...10V X1.15 X2.12 2 WE Heizung Analogeingang 0...10V X1.14 X2.11 Solarpumpe Fernbedienung FE7/Telefonfernschalter/ X1.13...
- Page 28 iNSTallaTiON Specification Earth stud, inverter cooling Earth stud, programming unit panel AA01 Heat pump manager (WPM) Earth stud, oscillation plate AA02 Integral heat pump control unit (IWS) X1.1 WPM CAN IWS AA04 Inverter compressor X1.2 WPM CAN programming unit AA06 Programming unit X1.3 WPM outside temperature sensor...
- Page 29 iNSTallaTiON Specification www.stiebel-eltron.com WPE-I H(K)W 230 Premium |...
-
Page 30: Output Diagrams
Specification 16.3 Output diagrams 16.3.1 WPE-I 04 HW 230 Premium | WPE-I 04 HKW 230 Premium Heating output X Inlet temperature of the WQA medium [°C] Y Heating output [kW] Flow temperature 35 °C 55 °C Output [Hz] 1 Min. 2 40... - Page 31 iNSTallaTiON Specification Coefficient of performance X Inlet temperature of the WQA medium [°C] Y Coefficient of performance e [-] Flow temperature 35 °C 55 °C Output 1 1 % 2 50 % 3 100 % 4 1 % 5 50 % 6 100 % Cooling capacity X Inlet temperature of the WQA medium [°C] Y Cooling capacity [kW] Flow temperature 35 °C...
- Page 32 iNSTallaTiON Specification 16.3.2 WPE-I 06 HW 230 Premium | WPE-I 06 HKW 230 Premium Heating output X Inlet temperature of the WQA medium [°C] Y Heating output [kW] Flow temperature 35 °C 55 °C Output [Hz] 1 Min. 2 40 3 60 4 80 5 100 7 Min. 8 40 9 60 10 80 11 100...
- Page 33 iNSTallaTiON Specification Coefficient of performance X Inlet temperature of the WQA medium [°C] Y Coefficient of performance e [-] Flow temperature 35 °C 55 °C Output 1 1 % 2 50 % 3 100 % 4 1 % 5 50 % 6 100 % Cooling capacity X Inlet temperature of the WQA medium [°C] Y Cooling capacity [kW] Flow temperature 35 °C...
- Page 34 iNSTallaTiON Specification 16.3.3 WPE-I 08 HW 230 Premium | WPE-I 08 HKW 230 Premium Heating output X Inlet temperature of the WQA medium [°C] Y Heating output [kW] Flow temperature 35 °C 55 °C Output [Hz] 1 Min. 2 40 3 60 4 80 5 100 6 Max. 7 Min. 8 40 9 60 10 80 11 100...
- Page 35 iNSTallaTiON Specification Coefficient of performance X Inlet temperature of the WQA medium [°C] Y Coefficient of performance e [-] Flow temperature 35 °C 55 °C Output 1 1 % 2 50 % 3 100 % 4 1 % 5 50 % 6 100 % Cooling capacity X Inlet temperature of the WQA medium [°C] Y Cooling capacity [kW] Flow temperature 35 °C...
- Page 36 iNSTallaTiON Specification 16.3.4 WPE-I 12 HW 230 Premium | WPE-I 12 HKW 230 Premium Heating output X Inlet temperature of the WQA medium [°C] Y Heating output [kW] Flow temperature 35 °C 55 °C Output [Hz] 1 Min. 2 40 3 60 4 80 5 100 7 Min.
- Page 37 iNSTallaTiON Specification Coefficient of performance X Inlet temperature of the WQA medium [°C] Y Coefficient of performance e [-] Flow temperature 35 °C 55 °C Output 1 1 % 2 50 % 3 100 % 4 1 % 5 50 % 6 100 % Cooling capacity X Inlet temperature of the WQA medium [°C] Y Cooling capacity [kW] Flow temperature 35 °C...
- Page 38 iNSTallaTiON Specification 16.3.5 WPE-I 15 HW 230 Premium | WPE-I 15 HKW 230 Premium Heating output X Inlet temperature of the WQA medium [°C] Y Heating output [kW] Flow temperature 35 °C 55 °C Output [Hz] 1 Min. 2 40 3 60 4 80 5 100 6 Max.
- Page 39 iNSTallaTiON Specification Coefficient of performance X Inlet temperature of the WQA medium [°C] Y Coefficient of performance e [-] Flow temperature 35 °C 55 °C Output 1 1 % 2 50 % 3 100 % 4 1 % 5 50 % 6 100 % Cooling capacity X Inlet temperature of the WQA medium [°C] Y Cooling capacity [kW] Flow temperature 35 °C...
-
Page 40: Data Table
iNSTallaTiON Specification 16.4 Data table 16.4.1 WPE-I HW 230 Premium Output details apply to new appliances with clean heat exchangers. The power consumption figures for the integral auxiliary drives are maximum values and may vary subject to operating point. The power consumption of the integral auxiliary drives is included in the output details of the heat pump (to EN 14511). WPE-I 04 HW ... - Page 41 iNSTallaTiON Specification WPE-I 04 HW WPE-I 06 WPE-I 08 WpE-i 12 HW WpE-i 15 HW 230 Premi- HW 230 HW 230 230 Premi- 230 Premi- Premium Premium Versions Refrigerant R454 C R454 C R454 C R454 C R454 C Refrigerant charge equivalent (CO 0.32 0.32 0.32 0.45 0.45 Global warming potential of the refrigerant (GWP100) Compressor oil Diamond Diamond...
- Page 42 iNSTallaTiON Specification 16.4.2 WPE-I HKW 230 Premium Output details apply to new appliances with clean heat exchangers. The power consumption figures for the integral auxiliary drives are maximum values and may vary subject to operating point. The power consumption of the integral auxiliary drives is included in the output details of the heat pump (to EN 14511). WPE-I 04 ...
- Page 43 iNSTallaTiON Specification WPE-I 04 WPE-I 06 WPE-I 08 WpE-i 12 WpE-i 15 HKW 230 HKW 230 HKW 230 HKW 230 HKW 230 Premium Premium Premium Premium Premium Versions Refrigerant R454 C R454 C R454 C R454 C R454 C Refrigerant charge equivalent (CO 0.32 0.32 0.32 0.45 0.45 Global warming potential of the refrigerant (GWP100) Compressor oil Diamond...
- Page 44 GUARANTEE | ENVIRONMENT AND RECYCLING Guarantee The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only grant- ed if the subsidiary has issued its own terms of guarantee.
- Page 45 NOTES www.stiebel-eltron.com WPE-I H(K)W 230 Premium |...
- Page 46 NOTES | WPE-I H(K)W 230 Premium www.stiebel-eltron.com...
- Page 47 NOTES www.stiebel-eltron.com WPE-I H(K)W 230 Premium |...
- Page 48 Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.
