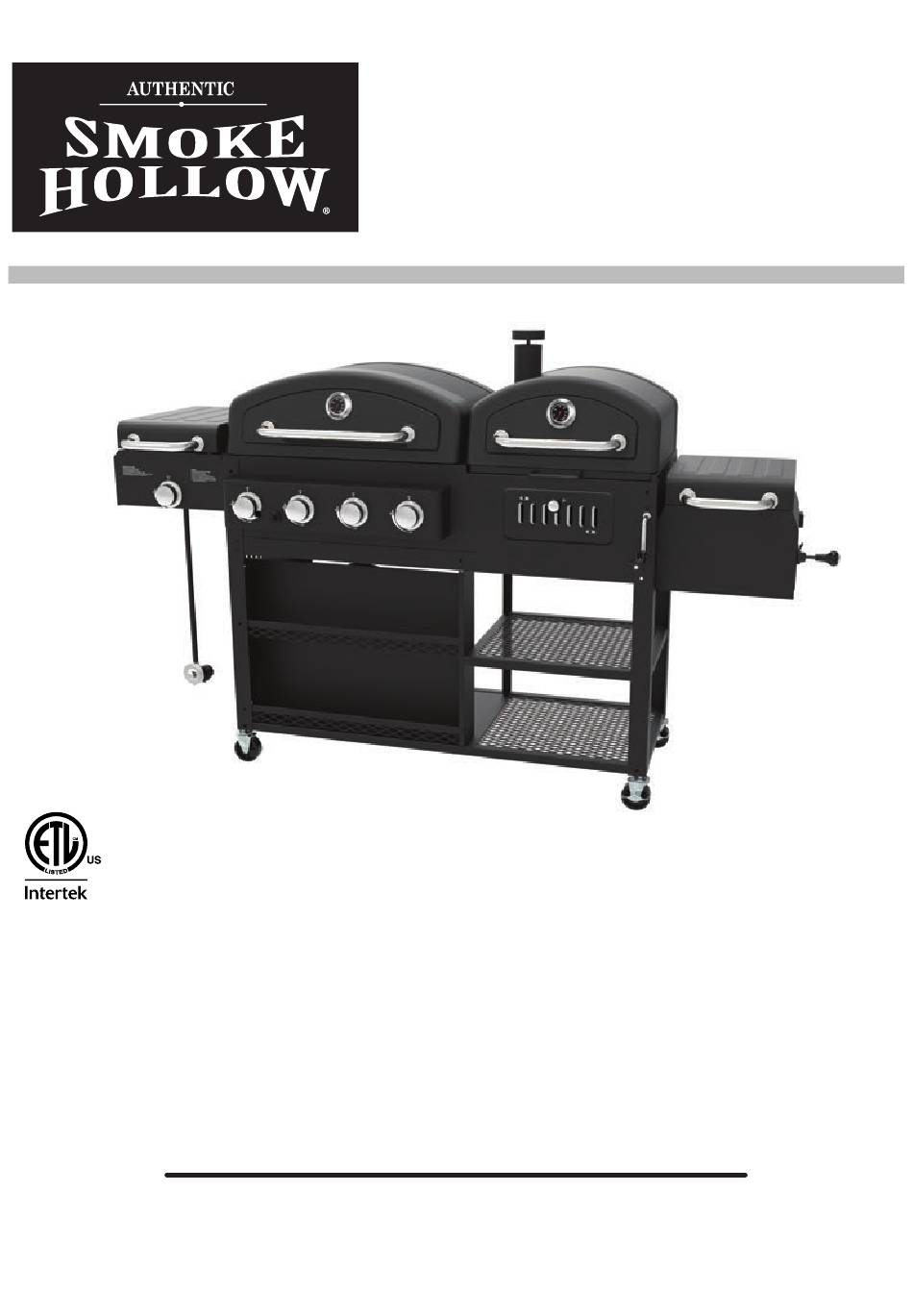

Owner's Manual
Grill & Smoker
Model No.
PS9900-SY18
"Conforms to ANSI STD Z21.58-2015
OUTDOOR COOKING GAS APPLIANCES"
THIS IS YOUR ASSEMBLY, CARE & USE MANUAL
WITH IMPORTANT WARNING & SAFETY INFORMATION.
PLEASE SAVE THESE INSTRUCTIONS.
CUSTOMER SERVICE: 1-866-475-5180 (Monday–Friday, 8:30 am–4:30 pm, CST)
www.olp-inc.com
FOR OUTDOOR USE ONLY
