Smoke hollow 2415PG Owner's Manual

Pellet smoker grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

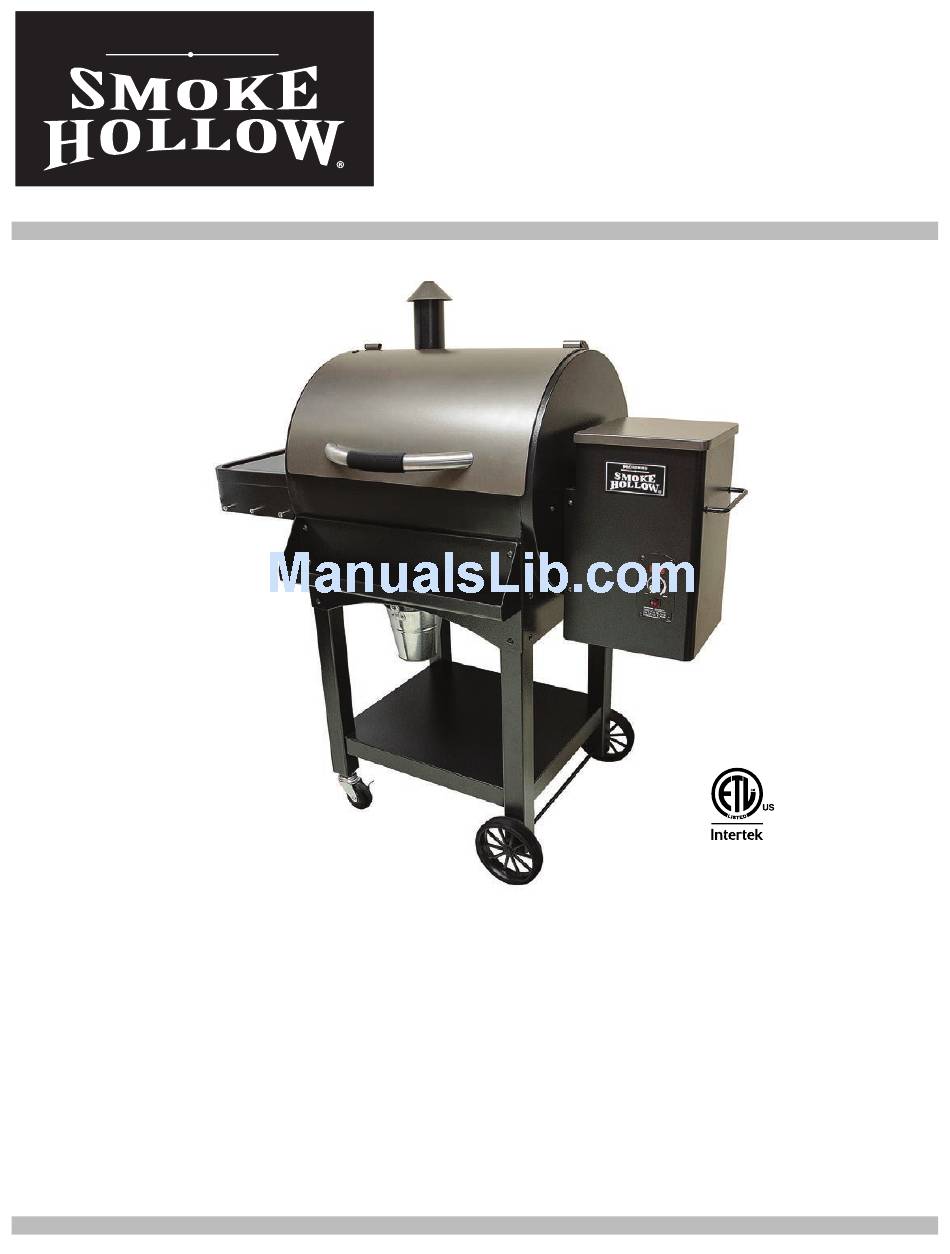

Owner's Manual
PRO SERIES
Pellet Smoker Grill
Model# 2415PG
4010637
FOR OUTDOOR USE ONLY
WARNING!
DO NOT STORE OR USE COMBUSTIBLE MATERIALS NEAR THIS APPLIANCE!
USE ONLY PREMIUM 100% HARDWOOD BBQ PELLETS WITH THIS SMOKER GRILL.
Please read this entire manual before installation and use of the pellet fuel-burning appliance. Failure to follow these
instructions could result in property damage, bodily injury or even death. Contact local building or fire officials about
restrictions and installation inspection requirements in your area.
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2415PG and is the answer not in the manual?

Questions and answers

Robert Meinnert
March 9, 2025

temperature sensor part number

0
1 comments:
Mr. Anderson
March 9, 2025

The temperature sensor part number for Smoke Hollow model 2415PG is 2415PG-8.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Smoke hollow 2415PG

Summary of Contents for Smoke hollow 2415PG

  • Page 1 Owner’s Manual PRO SERIES Pellet Smoker Grill Model# 2415PG 4010637 FOR OUTDOOR USE ONLY WARNING! DO NOT STORE OR USE COMBUSTIBLE MATERIALS NEAR THIS APPLIANCE! USE ONLY PREMIUM 100% HARDWOOD BBQ PELLETS WITH THIS SMOKER GRILL. Please read this entire manual before installation and use of the pellet fuel-burning appliance. Failure to follow these instructions could result in property damage, bodily injury or even death.

  • Page 2: California Proposition

    Introduction Congratulations on your purchase of your new Smoke Hollow Pellet Smoker Grill. With proper set-up, operation and maintenance, this appliance will provide you with years of delicious food and cooking enjoyment. IMPORTANT When you un-pack your grill, remove all parts and packaging material from the box and inside the grill.
  • Page 3 WARNING! Use ONLY PREMIUM 100% HARDWOOD BBQ WOOD PELLETS, which are specifically made to work in our Grills. Smoke Hollow wood pellets are rated for 8500 BTU per LBS with an ash content of 2%. CAUTION! Always store wood pellets in a dry...

  • Page 4: Parts And Tool List

    Parts and Tool List...
  • Page 5 Parts and Tool List Note: For assistance, including missing or damaged parts, call toll free 1- 866-475-5180 from 8:30 am - 4:30 pm Central Time, Monday - Friday Part# Part Name Part# Part Name Wheel Smoke Stack Cap Locking Caster Smoke Stack Axle Lid Handle...

  • Page 6: Grill Assembly

    Grill Assembly Step 1: Leg Assembly Locate: DON’T PUT SCREWS IN THESE HOLES AT • Left front leg THIS TIME. • Left rear leg • Right front leg • Right rear leg • (14) 1/4-20 x .59” Bolts Note: Each leg will have an identification label.
  • Page 7 Step 3: Wheel and Caster Assembly Locate: • (2) Locking casters • (2) Wheels • (1) axle • (1) washer • (1) Lock nut Procedure: Screw a locking caster into the left front leg and the left rear leg, then using the included wrench, tighten the castors securely.
  • Page 8 Step 5: Smoke Stack / Cap Assembly Locate: Bolts Bolts • (1) Smoke stack • (1) Smoke stack cap • (3) 1/4-20 x .59” bolts • (3) 1/4-20 nuts Procedure: Slide the smoke stack thru the hole in the barrel and attach with (3) 1/4-20 x .59”...
  • Page 9 ASSEMBLY OF YOUR PELLET GRILL IS NOW COMPLETE. FOR YOUR SAFETY, FOLLOW ALL SAFE GUARDS AND INSTRUCTIONS.

  • Page 10: Initial Firing Instructions

    Initial Firing Instructions FOLLOW THESE INSTRUCTIONS THE FIRST TIME YOU FIRE THE GRILL AND WHENEVER IT RUNS OUT OF PELLETS. FIRE THE GRILL Open the lid and remove the porcelain grid, grease drain pan and heat baffle from inside the grill. Make sure the power switch is in the OFF position.
  • Page 11 Regular Firing Instructions FOLLOW THESE INSTRUCTIONS FOR REGULAR FIRINGS. ALWAYS START THE GRILL ON SMOKE SETTING WITH THE LID OPEN. ONCE THE PELLETS ARE IGNITED, CLOSE THE LID AND SET THE TEMPERATURE DIAL TO THE COOKING TEMPERATURE DESIRED. With the lid open, turn the Switch/Dial ON (--) and Temperature Dial to SMOKE. In approximately 2 minutes you will notice whitish-gray smoke coming out of the Grill as the pellets ignite.

  • Page 12: Manual Firing

    Manual Firing Instructions If the Hot Rod only is not operating, the Grill can still be used to cook and smoke using the MANUAL LIGHTING PROCEDURE below: 1) DANGER! Turn the Switch OFF (o) and disconnect the Power Cord. Allow the Grill to thoroughly cool if it is still hot.

  • Page 13: Safety Instructions

    Operating Instructions The temperature dial can be changed at any time to increase or decrease the cooking temperature of the grill. See the table below for recommended temperatures. HIGH/HIGHER for grilling MED/MID RANGE for slow cooking SMOKE for smoking and adding smoke flavor to food for holding foods at about 180°F The outside temperature effects cooking times.
  • Page 14 When operating in “SMOKE” mode, the Auger will cycle on for 15 seconds and off for 65 seconds. There is no temperature control with the “Smoke” setting. This timed cycle setting for “Smoke” is a factory pre- set recommended by Smoke Hollow Grills to develop a “Smoking” temperature of 150 to 180 degrees fahrenheit.

  • Page 15: Carbon Monoxide

    a) DANGER! Turn the Switch OFF and disconnect the Power Cord. Allow the Grill to thoroughly cool if it is still hot. Open the lid and remove all food, the Porcelain Grid, Grease Drain Pan and the Heat Baffle. b) WARNING! Remove all unburned pellets and ash from inside and around the Firepot. (See instructions for proper handling and disposal of ash in the Cleaning and Maintenance section).

  • Page 16: Cleaning And Maintenance

    During the rainy season, take care that water does not get into the pellet hopper. When wet, wood pellets expand and will jam your auger. Consider getting a Smoke Hollow grill cover to protect your grill when it is stored.

  • Page 17: Troubleshooting

    Troubleshooting THE GRILL FAILS TO IGNITE IF THE GRILL DOES NOT IGNITE OR THE FIRE GOES OUT IN THE FIREPOT WHILE COOKING, FIRST TRY RE-FIRING THE GRILL: Turn the power switch to OFF and disconnect the Power Cord. Remove the porcelain grid, grease drain pan and heat baffle. Also remove any food. Remove all unburned pellets and ash from the firepot.
  • Page 18 Plug the power cord into an appropriate, grounded electrical outlet and turn the power switch to ON. If the auger drive motor is working, the problem is the digital control, which may need to be replaced. If the auger drive motor is not working, but the draft inducer fan is working, the problem is the auger system, which may need to be checked: •...

  • Page 19: Wiring Diagram

    Wiring Diagram Wiring Diagram WIRING DIAGRAM SMOKE ADJUSTMENT SETTING HOLE CONTROL SENSOR WHITE BLACK FIBERGLASS POWER WIRING CORD FUSE FOR HOT ROD Smoke ORANGE HIGH ON BACK OF CONTROL WHITE WHITE PURPLE WHITE HOT ROD MOLEX CONNECTOR TYPICAL DRAFT INDUCER AUGER DRIVE FIREPOT FIREBOX...

  • Page 20: Limited Warranty

    5400 Doniphan Drive Neosho, MO 64850 www.olp-inc.com ©2014 Outdoor Leisure Products, Inc. Smoke Hollow ® and the Smoke Hollow ® logo are trademarks of Outdoor Leisure Products, Inc. and are not to be used without express permission by Outdoor Leisure Products, Inc.
