Infineon PSoC 6 Quick Start Manual

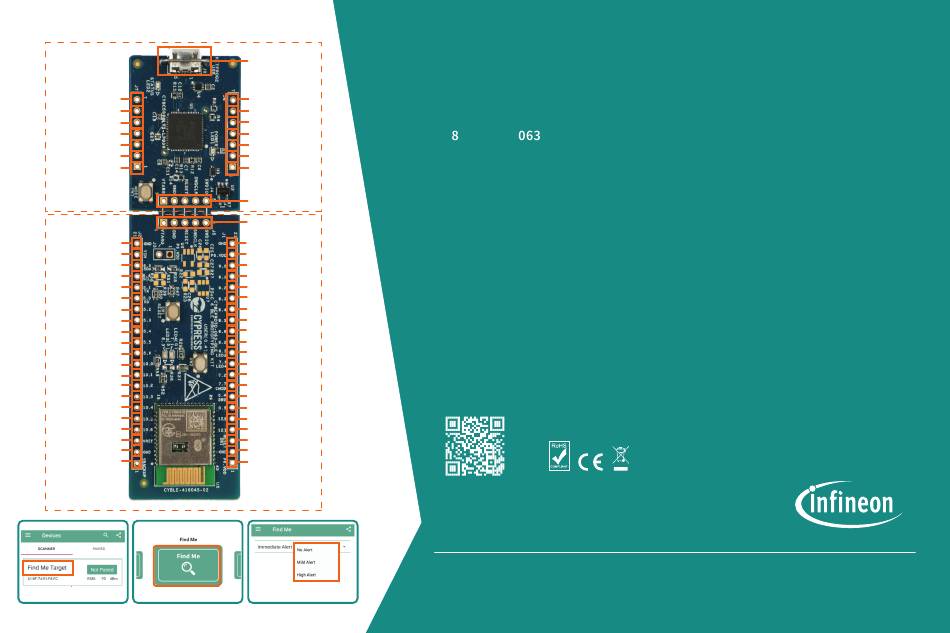

Pinout Description
KitProg3
J7
P0_1
P0_2
P3_6
P3_5
P3_4
P3_0
GND
PSoC 6
TM J2
GND
VIN
SDA/P6_5
SCL/P6_4
TX/P5_1
RX/P5_0
P5_2
P5_3
P5_4
P5_5
P5_6
P10_0
P10_1
P10_2
P10_3
P10_4
P10_5
P10_6
VREF
GND
VBACKUP
J8
J6
P12_6/UART_TX
P12_7/UART_RX
P12_1/I2C_SDA
P12_0/I2C_SCL
P12_5
GND
P5LP_VDD
J4
J5
J1
GND
P6.VDD
P9_0
P9_1
P9_2
P9_3
P9_4
P9_5
P9_6
P6_2
P6_3/LED3
P7_1/LED4
P7_2
P7_7/CMOD
P0_4/SW2
P0_5
P12_6
P12_7
RST/SW1
GND
P6.VDD
QUICK START GUIDE
PSoC 6 with AIROC
TM
Prototyping Kit
CY CPROTO- -BLE
1. Install the AIROC™ Bluetooth® Connect app on your iOS or Android device from
App Store or Google Play store respectively.
2. Connect the USB connector (J8) to your PC using the provided USB cable.
3. The Bluetooth®LE module on the prototyping board will advertise for 120 Seconds.
The green LED (LED4) blinks during this period to indicate the Bluetooth® LE
advertising state Once the connection is established, LED4 changes from
blinking state to always ON state.
4. Connect to the 'Find Me Target' device in the AIROC™ Bluetooth® Connect app and
navigate to the 'Find Me' service. The red LED (LED3) state is linked to the type of
alert sent.
No Alert : LED3 OFF / Mild Alert: LED3 Blinking / High Alert: LED3 ON
For more information, please visit:
www.infineon.com/cy8cproto-063-ble
Published by Infineon Technologies AG 81726
Munich, Germany
© 2024 Infineon Technologies AG.
All Rights Reserved.
Bluetooth® Low Energy
TM
Document Number: 002-24937 Rev. *B
Date: 10/ 2024
