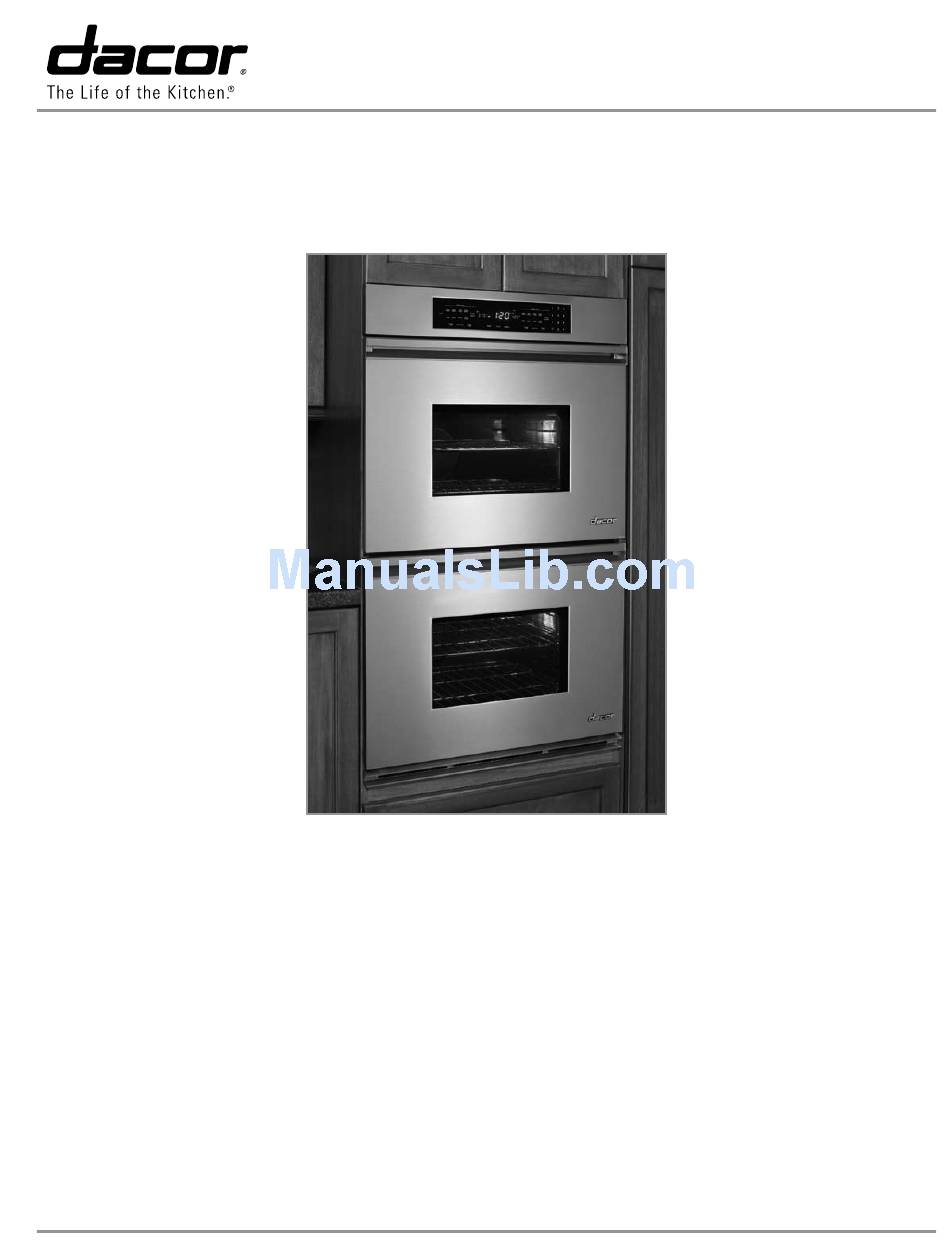

Use and Care Manual
Renaissance Wall Oven
For use with models: EOR, MOR
Style varies
Model MORD230 shown
T a b l e o f C o n t e n t s
Important Safety Instructions ...........................................1
Getting to Know Your Oven ............................................3
Operating Your Oven ....................................................8
Cooking Tips ..............................................................21
Care and Cleaning .....................................................23
Part and Accessories ...................................................28
Before You Call for Service ...........................................29
Warranty and Service .................................................31
Notes ........................................................................32
Warranty Card ...............................................Back Cover
Part No. 102580 Rev. K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Epicure EORS136 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dacor Epicure EORS136

Summary of Contents for Dacor Epicure EORS136

  • Page 1: Table Of Contents

    Use and Care Manual Renaissance Wall Oven For use with models: EOR, MOR Style varies Model MORD230 shown T a b l e o f C o n t e n t s Important Safety Instructions ...........1 Getting to Know Your Oven ..........3 Operating Your Oven ............8 Cooking Tips ..............21 Care and Cleaning .............23...
  • Page 2 © 2007 Dacor, all rights reserved.

  • Page 3: Important Safety Instructions

    For service and warranty information see page 31. always contact the Dacor customer service team about if you have any questions, other than warranty questions, problems or conditions that you don’t understand.

  • Page 4: General Safety Precautions

    Important Safety Instructions General Safety Precautions To reduce the risk of fire, electric shock, serious injury or death when using your oven, follow basic safety precautions, including the following: warning warning • If you receive a damaged product, immediately contact •...

  • Page 5: Getting To Know Your Oven

    Getting to Know Your Oven Model Identification • some double oven models are available with convec- • the oven comes in three widths, 27 inches, 30 inches and 36 inches wide. tion cooking in both the upper and lower oven cham- bers.

  • Page 6: Parts Of Oven

    Getting to Know Your Oven Parts of the Oven Control Panel your oven’s control panel consists of keys and a display. use the control panel to control all the oven’s features (sometimes called modes.) air Intake/exhaust the oven draws air in through the intake slots to cool its internal parts. the air slots comes out through the exhaust slot at the bottom of the oven.
  • Page 7 Getting to Know Your Oven...

  • Page 8: Control Panel Layout

    Getting to Know Your Oven Control Panel Layout start Key when you use the various features (or modes) on your oven, select the cook- ing mode first, then press the start key. also, use the start key to start the timers.
  • Page 9 Getting to Know Your Oven Control Panel - single oven Control Panel - Double oven with Convection upper oven only Control Panel - Double oven with upper and lower Convection oven...

  • Page 10: Operating Your Oven

    • Dacor recommends turning the oven on for one hour press and hold the clock key for six seconds. the at 500°f to burn off any residual oils used during the display will indicate the mode the clock is currently set manufacturing process.
  • Page 11 Operating Your Oven To Insert Your GlideRack Oven Rack: Racks your oven comes with a Dacor gliderack oven rack. you can pull the gliderack oven rack out further than the you may use either rack type on any level inside the oven.

  • Page 12: Changing The Temperature

    Operating Your Oven Turning Off Your Oven Starting Your Oven to turn the oven off, press the CanCel · seCure key. Adjust the racks to the appropriate level. on double ovens, press the CanCel · seCure key under uPPer oVen or loWer oVen. Determine the best cooking mode for the type of food to be cooked.
  • Page 13 Operating Your Oven Lock-Out Feature 12 Hour Timer Feature If you want to disable the keys on the control your oven is equipped with a feature that automatically panel when the oven is not in use: turns it off after 12 hours of continuous use. the 12 hour timer resets if you change the cooking temperature or •...

  • Page 14: Various Oven Modes

    Operating Your Oven Understanding the Various Oven Modes The three basic styles of cooking in an oven are: ◊ Baking: The gentle cooking of dry goods such as cookies, cakes, soufflés, etc. ◊ roasting: the cooking of meats or vegetables over a period of time. ◊...

  • Page 15: Pure Convection

    Operating Your Oven Your oven offers three convection cooking For Multiple Rack Baking modes: • typically, when baking on two racks, use rack posi- tions #1 and #3 or #2 and #4 (counting from the • Pure Convection bottom up). •...

  • Page 16: Convection Roast

    Operating Your Oven Understanding the Various Oven Modes (Continued) Convection Roast Your oven offers two broil modes: • broil your oven’s convection roast mode uses a combination of • convection broil the convection fan and heat sources above and below the food.
  • Page 17 Operating Your Oven Timers Delay Timed Cooking Features if you want to set the oven to automatically turn itself on warning or off at a later time, you can use the delay timed fea- tures. The timers on your oven do not turn the oven on or off. They are only for timing purposes.
  • Page 18 Operating Your Oven Delay Timed Cooking (Continued) About the 3 Delay Timed Settings if you want to set the stop time or cooking duration, press either the stoP tIme or DuratIon key the delay timed cooking keys are: (otherwise skip to step 9.) using the DuratIon key allows you to determine when the oven will stop cook- •...

  • Page 19: Using The Meat Probe

    Operating Your Oven Using the Meat Probe allow the oven to preheat. once the oven has preheated, put the meat in the when you cook foods like roasts and poultry, the internal oven using pot holders. plug the meat probe into the temperature is the best way to tell when the food is prop- connector inside the oven.
  • Page 20 165°f vegetables 125°f FRESH BEEF, VEAL AND LAMB meat 150°f medium rare 145°f Dacor recommends that you use one of the timers to time medium 165°f the process. well Done 170°f Dehydrating Tips POULTRY equipment recommended: chicken & turkey, whole 180°f...

  • Page 21: Defrosting Tips

    Operating Your Oven When you dehydrate: Preventing Tough Skins when Dehydrating wash and remove excess moisture from all fruits and you should water blanch items with tough skins such as vegetables before dehydrating. grapes, prunes, dark plums, cherries, figs and some types of berries.

  • Page 22: Sabbath Mode

    Operating Your Oven Setting Up the Sabbath Feature Proofing press the # key. you can use your oven to proof yeasted doughs at a low a press the BaKe or Pure ConV key. on double and draft-free temperature using the bake mode. ovens, be sure to press the BaKe or Pure ConV key for the oven you want to use.

  • Page 23: Cooking Tips

    • when you are cooking a food item that is very heavy, use the Dacor gliderack oven rack. you can pull it out further than a conventional rack, making it easier to check the food, stir, or add ingredients.

  • Page 24: The Best Use Of Bake Ware

    Dacor cookie sheets, with their low profiles, will pes accordingly. you may also consult a cookbook on high give you the best results.

  • Page 25: Care And Cleaning

    Care and Cleaning How to Use the Self clean Feature warning important • Clean only the parts of the oven listed in this manual. Clean them only in the manner specified. On double ovens, the control panel will only allow one oven •...

  • Page 26: Cleaning The Exterior

    Care and Cleaning Self Clean (Cont.) press start. when you press start, “DelaY” will appear on the note display and the oven door will lock. the oven will start to self clean at the time you have selected. • The oven lights do not operate while the oven is in self clean When the Oven is Set to Clean at a Later mode to protect them from damage.

  • Page 27: Stainless Steel Surfaces

    Glass (Interior and Exterior) Use a mild glass cleaner to remove finger prints on glass surfaces. you can also clean glass surfaces with Dacor cooktop cleaning creme. use it according to the direc- tions on the package.

  • Page 28: Meat Probe

    Care and Cleaning Meat Probe Optional Baking Stone wash the optional baking stone with hot water and scrub warning it clean before you use it for the first time. Do not use any soap or detergents to wash the stone. the stone is to prevent damage, do not immerse the meat probe in porous and soap will get trapped inside.

  • Page 29: Replacing The Light Bulbs

    (see page 8.) lens Pry stick using a glove, insert the new bulb into the socket. replace the light bulbs only with Dacor part no. 100429, available from any authorized Dacor parts dealer.

  • Page 30: Part And Accessories

    Kit, brass, 30 inch aeoh30sbr** handle trim Kit, copper, 30 inch aeoh30scp** Dacor full size cookie sheets maximize oven rack baking capabilities by utilizing the total usable rack space. order two kits for double ovens warranty replacement part number **** part number for ordering additional rack or replacing a rack that is out of warranty to order parts or accessories, contact your Dacor dealer or visit www.everythingdacor.com...

  • Page 31: Before You Call For Service

    Before You Call for Service Problem Solution Guide note: see Common Problems When Using the Bake Mode on page 12 for problems with cooking food. Problem May Be Caused By What to Do nothing works. oven not connected to electrical have a licensed electrician connect oven to power.
  • Page 32 Before You Call for Service Problem Solution Guide - (Continued) Problem May Be Caused By What to Do cannot set clock. oven in use. clock cannot be set turn off oven to set clock. while oven is in use. error code appears and stays an error code having a letter with call for service.

  • Page 33: Warranty And Service

    LimiteD first year warranty Call for Service section on pages 29 to 30. if you have if your Dacor product fails to function within one year of performed the checks in the Problem Solution Guide the original date of purchase, due to a defect in material and the problem has not yet been remedied, please con- or workmanship, Dacor will furnish a new part, f.o.b.

  • Page 34: Notes

    Notes...
  • Page 35 IN THE UNITED STATES BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO. 4507 DIAMOND BAR CA POSTAGE WILL BE PAID BY ADDRESSEE DACOR INC. ATTN: WARRANTY PROCESSING DEPT 1440 BRIDGE GATE DR STE 200 PO BOX 6532 DIAMOND BAR CA 91765-9861...

  • Page 36: Warranty Information

    Please rest assured that under no conditions will Dacor sell your name or any of the information on this form for mailing list purposes. We are very grateful that you have chosen Dacor products for your home and do not consider the sale of such information to be a proper way of expressing our gratitude! Owner’s Name:...
