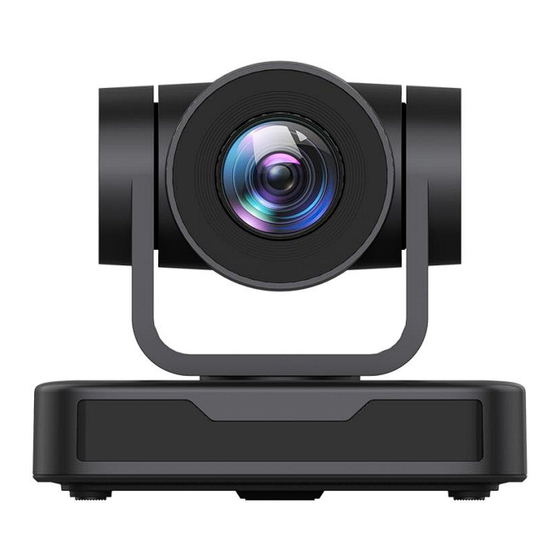

- Page 1 DVDO-C8-1-B Full HD PTZ Camera with USB 2.0 User Manual Version v1.0 DVDO, Inc. │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
- Page 2 Attention This manual introduces functions, installations and operations for this PTZ camera in detail. Please read this manual carefully before installation and use. 1. Cautions 1.1 Avoid damage to product caused by heavy pressure, strong vibration or immersion during transportation, storage and installation.
-
Page 3: Table Of Contents
Content 1. CAMERA INSTALLATION ..........................3 1.1 C ........................... 3 AMERA NTRODUCTION 1.2 P ........................ 3 OWER NITIAL ONFIGURATION 1.3 V ..............................4 IDEO UTPUT 1.4 M ............................4 OUNTING RACKETS 2. PRODUCT OVERVIEW ............................6 2.1 P ..........................6 RODUCT NTRODUCTION 2.1.1 Dimensions .............................. -
Page 4: Camera Installation
1. Camera Installation 1.1 Camera Introduction Figure 1.1 Product Interfaces 1. Camera Lens 5. Screw Hole for Tripod 9. USB 2.0 Interface 2. Remote Control Receiving 6. RS232 Control Interface（Input） 10. DC12V Input Power Supply Indicator Socket 3. Camera Base 7. -
Page 5: Video Output
1.3 Video Output USB2.0 Video Output a. USB 2.0 video cable connection: as shown in Figure1.1 label 9 b. Connect the camera and the computer via USB2.0 video cable, open the video software and select the image device to output the video. 1.4 Mounting Brackets Notes: Ceiling or wall mounting brackets can only be mounted on template and concrete wall. - Page 6 2）Ceiling Mounting...
-
Page 7: Product Overview
2. Product Overview 2.1 Product Introduction 2.1.1 Dimensions Figure 2.2 Product Dimensions... -
Page 8: Accessories
2.1.2 Accessories Please check below standard and optional accessories when unpacking the box. Standard Accessory Optional Accessory Power adapter Wall Mount IR Remote Control Ceiling Mount RS232 Cable User Manual USB2.0 Cable USB2.0 video cable: If USB2.0 video cable is required for power supply without power adapter, in which power is supplied by red end and USB video signal is transmitted by black end;... -
Page 9: Technical Parameters
2.3 Technical Parameters Model Camera Parameter Sensor 1/2.9 inch high quality CMOS sensor Effective Pixels 2.07 megapixel, 16:9 H264/H265/MJPG:1920×1080P@30/25/20/15/10/5fps； Video Format 1280*720P@30/25/20/15/10/5fps；960*540@30/25/20/15/10/5fps； 800*600@30/25/20/15/10/5fps；720*576@30/25/20/15/10/5fps； 720*480@30/25/20/15/10/5fps；640*480@30/25/20/15/10/5fps； 640*360@30/25/20/15/10/5fps；352*288@30/25/20/15/10/5fps； 320*240@30/25/20/15/10/5fps； YUY2:1280*720@15/10fps；800*600@10/5fps；640*480@25/20/15/10/5fps 640*360@30/25/20/15/10/5fps； View Angle 8.8°～ 68.8° Focus Length f=4.34mm～43.4mm F1.85 – F2.63 Optical Zoom Digital Zoom Minimum 0.5Lux(F1.8, AGC ON) -
Page 10: Interface Instructions
Other Parameter Input Voltage Input Current Maximum: 4.98A Power Consumption Maximum: 2.5W Stored Temperature -40℃～+70℃ Storage Humidity 20%～90% Working Temperature -10℃～+50℃ Working Humidity 20%～80% Dimensions (WxHxD) 156.8mm×112.6mm×139.5mm Weight Application Indoor Package Power Supply, RS232 Control Cable, IR Remote Control, User Manual, Warranty Card, USB2.0 Cable Optional Accessories Ceiling / Wall Mount (Extra Cost) -
Page 11: Rs-232 Interface
2.4.2 RS-232 Interface 1）RS-232 Interface Definition Connection to PC or Camera Controller Camera WindowsDB-9 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI 2）RS-232 Mini-DIN 8-pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal Ground... -
Page 12: Application Instructions
4）VISCA networking as shown below Camera cascade connection Camera 1 Camera 2 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.OPEN 8. NC 8.OPEN 3. Application Instructions 3.1 Video Output 3.1.1 Power-On Initial Configuration The remote control receiving indicator flashes after power on, the pan-tilt turns left to the lowest left to the lowest, and then turns to the HOME position (both the horizontal and vertical positions are in the middle), while the movement first shrinks and then stretches. -
Page 13: Remote Control
3.2 Remote Control 3.2.1 Keys Introduction 1) In this manual, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for more than one second is required. 2) When a key-combination is required, do it in sequence. For example,“ 【*】+【#】+ 【F1】”means press“【*】”first and then press“【#】”... - Page 14 4. Zoom Control ZOOM +: press【ZOOM +】key to zoom in ZOOM - : press 【ZOOM -】key to zoom out Press and hold the keys, the action of focus will keep continue and stop as soon as the key is released. 5.
-
Page 15: Menu Introduction
7. Menu Settings 【MENU】: Open / close the OSD menu 【HOME】: Camera lens back to the middle position; Confirm button; Enter next menu 【↑】【↓】：Choose item 【←】【→】：Modify values 【BLC ON/OFF】：Turn on or off the back light compensation 8. Camera Remote Control Address Settings 【*】+【＃】+【F1】:Camera Address No.1 【*】+【＃】+【F2】:Camera Address No. -
Page 16: System Settings
Setup: System parameter settings Camera: Camera parameter settings P/T/Z: Enter into sub menu Version: Enter into sub menu Restore Default: Enter into reset settings, select YES or NO to confirm [↑↓] Select: For selecting menu [← →] Change Value: For modifying parameters [MENU] Back: Press [Menu] to return [Home] OK: Press [Home] to confirm 3.3.2 System Settings... -
Page 17: Camera Settings
3.3.3 Camera Settings Move the pointer to the (CAMERA) in the Main Menu, click the 【HOME】key and enter the (CAMERA) as follow, CAMERA ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ （Exposure） （Color） （Image） （Focus） （Noise Reduction） Style Default [← →]Change Value [↑↓]Select [Menu]Back [Home]OK Exposure: Enter into Exposure settings Color: Enter into color settings Image: Enter into image settings Focus: Enter into focus settings... - Page 18 Mode: Auto, Manual, Shutter priority, Iris priority and Brightness priority. EV: On/Off (only available in auto mode) Compensation Level: -7~7 (only available in auto mode when EV is ON) BLC: ON/OFF for options (only available in auto mode) Anti-Flicker: OFF/50Hz/60Hz for options (only available in Auto/Iris priority/Brightness priority modes) Gain limit: 0~20 (only available in Auto/ Shutter priority mode) WDR: Off, 1~8 ShutterPriority:1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/180,1/250,1/350,1/500,1/1000,1/2000,1/3000,1/4000,1/60...
- Page 19 3) Image Move the pointer to the (IMAGE) in the Menu, click the 【 HOME】 and enter into the (IMAGE sub menu) as follow, IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness Flip-H B&W-Mode Color Gamma Default Close [← →]Change Value [↑↓]Select [Menu]Back Brightness: 0~14 Contrast: 0~14 Sharpness: 0~15...
-
Page 20: P/T/Z
5）Noise Reduction Move the pointer to the (NOISE REDUCTION) in the Menu, click the【HOME】and enter the (NOISE REDUCTION) as follow, NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D NR-3D Dynamic Hot Pixel [← →]Change Value [↑↓]Select [Menu]Back 2D Noise Reduction: Auto, close, 1~7 3D Noise Reduction: Close, 1~8 Dynamic Hot Pixel: Close, 1~5 3.3.4 P/T/Z Move the pointer to the (P/T/Z) in the Main Menu, click the【HOME】and enter the (P/T/Z) as follow,... -
Page 21: Version
3.3.5 Version Move the pointer to the (VERSION) in the Main Menu, click the【HOME】and enter the (VERSION) as follow, VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ MCU Version 3.1.0 2019-09-26 Camera Version 1.0.5 2019-09-27 AF Version 1.0.0 2019-09-07 [← →]Change Value [↑↓]Select [Menu]Back [Home]OK MCU Version: Display MCU version information Camera Version: Display camera version information AF Version: Display the focus version information 3.3.6 Restore Default... -
Page 22: Serial Port Communication And Control
4. Serial Port Communication and Control The camera could be controlled through RS232/RS485 interface; RS232C serial parameter are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None. After power on, the camera first goes left, then back to the middle position. Self-test is finished after the zoom moved to the farthest and then back to the nearest position. - Page 23 Command Function Command packet Note Stop 8x 01 04 07 00 FF Tele(Standard) 8x 01 04 07 02 FF Wide(Standard) 8x 01 04 07 03 FF CAM_Zoom Tele(Variable) 8x 01 04 07 2p FF p = 0(low) - F(high) Wide(Variable) 8x 01 04 07 3p FF Direct 8x 01 04 47 0p 0q 0r 0s FF...
- Page 24 Command Function Command packet Note 4700K 8x 01 04 35 1F FF 4800K 8x 01 04 35 21 FF 4900K 8x 01 04 35 22 FF 5000K 8x 01 04 35 04 FF 5100K 8x 01 04 35 23 FF 5200K 8x 01 04 35 24 FF 5300K...
- Page 25 Command Function Command packet Note Reset 8x 01 04 0B 00 FF 8x 01 04 0B 02 FF Iris Setting CAM_Iris Down 8x 01 04 0B 03 FF Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position CAM_Gain Limit Gain Limit 8x 01 04 2C 0p FF...
-
Page 26: Visca Protocol Inquiry Command
Command Function Command packet Note 8x 01 04 06 06 02 FF Turn on the menu screen SYS_Menu 8x 01 04 06 06 03 FF Turn off the menu screen 8x 01 06 08 02 FF IR_Receive IR(remote commander)receive On/Off 8x 01 06 08 03 FF 8x 01 7D 01 03 00 00 FF IR(remote commander)receive message via... - Page 27 y0 50 03 FF One Push Mode y0 50 04 FF 5000K y0 50 05 FF Manual y0 50 00 FF 6500K y0 50 06 FF 6500K y0 50 07 FF 3500K y0 50 08 FF 4500K y0 50 09 FF 5500K y0 50 0A FF 6000K...
-
Page 28: Pelco-D Protocol Command List
P: 0~E Video format 0:1080P60 8:720P30 1:1080P50 9:720P25 2:1080i60 A：1080P59.94 VideoSystemInq 8x 09 06 23 FF y0 50 0p FF 3:1080i50 B：1080i59.94 4:720P60 C：720P59.94 5:720P50 D：1080P29.97 6:1080P30 E：720P29.97 7:1080P25 ww: Pan Max Speed zz: Tilt Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF Max Speed y0 50 0w 0w 0w 0w... -
Page 29: Pelco-P Protocol Command List
4.3 Pelco-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right... -
Page 30: Troubleshooting
5.2 Troubleshooting 1) No video output a. Check whether the camera power supply is connected, the voltage is normal, the power indicator is lit. b. Whether the machine could do self-check after restarted. c. Check whether the video output cable or video display is normal 2) No image sometimes a. - Page 31 Follow us DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
