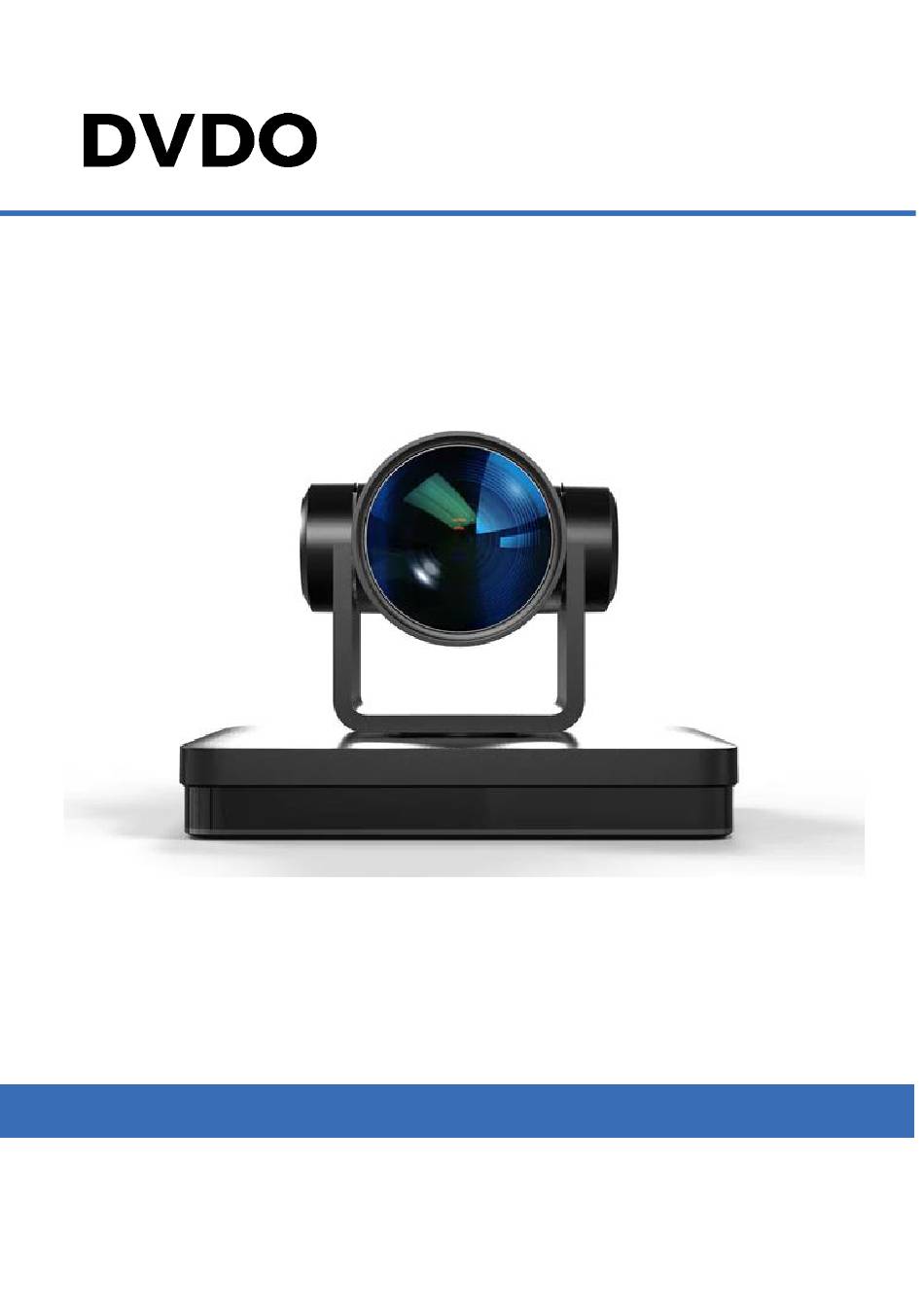

DVDO-C5-1
4K PTZ Camera with AI Tracking
HDMI / SDI / USB / LAN
User Manual
Version: V1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C5-1 and is the answer not in the manual?

Questions and answers

Related Manuals for DVDO C5-1

Summary of Contents for DVDO C5-1

  • Page 1 DVDO-C5-1 4K PTZ Camera with AI Tracking HDMI / SDI / USB / LAN User Manual Version: V1.0.0...
  • Page 3 Electrical Safety Installation and use of this product must strictly comply with local electrical safety standards. Transportation Avoid any stress, vibration, or moisture during transportation, storage, installation and operation Installation 1) Do not rotate the camera head violently, otherwise it may cause mechanical failure;...

  • Page 4: Table Of Contents

    Table of Contents Quick Start ......................... 6 1.1 Interface ........................ 6 1.2 Power-on Self-Test ....................6 1.2.1 Power on ....................... 6 1.2.2 Self-Test ......................6 1.3 Video Output ......................7 1.3.1 Network Output ..................... 7 1.3.2 HDMI Output ....................7 1.3.3 USB2.0 Output ....................
  • Page 5 3.3 Menu Setting ....................... 27 3.3.1 Main Menu ....................27 3.3.2 System Setting ..................... 28 3.3.3 Camera Parameter Setting ................29 3.3.4 P/T/Z ......................33 3.3.5 Video Format ....................33 3.3.6 Version ......................35 3.3.7 Restore Default .................... 35 NETWORK CONNECTION ....................37 4.1 Connection Method ....................

  • Page 6: Quick Start

    Quick Start 1.1 Interface Figure1-1 Interface Interface： 1. Receiving Light 6. USB2.0 11. RS232 Input 7. SDI 12. RS232 Output 2. Lens 3. Fixation Hole 8. Audio In 13. RS422/RS485 Jack 4. Tripod Screw Hole 9. Rotary Dip Switch 14. DC12V Power Socket 5.

  • Page 7: Video Output

    ⚫ Default address of the remote control is 1#. When menu restore default setting, the address of IP remote control will restore 1#. ⚫ If preset 0 is set, the camera will return to the preset 0 position after self-test 1.3 Video Output This series camera can output video through network, HDMI, SDI, and USB2.0.

  • Page 8: Bracket

    1.4 Bracket ⚫ Bracket can only be wall mounted or upside down mounted on template and concrete wall, but can not be installed on plasterboard. 1.4.1 Steps of Wall Mount...
  • Page 9 Figure1-2 Steps of Wall Mount...

  • Page 10: Steps Of Ceiling Mount

    1.4.2 Steps of Ceiling Mount Figure1-3 Steps of Ceiling Mount...

  • Page 11: Product Overview

    Product Overview 2.1 Product Overview 2.1.1 Product Dimension Figure1-4 Product Dimension 2.1.2 Accessory When you unpack your package, check that all the supplied accessories are included: Supplied Accessory Power adapter USB2.0 Cable Supplied User manual Plastic pad Wireless remote control IR Remote Control Optional Brackets for wall mounting...

  • Page 12: Product Features

    2.2 Product Features This is a brand new UHD 4K camera, including 3 lenses, 12X optical zoom 80.4°wide-angle lens (UV430E0), 25X optical zoom 59.2°wide-angle lens (UV430E2), and 31X optical zoom 59° wide-angle lens (UV430E3). It has complete functions, excellent performance and rich interfaces. Boasting advanced ISP processing technology and algorithm，UV430 series cameras deliver the vivid image and uniform picture brightness.
  • Page 18 8.NC 8.CTS 9.RI Figure1-6 RS-232 Diagram 2）RS-232 Mini-DIN 8-pin Terminal Port Definition RS-232 Mini-DIN 8-pinTerminal Port Definition Terminal Definition Port Data Terminal Ready Data Set Ready Transmit Data System Ground Receive Data System Ground IR OUT IR Commander Signal IR No Connection...

  • Page 21: How To Use

    How to Use 3.1 Video Output 3.1.1 Power-on Self-test After powering on, camera will have initial configuration and receiver light will be flashing. Camera will do a brief pan-tilt tour and return to the home position, or if preset 0 is set, the camera will return to the preset 0 position). 3.1.2 Video Output 1）Network output: connect this product and your computer through network cable, then open the browser, enter the camera IP address (factory default 192.168.5.163) in...
  • Page 22 the red LED light flashes for 20 seconds and then goes out, stop the code pairing and go to sleep; at this time, press any key to wake up and re-pair the code. ⚫ After the code is successfully matched, you need to select the camera address to control it 2）Clear Code Data Press the "Settings"...

  • Page 23: Ir Remote Control

    3.2.1 IR Remote Control 1. Standby Key After 3S long press, the camera will step into standby mode. Long press 3S again, the camera will self-test again and back to HOME position. (Note: If power-on mode is turned on and Preset 0 is set, and there is no operation within 12s, it will automatically point to the specified preset position.
  • Page 24 Back Light ON / OFF: Turn on or off the back light 10. Menu Setting Open or close the OSD menu Enter / exit the OSD menu or return to the previous menu. 11. Camera IR Remote Control Address Setting 【*】+【＃】+【F1】:Camera Address No.1 【*】+【＃】+【F2】:Camera Address No.

  • Page 25: Remote Control Usage

    13. AI Function Short Keys 【F1】 ：Turn off AI Human Detection 【F2】 ：Turn on AI Human Detection 【F3】 ：Toggle between real time tracking mode and region tracking mode 【F4】 ：Chang tracking target on real tracking mode 3.2.2 Remote Control Usage Finishing initialization, it can receive and execute the IR commands.
  • Page 26 2) Pan/Tilt Control Up: press Down: press Left: press Right: press Back to middle position: press“【HOME】” Press and hold the up/down/left/right key, the pan/tilt will keep running, from slow to fast, until it runs to the endpoint; the pan/tilt running stops as soon as the key is released.

  • Page 27: Menu Setting

    6）Presets Setting, Running, Clearing 1. Preset setting: to set a preset position, the users should press the “【SET PRESET】” key first and then press the number key 0-9 to set a relative preset, Note: 10 preset positions in total are available by remote controller.

  • Page 28: System Setting

    MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Language English （Setup） （Camera） （P/T/Z） （Video Format） （Version） （Restore Default） [↑↓]Select [← →]Change Value [Menu]Back [Home]OK Language：Chinese/English Setting：Enter into submenu of system setting Camera Parameter ： Enter into P/T/Z ： Enter into submenu of PTZ submenu of camera parameter parameter Version: Enter into submenu of [←...

  • Page 29: Camera Parameter Setting

    SETUP ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Protocol Auto Visca Address Visca Address Fix PELCO-P Address PELCO-D Address Baudrate 9600 [↑↓]Select [← →]Change Value [Menu]Back PROTOCO [菜单] 回 VISCA/Pelco-/Pelco-D/Auto Visca ADDR: VISCA=1~7 Pelco-P=1~255 Pelco-D = 1~255 Visca Address Fix: On/Off 3.3.3 Camera Parameter Setting Move the pointer to the (CAMERA) in the Main Menu, click the【HOME】key and enter the (CAMERA) as follow CAMERA ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
  • Page 30 1）Exposure Move the pointer to the (EXPOSURE) in the Main Menu, click the【HOME】and enter the (EXPOSURE SET) as follow EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Mode Auto Flicker 50Hz G.Limit [↑↓]Select [← →]Change Value [Menu]Back Mode : Auto, Manual, Shutter priority, Iris priority and Brightness priority. EV : On/Off (only available in auto mode) Compensation Level: -7~7 (only available in auto mode when EV is ON) BLC: ON/OFF for options (only available in auto mode)
  • Page 31 COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto RG Tuning BG Tuning Saturation 100% AWB Sensitivity High [↑↓]Select [← →]Change Value [Menu]Back WBMode: Auto, Manual, One Push, 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/70000K. Red Tuning: -10~10(only available in Manual mode) Blue Tuning: -10~10(only available in Manual mode) Red Gain: 0~255(only available in Manual mode) Blue Gain: 0~255(only available in Manual mode) Saturation: 60%, 70%, 80%, 90%, 100%, 110%, 120%, 130%, 140%, 150%, 160%, 170%, 180%, 190%, 200%...
  • Page 32 Contrast: 0~128 Sharpness: 0~11 B&W Mode: Color, black/white DZoom: Digital zoom options: On/Off 4）Focus Move the pointer to the (FOCUS) in the Menu, click the【HOME】and enter the (FOCUS) as follow. FOCUS ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Focus Mode Auto AF-Zone Center AF-Sensitivity [↑↓]Select [← →]Change Value Focus Mode: Auto, manual AF-Zone: Up/middle/down AF-Sensitivity: High, middle, low...

  • Page 33: P/T/Z

    3.3.4 P/T/Z Move the pointer to the (P/T/Z) in the Main Menu, click the【HOME】and enter the (P/T/Z) as follow P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Speed by zoom Zoom speed Image Freezing Acc Curve Slow Preset speed [↑↓]Select [← →]Change Value [Menu]Back Depth of Field: Only effective for remote controller, On/ Off; When zoom in, the Pan/Tilt control speed by remoter will become slow Zoom Speed: Set the zoom speed for remote controller,1~8 Image Freezing: On/Off...
  • Page 34 ⚫ Exit menu after modifying parameter to save it 1) HDMI Move the pointer to the (Video Format) in the Menu, click the【HOME】and enter the HDMI (Video Format) as follow VIDEO FORMAT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ 4KP60 4KP59 4KP50 4KP30 4KP29 4KP25 1080P60 1080P59 1080P50 1080I60...

  • Page 35: Version

    VIDEO FORMAT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ 1080P60 1080P59 1080P50 1080I60 1080I59 1080I50 1080P30 1080P29 1080P25 720P60 720P59 720P50 [↑↓]Select SDI: 1080P60、1080P59、1080P50、1080I60、1080I59、1080I50、1080P30、 1080P29、1080P25、720P60、720P59、720P50 3.3.6 Version Move the pointer to the (VERSION) in the Main Menu, click the【HOME】and enter the (VERSION) as follow VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ MCU Version 3.2.0 Camera Version...
  • Page 36 RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Restore Default? [↑↓]Select [← →]Change Value [Menu]Back [Home]OK Restore default: Yes/No ;( after restoring default, the language, color, and video format won’t be restored) ⚫ If the address of former remoter is not 1 but another one from 2,3,4,the corresponding camera address will restore to 1 when all parameters or system parameters are restored.

  • Page 37: Network Connection

    NETWORK CONNECTION 4.1 Connection Method Direct Connection：Direct connections via “cross-over” network cable Connection to LAN：Connections to LAN via patch cable to LAN wall jack or LAN switch ⚫ Please do not put the power and network cable in places where can be easily touched to prevent video quality lowered by unstable signal transmission due to poor contact of cables.
  • Page 38 Figure1-8 Network segment successfully added User can also to verify network connection as steps above mentioned after the finish of camera self-check. If IP is default, open DOS command window and input 192.168.5.163, then press Enter key. It will show message as below: which means network connection is normal.

  • Page 39: Camera Web Interface

    4.2 Camera Web Interface 4.2.1 Web Login 1）Web Login After assigning an IP address to the camera, you can reach the Web Interface by typing in the camera’s IP address into a web browser. You can log in this interface as administrator or user.

  • Page 40: Monocular Ai Tracking Function Web

    You can control PTZ, zoom, focus, video capture, sound, focus, full screen and set run, and delete the preset position. 2）Login as user User name and default password: “user1” or “user2” You can control PTZ, zoom, focus, video capture, sound, focus, full screen and set run, and delete the preset position.

  • Page 42: Configuration

    Network Including basic parameters, Ethernet, DNS, wireless network Configuration setting, GB28181 etc. System Including equipment property, system time, user management, Configuration version update, Reset, Reboot device settings etc. 4.2.5 Audio Configuration Switch: Choose to enable the audio or not. Compressing Format: Set audio compressing format and manually reboot the device after change (default MP3,PCM,AAC optional) Sampling Frequency: Set sampling frequency and manually reboot the device after...
  • Page 43 Rate (Kb / s): Set the video bit rate (main stream default 4096Kb / s,64-12288Kb / s optional; secondary stream default 1024Kb / s,64-10240Kb / s optional). Frame rate (F / S): Set the video frame rate (primary / secondary stream default 25F / S, primary stream 5-60F/S optional, secondary stream 5-30F / S optional ).
  • Page 44 Focus Tactic: set the focus tactic (Default before-focus, after-focus, normal meeting, education tracking, moving-target focus, center focus optional.) Focus Sensitivity: Set the focus sensitivity (default is low, high, medium optional) B）Exposure: Exposure mode, exposure compensation, backlight compensation, anti-flicker, gain limit, dynamic range, shutter, aperture, brightness, gain can be set. Exposure Mode: Set the exposure mode (Default automatic, manual, shutter priority, aperture priority, brightness priority optional) Exposure Compensation: Exposure compensation setting is active when it is auto...
  • Page 45 Auto White Balance Sensitivity: Sensitivity Auto white balance settings (default is low, high, medium optional). Red Gain: Set the red gain, effective when it is manual (default 145, 0-255 optional). Blue Gain: Sets the Blue gain, effective when it is manual (default 56, 0-255 optional).

  • Page 46: Network Configuration

    Move Character: Set the location where the time and title to display. Click “ up, down, left, right” button to move the characters’ location. Title: Set title on device property (default CAMERA1) Time: Set time on system time (default 1970/01/01 05:36:00) Click “Save”...
  • Page 47 WebSocket Port：Set WebSocket port, the device will restart automatically after changed (default 8088, 0-65535 optional). Click on the "Save" button, it will be valid when display "Save successful". RTMP access: RTMP: / / equipment IP address: 1935 / live/av0 (av0 main stream;...

  • Page 48: System Configuration

    Alarm Zone: Users can add their own Equipment Installation Address: Users can add their own Local SIP Port: 5060 Range 0-65535 GB28181 Server Address: IP address of the computer Server SIP Port: 5060 Range 0-65535 Server ID: 34020000002000000001 Click on the "Save" button, it will be valid when display "Save successful". 5) SRT SRT Port: Set the SRT port (default 9000, 0-65535 optional) SRT Password: Set SRT password...
  • Page 49 Date Separator: set the date separator (default '/','.','-' Optional). Time Zone: Set the time zone (default UTC+08:00, other time zones optional). Time Type: Set the time types (default 24 hours, optional 12 hours). Enable NTP: Enable/disable NTP Update Interval: Set the NTP server automatic updated time interval. Valid after setting NTP server synchronization (default one day, 2-10 days Optional).

  • Page 50: Logout

    ⚫ After the version upgrade is completed, you need to restore the factory default values a, restore the factory default through web configuration; b, restore the factory default value through the menu; c, remote control shortcut key *#6 restore factory default; Choose one of the above three methods, in which the IP account and password of “method a”...
  • Page 67 Clear Preset 0xA0 Address 0x00 0x05 0x00 0xAF Preset Call Preset 0xA0 Address 0x00 0x07 0x00 0xAF Preset Query 0xA0 Address 0x00 0x51 0x00 0x00 0xAF Position Query Value Value Position 0xA0 Address 0x00 0x59 High 0xAF Respons Byte Byte Query Tilt 0xA0 Address...

  • Page 68: Maintenance And Troubleshooting

    Maintenance and Troubleshooting 6.1 Camera Maintenance 1）If the camera will not be used for a long time, please turn off the power switch. 2）Use a soft cloth or lotion-free tissue to clean the camera body. 3）Use a soft dry lint-free cloth to clean the lens. If the camera is very dirty, clean it with a diluted neutral detergent.
  • Page 69 ⚫ Image is shaky or vibrating. 1. Check whether camera is mounted solidly or sitting on a steady horizontal and level surface. 2. Check the building and any supporting furniture for vibration. Ceiling mounts are often affected by building vibration more than wall mounts. 3.
