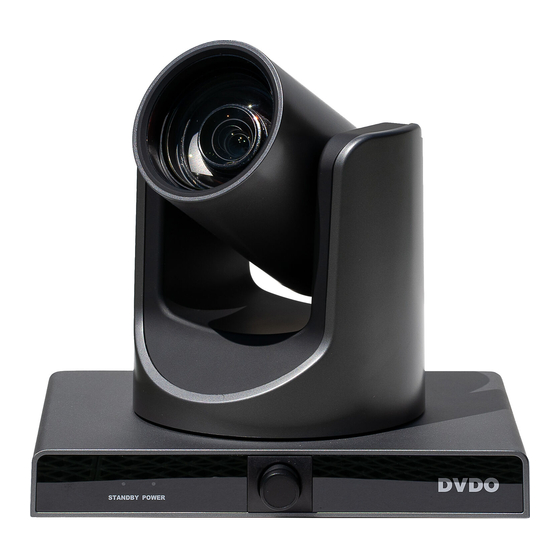

DVDO-C3-1
PTZ Auto Tracking Camera
User Manual
Version: V1.0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C3-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DVDO C3-1

Summary of Contents for DVDO C3-1

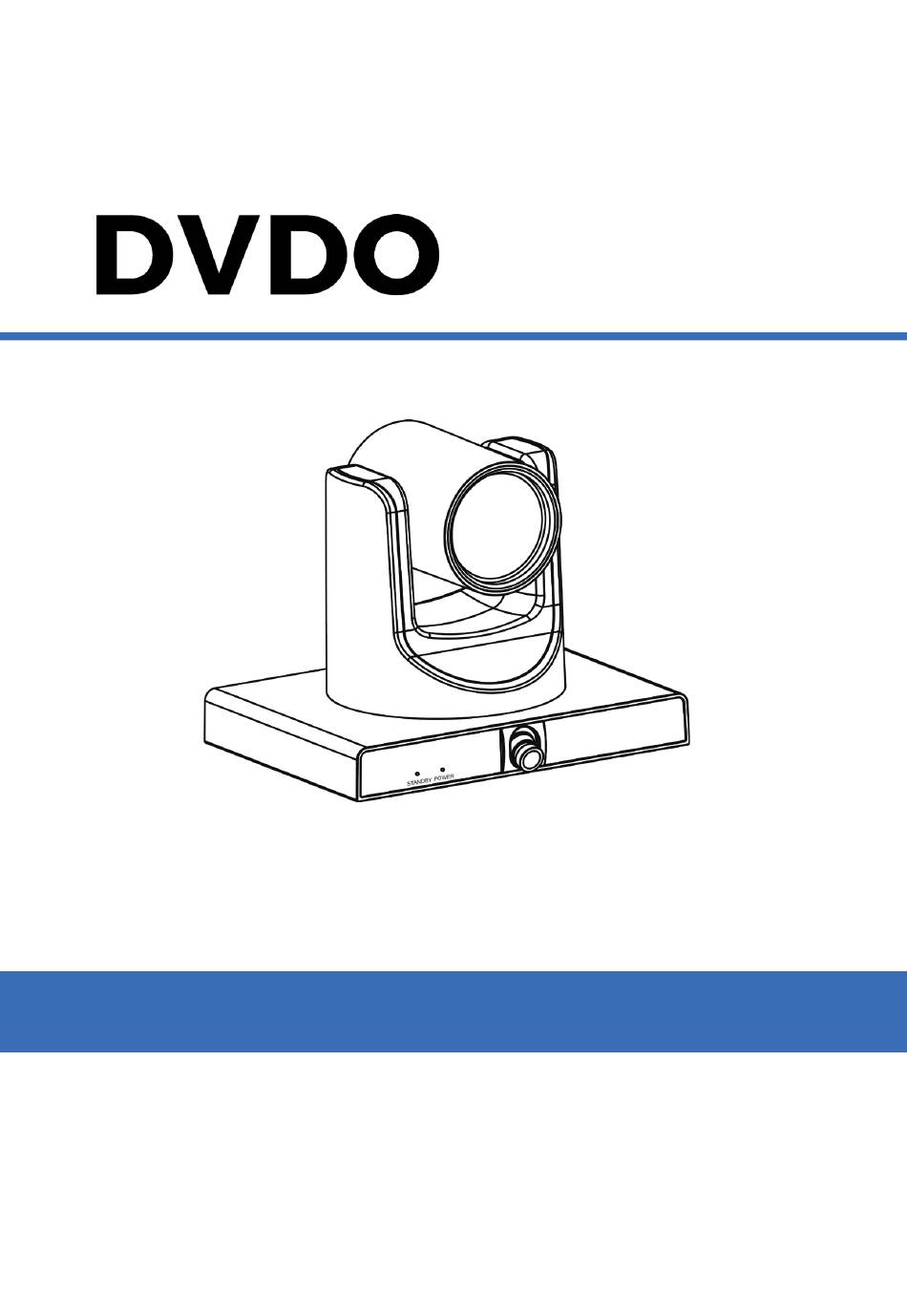

  • Page 1 DVDO-C3-1 PTZ Auto Tracking Camera User Manual Version: V1.0.1...
  • Page 2 DVDO DVDO-C3-1 PTZ Auto Tracking Camera User Manual Important Safety Instructions 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing, and do not place objects filled with liquids, such as vases, on the apparatus.
  • Page 3 DVDO DVDO-C3-1 PTZ Auto Tracking Camera User Manual FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 4: Table Of Contents

    DVDO DVDO-C3-1 PTZ Auto Tracking Camera User Manual Table of Contents Introduction ...................... 2 Features ....................2 Package Contents ..................3 Specifications ................... 4 Panel Description ..................7 Dimensions ....................8 Installation and Wiring ..................9 Installation ....................9 Wiring ............Error! Bookmark not defined.
  • Page 5 DVDO DVDO-C3-1 PTZ Auto Tracking Camera User Manual Internet Connection ................27 Camera Controlled by LAN ..............28 Setup IP Address ................28 Visit/Access Camera ............... 30 Camera Controlled by WAN..............31 Setup IP Controlled by Dynamic DNS ..........31 Dynamic DNS Visit Camera.............

  • Page 8: Introduction

    Introduction Features Integrated Design: Provides panoramic and close-up 4 channel Full HD  1080p video. Intelligent Tracking for Education: Built-in image recognition and tracking  algorithm smoothly tracks the subject without auxiliary positioning camera or tracking host. Multiple cameras can be installed to track teacher and/or students.

  • Page 9: Package Contents

    Package Contents 1 x USB Camera  1 x AC Power Adaptor  1 x Power Cable  1 x RS232 Cable  1 x Remote  1 x Wall Bracket with Screw Pack ...

  • Page 10: Specifications

    Specifications Camera 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, Video System 1080p/25, 720p/60, 720p/50 Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M Scanning Mode Progressive Lens 12x, f=3.5mm ~ 42.3mm, F1.8 ~ F2.8 Teacher Panorama f=6mm, F1.8, angle of view ~60° (optional) Lens Student Panorama f=3.24mm, F1.8, angle of view ~84°...
  • Page 11 H & V Flip Supported Image Freeze Supported Number of Preset Preset Accuracy 0.1° Network Features Video Compression H.264/MJPEG First Stream, Second Stream, Third Stream, Fourth Video Stream Stream 1920x1080, 1280x720, 1024x576, 960x540, First Stream Resolution 640x480, 640x360 1920x1080, 1280x720, 1024x576, 720x576 (50Hz Second Stream support), 720x480 (60Hz), 720x408, 640x360, Resolution...
  • Page 12 Network Interface 1 x RJ45: 10M/100M Adaptive Ethernet Port Audio Interface 1 x LINE IN: 3.5mm Audio Interface 1 x RS232 IN: 8pin Min DIN, Max Distance: 30m, Communication Protocol: VISCA / Pelco-D / Pelco-P Interface 1 x RS-232 OUT: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only Power Jack JEITA type (DC IN 12V)

  • Page 13: Panel Description

    Panel Description Item Name System Select Switch Network Interface RS232 OUT Interface RS232 IN Interface HDMI Interface LINE IN Interface 3G SDI Interface DC 12V Interface Power Switch...

  • Page 14: Dimensions

    Dimensions...

  • Page 15: Installation And Wiring

    Installation and Wiring Installation To mount camera on a wall, please follow the following wall mounting installation steps.
  • Page 16 Safety Precautions Electrical Safety  Please install and operate this product in accordance with all electrical safety standards. Use caution to transport  Avoid stress, vibration or liquid damage in transport, storage and installation. Power supply polarity  This product uses a +12V power supply with 1.5A max electrical current. Installation Precautions ...
  • Page 17 Device Wiring Please check connections are correct before starting. Connect the power adapter to the power connector on the rear panel of the camera. The power indicator on the front panel of the camera will turn on. After the camera is powered on, it will initialize by moving to its limits, then returning horizontally and vertically to the middle position.

  • Page 18: Ir Remote Control

    IR Remote Control Key Description Standby Key Press this button to enter standby mode. Press it again to enter normal mode. Note: Power consumption in standby mode is approximately half of normal mode Number Key To set preset or call preset.
  • Page 19 Key Description *Key Used with other buttons. Preset Key Set preset: Store a preset position. [SET PRESET] + Numeric button (0-9): Setting a corresponding numeric key preset position. HOME Key Confirm menu selection; Returns PTZ to the middle position when pressed. Return Key Return to previous level menu.
  • Page 20 Key Description Used with other buttons. 12. IR Remote Control Key [*]+[＃]+[F1]: Address 1 [*]+[＃]+[F2]: Address 2 [*]+[＃]+[F3]: Address 3 [*]+[＃]+[F4]: Address 4 13. Reset Key Used to erase a preset position. [RESET] + Numeric button (0-9) Or: [*] + [#] + [RESET] to erase all presets. 14.
  • Page 21 Key Description 18. Image Freezing Function Press remote control key [F4] to freeze the image. “Freeze” indication will appear on the upper left corner of image for five seconds. Press [F4] key again to return display to normal, and “Unfreeze” indication will appear for five seconds.

  • Page 22: Rs232 Interface

    RS232 Interface Function IR OUT...
  • Page 23 The correspondence between the camera and Windows DB-9 pin: Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI The correspondence between the camera and the Mini DIN pin: Camera Mini DIN 1.DTR...

  • Page 24: Visca Network

    VISCA Network RS232 Serial Communication Control The camera is controlled via RS232; port parameters are as follows: Parameters Value Baud Rate 2400/4800/9600/38400 bps Starting Position 1 bit Data Bits 8 bits Parity None Stop Bits 1 bit Flow Control None * After powering on, the camera goes to the upper right limit and then back to the middle position.

  • Page 25: Gui Settings

    GUI Settings MENU Press [MENU] button to display the main menu on the normal screen, using arrow button to move the cursor to the item to be set. Press the [HOME] button to enter the corresponding sub-menu. MENU Exposure Color Image P/T/Z Noise Reduction...

  • Page 26: Exposure

    EXPOSURE Move the main menu cursor to [EXPOSURE], and press [HOME] key enter the exposure page, as shown below. EXPOSURE Mode Auto ExpCompMode ExpComp Backlight Gain Limit Anti-Flicker 50Hz Meter Average Select Item Change Value [Menu] Back Mode: Set Exposure to Auto, Manual, SAE, AAE, or Bright. ...

  • Page 27: Color

    Iris: Aperture value F1.8, F2.0, F2.4, F2.8, F3.4, F4.0, F4.8, F5.6, F6.8,  F8.0, F9.6, F11.0, Close. (Effective only in Manual, AAE modes) Shutter: Select 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350,  1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000. (Effective only in Manual, SAE modes) Gain: Select 0~7.

  • Page 28: Image

    RG: Red Gain from 0~255. (Manual mode)  BG: Blue gain from 0~255. (Manual mode)  Colortemp: Select 2500K ~ 8000K. (Effective only in VAR mode).  IMAGE Move the main menu cursor to [IMAGE], and press [HOME] key enter the image page, as shown below.

  • Page 29: P/T/Z

    P/T/Z Move the main menu cursor to [P/T/Z], and press [HOME] key enter the P/T/Z page, as shown below. P/T/Z SpeedByZoom AF-Zone Center AF-Sense High L/R Set Display Info Image Freeze Digital Zoom Call Preset Speed Pre Zoom Speed Select Item Change Value [Menu] Back SpeedByZoom: Depth of field scale On / Off.
  • Page 30 NOISE REDUCTION NR2D-Level NR3D-Level Select Item Change Value [Menu] Back NR2D Level: Set 2D noise reduction to Off / Auto / 1~5.  NR3D Level: Set 3D noise reduction to Off / 1~8. ...

  • Page 31: Setup

    SETUP Move the main menu cursor to [SETUP], and press [HOME] key enter the setup page, as shown below. SETUP Language DVI Mode Select Item Change Value [Menu] Back Language: Select EN (English) / Chinese / Russian.  DVI Mode: Select DVI or HDMI. ...

  • Page 32: Restore Default

    V_AddrFix: Select On / Off.  P_D_Address: Select 0~254. (Effective only in PELCO-D protocol)  P_P_Address: Select 0~31. (Effective only in PELCO-P protocol).  Net Mode: Set serial port network control to Serial / Parallel.  Baudrate: Select serial port baud rate to 2400 / 4800 / 9600 / 38400. ...

  • Page 33: Network Function

    Network Function System Requirements Item Requirements Operating System Windows 2000/2003/XP/ vista/7/8/10 Network Protocol TCP/IP Client PC P4 / 128M RAM / 40G HDD / scaling graphics card with DirectX 8.0+. Equipment Installation Connect USB camera to the internet or to PC directly via ethernet cable. Turn on DC 12V power.

  • Page 34: Camera Controlled By Lan

    Connect by Switch / Router Camera Controlled by LAN Setup IP Address Determine camera IP address as follows: Method 1: Press * and # and 4 on remote controller one by one, the camera IP address will be shown on screen. Method 2: Connect camera to PC with network cable, use “upgrade_En.exe”...
  • Page 35 Method 2: Open “upgrade_En.exe”, change IP and click “Set”. USB camera will restart.

  • Page 36: Visit/Access Camera

    To change IP address: Search the IP address of camera. Select the camera IP to be changed. Select “Config” tab in upgrade app. Change the IP address, netmask and gateway, then click “Set”. View / Access Camera Input http://192.168.100.88 into browser (Internet Explorer recommended). Input login name: admin and password: admin into login window as shown: The camera can now be viewed as shown:...

  • Page 37: Camera Controlled By Wan

    Tip: When using this camera for the first time, VLC player software must be installed. Please visit http://www.videolan.org/vlc/#download and install VLC player software. Once VLC is installed, log in again to view camera. Camera Controlled by WAN Setup IP Controlled by Dynamic DNS Dynamic DNS providers: Dyndns.org, 3322.org.

  • Page 38: Dynamic Dns Visit Camera

    Dynamic DNS View Camera To view camera via DDNS, use this link format: http://hostname:port number. For example, for host computer name “youdomain.f3322.org” and camera port 89, the link is http://youdomain.3322.org:89 Tip: If the camera default port is 80, it is unnecessary to input port number. The host name can access camera directly.
  • Page 39 Step 3 Input URL address: rtsp://ip: port number/1 (First stream); rtsp://ip: port number/2 (Second stream). Step 4 Click “Play”. Tip: Default RTSP port number is 554. If the camera port default is 80, it is unnecessary to input port number of URL address.

  • Page 40: Camera Parameter Setup

    Camera Parameter Setup Homepage Introduction Menu All pages include two menu bars for: Real time monitoring: displaying video image Parameter setup: with function buttons. A. Video Viewing Window Video viewing window must accommodate video resolution; higher resolutions will allow larger playback area. Double click viewing window to view full-screen;...
  • Page 41 PTZ Setup 1) Pan and Tilt Control Up, Down, Left and Right arrows and home button allow you to manually move the camera to the desired position. 2) Zoom Zoom In / Zoom Out control. 3) Focus Focus In / Focus Out control for fine manual focus adjustment in case auto-focus encounters difficult objects or backgrounds.
  • Page 42 Click the “Set” button to save the current location to that preset number. Click the “Call” button to cause the camera to return to that position. This enables smooth, quick and convenient control without the need to manually move the camera.

  • Page 43: Video Settings

    Video Settings 1) Video Format Support 50Hz (PAL) and 60Hz (NTSC), and Dial Priority three formats. 2) Encode Level Support baseline, mainprofile, highprofile and svc-t four levels.
  • Page 44 3) Encode Protocol Support H.264, H.265 and MJPEG three formats. 4) Resolution First stream: 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360. Second stream: 1280x720, 1024x576, 720x576 (50Hz), 720x480 (60Hz), 720x408, 640x360, 480x270, 320x240, 320x180 Higher resolutions provide clearer images while consuming more network bandwidth.

  • Page 45: Image Settings

    Image Settings Brightness: Image brightness 0~14 slider. Default = 7. Saturation: Saturation 0~14 slider. Default = 4. Contrast: Contrast 0~14 slider. Default = 8. Sharpness: Sharpness 0~15 slider. Default = 3. Hue: Hue 0~14, slider. Default = 7. Flip & Mirror: Flip checkbox turns image upside down. Mirror checkbox reverses image left / right.

  • Page 46: Audio Settings

    Audio Settings Audio Switch: Enable / disable audio switch. Audio Type: Audio type AAC. Sample Rate Selectable: 44.1K / 48K. Bit Rate: Selectable 96K / 128K / 256K. Input Type: Input type line in. Input Vol L: Left channel volume. Input Vol R: Right channel volume.

  • Page 47: Network Settings

    Network Settings Lan Settings Default IP address 192.168.100.88 MAC address may not be modified. Port Settings A. HTTP Port IP address identifies the network device, which may run multiple web applications using network ports to transmit data. Port setting determines web server program’s transmission port.

  • Page 48: Device Information

    RTSP protocol supported. (default port: 554) Use VLC tools broadcast. C. PTZ Port PTZ protocol supported. (default port: 5678) Control Protocol Settings Set camera control communication protocol. Enter Visca / Pelco-D / Pelco-P addresses. RTMP Settings Set MRL of RTMP. Turn each stream On / Off and selectively enable / disable video and audio per stream.

  • Page 49: Troubleshooting

    Troubleshooting  The monitor shows no image 1. Check camera power supply is connected, voltage is normal, and power indicator light is always on. 2. Turn off power switch to check whether camera is self-testing. 3. Check all connections.  Intermittent image loss Check check all cable connecdtions of video platform and TV / display.

  • Page 50: Warranty Terms And Conditions

    The defects are caused by any force majeure including, but not limited to, accidents, fire, earthquake, lightning, tsunami and war. Any service, configuration or offer not covered by contract. DVDO reserves the right to determine these cases, and changes may be made at any time without notice.
