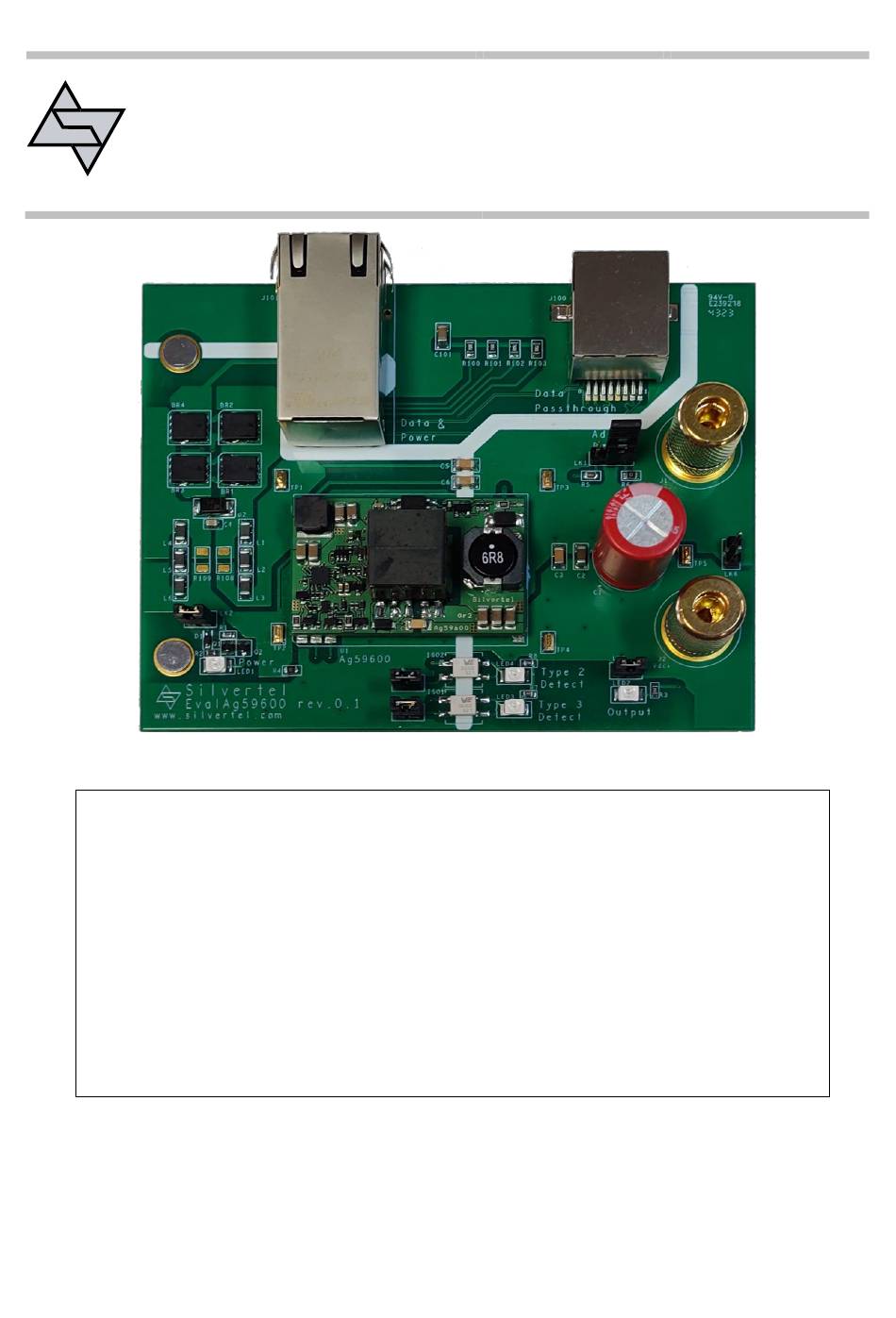

- Page 1 V1.1 October 2024 Evaluation Board User Manual Silvertel Evaluation Board User Manual EvalAg59600 Evaluation Board User Manual Version 1.1 – October 2024 © Silver Telecom 2024...
-
Page 2: Table Of Contents
EvalAg59600 User Manual 51W High Efficiency Poe++ Module V1.1 October 2024 Evaluation Board Table of Contents Kit Contents ............................. 3 Board Layout ............................3 Link Settings ............................. 3 Input Output Connections......................... 3 Introduction ............................. 3 Input ................................. 4 Operation ............................4 Input Power LED .......................... -
Page 3: Kit Contents
– Type 2 Detect LED Enable – Type 3 Detect LED Enable 3 Introduction This Manual is a guide to using the EvalAg59600 evaluation board fitted with a Silvertel Ag59612-LPB or Ag59624-LPB miniaturised high efficiency Class 6 surface mount Power over Ethernet (PoE) module. -
Page 4: Input
Evaluation Board 4 Input The EvalAg59600 board will extract the power from the data pairsets using the RJ45 connector with integrated magnetics, J101. The data is passively passed on to any peripheral equipment via J100, while the power is provided to the Ag59600-LPB module in the correct polarity via the Schottky rectifier diodes BR1, BR2, BR3 and BR4. -
Page 5: Output Voltage Adjust
The output voltage of the Ag59600-LPB module can be adjusted by changing the location of the jumper LK1. The EvalAg59600 is fitted with two adjust resistors. The down adjust resistor R5, is fitted with a 68kΩ resistor. And the up adjust resistor R6, which is fitted with a 0Ω... -
Page 6: Test Setup
51W High Efficiency Poe++ Module V1.1 October 2024 Evaluation Board 7 Test Setup Figure 2 shows the basic set up using the EvalAg59600 evaluation board powered by Silvertel’s EvalAg6120 PSE. The equipment required: - ➢ EvalAg59600 fitted with Silvertel’s Ag59612-LPB or Ag59624-LPB PD Module. -
Page 7: Schematic
EvalAg59600 User Manual 51W High Efficiency Poe++ Module V1.1 October 2024 Evaluation Board 9 Schematic Figure 3: Schematic © Silver Telecom 2024... -
Page 8: 10 Bill Of Materials
EvalAg59600 User Manual 51W High Efficiency Poe++ Module V1.1 October 2024 Evaluation Board 10 Bill of Materials Figure 4: Bill of Materials © Silver Telecom 2024... -
Page 9: 11 Layer Routing
EvalAg59600 User Manual 51W High Efficiency Poe++ Module V1.1 October 2024 Evaluation Board 11 Layer Routing Figure 5: Top Layer Routing Figure 6: Bottom Layer Routing © Silver Telecom 2024...
