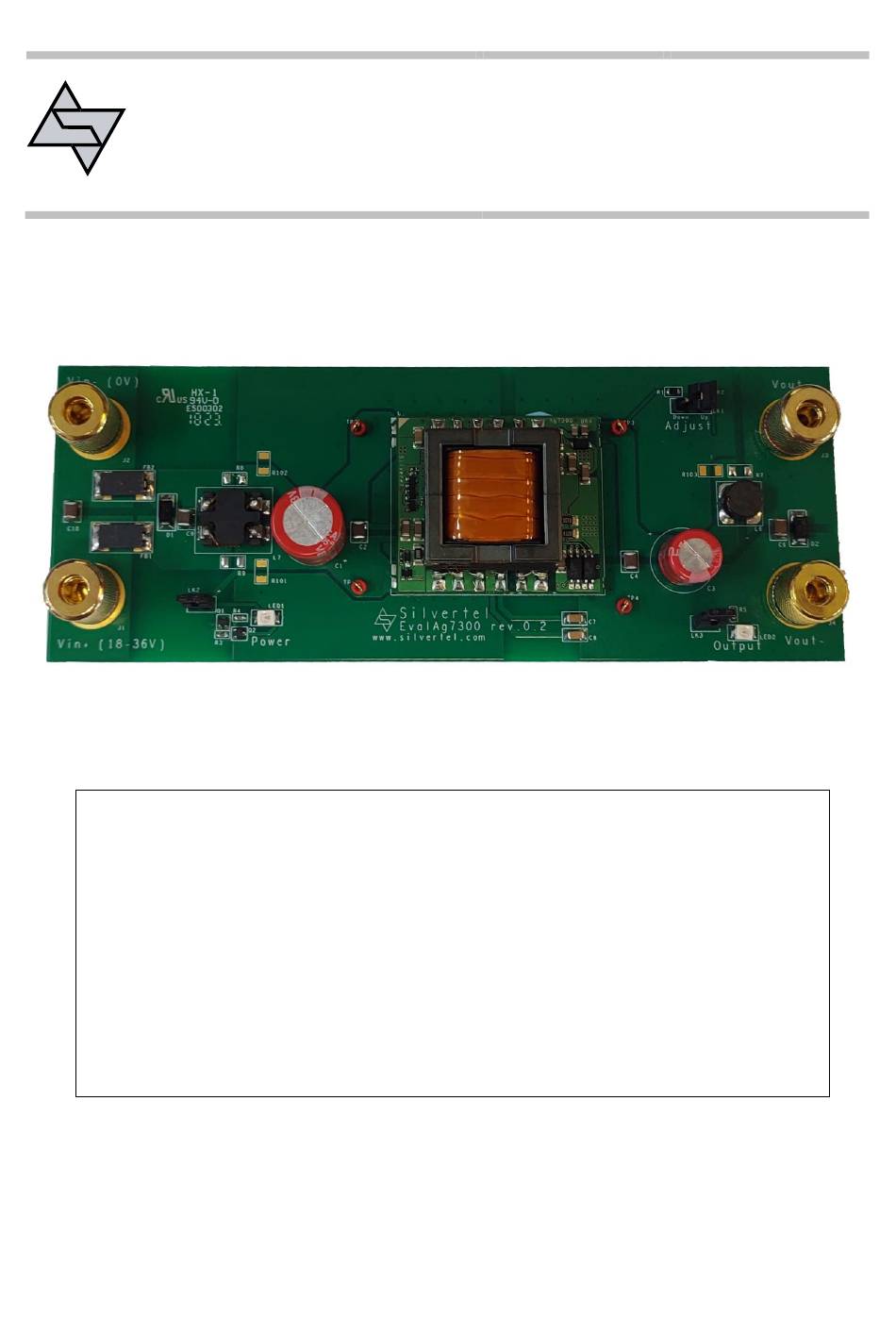

- Page 1 V1.0 May 2023 Evaluation Board User Manual Silvertel Evaluation Board User Manual EvalAg7300 Evaluation Board User Manual Version 1.0 – May 2023 © Silver Telecom 2023...
- Page 2 EvalAg7300 User Manual High Power Isolated Boost Converter V1.0 May 2023 Evaluation Board Table of Contents Kit Contents ............................. 3 Board Layout ............................3 Link Settings ............................. 3 Input Output Connections......................... 3 Introduction ............................. 3 Input ................................. 4 Supply............................... 4 Output Voltage Adjust ........................

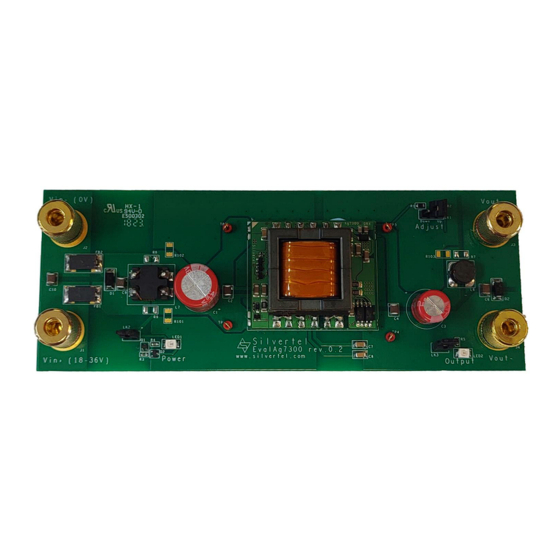

- Page 3 – Output Power LED Enable 3 Introduction This Manual is a guide to using the EvalAg7300 evaluation board fitted with a Silvertel Ag7300 High Power Isolated Boost Converter module for use in a wide variety of point of load (PoL) and DC-DC converter applications, including IEEE802.3bt Power over Ethernet (PoE) Power Sourcing Equipment (PSE) applications.
- Page 4 The output voltage of the Ag7300 module can be adjusted up or down by changing the location of the jumper LK1. The EvalAg7300 is fitted with two adjust resistors. The down adjust resistor R1, is fitted with a 510kΩ resistor. And the up adjust resistor R6, which is fitted with a 0Ω...
- Page 5 V1.0 May 2023 Evaluation Board 6 Test Setup Figures 2 and 3 show typical test setups using the EvalAg7300 evaluation board. The equipment required: - ➢ EvalAg7300 fitted with Silvertel’s Ag7300LPB Module ➢ 18-36V bench power supply Optional Equipment capable of greater than 140W Optional Equipment ➢...
- Page 6 EvalAg7300 User Manual High Power Isolated Boost Converter V1.0 May 2023 Evaluation Board 8 Schematic Figure 4: Schematic © Silver Telecom 2023...
- Page 7 EvalAg7300 User Manual High Power Isolated Boost Converter V1.0 May 2023 Evaluation Board 9 Bill of Materials Figure 5: Bill of Materials © Silver Telecom 2023...
- Page 8 EvalAg7300 User Manual High Power Isolated Boost Converter V1.0 May 2023 Evaluation Board 10 Layer Routing Figure 6: Top Layer Routing Figure 7: Bottom Layer Routing © Silver Telecom 2023...
