- Page 1 Silvertel EVALAG5300 Rev 3 Evaluation Board User Manual Rev 1.1 – June 2016...

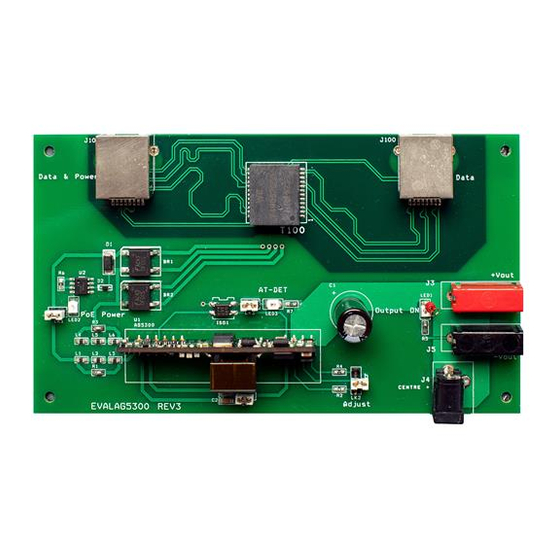

- Page 2 4.2 Output adjustment ....................3 Typical Set-up Using the Board 6.1 Typical Application ....................5 6.2 EVALAG5300 REV 3R - Evaluation Board Schematic ........6 6.3 Link settings ......................6 2 Table of Figures Figure 1: Board Layout ....................3 Figure 2: Basic set-up .....................
- Page 3 This output is connected to an opto-isolator to cross the isolation barrier and LED 3 will be illuminated. Note: The EVALAG5300 does not have an on-board PHY or µ-controller; so does not perform the Data Link Layer (DLL) classification communications back to the PSE (to confirm its power requirement). Many IEEE802.3at PSEs (such as the Phihong POE36U-1AT-R) do not need this and will automatically supply...
- Page 4 The Ag5300 output has an ADJ pin, which allows the output voltage to be increased or decreased from its nominal value. The EVALAG5300 board has an adjust link LK2 and two resistors R2 (68K) and R4 (0R) which allows the Ag5300 output to be adjusted to its maximum and minimum values.
- Page 5 EVALAg5300 Rev 3 - Evaluation Board User Manual Typical Set-up Figure 2 shows the basic set up using the EVALAG5300 evaluation board with a Midspan or Endspan. The equipment required: - Midspan or Endspan PSE (Power Sourcing Equipment) Peripheral (or Test) Equipment...
- Page 6 POE36U-1AT-R is connected to the input of the EVALAG5300 evaluation board (J101) via a CAT5e crossover cable (up to 100m). The data output of the EVALAG5300 evaluation board is connected to the data port of the ethernet camera via a short CAT5e patch cable.
- Page 7 EVALAg5300 Rev 3 - Evaluation Board User Manual 6.2 EVALAG5300 REV 3R - Evaluation Board Schematic J100 J101 T100 3004S-8812-SMT 3004S-8812-SMT 749052050 R104 R105 R106 R107 R100 R101 R102 R103 C104 C105 C106 C107 C100 C101 C102 C103 10nF 250V...
- Page 8 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Silvertel EvalAg5300...
