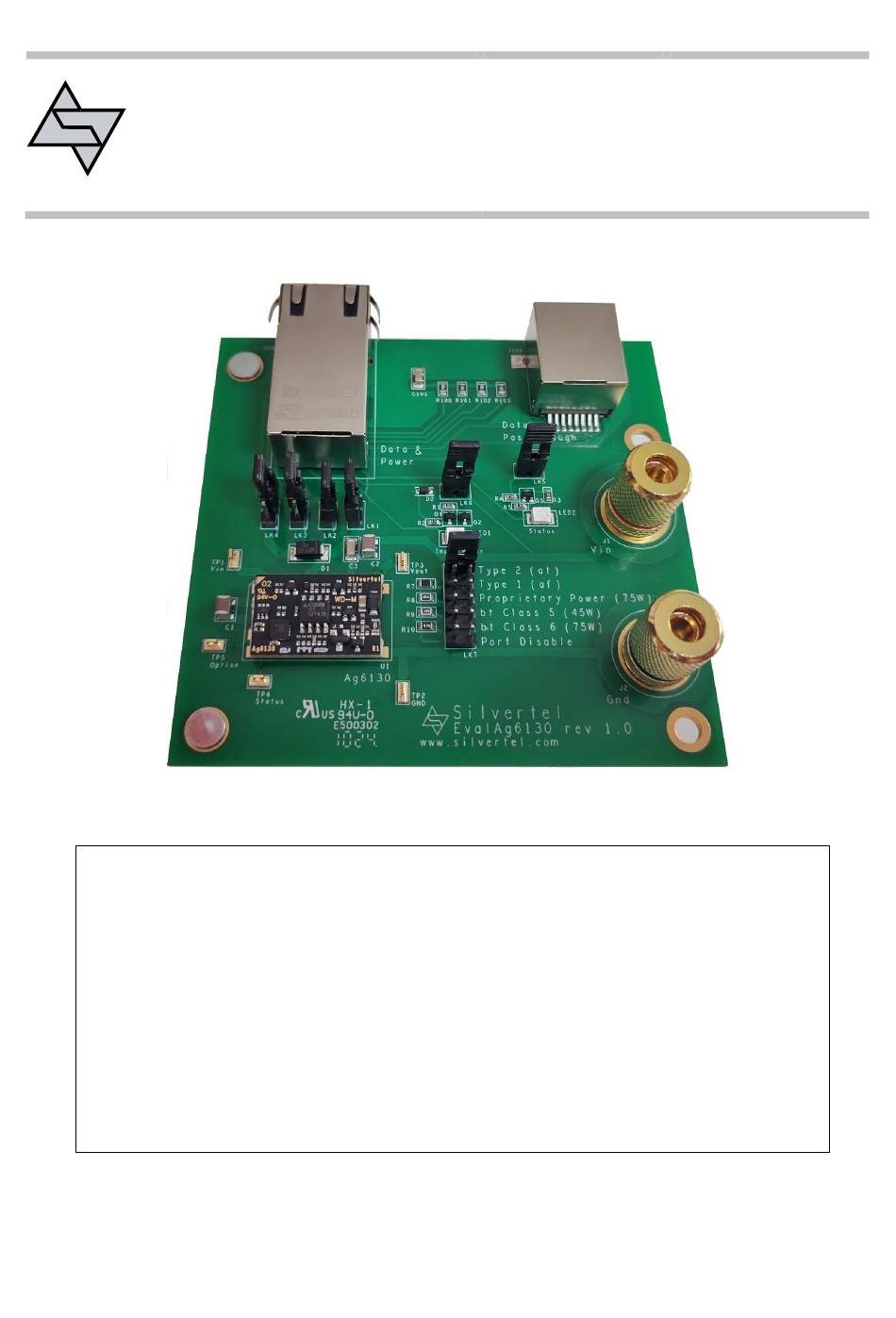

- Page 1 V1.0 May 2024 Evaluation Board User Manual Silvertel Evaluation Board User Manual EvalAg6130 Evaluation Board User Manual Version 1.0 – May 2024 © Silver Telecom 2024...
-
Page 2: Table Of Contents

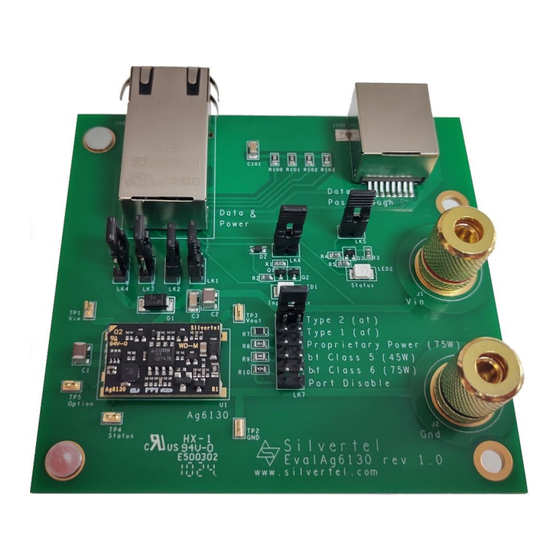

EvalAg6130 User Manual Single Channel PSE Evaluation Board V1.0 May 2024 Table of Contents Kit Contents ............................. 3 Board Layout ............................3 Link Settings ............................. 3 Input Output Connections......................... 3 Introduction ............................. 3 Input ................................. 3 Power ............................... 3 Data ..............................4 Power option select .......................... -
Page 3: Kit Contents
J1 and 0V to binding post J2 using 4mm Banana connectors, bare wire, or fork connectors. The supply should be between 50V and 57V for normal operation. if the Ag6130 is set to Type 1 Mode the Supply can be as low as 45V... -
Page 4: Data
5 Power option select The Ag6130 has an option to select its output power and class. These can be chosen by placing a jumper on the appropriate pins of LK7. If the power option is changed while a device is being powered by Ag6130, the change will not occur until after the powered device has been powered down and the detection cycle has been performed. -
Page 5: Operation
To ensure that the Ag6130 does not apply power to a non-PoE enabled device the output port first checks for a valid PoE signature. If the Ag6130 does not see a valid signature then it will disconnect, wait approximately 2 seconds then try again. Once a valid signature... -
Page 6: Test Setup
Powered Device Power 50-57V DC J1&J2 Power Supply CAT5e Crossover Cable Figure 2 Basic Test Setup 10 Additional information Full operating conditions and feature set can be found in the Ag6130 product datasheet, available from www.silvertel.com. © Silver Telecom 2024... -
Page 7: 11 Schematic
EvalAg6130 User Manual Single Channel PSE Evaluation Board V1.0 May 2024 11 Schematic Figure 3: Schematic © Silver Telecom 2024... -
Page 8: 12 Bill Of Materials
EvalAg6130 User Manual Single Channel PSE Evaluation Board V1.0 May 2024 12 Bill of Materials Figure 4: Bill of Materials © Silver Telecom 2024... -
Page 9: 13 Layer Routing
EvalAg6130 User Manual Single Channel PSE Evaluation Board V1.0 May 2024 13 Layer Routing Figure 5: Top Layer Routing Figure 6: Bottom Layer Routing © Silver Telecom 2024...
