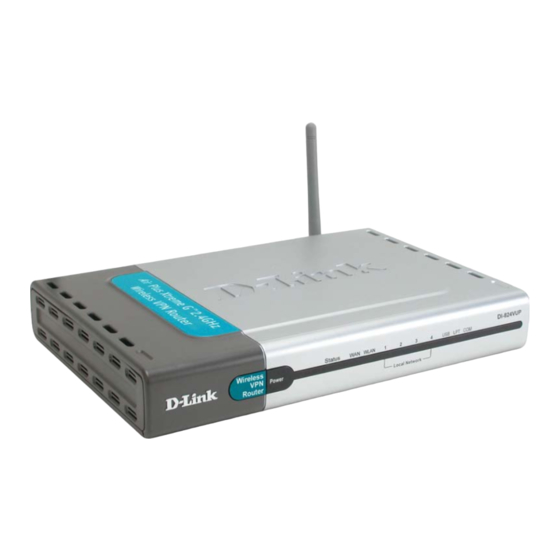

Page 1 D-Link AirPlus Xtreme G DI-824VUP High-Speed Enhanced 2.4 GHz Wireless VPN Router Manual Building Networks for People 10/11/04...
Page 2: Table Of Contents
Contents Package Contents ................3 Introduction....................4 Wireless Basics ..................6 Getting Started ..................9 Using the Configuration Menu.............. 11 Installing the Print Server Software ............65 Configuring on Windows 98se/Me Platforms ........67 Networking Basics ................69 Reset to Factory Default Settings ............98 Technical Specifications ..............99 Frequently Asked Questions ..............100 Contacting Technical Support ............153 Warranty....................154...
Page 3: Package Contents
Quick Installation Guide Note: Using a power supply with a different voltage rating than the one included with the DI-824VUP will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller.
Page 4: Introduction
USB. It is an ideal way to extend the reach and number of computers connected to your wireless network. Unlike most 802.11g routers, the DI-824VUP is capable of data transfer speeds up to 54 Mbps* (compared to the standard 11 Mbps) when used with other D- Link AirPlus Xtreme G products such as the DWL-G650 and DWL-G520 Wireless Adapters.
Page 5 Printer port enables connection to a network printer WAN and LAN ports auto detect cable types (straight-through or cross-over) UPnP supported Note: Please refer to the Resetting the DI-824VUP to the Factory Defualt Settings section in this manual for instructions on how to use the Reset button.
Page 6: Wireless Basics
LED blinks during data transmission. Wireless Basics D-Link AirPlus wireless products are based on industry standards to provide easy-to- use and compatible high-speed wireless connectivity within your home, business, or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link AirPlus wireless family of products will allow you to securely access the data you want, when and where you want it.
Page 7 Wireless Basics Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers, or an Internet connection supplied through the wired LAN.
Page 8 Based on the IEEE 802.11g standard, the DI-824VUP is interoperable with existing compatible 2.4GHz wireless technology with data transfer speeds of up to 54Mbps (with the D-Link AirPlus Xtreme G family of wireless devices,) as well as standard 802.11b technology ( the D-Link Air family of wireless devices), with speeds of up to 11Mbps.
Page 9: Getting Started
Note: If you are using a DHCP-capable router in your network setup, such as the DI-824VUP, you will not need to assign a static IP Address. If you need to assign IP Addresses to the computers on the network, please...
Page 10 (e.g., D-Link AirPlus Xtreme G DWL-G650) into a laptop computer.(See the Quick Installation Guide included with the DWL- G650.) Connect your printer to the printer port on the DI-824VUP. Please refer to the quick installation guide for loading the print server software.
Page 11: Using The Configuration Menu
Type in the IP Address of the DI-824VUP http://192.168.0.1 Note: if you have changed the default IP Address assigned to the DI-824VUP, make sure to enter the correct IP Address. The factory default User name is admin and the default Password is blank (empty).
Page 12 Hexadecimal digits consist of the numbers 0-9 and the letters A-F. WEP (Wired Equivalent Privacy) If you enable encryption on the DI-824VUP, make sure to also enable encryption on all 802.11b and 802.11g wireless clients, or wireless connection will not be established.
Page 13 Local Area Network (LAN) from unwanted visitors. To take the full advantage of the 802.1x in DI-824VUP, all of the wireless devices on your network must be 802.1x compatible and must have the 802.1x feature enabled to communicate with the router.
Page 14 Using the Configuration Menu Home > WAN Choose WAN Type WAN stands for Wide Area Network. In this case WAN represents the mode in which your ISP connects to the Internet. If you are uncertain, please ask your ISP which of the following represents your connection mode to the Internet: Dynamic Obtain an IP address from your ISP automatically (mainly for...
Page 15 Using the Configuration Menu Home > WAN > Dynamic IP Address Most Cable modem users will select this option to obtain an IP Address automatically from their ISP (Internet Service Provider). Host Name This is optional, but may be required by some ISPs. The host name is the device name of the Router.
Page 16 Using the Configuration Menu Home > WAN > Static IP Address If you use a Static IP Address, you will input information here that your ISP has provided to you. WAN IP Address Input the IP Address provided by your ISP. Input the Subnet Mask provided by your ISP.
Page 17 Using the Configuration Menu Home > WAN > PPPoE Most DSL users will select this option to obtain an IP address automatically from their ISP through the use of PPPoE. Your PPPoE username provided by your ISP. User Name Password Your PPPoE password provided by your ISP.
Page 18 Enter a maximum idle time during which Internet connection is maintained during inactivity. To disable this feature, en- able Auto-reconnect. Baud Rate The communication speed between the DI-824VUP and your modem. Auto-reconnect If enabled, the Broadband Router will automatically connect to your ISP after your system is restarted or if the connection is dropped.
Page 19 Using the Configuration Menu Home > WAN > Others > PPTP Point-to-Point Tunneling Protocol (PPTP) is a WAN connection used in Europe. My IP Address Enter the IP Address. My Subnet Mask Enter the Subnet Mask. Server IP Address Enter the Server IP Address. PPTP Account Enter the PPTP account name.
Page 20 Using the Configuration Menu Home > WAN > Others > BigPond Cable Dynamic IP Address for BigPond is a WAN connection used in Australia. User Name Enter in the user name for the BigPond account. Password Enter the password for the BigPond account. Login Server IP (Optional) Enter the Login Server IP if required.
Page 21 LAN is short for Local Area Network. This is considered your internal network. These are the IP settings of the LAN interface for the DI-824VUP. These settings may be referred to as Private settings. You may change the LAN IP address if needed. The LAN IP address is private to your internal network and cannot be seen on the Internet.
Page 22 Using the Configuration Menu Home > DHCP DHCP stands for Dynamic Host Control Protocol. The DI-824VUP has a built-in DHCP server. The DHCP Server will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.”...
Page 23 Using the Configuration Menu Home > VPN Settings VPN Settings are settings that are used to create virtual private tunnels to remote VPN gateways. The tunnel technology supports data confidentiality, data origin, authentication, and data integrity of network information by utilizing encapsulation protocols, encryption algorithms, and hashing algorithms.
Page 24 Using the Configuration Menu Home > VPN Settings > Tunnel > Method >IKE Tunnel Name Current tunnel name. Enabling this mode will accelerate establishing tunnel, but Aggressive Mode the device will have less security. Local Subnet The subnet of the VPN gateway’s local network. It can be a host, a partial subnet or a whole subnet.
Page 25 Using the Configuration Menu Home > VPN Settings > Tunnel > Method > IKE > Select IKE Proposal IKE Proposal index A list of selected proposal indexes from the IKE proposal pool listed below. Proposal Name This is the name used to classify the IKE proposal. DH Group There are three groups that can be selected: group 1 (MODP768), group 2 (MODP1024), and group 5...
Page 26 Using the Configuration Menu Home > VPN Settings > Tunnel > Method > IKE > Select IKE Proposal Continued... Enter in the life time value. Life Time Life Time Unit There are two units that can be selected: second and KB. The identifier of IKE proposal can be chosen for adding the Proposal ID corresponding proposal to the dedicated tunnel.
Page 27 Using the Configuration Menu Home > VPN Settings > Tunnel > Method > IKE > Select IPSEC Proposal A list of selected proposal indexes from the IPSec proposal IPSec Proposal pool listed below. index This is the name used to classify the IPSec Proposal Proposal Name There are three groups that can be selected: group 1 DH Group...
Page 28 Using the Configuration Menu Home > VPN Settings > Tunnel > Method > IKE > Select IPSEC Proposal Continued... Enter in a life time value. Life Time Life Time Unit There are two units that can be selected: second and KB. The identifier of IPSec proposal can be chosen for adding the Proposal ID corresponding proposal to the dedicated tunnel.
Page 29 Using the Configuration Menu Home > VPN Settings > Tunnel > Manual Tunnel Name Current tunnel name. Enabling this mode will accelerate establishing tunnel, but Aggressive Mode the device will have less security. The subnet of the VPN gateway’s local network. It can be a Local Subnet host, a partial subnet, or a whole subnet.
Page 30 Using the Configuration Menu Home > VPN Settings > Tunnel > Manual Continued... Encapsulation There are two protocols that can be selected: ESP and AH. Protocol There are two algorithms that can be selected: 3DES and DES. Encryption Algorithm Encryption Key For DES, the encryption key is 8 bytes (16 Char.).
Page 31 Using the Configuration Menu Home > VPN Settings > Dynamic VPN Tunnel VPN Settings - IKE There are three parts that are necessary to setup the configuration of IKE for the dedicated tunnel: basic setup, IKE proposal setup, and IPSec proposal setup. Basic setup includes the setting of following items: local subnet, local netmask, remote subnet, remote netmask, remote gateway, and pre-shared key.
Page 32 Using the Configuration Menu Home > VPN Settings > Dynamic VPN Tunnel Continued... Preshared Key The first key that supports IKE mechanism of both VPN gateways for negotiating further security keys. The pre- shared key must be the same for both endpoint gateways. IKE Proposal index Click the button to setup a set of frequent-used IKE proposals and select from the set of IKE proposals for the...
Page 33 Using the Configuration Menu Home > VPN Settings > Dynamic VPN Tunnel > Set IKE Proposal IKE Proposal index A list of selected proposal indexes from the IKE proposal pool listed below. Proposal Name It indicates which IKE proposal to be focused. DH Group There are three groups that can be selected: group 1 (MODP768), group 2 (MODP1024), and group 5...
Page 34 Using the Configuration Menu Home > VPN Settings > Dynamic VPN Tunnel > Set IKE Proposal Continued... Life Time Enter in the life time value. Life Time Unit There are two units that can be selected: second and KB. Proposal ID The identifier of IKE proposal can be chosen for adding the corresponding proposal to the dedicated tunnel.
Page 35 Using the Configuration Menu Home > VPN Settings > Dynamic VPN Tunnel > Set IPSEC Proposal A list of selected proposal indexes from the IPSec proposal IPSec Proposal pool listed below. index This is the name used to classify the IPSec proposal. Proposal Name There are three groups that can be selected: group 1 DH Group...
Page 36 Using the Configuration Menu Home > VPN Settings > Dynamic VPN Tunnel > Set IPSEC Proposal Continued... Enter in a life time value. Life Time Life Time Unit There are two units that can be selected: second and KB. Proposal ID The identifier of IPSec proposal can be chosen for adding the corresponding proposal to the dedicated tunnel.
Page 37 Using the Configuration Menu Home > VPN Settings > L2TP Server Setting Enable L2TP Click to enable the L2TP Server function. Server Virtual IP of Enter your Virtual IP address to access the L2TP server. L2TP Server Select one of the following authentication protocols: PAP, Authentication CHAP, or MSCHAP.
Page 38 Using the Configuration Menu Home > VPN Settings > PPTP Server Setting Click to enable the PPTP Server function. Enable PPTP Server Enter your Virtual IP address to access the PPTP server. Virtual IP of PPTP Server Authentication Select one of the following authentication protocols: PAP, CHAP, or MSCHAP.
Page 39 Using the Configuration Menu Advanced > Virtual Server The DI-824VUP can be configured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN (Local Area Network).
Page 40 Internet telephony, and others. These applications have difficulties working through NAT (Network Address Translation). Special Applications makes some of these applications work with the DI-824VUP. If you need to run applications that require multiple connections, specify the port normally associated with an application in the Trigger field, then enter the public ports associated with the trigger port into the Incoming Ports field.
Page 41 Using the Configuration Menu Advanced > Filter > IP Filter Use IP (Internet Protocol) filters to allow or deny computers access to the Internet based on their IP address. IP Filter Use IP Filters to deny LAN IP addresses access to the internet. Enabled or Disabled Click Enabled to apply the filter policy or click Disabled to enter an inactive filter policy.
Page 42 At the bottom of the screen, there is a list of MAC addresses from the DHCP client computers connected to the DI-824VUP. To use them, select one from the drop down list. Next click the “Clone” button. Then click the “Apply” button and the DI-824VUP will fill in the appropriate information to the list.
Page 43 Using the Configuration Menu Advanced > Filter > URL Blocking Use URL Blocking to deny LAN computers from accessing specific web sites by its URL. A URL is a specially formatted text string that defines a location on the Internet. If any part of the URL contains the blocked word, the site will not be accessible and the web page will not display.
Page 44 Using the Configuration Menu Advanced > Filter > Domain Blocking Use Domain Blocking to allow or deny computers access to specific Internet domains whether it is through www, ftp, snmp, etc. Disabled Domain Blocking Select this option if you do not want to use Domain Blocking. Allow users to access all domains except “Blocked Domains”...
Page 45 (You can reactivate the policy later). Name Enter the name of the Firewall Rule. Action Select Allow or Deny to allow or deny traffic to pass through the DI-824VUP. Source Choose between a LAN or WAN source. An asterisk signifies the selection of both sources.
Page 46 Using the Configuration Menu Advanced > Firewall Continued IP Address Enter in the IP address range of the computers that you want the policy to apply to. If it is only a single computer that you want the policy applied to, then enter the IP address of that computer in the Start Source IP and leave the End Source IP blank.
Page 47 SNMP (Simple Network Management Protocol) is a widely used network monitoring and control protocol that reports activity on each network device to the administrator of the network. SNMP can be used to monitor traffic and statistics of the DI-824VUP. The DI- 824VUP supports SNMP v1 or v2c.
Page 48 DDNS (Dynamic Domain Name System) keeps dynamic IP addresses (e.g., IP addresses assigned by a DHCP capable router or server) linked to a domain name. Users who have a Dynamic DNS account may use this feature on the DI-824VUP. DDNS When an IP address is automatically assigned by a DHCP server, DDNS automatically updates the DNS server.
Page 49 Using the Configuration Menu Advanced > Routing Static routes can be added if you require specific routes within your internal network. These routes will not apply to the WAN (Internet) network. Dynamic Routing Dynamic Routing Settings allow the VPN Router to route IP packets to another network automatically.
Page 50 Using the Configuration Menu Advanced > DMZ If you have a computer that cannot run Internet applications properly from behind the DI- 824VUP, then you can allow that computer to have unrestricted Internet access. Enter the IP address of that computer as a DMZ (Demilitarized Zone) host with unrestricted Internet access.
Page 51 TX Rates Select the data rate. Default is Auto. Select either mix mode or G mode. Wireless Mode The DI-824VUP will use either B or G mode depending on which Mixed Mode mode has a stronger frequency. G Mode The DI-824VUP will only use G mode.
Page 52 Using the Configuration Menu Advanced > Performance (Continued) Select Open system, Shared Key or Both. Authentication The DI-824VUP will be visible to all devices on the network. This is Open System the default setting. Shared Key In this mode, in order to access the DI-824VUP on the network, the device must have the same encryption as the router in order to communicate.
Page 53 If the IP Address is set to 0.0.0.0, this allows all Internet IP ad- dresses to access the DI-824VUP. The port number used to access the DI-824VUP. Port Example:http://x.x.x.x:8080, where x.x.x.x. is the WAN IP address of the DI-824VUP+ and 8080 is the port used for the Web Manage- ment interface.
Page 54 NTP (Network Time Protocol) server to retrieve the time. Enable NTP (Network Time Protocol). Select to synchronize the time on the DI-824VUP to an NTP server. Set Device Date You can manually set the time on your network here. and Time...
Page 55 The current system settings can be saved as a file onto the local hard drive. The saved file or any other saved setting file created by the DI-824VUP can be uploaded into the unit. To reload a system settings file, click on “Browse” to search the local hard drive for the file to be used.
Page 56 It is recommended that you save your system settings before doing a firmware upgrade. Please check the D-Link support site for firmware updates at http://support.dlink.com. Browse After you have downloaded the new firmware, click Browse in this window to locate the firmware update on your hard drive.
Page 57 Click Enable to block the WAN ping. Computers on the Internet Block WAN Ping will not get a reply back from the DI-824VUP when it is being “ping”ed. This may help to increase security. When this feature is enabled, the router will record the packet...
Page 58 UPnP is short for Universal Plug and Play which is a networking architecture that provides compatibility among networking equip- ment, software, and peripherals. The DI-824VUP is a UPnP enabled router and will only work with other UPnP devices/softwares. If you do not want to use the UPnP Functionality, it can be disabled by selecting “Disabled”.
Page 59 Using the Configuration Menu Status > Device Info This screen displays information about the DI-824VUP such as WAN, LAN, and Wire- less status. DHCP Renew Use this button to reconnect to your ISP, if your WAN connection is set up for DHCP.
Page 60 Using the Configuration Menu Status > Log This screen displays activities occurring on the DI-824VUP. Click First Page to go to the first page of the log. First Page Last Page Click Last Page to go to the last page of the log.
Page 61 Using the Configuration Menu Status > Log > Log Settings The DI-824VUP can be set up to send the log files to a specific E-Mail Alert email address. SMTP Server IP Enter in the IP address of the mail server.
Page 62 Using the Configuration Menu Status > Stats In the Stats section, traffic statistics are displayed. This will update the page. Refresh This will reset the packet counter to zero. Reset Displays Received / Transmitted packets from the WAN port. Displays Received / Transmitted packets from the LAN port.
Page 63 Using the Configuration Menu Status > Wireless This screen displays the connection time and the MAC Address of the connected wireless clients. Click on Refresh for the most recent information.
Page 64 Using the Configuration Menu Help This screen displays the complete Help menu. For help at anytime, click the Help tab in the Configuration menu.
Page 65: Installing The Print Server Software
Installing the Print Server Software Insert the installation CD-ROM into the CD-ROM drive. The following window will be shown automatically. If it is not, please run “autorun.exe” on the CD-ROM. Click Install Print Server Software Select your Windows operating system...
Page 66 Installing the Print Server Software (continued) Wait until the following Welcome dialog appears. Click Next Select the destination folder. Click Next Then, the setup program will begin to install the programs into the destination folder. When the following window is displayed.
Page 67: Configuring On Windows 98Se/Me Platforms
Print To item. Be sure that the Printer Driver item is configured to the correct driver of your printer server. Click Port Settings Choose your printer interface. Type in the IP address of the DI-824VUP. Click...
Page 68 Windows 95/98 except the screen of printer Properties. Click Configure Port Choose your printer interface. Type in the IP address of the DI-824VUP. Click (Note: Screen shots are taken in Windows 2000, similar screens will appear in Windows XP.)
Page 69: Networking Basics
Networking Basics Using the Network Setup Wizard in Windows XP In this section you will learn how to establish a network at home or work, using Microsoft Windows XP. Note: Please refer to websites such as http://www.homenethelp.com http://www.microsoft.com/windows2000 for information about networking computers using Windows 2000, ME or 98.
Page 70 Networking Basics Please follow all the instructions in this window: Click Next. In the following window, select the best description of your computer. If your computer connects to the internet through a gateway/router, select the second option as shown. Click Next.
Page 71 Networking Basics Enter a Computer description and a Computer name (optional). Click Next. Enter a Workgroup name. All computers on your network should have the same Workgroup name. Click Next.
Page 72 Networking Basics Please wait while the Network Setup Wizard applies the changes. When the changes are complete, click Next. Please wait while the Network Setup Wizard configures the computer. This may take a few minutes.
Page 73 Networking Basics In the window below, select the option that fits your needs. In this example, Create a Network Setup Disk has been selected. You will run this disk on each of the computers on your network. Click Next. Insert a disk into the Floppy Disk Drive, in this case drive A.
Page 74 Networking Basics Please read the information under Here’s how in the screen below. After you complete the Network Setup Wizard you will use the Network Setup Disk to run the Network Setup Wizard once on each of the computers on your network. To continue click Next.
Page 75 Networking Basics Please read the information on this screen, then click Finish to complete the Network Setup Wizard. The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network.
Page 76 Networking Basics Naming your Computer To name your computer, please follow these directions: In Windows XP: Click Start (in the lower left corner of the screen). Right-click on My Computer. Select Properties and click. Select the Computer Name Tab in the System Properties window.
Page 77 Networking Basics Naming your Computer In this window, enter the Computer name. Select Workgroup and enter the name of the Workgroup. All computers on your network must have the same Workgroup name. Click OK. Checking the IP Address in Windows XP The wireless adapter-equipped computers in your network must be in the same IP Ad- dress range (see Getting Started in this manual for a definition of IP Address Range).
Page 78 Networking Basics Checking the IP Address in Windows XP This window will appear. Click the Support tab. Click Close. Assigning a Static IP Address in Windows XP/2000 Note: Residential Gateways/Broadband Routers will automatically assign IP Ad- dresses to the computers on the network, using DHCP (Dynamic Host Configura- tion Protocol) technology.
Page 79 Networking Basics Assigning a Static IP Address in Windows XP/2000 Double-click on Network Connections. Right-click on Local Area Connections. Single-click on Properties.
Page 80 Networking Basics Assigning a Static IP Address in Windows XP/2000 Click on Internet Protocol (TCP/IP). Click Properties. Input your IP address and subnet mask. (The IP Addresses on your network must be within the same range. For example, if one computer has an IP Address of 192.168.0.2, the other computers should have IP...
Page 81 Networking Basics Assigning a Static IP Address with Macintosh OSX Go to the Apple Menu and se- lect System Preferences. cClick on Network. Select Built-in Ethernet in the Show pull-down menu. Select Manually in the Con- figure pull-down menu. Input the Static IP Address, the Subnet Mask and the Router IP Address in the ap- propriate fields.
Page 82 Networking Basics Selecting a Dynamic IP Address with Macintosh OSX Go to the Apple Menu and select System Preferences. Click on Network. Select Built-in Ethernet in the Show pull-down menu. Select Using DHCP in the Configure pull-down menu. Click Apply Now. The IP Address, Subnet mask, and the Router’s IP Address will appear in a few...
Page 83 Networking Basics Checking the Wireless Connection by Pinging in Windows XP and 2000 Go to Start > Run > type cmd. A window similar to this one will appear. Type ping xxx.xxx.xxx.xxx, where xxx is the IP Address of the Wireless Router or Access Point.
Page 84: Sharing An Lpr Printer
Networking Basics Adding and Sharing Printers in Windows XP After you have run the Network Setup Wizard on all the computers in your network (please see the Network Setup Wizard section at the beginning of Networking Basics), you can use the Add Printer Wizard to add or share a printer on your network. Whether you want to add a local printer (a printer connected directly to one computer), share an LPR printer (a printer connected to a print server), or share a network printer (a printer connected to your network through a Gateway/Router), use the Add...
Page 85 Networking Basics Adding a local printer (a printer connected directly to a computer) A printer that is not shared on the network and is connected directly to one computer is called a local printer. If you do not need to share your printer on a network, follow these directions to add the printer to one computer.
Page 86 Networking Basics Adding a local printer Click Next. Select Local printer attached to this computer. (Deselect Automati- cally detect and install my Plug and Play printer if it has been selected.) Click Next. Select Use the follow- ing port: From the pull-down menu select the correct port for your printer.
Page 87 Networking Basics Adding a local printer Select and highlight the correct driver for your printer. Click Next. (If the correct driver is not displayed, insert the CD or floppy disk that came with your printer and click Have Disk.) At this screen, you can change the name of the printer (optional).
Page 88 Networking Basics Adding a local printer This screen gives you information about your printer. Click Finish. When the test page has printed, Click OK.
Page 89: Sharing A Network Printer
Networking Basics Adding a local printer Go to Start > Printers and Faxes. A successful installation will display the printer icon as shown at right. You have successfully added a local printer. Sharing a network printer After you have run the Network Setup Wizard on all the computers on your network, you can run the Add Printer Wizard on all the computers on your network.
Page 90 Networking Basics Sharing a network printer Click on Add a printer. Click Next. Select Network Printer. Click Next.
Page 91 Networking Basics Sharing a network printer Select Browse for a printer. Click Next. Select the printer you would like to share. Click Next. Click Finish.
Page 92 Networking Basics Sharing a network printer To check for proper installation: Go to Start > Printers and Faxes. The printer icon will appear at right, indicating proper installation. You have completed adding the printer. To share this printer on your network: Remember the printer name.
Page 93 Networking Basics Sharing an LPR printer To share an LPR printer (using a print server,) you will need a Print Server such as the DP-101P+. Please make sure that you have run the Network Setup Wizard on all the computers on your network. To share an LPR printer, please follow these directions: Go to Start >...
Page 94 Networking Basics Sharing an LPR printer Select Create a new port. From the pull-down menu, select Standard TCP/IP Port, as shown. Click Next. Please read the instructions on this screen. Click Next. Enter the Printer IP Address and the Port Name, as shown.
Page 95 Networking Basics Sharing an LPR printer In this screen, select Custom. Click Settings. Enter the Port Name and the Printer Name IP Address. Select LPR. Enter a Queue Name (if your Print-Server/ Gateway has more than one port, you will need a Queue name).
Page 96 Networking Basics Sharing an LPR printer This screen will show you information about your printer. Click Finish. Select the printer you are adding from the list of Printers. Insert the printer driver disk that came with your printer. Click Have Disk. If the printer driver is already installed, do the following: Select Keep existing...
Page 97 Networking Basics Sharing an LPR printer You can rename your printer if you choose. It is optional. Please remember the name of your printer. You will need this information when you use the Add Printer Wizard on the other computers on your network.
Page 98: Reset To Factory Default Settings
Resetting the DI-824VUP to the Factory Default Settings After you have tried other methods for troubleshooting your network, you may choose to Reset the DI-824VUP to the factory default settings. To hard-reset the D-Link DI-824VUP to the Factory Default Settings, please do the following: Locate the Reset button on the back of the DI-824VUP.
Page 99: Technical Specifications
Technical Specifications Standards IEEE 802.11b IEEE 802.3 IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.11g USB 1.1 VPN Pass Through Function PPTP L2TP IPSec LEDs Power WLAN Status Operating Temperature 32°F to 131°F ( 0°C to 55°C) Humidity 10-90% Power 5V DC / 2.5A Dimensions L = 9.25 inches (233mm) W = 6.5 inches (165mm)
Page 100: Frequently Asked Questions
Frequently Asked Questions Why can´t I access the Web-based configuration? When entering the IP Address of the DI-824VUP (192.168.0.1), you are not connecting to the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility.
Page 101 Frequently Asked Questions (continued) Why can´t I access the Web-based configuration? (continued) What type of cable should I be using? (continued) What´s the difference between a crossover cable and a straight-through cable? The wiring in crossover and straight-through cables are different. The two types of cable have different purposes for different LAN configurations.
Page 102 Frequently Asked Questions (continued) Why can´t I access the Web-based configuration? (continued) Step 2 Disable any Internet security software running on the computer. Software firewalls like Zone Alarm, Black Ice, Sygate, Norton Personal Firewall, etc. might block access to the configuration pages. Check the help files included with your firewall software for more information on disabling or configuring it.
Page 103 Step 4 Check your IP address. Your computer must have an IP address in the same range of the device you are attempting to configure. Most D-Link devices use the 192.168.0.X range. How can I find my IP Address in Windows 95, 98, or Step 1 Click on Start, then click on Run.
Page 104 Step 4 (continued) Check your IP address. Your computer must have an IP Address in the same range of the device you are attempting to configure. Most D-Link devices use the 192.168.0.X range. How can I find my IP Address in Windows 2000/XP? Step 1 Click on Start and select Run.
Page 105 Step 4 (continued) Check your IP address. Your computer must have an IP address in the same range of the device you are attempting to configure. Most D-Link devices use the 192.168.0.X range. Make sure you take note of your computer´s Default Gateway IP Address. The Default Gateway is the IP Address of the D-Link Router.
Page 106 Frequently Asked Questions (continued) Why can´t I access the Web-based configuration? (continued) How can I assign a Static IP Address in Windows 2000? (continued) Click Use the following IP Address and enter an IP Address that is on the same subnet as the LAN IP address on your router.
Page 107 Step 5 Access the Web management. Open your Web browser and enter the IP Address of your D-Link device in the address bar. This should open the log-in page for the web management. Follow instructions to log in and complete the configuration.
Page 108 Frequently Asked Questions (continued) How can I setup my DI-824VUP to work with a cable modem connection? Dynamic Cable connection (i.e. Cox, Adelphia, Rogers, Roadrunner, Charter, and Comcast). Note: Please configure the router with the computer that was last connected directly to the cable modem.
Page 109 Frequently Asked Questions (continued) How can I setup my DI-824VUP to work with a cable modem connection? (continued) Step 3 Power cycle the cable modem and router: First turn the cable modem off. Then turn the router off Leave them off for 2 minutes.** Next turn the cable modem on.
Page 110 Frequently Asked Questions (continued) How can I setup my DI-824VUP to work with Earthlink DSL or any PPPoE connection? Make sure you disable or uninstall any PPPoE software such as WinPoet or Enternet 300 from your computer or you will not be able to connect to the Internet.
Page 111 Step 9 Turn off your DSL modem for 2-3 minutes. Turn back on. Once the modem has established a link to your ISP, plug the power back into the D-Link Router. Wait about 30 seconds and log back into the router.
Page 112 Frequently Asked Questions (continued) How do I establish a VPN connection between two DI-824VUP Routers? Step 1 Log into the web based configuration of the router by typing in the IP address of the router (default: 192.168.0.1) in your web browser. By default the username is admin and there is no password.
Page 113 Frequently Asked Questions (continued) How do I establish a VPN connection between two DI-824VUP Routers? (continued) Step 4 In the Local Subnet and Local Netmask fields enter the network identifier for the local DI-824VUP´s LAN and the corresponding subnet mask.
Page 114 Frequently Asked Questions (continued) How do I establish a VPN connection between two DI-824VUP Routers? (continued) Step 8 The device will restart. Click on the Continue button. Step 9 Click on Select IKE Proposal. Step 10 Enter a name for proposal ID number 1 and select Group 1, 2, or 5 from the DH Group dropdown menu.
Page 115 Frequently Asked Questions (continued) How do I establish a VPN connection between two DI-824VUP Routers? (continued) Step 11 Select DES or 3DES as the Encryption Algorithm. Step 12 Select SHA-1 or MD5 as the Authentication Algorithm. Step 13 Enter a Lifetime value of 2800 and then either select Sec.
Page 116 Frequently Asked Questions (continued) How do I establish a VPN connection between two DI-824VUP Routers? (continued) Step 14 Select 1 out of the Proposal ID dropdown menu and click Add To, which will add the proposal that was just configured to the IKE Proposal Index.
Page 117 Frequently Asked Questions (continued) How do I establish a VPN connection between two DI-824VUP Routers? (continued) Step 17 Enter a name for proposal ID number 1 and select Group 1, 2, 5, or None from the DH Group dropdown menu.
Page 118 Frequently Asked Questions (continued) How do I establish a VPN connection between two DI-824VUP Routers? (continued) Step 20 Select SHA-1, MD5, or None as the Authentication Algorithm. Step 21 Enter a Lifetime value and then either select Sec. or KB as the unit for the lifetime value.
Page 119 LAN. Once you receive replies the tunnel has been established. How can establish a VPN connection between my DI-824VUP and a DI- 804V or DI-804HV Router? You need to first configure your DI-824VUP router.
Page 120 Frequently Asked Questions (continued) How can establish a VPN connection between my DI-824VUP and a DI- 804V or DI-804HV Router? (continued) Step 3 In the space provided, enter the Tunnel Name for ID number 1, select IKE, and then click More.
Page 121 Frequently Asked Questions (continued) How can establish a VPN connection between my DI-824VUP and a DI- 804V or DI-804HV Router? (continued) Step 6 The device will restart. Click on the Continue button. Step 7 In the Remote Gateway field enter the WAN IP address of the remote...
Page 122 Frequently Asked Questions (continued) How can establish a VPN connection between my DI-824VUP and a DI- 804V or DI-804HV Router? (continued) Step 12 Select 1 out of the Proposal ID dropdown menu and click Add To, which will add the proposal that was just configured to the IKE Proposal Index.
Page 123 Frequently Asked Questions (continued) How can establish a VPN connection between my DI-824VUP and a DI- 804V or DI-804HV Router? (continued) Step 17 Select 3DES as the Encryption Algorithm and MD5 as the Authentication Algorithm. Click Apply. Step 18 Enter a Lifetime value of 3600 and then select Sec.
Page 124 Frequently Asked Questions (continued) How can establish a VPN connection between my DI-824VUP and a DI- 804V or DI-804HV Router? (continued) Next you need to configure the DI-804V or DI-804HV Router. To configure the DI-804V router: Step 1 Access the router’s web configuration by entering the router’s IP address in your web browser.
Page 125 Frequently Asked Questions (continued) How can establish a VPN connection between my DI-824VUP and a DI- 804V or DI-804HV Router? (continued) Step 10 Verify the Encryption Protocol is set to 3DES and enter in your Preshared Key. Note: The Preshared Key needs to be identical to the one configured on the DI-824VUP.
Page 126 Frequently Asked Questions (continued) How can establish a VPN connection between my DI-824VUP and a DI- 804V or DI-804HV Router? (continued) Step 3 In the space provided, enter the Tunnel Name for ID number 1, select IKE, and then click More.
Page 127 Frequently Asked Questions (continued) How can establish a VPN connection between my DI-824VUP and a DI- 804V or DI-804HV Router? (continued) Step 6 In the Remote Gateway field enter the WAN IP address of the remote DI-804V and in the Preshared Key field,...
Page 128 Frequently Asked Questions (continued) How can establish a VPN connection between my DI-824VUP and a DI- 804V or DI-804HV Router? (continued) Step 11 Select 1 out of the Proposal ID dropdown menu and click Add To, which will add the proposal that was just configured to the IKE Proposal Index.
Page 129 Frequently Asked Questions (continued) How can establish a VPN connection between my DI-824VUP and a DI- 804V or DI-804HV Router? (continued) Step 17 Select 1 out of the Proposal ID dropdown menu and click Add To, which will add the proposal that was just configured to the IPSec Proposal Index.
Page 130 Frequently Asked Questions (continued) How can I set up my DI-824VUP to work with a DI-804V or DI-804HV router? (continued) Step 3 To view the Status of the VPN on the DI-804V or DI-804HV, click on Device Status. Step 4 From the Device Status screen click on VPN Status.
Page 131 Frequently Asked Questions (continued) How can I establish a VPN connection between my DI-824VUP and a DFL-300 Firewall? (continued) Step 3 In the space provided, enter the Tunnel Name for ID number 1, select IKE, and then click More. Step 4...
Page 132 Frequently Asked Questions (continued) How can I establish a VPN connection between my DI-824VUP and a DFL-300 Firewall? (continued) Step 6 In the Remote Gateway field enter the WAN IP address of the remote DFL-300 and in the Preshared Key field,...
Page 133 Frequently Asked Questions (continued) How can I establish a VPN connection between my DI-824VUP and a DFL-300 Firewall? (continued) Step 11 Select 1 out of the Proposal ID dropdown menu and click Add To, which will add the proposal that was just configured to the IKE Proposal Index.
Page 134 Frequently Asked Questions (continued) How can I establish a VPN connection between my DI-824VUP and a DFL-300 Firewall? (continued) Step 17 Select 1 out of the Proposal ID dropdown menu and click Add To, which will add the proposal that was just configured to the IPSec Proposal Index.
Page 135 Enter the network identifier and subnet mask of the Internal interface. Step 8 In the To Destination section, select either Remote Gateway—Fixed IP or Remote Gateway—Dynamic IP. Enter the WAN IP address of the DI-824VUP if Remote Gateway—Fixed IP is selected. Step 9 Enter the network identifier corresponding subnet mask of the DI-824VUP´s...
Page 136 Frequently Asked Questions (continued) How can I establish a VPN connection between my DI-824VUP and a DFL-300 Firewall? (continued) After you have configured both the router and firewall, you need to establish a connection. Step 1 Open a command prompt and...
Page 137 Frequently Asked Questions (continued) How do I open ports on my DI-824VUP? To allow traffic from the internet to enter your local network, you will need to open up ports or the router will block the request. Step 1 Open your Web browser and enter the IP Address of your D- Link router (192.168.0.1).
Page 138 DMZ hosts security, the Web pages might be corrupted but no other company information would be exposed. D-Link, a leading maker of routers, is one company that sells products designed for setting up...
Page 139 Frequently Asked Questions (continued) How do I configure the DMZ Host? (continued) Step 2 Log into the web based configuration DI-624 DI-624 DI-624 DI-624 DI-624 of the router by typing in the IP Address of the router (default:192.168.0.1) in your web browser.
Page 140 Frequently Asked Questions (continued) How do I open a range of ports on my DI-824VUP using Firewall rules? Step 1 Access the router’s web configuration by entering the router’s IP Address in your web browser. The default IP Address is 192.168.0.1. Login using your password.
Page 141 192.168.0.7 How do I use PC Anywhere with my DI-824VUP? You will need to open 3 ports in the Virtual Server section of your D-Link router. Step 1 Open your web browser and enter the IP Address of the router (192.168.0.1).
Page 142 Frequently Asked Questions (continued) How do I use PC Anywhere with my DI-824VUP? (continued) Step 6 Create a second entry as shown here: pcanywhere2 Step 7 Click Apply and then click Continue. Step 8 Create a third and final entry as shown here:...
Page 143 Frequently Asked Questions (continued) How can I use eDonkey behind my DI-824VUP? You must open ports on your router to allow incoming traffic while using eDonkey. eDonkey uses three ports (4 if using CLI): 4661 (TCP) To connect with a server 4662 (TCP) To connect with other clients 4665 (UDP) To communicate with servers other than the one you are connected to.
Page 144 Frequently Asked Questions (continued) How do I set up my DI-824VUP for SOCOM on my Playstation 2? To allow you to play SOCOM and hear audio, you must download the latest firmware for the router (if needed), enable Game Mode, and open port 6869 to the IP Address of your Playstation.
Page 145 Frequently Asked Questions (continued) How can I use Gamespy behind my DI-824VUP? Step 1 Open your web browser and enter the IP Address of the router (192.168.0.1). Enter admin for the username and your password (blank by default). Step 2 Click on the Advanced tab and then click Virtual Server on the left side.
Page 146 Frequently Asked Questions (continued) How do I configure my DI-824VUP for KaZaA and Grokster? The following is for KaZaA, Grokster, and others using the FastTrack P2P file sharing system. In most cases, you do not have to configure anything on the router or on the Kazaa software.
Page 147 Frequently Asked Questions (continued) How do I configure my DI-824VUP to play Warcraft 3? To hose a Warcraft 3 game, you must open ports on your router to allow incoming traffic. To play a game, you do not have to configure your router.
Page 148 To read more on this visit http://www.HomenetHelp.com How do I set up my DI-824VUP to use iChat? -for Macintosh users- You must open ports on your router to allow incoming traffic while using iChat. iChat uses the following ports: 5060 (UDP), 5190 (TCP), and File Sharing 16384- 16403 (UDP) to video conference with other clients.
Page 149 Frequently Asked Questions (continued) How do I set up my DI-824VUP to use iChat? -for Macintosh users- (continued) Step 3 Create a new firewall rule: Click Enabled. Enter a name (ichat1). Click Allow. Next to Source, select ichat1 WAN under interface.
Page 150 Frequently Asked Questions (continued) How do I set up my DI-824VUP to use iChat? -for Macintosh users- (continued) For File Sharing: Step 1 Click on Advanced and then Virtual Server. Step 2 Check Enabled to activate entry. ichat3 Step 3 Enter a name for your virtual server entry (ichat3).
Page 151 Frequently Asked Questions (continued) How do I send or receive a file via iChat when the Mac OSX firewall is active? - for Macintosh users - Mac OS X 10.2 and later The following information is from the online Macintosh AppleCare knowledge base: “iChat cannot send or receive a file when the Mac OS X firewall is active in its default state.
Page 152 Simply put, it is a method of connecting multiple computers to the Internet (or any other IP network) using one IP Address. D-Link´s broadband routers (ie: DI-824VUP) support NAT. With proper configuration, multiple users can access the Internet using a single account via the NAT device.
Page 153: Contacting Technical Support
Contacting Technical Support You can find the most recent software and user documentation on the D-Link website. D-Link provides free technical support for customers within the United States for the duration of the warranty period on this product. U.S. customers can contact D-Link technical support through our web site, or by phone.
Page 154: Warranty
D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be new or have an identical make, model or part.
Page 155 D-Link may reject or return any product that is not packaged and shipped in strict compliance with the foregoing requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product...
Page 156 D-Link Corporation/D-Link Systems, Inc., as stipulated by the United States Copyright Act of 1976. Contents are subject to change without prior ©...
Page 157: Registration
Registration Register online your D-Link product at http://support.dlink.com/register/ 10/11/04...
