HighPoint Rocket 7528D Quick Installation Manual

8x nvme port to pcie 4.0 x16 nvme raid adapter
Hide thumbs Also See for Rocket 7528D:

Advertisement

Quick Links

Download this manual

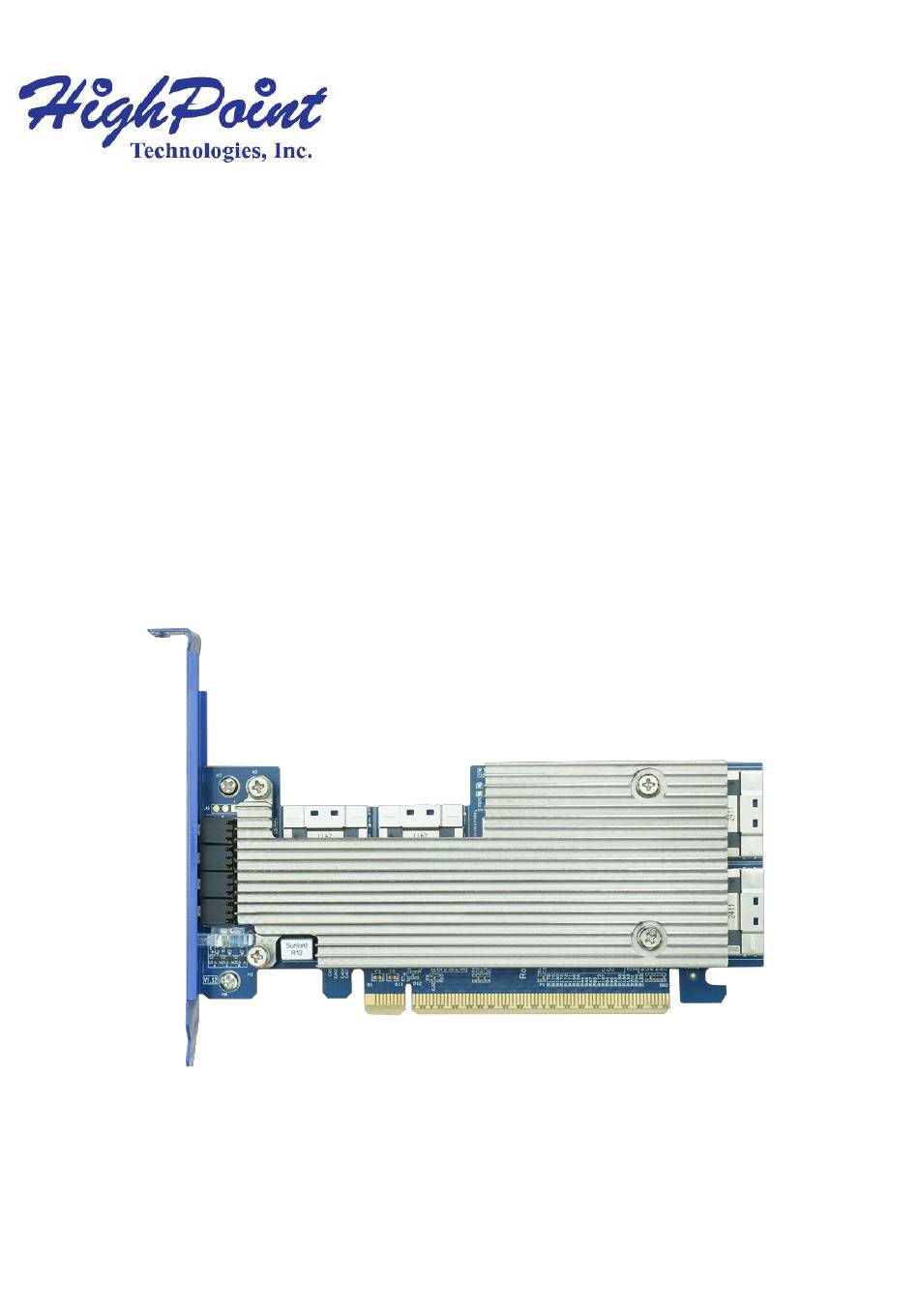

Rocket 7528D (R7528D)
8x NVMe Port to PCIe 4.0 x16 NVMe RAID Adapter
Quick Installation Guide
V1.00

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rocket 7528D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HighPoint Rocket 7528D

Summary of Contents for HighPoint Rocket 7528D

  • Page 1 Rocket 7528D (R7528D) 8x NVMe Port to PCIe 4.0 x16 NVMe RAID Adapter Quick Installation Guide V1.00...
  • Page 2 System Requirements PC Requirements System with a free PCIe 4.0 (or 3.0 or 5.0) x16 slot  Operating System Windows 11,10/Server 2022,2019,2016/ Microsoft  Hyper-V RHEL/Debian/Ubuntu/Fedora/Proxmox/Rocky Linux  (Linux kernel 3.10 and later) R7528D Kit Content  1x R7528D NVMe RAID Adapter ...
  • Page 3 R7528D Hardware Front View Four SFF-8654 Connector PCIe 4.0 x16 Host Interface Full-height bracket (optional low-profile bracket included)
  • Page 4 LED View SSD1 LED SSD0 LED SSD3 LED SSD2 LED SSD5 LED SSD4 LED SSD7 LED SSD6 LED Status LED Fault LED Note: Please refer to the detailed description of LED colors and their status in the R7528D NVMe RAID Adapter User Guide on the official website.

  • Page 5: Hardware Installation

    Hardware Installation The R7528D provides four SFF-8654 connectors. These connectors accept a variety of HighPoint Certified Cable Accessories (see the Accessories section towards the end of this guide for more information). The following steps explain how to connect U.2/U.3 NVMe SSDs directly to the R7528D using the HighPoint TS8i-8639-060 cable.
  • Page 6 Align the R7528D to one of the motherboard’s available slots. Press down gently but firmly to seat the R7528D correctly in the slot. Connect the SFF-8639 connector of the TS8i-8639-060 cable to the NVMe SSD, and connect the 15-pin SATA power connector to the power supply...
  • Page 7 Connect the SFF-8654 connector of the TS8i-8639-060 cable to the R7528D. Connect the remaining NVMe SSDs to the R7528D as described above. Turn on the power to the system.
  • Page 8 Optional Certified Cable Accessories 8654-8643-210 SFF-8654 Host to SFF-8643 Device cable. Each cable can host up to 2x NVMe SSDs. Length: 1M (100cm)/39.37" 8654-8611-205 SFF-8654 (host) to SFF-8611 Oculink Device cable. Each cable can host up to 2x NVMe SSDs. Length: 0.5M (50cm) /19"...
  • Page 9 SFF-8654 Host TS8i-8639-060 SFF-8639 Device cable with 15-pin SATA power connector. Each cable supports two U.2 NVMe SSDs. Length: 0.6M (60cm)/23.62" 8654-8654-110 SFF-8654 to SFF-8654 cable. Each cable can host up to two NVMe SSDs. Length: 1M (100cm)/39.37"...
  • Page 10 Resources Various guides and FAQs are available for the R7528D NVMe RAID Adapter. For Documentation and more information about this product, please visit the following website: https://www.highpoint-tech.com/nvme-raid-adapter/gen4/roc ket-7528d Certified Accessories: https://www.highpoint-tech.com/nvme-accessories FAQ & Troubleshooting: FAQ - HighPoint Technologies, Inc. (helpjuice.com)

  • Page 11: Customer Support

    Customer Support If you encounter any problems while utilizing the R7528D or have questions about this or any other HighPoint Technologies, Inc. product, please contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com © Copyright 2024 HighPoint Technologies, Inc. All rights reserved.

This manual is also suitable for:

R7528d
