Martec Razor AC Series Installation Manual

R a z o r A C S e r i e s I n s t a l l a t i o n G u i d e
Thanks for choosing our Razor AC Series ceiling fan.
We strongly recommend that you read this manual carefully before installation.
Models Parameters (Fan Only):-

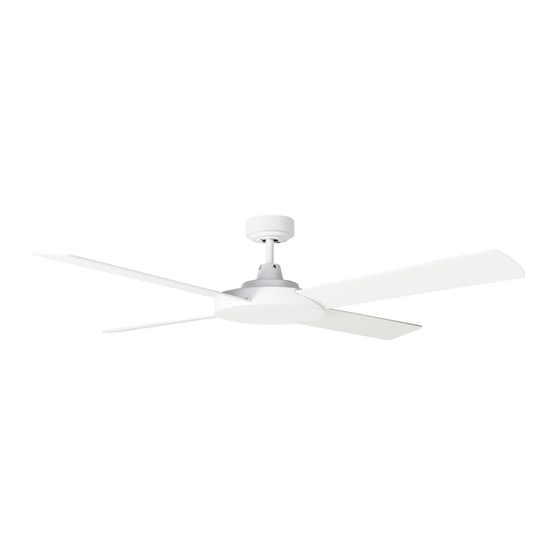

MRF134W 1320mm 4 Blade Ceiling Fan White
MRF134M 1320mm 4 Blade Ceiling Fan Matt Black
MRF134B 1320mm 4 Blade Ceiling Fan Brushed Nickel
Models Parameters (Fan and LED Light):-
MRF1343W 1320mm 4 Blade Ceiling Fan White with 28w LED Light
Part List:
Qty 1x motor assembly Qty 1x instruction manual
Qty 1x hanging bracket Qty 1x wall control kit
Application
Flat Surface / Ceiling

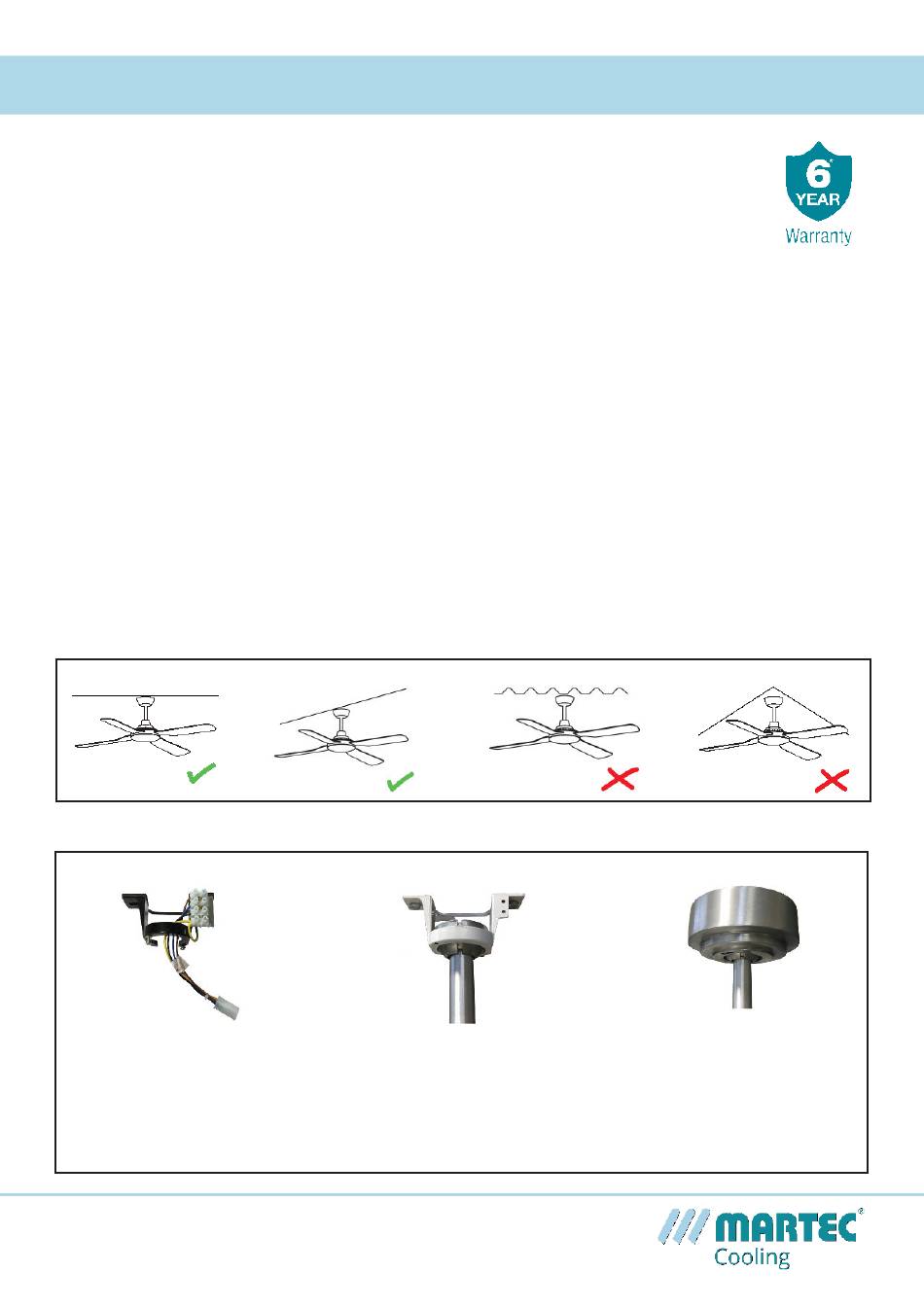

How to Assemble
Fg.1
Secure the hanger bracket
to ceiling beam or a suitable
piece of timber inserted
between the ceiling beams
using the two long screws
supplied with the package.
E: sales@martecltd.com.au | P: 02 8778 7500
www.martecaustralia.com.au
Slope Ceiling up to 15°
Fg.2
Place fan into hanger bracket
and align Ball Joint Slot with
hanger bracket as illustrated.
Qty 1x screw kit Qty 1x balancing kit
Qty 4x blades
Corrugated Ceiling
Apex Ceiling
Fg.3
After wiring is completed,
attach the canopy to the
hanger bracket by pushing
upwards and twisting
anti-clockwise. Tighten screws
and ensure canopy is not
touching the ball joint.
