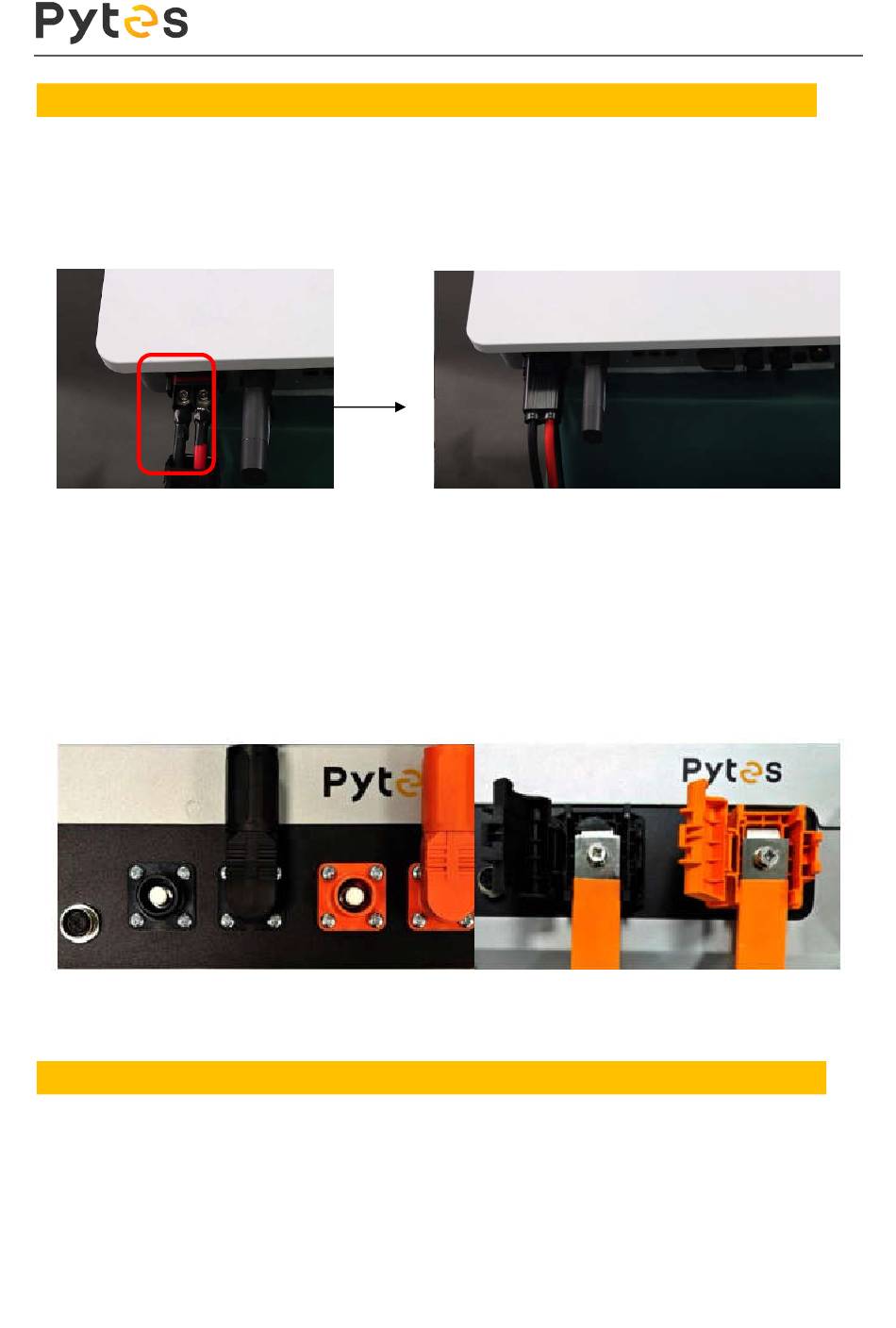

1. Power Cable Connection
Step.1
Connect the red and black power cables to the inverter DC
connector as shown in Pic 1.1.1.
Pic 1.1.1
Step.2
Parallel connect the other end of the power cables to battery power
terminals, positive to positive and negative to negative, as shown Pic
1.2.1. (Ensure the battery power switch is off)
Pic 1.2.1
2. Communication Cable Connection
Connect one end of the communication cable to the inverter
CAN/RS485-BMS port as shown in Pic 2.1.1.
6
