12 Placing the batteries

The batteries are placed on special intermediate shelves in each layer,
including the 1st level (bottom row). It must be ensured that the intermediate
shelves are installed in every horizontal plane between the batteries!

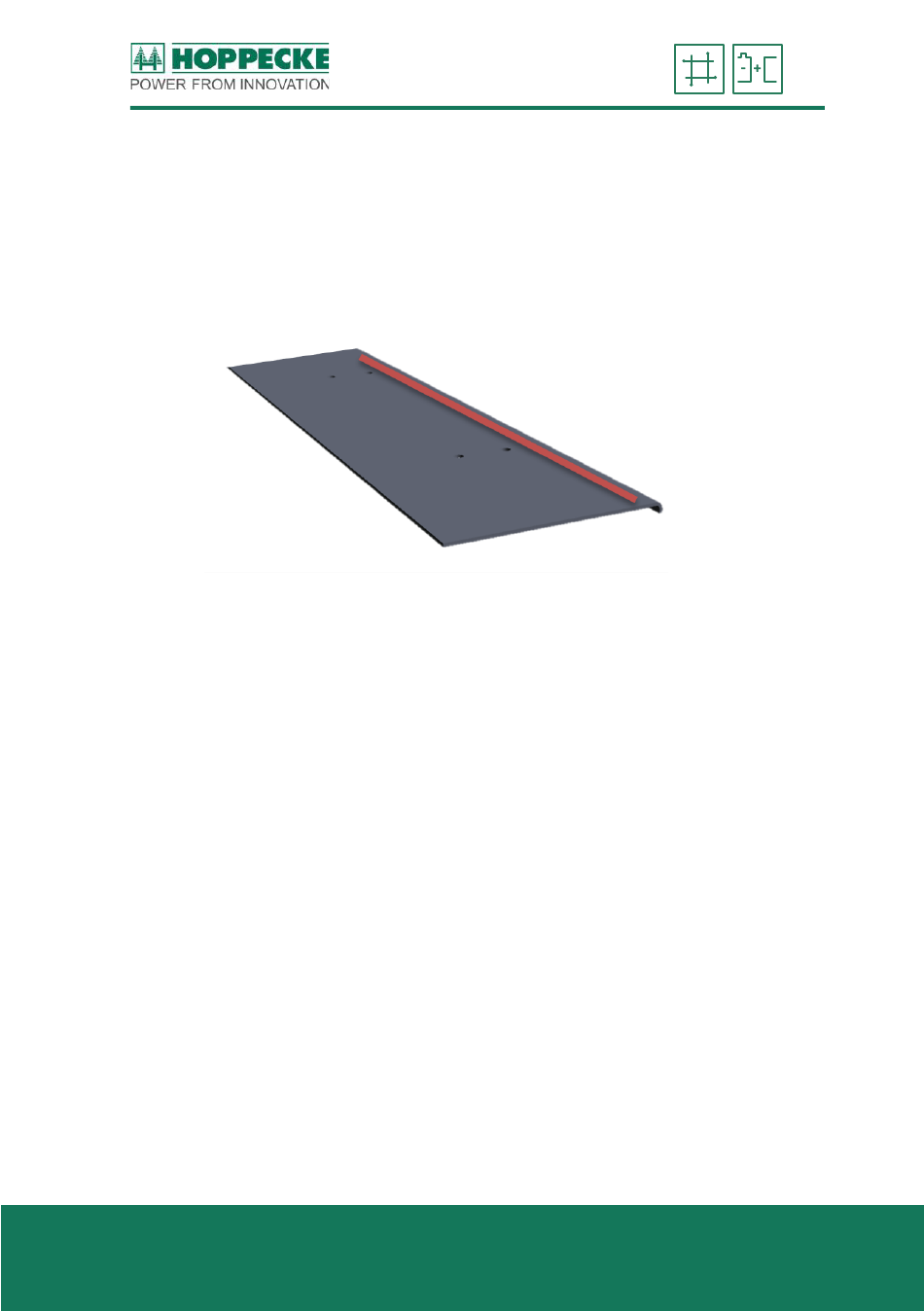

Before inserting the intermediate shelves, the anti-slip adhesive tape must be
applied to the intermediate shelves along the edge (orange line).
➢ A maximum of 4 batteries can be positioned on each intermediate
shelf.
➢ For the Base Section and Full Section, insert two intermediate
shelves for one level, for the Half Section only one intermediate layer
and position the first battery.
➢ A spacer strip must be placed between each battery to guarantee a
distance of 10 mm between each battery.
Place a battery on the intermediate layer and then attach a spacer
➢
next to the battery. Repeat the steps until the first layer is filled.
➢ Place two intermediate layers on the first row of batteries and repeat
the process.
