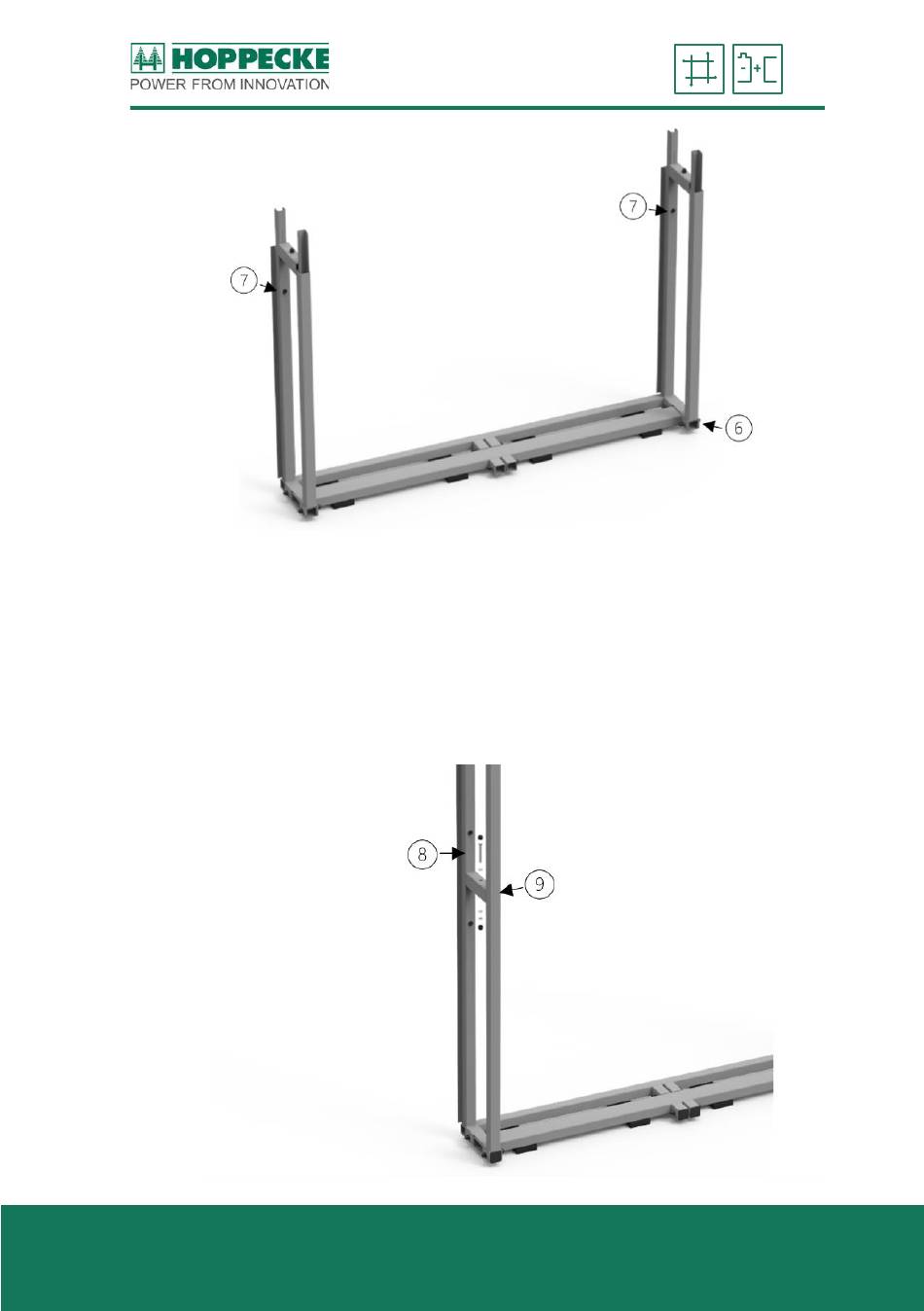

Screw the two side parts together hand-tight using the supplied M8
➢
x 65 (8) spanner bolts and the corresponding U washers and nuts.
For the last battery layer, it may be necessary to move the side parts
slightly apart so that the top layer of the battery can be inserted.
➢ A raising set is only required for the grid | XtremeStack VR12-
170 8x5 (8 batteries next to each other and 5 on top of each
other) 1-row and 2-row. The raising set is installed with the
connector and the screws between the bottom and top side sections
(9).
