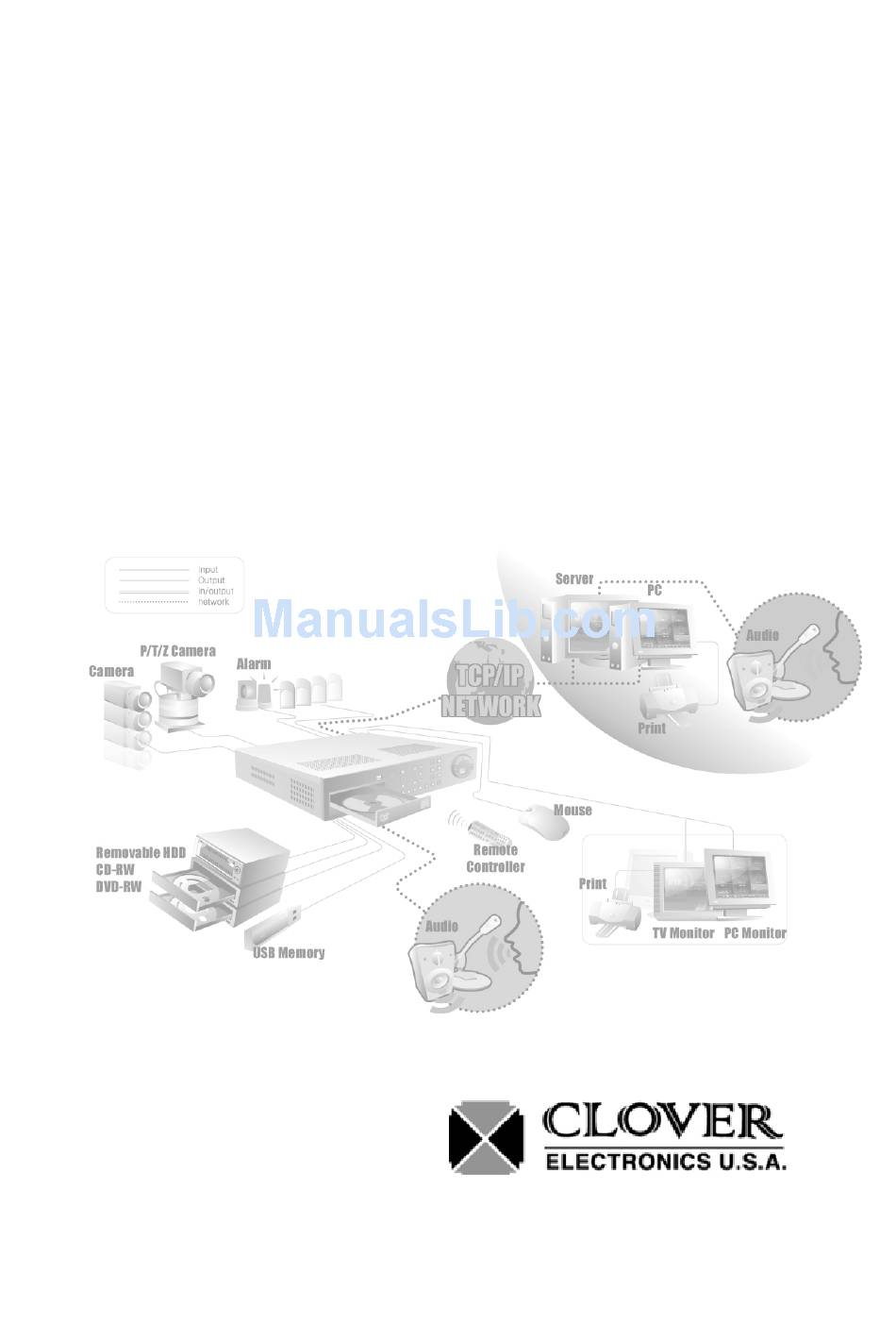

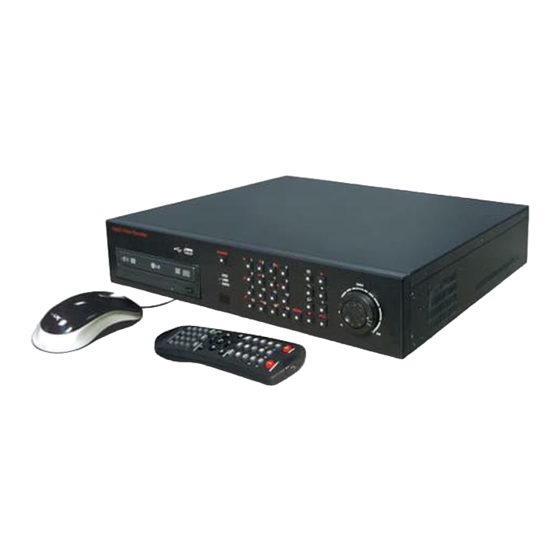

INSTRUCTION MANUAL
Stand-Alone 16 Channel

DIGITAL VIDEO RECORDER

MODEL CDR1650
Copyright © 2008 Clover Electronics U.S.A. All Rights Reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDR-1650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clover CDR-1650

Summary of Contents for Clover CDR-1650

  • Page 1: Digital Video Recorder

    Contents INSTRUCTION MANUAL Stand-Alone 16 Channel DIGITAL VIDEO RECORDER MODEL CDR1650 Copyright © 2008 Clover Electronics U.S.A. All Rights Reserved.

  • Page 3: Table Of Contents

    Contents CONTENTS ABOUT THIS MANUAL .......................... 9 1. UNPACKING ............................. 11 DVR (D ..............12 TAND ALONE IGITAL IDEO ECORDER 2.FEATURES ............................13 3.WHAT TO DO AT THE TIME OF INSTALLATION ................15 4.SPECIFICATIONS ..........................17 5. INSTALLATION ..........................19 5-1.
  • Page 4 Instruction Manual Stand-alone DVR 6-6.2. SPLIT SCREENS ........................40 6-7. LIVE ............................ 41 6-7.1. FULL SCREEN ........................... 41 6-7.2. SPLIT SCREEN .......................... 41 6-7.3. SEQUENCING SCREENS ......................42 6-7.4. LIVE AUDIO ..........................43 6-7.5. ZOOM ............................44 6-7.6. OSD ON / OFF ..........................45 6-7.7.
  • Page 5 Contents 7-2.1. TIME / DATE ..........................78 7-2.2. SYSTEM CONFIG ........................80 7-2.2.1. FACTORY DEFAULT ......................80 7-2.2.2. LOAD CONFIG / BACKUP CONFIG ..................81 7-2.3. PASSWORD ..........................83 7-2.4. IR REMOTE ID ........................... 84 7-2.5. FIRMWARE UPDATE ......................... 85 7-2.6.
  • Page 6 Instruction Manual Stand-alone DVR 7-6.8.3. Timer Recording (Schedule Recording) ................104 7-6.8.4. Timer Event Recording ....................... 104 7-6.9. Recording by Motion Detection ....................105 7-6.10. Recording by Sensor (PIR Sensor) ..................113 7-7. NETWORK ........................116 7-7.1. IP Mode ............................. 116 7-7.2.
  • Page 7 Contents 8-4.9.1. Terminal mode........................150 8-4.9.2. Multi mode ......................... 151 8-4.10. Copy in the Terminal mode ..................... 152 8-4.11 E-Map ............................154 8-4.10.1. Addition of map ........................ 154 8-4.10.2. Placement of cameras on the map .................. 155 8-4.10.3. Usage of camera position ....................156 8-4.10.4.
  • Page 8 Instruction Manual Stand-alone DVR...

  • Page 9: About This Manual

    About this manual This is the Instruction Manual for Stand-alone type DVR model CDR1650. This Manual describes how to install and operate the Stand-Alone DVR and provides specifications and features. Please read this manual thoroughly and follow the installation process before using Stand- alone DVR (Note: Be sure to correctly follow step 3.
  • Page 10 Instruction Manual Stand-alone DVR...

  • Page 11: Unpacking

    Unpacking Care should be taken when unpacking to avoid damaging the unit. Please check that the following items are included: ▶ Stand-alone DVR unit ▶ All Accessories : Bracket, Power Cable, Screws ▶ Remote Controller & Battery ▶ PS2 Mouse ▶...

  • Page 12: Stand-Alone Dvr (Digital Video Recorder) Unit

    Instruction Manual Stand-alone DVR Stand-alone DVR (Digital Video Recorder) Unit CDR1650 is the most reliable and functional embedded DVR system available today. The system displays 16 channels of live images in Real Time speed, compresses data digitally and records them to the Hard Disk Drive, which can be replayed and searched easily any time. The CDR1650 supports easy back up via USB port, DVD R/W, CD R/W and networking in both static &...

  • Page 13: Features

    2.Features ▶ Multi Functional Record - Powerful, multiple Record Modes available: Manual (Continuous), Timer, and Motion Detection Recording. ▶ User friendly GUI - A few simple buttons for Easy control. ▶ Automatic System Recovery - Automatic and Complete System recovery within 10 seconds. ▶...
  • Page 14 Instruction Manual Stand-alone DVR...

  • Page 15: What To Do At The Time Of Installation

    3.What to do at the time of Installation Stand-alone DVR should be installed in the following order; 1. Make sure all the required hardware is available. Stand-alone DVR unit (including HDD) Up to 16 cameras (including power source) CCTV or VGA monitor (or TV set) Network cable if connecting to a PC 2.
  • Page 16 Instruction Manual Stand-alone DVR...

  • Page 17: Specifications

    4.Specifications [Fig 4-1. Specifications] Design and the specifications are subject to change without notice.
  • Page 18 Instruction Manual Stand-alone DVR...

  • Page 19: Installation

    Installation CONTENTS 5-1. C & 16C DVR) ............20 ONTROLS AND ONNECTORS 5-2. N ......................22 OTE FOR NSTALLATION 5-3. S ......................23 YSTEM ONNECTION 5-4. I ........................24 NSTALLATION 5-4.1. Camera Connection ........................24 5-4.2. Monitor Connection ........................24 5-4.3.

  • Page 20: Controls And Connectors (For 8Ch & 16Ch Dvr)

    Instruction Manual Stand-alone DVR 5-1. Controls and Connectors (For 8Ch & 16Ch DVR) Front POWER SHUTTLE DVD R/W HDD LED LINK LED DATA LED [Fig 5-1. Front View] IR Reciver 1 Channel(FULL Screen) 2 Channel(FULL Screen), UP Key 3 Channel(FULL Screen) 4 Channel(FULL Screen) 5 Channel(FULL Screen), LEFT Key 6 Channel(FULL Screen), ENTER Key...
  • Page 21 5. Installation a. Display (Full / Split) b. Emergency Record c. Zoom d. Quick Replay e. OSD On/Off Audio g. Stop (ESC) h. PTZ Rear VOLTAGE SELECT LOOP OUT INPUT POWER INLET CAMERA INPUT AUX VIDEO INPUT MAIN VIDEO INPUT RS-422C PORT USB PORT ETHERNET PORT...

  • Page 22: Note For Installation

    Instruction Manual Stand-alone DVR 5-2. Note for Installation Install the system according to the instructions described in this manual. This product is designed for indoor use and should not be used outdoors. Avoid any area with high humidity or dust which can shorten lifetime of the unit. Choose a well ventilated area and keep minimum of 10”...

  • Page 23: System Connection

    5. Installation 5-3. System Connection [Fig 5-3. System Connection]...

  • Page 24: Installation

    Instruction Manual Stand-alone DVR 5-4. Installation 5-4.1. Camera Connection ▫ Connection of Normal Cameras Connect the cameras to the Video Input (BNC connector) on the back of the unit as shown above [Fig. 5-3 System Connection]. ▫ Connection of Loop Output The Camera or video output is available from the Video Output (Loop Output) on the back of the unit.
  • Page 25 5. Installation ▫ VGA Monitor Connection Connect the VGA Monitor’s connector to the “DSUB 15 Pin Connector” on the rear of the unit. Output for VGA Monitor is the same as that of the main monitor, however it outputs a better quality signal.

  • Page 26: 5-4.3. Sensor Connection And Relay In &Out

    Instruction Manual Stand-alone DVR 5-4.3. Sensor Connection and RELAY IN &OUT ▫ SENSOR Connection (SENSOR IN) Connect the sensor to ALM (SENSOR) IN. The Sensor should be a contactor type and support NO (Normal Open). ● Pin 1 Sensor 1 ●...
  • Page 27 5. Installation ▫ RELAY OUT Connection When necessary, use RELAY OUT. The Output of RELAY OUT is a relay contactor type and supports NO (Normal Open) & NC (Normal Close). The Output capacity is 220V 1A. A higher capacity can cause system failure. [Fig 5-6]...

  • Page 28: 5-4.4. Rs232C,Rs485, Rs422 Connection

    Instruction Manual Stand-alone DVR 5-4.4. RS232C,RS485, RS422 Connection ▫ Connect the cable to the “RS232C/RS485/RS422 PORT” on the rear of the unit. Specification of the RS232C/RS485/RS422 connector is standard for “DSUB9” The Maximum Length of cable is 45 ft with RS232C but RS485 or RS422 is about 300ft. [Fig 5-7] [Fig 5-8]...

  • Page 29: 5-4.5 Connection To An Ethernet (Optional) Network

    5. Installation 5-4.5 Connection to an Ethernet Network ▫ Connecting the cable to Ethernet. Our Ethernet connector is a RJ45 type. The maximum cable length is 300 ft. When you want to use a longer cable, we suggest using repeater. [Fig 5-9]...

  • Page 30: 5-4.6. Power Connection

    Instruction Manual Stand-alone DVR 5-4.6. POWER CONNECTION Select proper voltage (see fig 5-10) and connect to a reliable power source. It should not be shared with other electrical equipment on the same line. Poor performance can occur if the connected voltage is more than 10% plus or minus the required voltage.

  • Page 31: How To Operate

    6.How to operate CONTENTS 6-1. G ......................33 ENERAL NFORMATION 6-2. O ......................34 PERATING NTERFACE 6-3. IR R ...................... 35 EMOTE ONTROLLER 6-4. P ........................36 OWER 6-4.1. POWER ON ..........................36 6-4.2. POWER OFF ..........................36 6-4.3. APPEARANCE OR DISAPPEARANCE OF POWER BUTTON ..........37 6-5.
  • Page 32 Instruction Manual Stand-alone DVR CONTENTS 6-7. LIVE ............................. 41 6-7.1. FULL SCREEN ........................... 41 6-7.2. SPLIT SCREEN .......................... 41 6-7.3. SEQUENCING SCREENS ......................42 6-7.4. LIVE AUDIO ..........................43 6-7.5. ZOOM ............................44 6-7.6. OSD ON / OFF ........................... 45 6-7.7.

  • Page 33: General Information

    6. How to Operate 6-1. General Information ▫ You can operate all functions of the system by use of buttons located on the front panel, remote controller and a mouse. Additionally, you can remotely control this unit via RS422C or the Ethernet port located on the back of the unit. ▫...

  • Page 34: Operating Interface

    Instruction Manual Stand-alone DVR 6-2. Operating Interface There are 3 ways to operate the system by pressing the buttons on the front panel or buttons on the remote controller and clicking the mouse. A lot of users mostly prefer to use a mouse on these kinds of products such as DVRs, computers and computer-aided devices.

  • Page 35: Ir Remote Controller

    6. How to Operate 6-3. IR Remote Controller 1. Record 2. Power On/Off 3. Display format (Split) 4. System status 5. Pan / Tilt 6. Zoom / Focus 7. Search for replaying 8. Up 9. Quit 10. Left 11. Enter 12.

  • Page 36: Power On/Off

    Instruction Manual Stand-alone DVR 6-4. Power On/Off 6-4.1. POWER ON On the front panel or the remote controller: Press the POWER button on the front panel for approx. 3 seconds until the LED lights are turned on or just press the POWER button on the remote controller. 6-4.2.

  • Page 37: 6-4.3. Appearance Or Disappearance Of Power Button

    6. How to Operate 6-4.3. APPEARANCE OR DISAPPEARANCE OF POWER BUTTON The Power On/Off button and the Audio buttons (See section 6-7.4) as shown in Fig.6-3-1 will always stay on the MENU bar when the system is not connected through the DVR Master (Client Host Program or Internet Explorer).

  • Page 38: Menu Bar On/Off

    Instruction Manual Stand-alone DVR 6-5. Menu Bar On/Off Right-click on the screen in the LIVE or the RECORD mode and the MENU bar will be appeared. Right-click again and it will be disappeared. CLICK CLICK [Fig.6-4 LIVE Screen]...

  • Page 39: Display Screen

    6. How to Operate 6-6. Display Screen 6-6.1. FULL SCREEN SEQUENCE ICON RECORD ICON CAMERA TITLE COPY STATUS AUDIO [Fig.6-5 FULL screen] CURRENT TIME...

  • Page 40: 6-6.2. Split Screens

    Instruction Manual Stand-alone DVR 6-6.2. SPLIT SCREENS FULL SCREEN SEQUENCING SCREEN 4page SEQUENCING SCREEN QUAD SCREEN 9 SPLIT SCREEN 2page SEQUENCING SCREEN 16 SCREEN...

  • Page 41: Live

    6. How to Operate 6-7. LIVE 6-7.1. FULL SCREEN ▫ Full SCREEN is available in the LIVE mode or the RECORD mode. ▫ Click a certain camera’s screen in the LIVE mode or in the RECORD mode, and a FULL SCREEN will be displayed.

  • Page 42: 6-7.3. Sequencing Screens

    Instruction Manual Stand-alone DVR 6-7.3. SEQUENCING SCREENS ▫ Displaying the cameras in SEQUENCE is available in the LIVE mode or the RECORD mode. Each of the channels will be displayed in sequence and the dwell time can be adjusted in the camera set up menu (Refer to section 7-4.7).

  • Page 43: 6-7.4. Live Audio

    6. How to Operate 6-7.4. LIVE AUDIO ▫ If cameras (up to 16 cameras) have audio function, it will sound in the live mode. ▫ Click the CHANNEL button you wish to listen on the MENU bar as shown below (See Fig.6-9).

  • Page 44: 6-7.5. Zoom

    Instruction Manual Stand-alone DVR 6-7.5. ZOOM The image on the screen will be zoomed up to 2 times when the ZOOM button is clicked in the LIVE mode (This function is available on the full screen mode only). ▫ Click the ZOOM button on the MENU bar in the LIVE mode. ▫...

  • Page 45: 6-7.6. Osd On / Off

    6. How to Operate 6-7.6. OSD ON / OFF OSD ON /OFF is possible in the LIVE mode or RECORD mode. ▫ Click the OSD button on the MENU bar to turn the OSD (On Screen Display) ON or OFF. When the OSD is in OFF position, all the texts on the screen will be disappeared.

  • Page 46: 6-7.7. Pan / Tilt

    Instruction Manual Stand-alone DVR 6-7.7. PAN / TILT ▫ Click the PAN/TILT button on the MENU bar in the LIVE mode to access the PAN/TILT cameras. ▫ Click the (EXIT) button to return to the LIVE mode. [Fig.6-13 PAN/TILT button] [Fig.6-14 PAN/TILT window]...
  • Page 47 6. How to Operate PAN / TILT PRESET EXIT ZOOM / FOCUS CHANNEL LEFT RIGHT [Fig.6-15 PAN/TILT CONTROL ▫ Channel Selection and Screen Conversion To change a channel, press the CHANNEL button on the front panel or click the CHANNEL It will be converted a full screen.
  • Page 48 Instruction Manual Stand-alone DVR ▫ PRESET [Fig.6-15-1 Preset Menu] It is a function to preset the PTZ camera(s) which you wish to monitor frequently. Preset Setup - Select a position of camera you wish to preset and click the SET button in Fig.6-15-1. - Click the number(s) for the current position of camera.

  • Page 49: 6-7.8. System Status

    6. How to Operate 6-7.8. SYSTEM STATUS ▫ Click the SYSTEM STATUS button on the MENU bar to see the system status as shown below (Fig.6-16). ▫ Click the (EXIT) button to return to the LIVE mode or RECORD mode. [Fig.6-16 SYSTEM STATUS button] [Fig.6-17 SYSTEM STATUS window]...

  • Page 50: 6-7.9. Power Loss Lists

    Instruction Manual Stand-alone DVR 6-7.9. POWER LOSS LISTS The list indicates the time/date when the system power is turned OFF. ▫ Click the POWER LOSS LISTS button on the SYSTEM STATUS window to view the POWER LOSS LISTS. ▫ Each of the pages contains 10 lists. You can search the pages by clicking the UP/DOWN button.
  • Page 51 6. How to Operate ▫ CLEAR LISTS button Click the CLEAR LISTS button to clear the lists, you will be prompted to confirm changes. When you click the OK button, the POWER LOSS LISTS will be deleted. To cancel, click the CANCEL button Fig.6-19 POWER LOSS LISTS Message...

  • Page 52: 6-7.10. Video Loss List

    Instruction Manual Stand-alone DVR 6-7.10. VIDEO LOSS LIST The list indicates the video loss channel and the time/date when the video signal is disconnected. ▫ Click the VIDEO LOSS LISTS button on the SYSTEM STATUS window to view the VIDEO LOSS LISTS.
  • Page 53 6. How to Operate ▫ CLEAR LISTS button Click the CLEAR LISTS button to clear the lists, you will be prompted to confirm changes. When you click the OK button, the VIDEO LOSS LISTS will be deleted. To cancel, click the CANCEL button [Fig.6-22 VIDEO LOSS LISTS Message window]...

  • Page 54: Record

    Instruction Manual Stand-alone DVR 6-8. Record This system provides Watchdog function. When power goes off during recording and the power turns on, the system will automatically start recording. 6-8.1. Manual (Continuous) recording ▫ Click the SETUP icon on the MENU bar in the LIVE mode. ▫...

  • Page 55: 6-8.3. Timer Recording

    6. How to Operate [Fig.6-24 Manual Event Recording setup] 6-8.3. Timer Recording ▫ Click the SETUP icon on the MENU bar in the LIVE mode. ▫ Click the RECORD button in the SETUP menu and the RECORD window will be displayed. ▫...

  • Page 56: 6-8.4. Timer Event Recording

    Instruction Manual Stand-alone DVR 6-8.4. Timer Event Recording ▫ Click the SETUP icon on the MENU bar in the LIVE mode. ▫ Click the RECORD button in the SETUP menu and the RECORD window will be displayed. ▫ Select the TIMER RECORDING ( ) between the MANUAL RECORDING ( and the TIMER RECORDING ( ) as shown in Fig.6-26.

  • Page 57: 6-8.5. Recording Icons

    6. How to Operate 6-8.5. Recording Icons The Recording Icons depends on recording modes are displayed on the upper left hand corner of the screen. ▫ To turn the Recording Icon OFF, click the DISPLAY ON in the RECORD menu and then it will be turned OFF.

  • Page 58: Replay

    Instruction Manual Stand-alone DVR 6-9. REPLAY 6-9.1. QUICK REPLAY It is available only by pressing the PLAY button on the front panel or the QICK SEARCH button on the remote controller. ▫ Press the PLAY button, and the recent recorded list will be played. 6-9.2.

  • Page 59: 6-9.2.1. Playback Devices

    6. How to Operate 6-9.2.1. Playback Devices In order to payback, plug the USB devices such as external USB HDD, USB memory to the USB port or insert a recorded media (CD-R/W or DVD-R/W) into the DVD-R/W drive. When the devices are ready to playback, the Ready on the corresponding devices will be displayed as shown in Fig.6-30.
  • Page 60 Instruction Manual Stand-alone DVR ▫ Select the hour on the Start Time Select Window (See Fig.6-32) by clicking the mouse on the Hour (0 – 23 hour) you wish to start to play. The green active buttons indicate the HOUR that recorded data exists, and the red active buttons indicate the selected Start HOUR.

  • Page 61: 6-9.2.3. Replaying

    6. How to Operate 6-9.2.3. Replaying Replaying start time set-up can be possible within a recording time extent. ▫ Replay buttons (NORMAL / MOTION / SENSOR) NORMAL PLAY: Click the button to play all the recorded data. MOTION PLAY: Click the button to play the recorded data by MOTION only. SENSOR PLAY: Click the button to play the recorded data by SENSOR only.
  • Page 62 Instruction Manual Stand-alone DVR ▫ How to control while replaying ① ③ ④ ② ④ ③ ⑤ ⑥ [Fig.6-35 Replay screen] ① Search Slider It is possible to playback by clicking the slider on the bar and dragging it. ② PLAY / PAUSE Click the button to pause.

  • Page 63: 6-9.2.4. Disappearance Of Replay Control Buttons

    6. How to Operate ④ PREV / NEXT During replaying, press the button to view previous frame in still image and press button to view the next frame in still image. ⑤ Speaker ON / OFF Turn speaker ON or OFF. ⑥...
  • Page 64 Instruction Manual Stand-alone DVR - Click the mouse on one out of channels during replaying to view a full screen. Click the mouse on the full screen during replaying to return to the split screen. [Fig.6-36 SPLIT screen during replaying] [Fig.6-37 FULL screen during replaying]...

  • Page 65: Copy

    6. How to Operate 6-10. COPY ▫ Click the COPY icon on the MENU bar, and the COPY window as shown in Fig.6-38 will be displayed. ▫ Click the (EXIT) button to return to the previous mode. [Fig.6-38 COPY window] 6-10.1.

  • Page 66: 6-10.2. Set The Copy Start Time (Copying Extent)

    Instruction Manual Stand-alone DVR ▫ Connect the USB devices to the DVR ▫ Click the SETUP icon on the MENU bar, and the SETUP menu will be displayed. ▫ Click the DISK MANAGER in the SETUP menu, and the DISK MENAGER will be displayed. ▫...
  • Page 67 6. How to Operate ① All channels, HOUR selection button ② HOUR selection button ③ channel selection button [Fig.6-40 Copy Start time and Channel Selection window] ① All channels, HOUR selection button. Click the arrow button on the upper left corner as shown in Fig.6-40 to set the full extent of the recording and all the channels simultaneously.

  • Page 68: 6-10.3. Set The Copy End Time (Copying Extent)

    Instruction Manual Stand-alone DVR [Fig.6-41 Copy Start/End setup buttons] By using the Start/End set-up bar: The starting time to copy can also be set by clicking the slider on the bar and dragging it or just click the bar. [Fig.6-42 Copy Start/End setup bar] 6-10.3.

  • Page 69: 6-10.4. Copying The Recorded Data During Replaying

    6. How to Operate 6-10.4. Copying the recorded data during replaying The system, CDR1650 allows users to copy the recorded data during replaying. ▫ Start replaying (See section 6-9). ▫ Right-click on the replaying screen, and the COPY DATA screen will be displayed (See Fig.6-43).
  • Page 70 Instruction Manual Stand-alone DVR [Fig.6-44 End Copy Time Setup window] ▫ Choose one among NETWORK, USB, CD and DVD which are ready to copy (See section 6-10.1). Select COPY Mode Only when the devices and medias are ready to copy, the Ready on the corresponding devices and medias will be displayed.
  • Page 71 6. How to Operate DVD-RW COPY Save the recorded data on DVD-R/W Medias. Click the DVD-R/W button to start copy. ▫ As soon as one of the above button is clicked , copying will start along with displaying the icon shown in Fig.6-45. The following icon indicates that copying is in process.
  • Page 72 Instruction Manual Stand-alone DVR...

  • Page 73: Setup

    7.SETUP CONTENTS 7-1. SETUP ..........................76 7-2. SYSTEM ..........................77 7-2.1. TIME / DATE ..........................78 7-2.2. SYSTEM CONFIG ........................80 7-2.2.1. FACTORY DEFAULT ......................80 7-2.2.2. LOAD CONFIG / BACKUP CONFIG..................81 7-2.3. PASSWORD ..........................83 7-2.4. IR REMOTE ID ........................... 84 7-2.5.
  • Page 74 Instruction Manual Stand-alone DVR CONTENTS 7-4. CAMERA ..........................89 7-4.1. Camera ON/OFF ........................90 7-4.2. Camera Name (Camera Title) ..................... 90 7-4.3. Buzzer ............................91 7-4.4. Relay ............................91 7-4.5. Pan/Tilt Settings .......................... 92 7-4.6 Display ............................96 7-4.7 Sequencing dwell time ......................... 96 7-5.
  • Page 75 7. Setup CONTENTS 7-7. NETWORK ........................116 7-7.1. IP Mode ............................. 116 7-7.2. GATEWAY, SUBNET, IP ADDRESS ..................117 7-7.3. Port ............................118 7-7.3.1 Port Forwarding ........................118 7-7.4. MAC ID ............................119 7-7.5. MNS (MAC NAME SERVER) ....................119 7-7.6.

  • Page 76: Setup

    Instruction Manual Stand-alone DVR 7-1. SETUP [Fig.7-1 Setup Icon on MAIN MENU] It is possible to set up the menus in the LIVE mode and partly in the RECORD mode. ▫ Click the “SETUP” button on the MENU bar and the SETUP menu will be displayed. ▫...

  • Page 77: System

    7. Setup 7-2. SYSTEM ▫ Click the “SYSTEM” button in the SETUP menu, and the SYSTEM menu shown in Fig.7-3 will be displayed. ▫ Click the “EXIT” button to return to the SETUP menu. [Fig.7-3 SYSTEM menu]...

  • Page 78: 7-2.1. Time / Date

    Instruction Manual Stand-alone DVR 7-2.1. TIME / DATE ▫ Click the “TIME/DATE” button in the SYSTEM menu, and the TIME/DATE menu will be displayed (See Fig.7-4). ▫ Click the “EXIT” button to return to the SYSTEM menu. [Fig.7-4 TIME / DATE menu] ▫...
  • Page 79 7. Setup ▫ DATE FORMAT There are three formats to display the time and date as follow. • MM / DD / YYYY: For U.S.A. • YYYY / MM / DD: For Asian countries. • DD / MM / YYYY: For European countries. Click the mouse on the DATE FORMAT button to change, and then select a DATE FORMAT among YYYY/MM/DD, DD/MM/YYYY and MM/DD/YYYY.

  • Page 80: 7-2.2. System Config

    Instruction Manual Stand-alone DVR 7-2.2. SYSTEM CONFIG ▫ Click the “SYSTEM CONFIG” button in the SYSTEM menu, and the SYSTEM CONFIG menu will be displayed (See Fig.7-10). ▫ Click the “EXIT” button to return to the SYSTEM menu. [Fig.7-10 SYSTEM CONFIG] 7-2.2.1.

  • Page 81: 7-2.2.2. Load Config / Backup Config

    7. Setup [Fig.7-12 Confirmation window of Factory Default] 7-2.2.2. LOAD CONFIG / BACKUP CONFIG You can save up to four different settings in the BACKUP CONFIG and load the files in the LOAD CONFIG to change the settings to the system. ▫...
  • Page 82 Instruction Manual Stand-alone DVR [Fig.7-14 LOAD CONFIG window] ▫ BACKUP CONFIG This function is to save the current settings to load the settings to the system. Save the current settings in the BACKUP CONFIG in order to load it to the system in the near future whenever you need to change the settings.

  • Page 83: 7-2.3. Password

    7. Setup 7-2.3. PASSWORD ▫ ON/OFF Select ON or OFF by clicking the mouse. If the ON is selected, the password has to be entered to get into the SETUP mode, RECORD mode, COPY mode, REPLAY mode, and when trying to connect the network through the DVR Master.

  • Page 84: 7-2.4. Ir Remote Id

    Instruction Manual Stand-alone DVR 7-2.4. IR REMOTE ID Up to 16 DVR systems can be controlled by only one remote controller we provided, but IDs should be assigned on each of the systems. You don’t have to assign any ID on the single unit and you can control the system with the provided remote controller without IR REMOTE ID, which is in the OFF mode (Skip this section).

  • Page 85: 7-2.5. Firmware Update

    7. Setup 7-2.5. FIRMWARE UPDATE There are two ways to update the firmware through USB memory and the DVR Master (GUI). We recommend users to update the firmware only in the LIVE mode. ▫ By USB memory - Format the USB with your computer and save the firmware file on it (not including folder).

  • Page 86: Disk Manager

    Instruction Manual Stand-alone DVR 7-3. DISK MANAGER ▫ Click the “DISK MANAGER” button in the SETUP menu and the DISK MANAGER window will be displayed (See Fig.7-22). ▫ Click the (EXIT) button to return to the SETUP menu. ▫ A DVD R/W and 3 Hard Disk Drives can be installed, and all information in regards to the drives will automatically display on the DISK MANAGER window.

  • Page 87: 7-3.1. Hdd Write Fail

    7. Setup 7-3.1. HDD WRITE FAIL If HDD is in full and the OVERWRITE on the HDD is turned OFF in the recording mode, the system will activate the relay output (See section 5-4.3) for a siren or other device. Click the HDD WRITE FAIL button in the DISK MANAGER window and select one among ▫...
  • Page 88 Instruction Manual Stand-alone DVR [Fig.7-25 HDD FORMAT window]...

  • Page 89: Camera

    7. Setup 7-4. CAMERA ▫ Click the “CAMERA” button in the SETUP menu and the CAMERA menu will be displayed (See Fig.7-26). To change the settings in the CAMERA menu, stop recording by clicking the RECORD icon on the MENU BAR. It is possible only in the LIVE mode. ▫...

  • Page 90: 7-4.1. Camera On/Off

    Instruction Manual Stand-alone DVR 7-4.1. Camera ON/OFF ▫ Click on each of the channels to select the “ or “ in the CAMERA menu. If the “ O” X” O” selected, the corresponding video channels (CAM 01 through CAM 016) will be displayed on the screen.

  • Page 91: 7-4.3. Buzzer

    7. Setup 7-4.3. Buzzer In order to alert users, the Buzzer will sound at that time video signal lost. ▫ Click on each of the channels you wish to turn the buzzer “ON” or “OFF”. If the “O” is selected, the buzzer will sound when video signal lost and if the “X” is selected, the buzzer won’t sound.

  • Page 92: 7-4.5. Pan/Tilt Settings

    Instruction Manual Stand-alone DVR 7-4.5. Pan/Tilt Settings Click the PAN/TILT button on the corresponding channels in the CAMERA menu and the ▫ PAN/TILT window will be displayed as shown in Fig.7-33. Click the (EXIT) button to return to the CAMERA menu. ▫...
  • Page 93 7. Setup ▫ Pan/Tilt Vendor select Click the “PAN/TILT & REMOTE” button in the PAN/TILT window and the vendor lists will show up. Select a vendor on the vendor lists by clicking the mouse. Fig.7-34 PAN/TILT & REMOTE [Fig.7-35 PAN/TILT Vendor lists] ▫...
  • Page 94 Instruction Manual Stand-alone DVR ▫ Baud rate Click the “BAUD RATE” button in the PAN/TILT window and choose a value among 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps and 115200bps on the Baud Rate pop-up window by clicking the mouse. [Fig.7-38 BAUDRATE button] [Fig.7-39 Baud Rate pop-up window] ▫...
  • Page 95 7. Setup ▫ Stop Bits Click the “STOP BITS” button in the PAN/TILT window and select 1 or 2 on the Stop Bits pop-up window by clicking the mouse. [Fig.7-42 STOP BITS button] [Fig.7-43 Stop Bits pop-up window] ▫ Parity Bit Click the “PARITY BITS”...

  • Page 96: 7-4.6 Display

    Instruction Manual Stand-alone DVR 7-4.6 Display ▫ Click the DISPLAY button in the CAMERA menu and select the ON or OFF. If the “ON” is selected, the camera name (camera title) in the LIVE mode will be displayed on the screen. If the “OFF”...

  • Page 97: Audio

    7. Setup 7-5. AUDIO ▫ Click on the AUDIO button in the SETUP menu and the AUDIO menu will be displayed on the screen. ▫ Click the UP/DOWN button on the right hand side of the menu to switch the page. ▫...

  • Page 98: Record

    Instruction Manual Stand-alone DVR 7-6. RECORD ▫ Click the “RECORD” button in the SETUP menu and the RECORD menu will be displayed as shown in Fig.7-52. ▫ Click the UP/DOWN button on the right hand side of the menu to switch the page. ▫...

  • Page 99: 7-6.2. All Manual / Timer Recording Button

    7. Setup 7-6.2. All Manual / Timer recording button ▫ Click the All Manual / Timer recording button in the RECORD menu and the All Manual / Timer recording button will be displayed as shown in Fig.7-55. ▫ Select the Manual Recording button or Timer Recording button for all the channels by clicking the mouse in Fig.7-55.

  • Page 100: 7-6.3. All Motion On / Off, Sensitivity And Velocity Setting

    Instruction Manual Stand-alone DVR 7-6.3. All Motion ON / OFF, Sensitivity and Velocity Setting ▫ Click the button in the RECORD menu and the ALL MOTION setup pop-up window will be displayed as shown in Fig.7-57. ▫ By clicking the mouse, select the on the pop-up window (See Fig.7-57) to enable the system to start recording by motion detection for all the channels.

  • Page 101: 7-6.4. All Sensors On / Off

    7. Setup 7-6.4. All Sensors ON / OFF ▫ Click the button in the RECORD menu and the ALL SENSOR setup pop-up window will be displayed as shown in Fig.7-60. ▫ By clicking the mouse, select the on the pop-up window (See Fig.7- 60) to enable the system to start recording by Sensor (Passive Infrared Sensor) for all the channels.

  • Page 102: 7-6.6. Recording Speed

    Instruction Manual Stand-alone DVR 7-6.6. Recording Speed ▫ Click the F/S (Frames Per Seconds: Recording Speed) button on each of the channels in the RECORD menu and the Recording Speed pop-up window will be displayed as shown in Fig.7-64. ▫ Select one of the Recording Speed among AUTO, 30, 15, 10, 7, 5, 3, 2, 1 and OFF on the pop-up window by clicking the mouse.

  • Page 103: 7-6.7. Recording Quality

    7. Setup NTSC [Fig.7-65 Recording Speed for each channel] 7-6.7. Recording Quality ▫ Click the QUALITY button on each of the channels in the RECORD menu and the QUALITY pop-up window will be displayed as shown in Fig.7-67. ▫ Select one of the Recording Quality among LOW, NORMAL, HIGH and BEST on the pop- up window by clicking the mouse.

  • Page 104: 7-6.8. Recording Mode

    Instruction Manual Stand-alone DVR Recording Mode 7-6.8. The factory default setting for Recording is the Manual Recording (or called Continuous Recording), which keeps recording continuously if the OVERWRITE is set ON in the DISK MANAGE menu. This Manual Recording mode is not only one of the most popular Recording modes for users, but also one of the most convenient Recording modes to use.

  • Page 105: 7-6.9. Recording By Motion Detection

    7. Setup 7-6.9. Recording by Motion Detection When the menu of motion properly setup (See section 7-6.3 on page 100 for all the channels and this section for each of the channels) and detects motion of objects, the system begins to record automatically. The recording icon on the MENU bar should be selected in this recording mode.
  • Page 106 Instruction Manual Stand-alone DVR ▫ Pre-Alarm Time Setup Allows you to record a section of video just prior to Motion or Sensor activation. Click the mouse on the PRE in the MOTION menu and choose one of the values among 0, 1, 2, 3, 4 and 5 seconds with the mouse’s wheel, and then click it to save.
  • Page 107 7. Setup ▫ Spot Setup If the “ON” is selected by clicking the mouse on the SPOT button in the MOTION menu, a full screen will display when a motion is detected. If the “OFF” is selected, the full screen won’t be displayed even though motion of objects is detected.
  • Page 108 Instruction Manual Stand-alone DVR - All Clear Click the ALL CLEAR button in the MOTION menu in order to clear the Motion Detection Area, and the window turns to white color as shown in Fig.7-77. Right-click on the current window to return to the MOTION menu. [Fig.7-76 ALL CLEAR button] CURSOR [Fig.7-77 All Cleared screen]...
  • Page 109 7. Setup By Window Set Click the WINDOW SET button in the MOTION menu on each of the cameras and click one of cells (330 cells in total) for the starting point of the area which you would like to designate, and then click the other one of cells for the ending point of area until the motion detection area is the size you want it to be.
  • Page 110 Instruction Manual Stand-alone DVR - Window Clear Click the WINDOW CLEAR button in the MOTION menu in order to clear the Motion Detection Area, and the window you already created the motion detection area will be displayed. Click the starting point and the ending point as much as you wish to clear or it can be cleared by ALL CLEAR as described above (See ALL CLEAR).
  • Page 111 7. Setup By Each Cell Click the EACH CELL button in the MOTION menu on each of the cameras and click the mouse on each of the cells as much as you would like to designate the Motion Detection Area. To clear, click the designated cells.
  • Page 112 Instruction Manual Stand-alone DVR ▫ Map View Click the MAP VIEW button in the MOTION menu to view the current settings for Motion detection area. Right-click on the current window to return to the MOTION menu. [Fig.7-84 MAP VIEW button] CURSOR [Fig.7-85 Map View screen] Please pay attention to the following directions in order to use the Motion...

  • Page 113: 7-6.10. Recording By Sensor (Pir Sensor)

    7. Setup 7-6.10. Recording by Sensor (PIR Sensor) ▫ Click the mouse on the button for each of the channels in the RECORD menu and the SENSOR menu will be displayed on the screen as shown in Fig.7-86. ▫ Click the (EXIT) button to return to the RECORD menu.
  • Page 114 Instruction Manual Stand-alone DVR ▫ Pre-Alarm Time Setup Allows you to record a section of video just prior to Sensor activation. Click the mouse on the PRE in the SENSOR menu and choose one of the values among 0, 1, 2, 3, 4 and 5 seconds with the mouse’s wheel, and then click it to save.
  • Page 115 7. Setup ▫ Alarm Hold Time Setup The system continues recording for the Alarm HOLD TIME and finishes the recording. Click the mouse on the HOLD in the SENSOR menu and choose one of the values among 1 through 30 seconds with the mouse’s wheel, and then click it to save. [Fig.7-90 Alarm Hold Time Setup button] ▫...

  • Page 116: Network

    Instruction Manual Stand-alone DVR 7-7. NETWORK ▫ Click the “NETWORK” button in the SETUP menu and the NETWORK menu will be displayed on the screen as shown in Fig.7-92. ▫ Click the (EXIT) button to return to the SETUP menu. [Fig.7-92 NETWORK menu] 7-7.1.

  • Page 117: 7-7.2. Gateway, Subnet, Ip Address

    7. Setup [Fig.7-93 IP Mode button] [Fig.7-94 IP Mode pop-up window] 7-7.2. GATEWAY, SUBNET, IP ADDRESS ▫ Click the GATEWAY / SUBNET / IP ADDRESS button in the STATIC IP MODE and the On Screen Keyboard will appear. ▫ Delete the current values with the button and enter the address numbers by using On Screen Keyboard, and then click OK button to set with new address.

  • Page 118: 7-7.3. Port

    Instruction Manual Stand-alone DVR 7-7.3. Port ▫ PORT is the TCP address of the program, which is used to connect to the network viewer. It can be set from 1 to 65535 values. ▫ Click the PORT button and the On Screen Keyboard will show up. ▫...

  • Page 119: 7-7.4. Mac Id

    MAC ID was already assigned with the factory default value. User can not change it. 7-7.5. MNS (MAC NAME SERVER) As a sort of DDNS, two servers in our company (CLOVER) are being operated so that our client can access DVR with a Dynamic IP address. If one of servers stops operating, the other one will automatically start working.
  • Page 120 Instruction Manual Stand-alone DVR ▫ IP ADDRESS / PORT DO NOT CHANGE THE IP ADDRESS AND PORT NUMBER IN THE MNS MENU IF YOU DON’T HAVE ANY SPECIAL SERVER TO ACCESS YOUR DVR WITH A DYNAMIC IP ADDRESS. IF YOU CHANGE THEM, YOU CAN’T NOT ONLY USE OUR MNS (MAC NAME SERVER), BUT ALSO YOUR NETWORKING WILL BE DISCONNECTED.

  • Page 121: 7-7.6. Ddns (Dynamic Domain Name System)

    7. Setup 7-7.6. DDNS (DYNAMIC DOMAIN NAME SYSTEM) ▫ Select the DDNS button in the NETWORK menu by clicking the mouse, pressing the buttons on the front panel or remote controller. The DDNS menu will show up as shown in Fig.7-103.
  • Page 122 Instruction Manual Stand-alone DVR HOST NAME ▫ - Click the HOST NAME in the DDNS menu and enter the HOST NAME that is registered to the DDNS service provider such as DYNDNS.ORG and NO-IP.ORG by using the On Screen Keyboard. - After changing the values, click on the OK button.

  • Page 123: 7-7.7. How To Setup And Use The Ddns

    7. Setup 7-7.7. HOW TO SETUP AND USE THE DDNS 7-7.7.1. Router. It has to be set as a virtual server (or port forwarding) in order to utilize the DDNS. There are a lot of manufacturers on the market. Please read the provided manual thoroughly before setting or visit our website at www.cloverusa.com in regards to do it.

  • Page 124: 7-7.8. Email Notification

    Instruction Manual Stand-alone DVR 7-7.8. EMAIL NOTIFICATION ▫ Email notification enables to notify events (sensor, motion, video loss, power on/off, power loss, record on/off, record fail, replay or copy start/stop) by sending emails to one or two email accounts. [Fig.7-108 Email Notification window]...
  • Page 125 7. Setup ▫ EMAIL ADDRESS SETUP [Fig.7-109 Email Address setup] - Click one of email address boxes and then the On Screen Keyboard will show up as shown Fig.7-109. - Delete the current email address with the button and enter an email address by using the On Screen Keyboard.
  • Page 126 Instruction Manual Stand-alone DVR ▫ EVENT Setup - Click the check boxes below to choose the events you need. - To delete, click the check box again. [Fig.7-111 Event setup] ▫ INTERVAL TIME Setup - Click the INTERVAL TIME (see Fig.7-112) to set the interval time of sending emails and then choose the time (in minutes) on the pop-up window by clicking the mouse.

  • Page 127: Video Enhance

    7. Setup If the motion is selected in Fig.7-112, you may receive numerous emails from the Note : DVR systems due to a couple of factors such as continuous moving objects, a strong and changing lighting source, low resolution and noises of cameras. In case of this, select a longer INTERVAL TIME and refer to “Note for Motion Detection Function”...

  • Page 128: 7-8.1. Video Enhancement On Each Camera

    Instruction Manual Stand-alone DVR 7-8.1. VIDEO ENHANCEMENT ON EACH CAMERA ▫ Click on an INPUT button in the VIDEO ENHANCE menu. ▫ The CONTRAST and BRIGHTNESS sliders will be displayed along with camera picture as shown in Fig.7-114. ▫ Adjust Contrast and Brightness with the sliders by clicking the mouse. ▫...

  • Page 129: 7-8.2. Video Enhancement On Vga Output

    7. Setup -8.2. VIDEO ENHANCEMENT ON VGA OUTPUT ▫ Click on the VGA OUTPUT in the VIDEO ENHANCE menu. ▫ The CONTRAST, BRIGHTNESS and SATURATION sliders will be displayed along with camera picture. ▫ Adjust Contrast, Brightness and saturation with the sliders by clicking the mouse. ▫...
  • Page 130 Instruction Manual Stand-alone DVR...

  • Page 131: Remote Host Program

    8.Remote Host Program...
  • Page 132 Instruction Manual Stand-alone DVR CONTENTS 8-1. R ..................... 133 EMOTE ROGRAM VERVIEW 8-2. I PC ..................134 NSTALLING THE ROGRAM TO 8-3. I ......................135 NTERNET XPLORER 8-4. R ........................137 EMOTE 8-4.1. Setup ............................139 8-4.2. Connection ..........................141 8-4.3.

  • Page 133: Remote Program Overview

    8. Remote Host Program 8-1. Remote Program Overview The Remote Host Program allows you to view live video, search archived video, control PTZ cameras and to set up the exact same menus as the DVR does. The DVR system can have up to 10 simultaneous Remote Connections. Each user can performs on the DVR system and will not affect the other users.

  • Page 134: Installing The Program To Pc

    Instruction Manual Stand-alone DVR 8-2. Installing the Program to PC Install the program into PC by using program CD (supplied) as follows. How to install the program 1. Start the operating system (Windows 2000/XP/VISTA). 2. Insert the program CD into CD-ROM drive. 3.

  • Page 135: Internet Explorer

    8. Remote Host Program 8-3. Internet Explorer When you are trying to use this function, it is highly recommended that the password should be turned ON in the SYSTEM menu not to enable unauthorized personnel to access your DVR system (See section 7-2.3). Up to 10 users can remotely access your DVR with the HOST NAME.
  • Page 136 Stand-alone DVR • Click on the following message. This site wants to install the following add-on: ‘DVR Master’ from ‘Clover Electronics USA’. If you trust the website and the add-on and want to install it, click here…. • Click on the click install ActiveX Control…. on the pop-up screen and the following window will be displayed.

  • Page 137: Remote Host

    8. Remote Host Program 8-4. Remote Host ① ② ③ ④ ⑤ ⑥ ⑦ ⑧⑨⑩ ⑪ ○ ○ ○ ○ ○ [Fig 8-5. DVR Master]...
  • Page 138 Instruction Manual Stand-alone DVR Table. Description of Remote Host Program Button Minimization Button ① ② Close Button Current Time ③ Connection Button ④ Setup Button ⑤ Player Execution Button ⑥ Capture Button ⑦ Multi-Mode ⑧ Terminal Mode ⑨ E-map Button ⑩...

  • Page 139: 8-4.1. Setup

    8. Remote Host Program 8-4.1. Setup ① ② ③ ④ [Fig.8-6 HOST CONFIG window] ① Version number It represents the current version number of the Firmware. ② Copy Refer to Section 8-4.10 in regards to copying methods after selecting one between the Quick Copy and the Live + Copy.
  • Page 140 Instruction Manual Stand-alone DVR ③ Network Image ▫ Size Choose a Size (Resolution) among D1, Half D1 and CIF you wish to display on the DVR Master by clicking the mouse. This setting does not affect the DVR. ▫ Quality Choose one among LOW, NORMAL, HIGH and BEST you wish to display on the DVR Master by clicking the mouse.

  • Page 141: 8-4.2. Connection

    8. Remote Host Program 8-4.2. Connection There are two ways to access the DVR through the DVR Master as follows. ▫ With Set Direct setting - Click the “CONNECT” button on the DVR Master and the “Connect Dialog menu” as shown in Fig.

  • Page 142: 8-4.3. Capture

    Instruction Manual Stand-alone DVR [Fig.8-8 Connect Dialog] 8-4.3. Capture The current images on the screen will be captured and saved in the Printed Files (Open Windows Explorer – click My Computer – click Program Files – click DvrMaster – click Printed Files). To play captured images, double-click one of JPEG Images in the Printed Files.

  • Page 143: 8-4.4. Status

    8. Remote Host Program 8-4.4. Status If the Status button on the DvrMaster is selected by clicking the mouse, the DvrMaster displays the DVR’s status related to connections of cameras, sensors, relay outputs and remaining HDD (Hard Disk Drive) capacity available for recording. Status button [Fig.9-9 STATUS MODE]...

  • Page 144: 8-4.5. Replay

    Instruction Manual Stand-alone DVR 8-4.5. Replay It is possible to replay the recorded data from the DVR system by using the Replay button in Fig.8-10 in the Multi mode only (refer to section 8-4.9.2). - Click the Replay button as shown in Fig.8-10 to playback the recorded data from the DVR system, and then the Replay Time Setup Window will be displayed.
  • Page 145 8. Remote Host Program ▫ Playback Control Playback Control Buttons [Fig 8-12. Playback control] Playback control buttons : Button for fast rewinding up to 128 times by repeatedly pressing. : Button for viewing previous frame in still image. : Play button. : Button for viewing the next frame in still image.

  • Page 146: 8-4.6. Copy

    Instruction Manual Stand-alone DVR 8-4.6. COPY It is possible to copy the recorded data from the DVR system to a client PC by using the Copy button in Fig.8-13 in the Multi mode only (refer to section 8-4.9.2). - Click the Copy button as shown in Fig.8-13 to copy the recorded data from the DVR system to a PC, and then the Copy Time Setup Window will be displayed.
  • Page 147 8. Remote Host Program “ALL” in yellow represents that all the cameras are selected. The camera channel number(s) in yellow represents that the corresponding channel(s) are selected. - Click the Copy ( ) button and then the copying progressive bar as shown Fig.8-15 will show up.

  • Page 148: 8-4.7. Switch The Normal Screen To Full Screen

    Instruction Manual Stand-alone DVR 8-4.7. Switch the Normal Screen to Full Screen Click the “FULL SCREEN” button on the DvrMaster as shown Fig.8-16 and the current screen ▫ size will be enlarged to fit the monitor’s screen size, but the resolution will be lowered. “FULL SCREEN”...

  • Page 149: 8-4.8. Speaker / Microphone

    8. Remote Host Program 8-4.8. Speaker / Microphone ① ② ③ ④ ⑤ Speaker / Microphone] [Fig.8-18 Buttons of Remote Host Program ① Audio Input channel selection: Select the same audio channel as the DVR has. ② PC Speaker ON/OFF: Turn the Speaker ON or OFF by clicking the mouse. ③...

  • Page 150: 8-4.9. Connection Mode

    Instruction Manual Stand-alone DVR 8-4.9. Connection mode There are two kinds of connection mode (See Fig.8-19) on the DvrMaster. Select one of them by clicking the mouse depending on your application. Connection mode [Fig.8-19 Connection Mode] 8-4.9.1. Terminal mode The functions of icons such as Recording, Play, Copy, Setup, System Status, Pan/Tilt, Display, Zoom and OSD on the bottom of the screen are identical to ones DVR system has.

  • Page 151: 8-4.9.2. Multi Mode

    8. Remote Host Program 8-4.9.2. Multi mode It is impossible to control (Recording on/off, Setup, System Status, Display and OSD) the DVR system in the Multi mode except Replaying and Copying (See section 8-4.5, 8-4.6 on page 144-147), but the image of channel 16 will always display on the monitor and the DvrMaster. - Click the Multi mode button to choose the Multi mode as shown in Fig.8-20.

  • Page 152: 8-4.10. Copy In The Terminal Mode

    Instruction Manual Stand-alone DVR 8-4.10. Copy in the Terminal mode There are four icons such as NETWORK, USB, CD and DVD in the COPY menu of the Multi mode. The recorded data will be saved in the Backup Files (Open Windows Explorer – click My Computer - click the Program Files –...
  • Page 153 8. Remote Host Program [Fig.8-22 Copying in the Terminal mode] [Fig.8-23 Copy Completion]...

  • Page 154: 8-4.11 E-Map

    Instruction Manual Stand-alone DVR 8-4.11 E-Map E-Map enables users to display the cameras on the digital map for better monitoring. The digital map should be a BMP file and you can make it (the higher resolution the better) or use the E-map samples saved in the E-map folder (See Fig.8-26). E-Map mode [Fig.8-24 E-Map MODE] 8-4.10.1.

  • Page 155: 8-4.10.2. Placement Of Cameras On The Map

    8. Remote Host Program - To rename, right-click a saved eMap list and click “Rename” on the pop-up window as shown Fig.8-27. - To delete, right-click a saved eMap list and click “Delete eMap” on the pop-up window as shown in Fig.8-28.

  • Page 156: 8-4.10.3. Usage Of Camera Position

    Instruction Manual Stand-alone DVR 8-4.10.3. Usage of camera position The small squares with channel numbers on the map indicate the camera position. The blue screen represents that the corresponding camera is not connected to the DVR system. - Double-click the image to display a full screen. - To change the camera position, click the image and drag the mouse and drop on the map.

  • Page 157: 8-4.12 Pan / Tilt & Preset

    8. Remote Host Program 8-4.12 Pan / Tilt & Preset You can control the PTZ camera through DvrMaster. This feature is basically identical to what the DVR system has. Refer to section 6-7.7 PAN/TILT on page 47. CHANNEL SELECT PAN / TILT FOCUS ZOOM PRESET / RUN...

  • Page 158: Player

    Instruction Manual Stand-alone DVR 8-5. PLAYER ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑫ ⑪ [Fig.8-32 Player] Chart. Button of Player Program Status window (Play mode, Date, Time) ① Calendar ② Convert to AVI File ③ Search button for replaying ④...
  • Page 159 8. Remote Host Program ① Status window (Play mode, Date, Time) It indicates the play mode, date and time. [Fig.8-33 Status window] ② Calendar It shows the date currently being replayed. [Fig.8-34 Calendar] ③ Convert AVI File Convert the recorded files to AVI files. - Click the Convert AVI button on the Player and the Convert AVI window will be displayed (See Fig.8-35).
  • Page 160 Instruction Manual Stand-alone DVR [Fig.8-35 Convert AVI window] [Fig.8-36 Backup Files by Networking] [Fig.8-37 DvrRecData by USB]...
  • Page 161 8. Remote Host Program [Fig.8-38 Select one of the Channels] [Fig.8-39 Start Convert Button] How to play the AVI files By using Windows media player: - Click the OPEN button on the Convert AVI window and double click one of the AVI files to play. The AVI files will save in the AVI Files folder (Open Windows Explorer –...
  • Page 162 Instruction Manual Stand-alone DVR ④ Search button for Replaying - Click the Search button on the Player and the Browse for Folder will be displayed. - Select the folder that contains the recorded data and click the OK button on the Browser for Folder.
  • Page 163 8. Remote Host Program [Fig.8-40 Print command window] [Fig.8-41 Print image] ⑦ Division button Select one of the following divisions while replaying. Full Screen 4 Division Screen 9 Division Screen 16 Division Screen [Fig.8-42 Division button] ⑧ Playback (Replay) Speed Control Move the slider with the mouse to control the replaying speed.
  • Page 164 Instruction Manual Stand-alone DVR ⑨ Search slider for replaying The slider can be moved left and right by clicking the slider on the bar and dragging it or just click the bar to search the recorded data. [Fig.8-44 Replay Search Slider] ⑩...

  • Page 165: Installation Of Additional Hdds

    9.Installation of additional HDDs CONTENTS 9-1. HDD (H ) INSTALLATION ................166 RIVE 9-2. I HDD .................. 167 NSTALLATION OF AN ADDITIONAL...

  • Page 166: Hdd (Hard Disk Drive) Installation

    Instruction Manual Stand-alone DVR 9-1. HDD (Hard Disk Drive) INSTALLATION ▶ Three of internal Hard Disk Drives (HDD) and a CD R/W or DVD R/W can be installed in the system. DVR manufacturer already installed a 500GB of Hard Disk Drive (IDE) and a DVD R/W.

  • Page 167: Installation Of An Additional Hdd

    9. Installation of additional HDDs 9-2. Installation of an additional HDD ▶ Set the jumper setting to “Cable Select” position on the additional HDD. Be sure that the jumper setting is correct. If not, the system will not Note: recognize the additional HDD. ▶...
  • Page 168 Instruction Manual Stand-alone DVR...

  • Page 169: Appendix

    APPENDIX CONTENTS ......................170 ECORDING TIME TABLE ...................... 171 ACTORY DEFAULT SETTINGS...
  • Page 170 Instruction Manual Stand-alone DVR Recording time table HDD: 500GB, Based on 16 cameras Recording Resolution : CIF(320 X 240) DAYS Each CH 30 fps 15 fps 10 fps 7.5 fps 5 fps 3 fps 2 fps 1 fps (16CH/fps) (480fps) (240fps) (160fps) (120fps)

  • Page 171: F Actory Default Settings

    Factory default settings (1) LIVE SCREEN 16 SPLIT OSD ON (2) TIME / DATE DISPLAY: ON TIME FORMAT: 24 HOUR DATE FORMAT: MM/DD/YYYY (3) LOAD / BACKUP CONFIG NONE LISTS (4) USER ACCOUNT PASSWORD: SET YOUR PASSWORD (THE PASSWORD IS NULL) PASSWORD ON/OFF: OFF (5) IR REMOTE ID (6) HDD OVERWRITE...
  • Page 172 Instruction Manual Stand-alone DVR (8) AUDIO (9) RECORD RECORD ICON DISPLAY: ON SIZE: ALL HALF D1 (704 X 240) FPS: ALL 15 fps QUALITY: ALL HIGH MODE: ALL MANUAL RECORD MODES SENSITIVITY: HIGH - TIMER RECORD ACTIVE: ALL OFF TIMER: ALL 00: 00 – 24: 00 - MOTION DETECT: OFF PRE: 1 sec.
  • Page 173 (10) NETWORK TYPE: DYNAMIC PORT: 5800 MNS: DISABLE SERVER 1 MODE: DISABLE SERVER 1 IP ADDRESS: 65.60.84.15 SERVER 1 PORT: 300 SERVER 2 MODE: DISABLE SERVER 2 IP ADDRESS: 221.149.149.117 SERVER 2 PORT: 300 SERVER SITE NAME: SXXXXXX (MAC ADDRESS) DDNS: DISABLE SERVER: DISABLE EMAIL: DISABLE...
  • Page 174 Instruction Manual Stand-alone DVR...

  • Page 175: Faq

    CONTENTS ........................176 CAN NOT LOGIN...

  • Page 176: Ican Not Login

    Instruction Manual Stand-alone DVR I can not login ▶ Please check if the link LED of DVR and LAN port of PC are lit. ▶ Please check if the IP address on DVR and the PC is identical. Check SYSTEM STATUS by pressing STATUS button of DVR MY IP: xxx.xxx.xxx.xxx Check Target IP Address by clicking CONF button of PC host program.

  • Page 177: Limited 2Year Warranty

    Limited 2Year Warranty This warranty gives the original purchaser specific legal rights and you may also have other rights, which may vary from state to state. If our products do not function because of any defect in material or workmanship, we will repair it for free for 2 year on parts and labor from the date of original purchase.

  • Page 178: How To Obtain Factory Service

    Instruction Manual Stand-alone DVR How to obtain Factory Service • Original purchaser must fill out the warranty card and mail it to the factory with the model number, serial number and the date of purchase. • We will repair or replace, and return the system to the owner under this limited warranty. •...

Table of Contents
